Sida 1/8

The product complies with the European Safety Standards EN60335:2-30 08/54315/0 Issue 1

As with all portable heating appliances: This product is suitable only for well insulated spaces or occasional use.

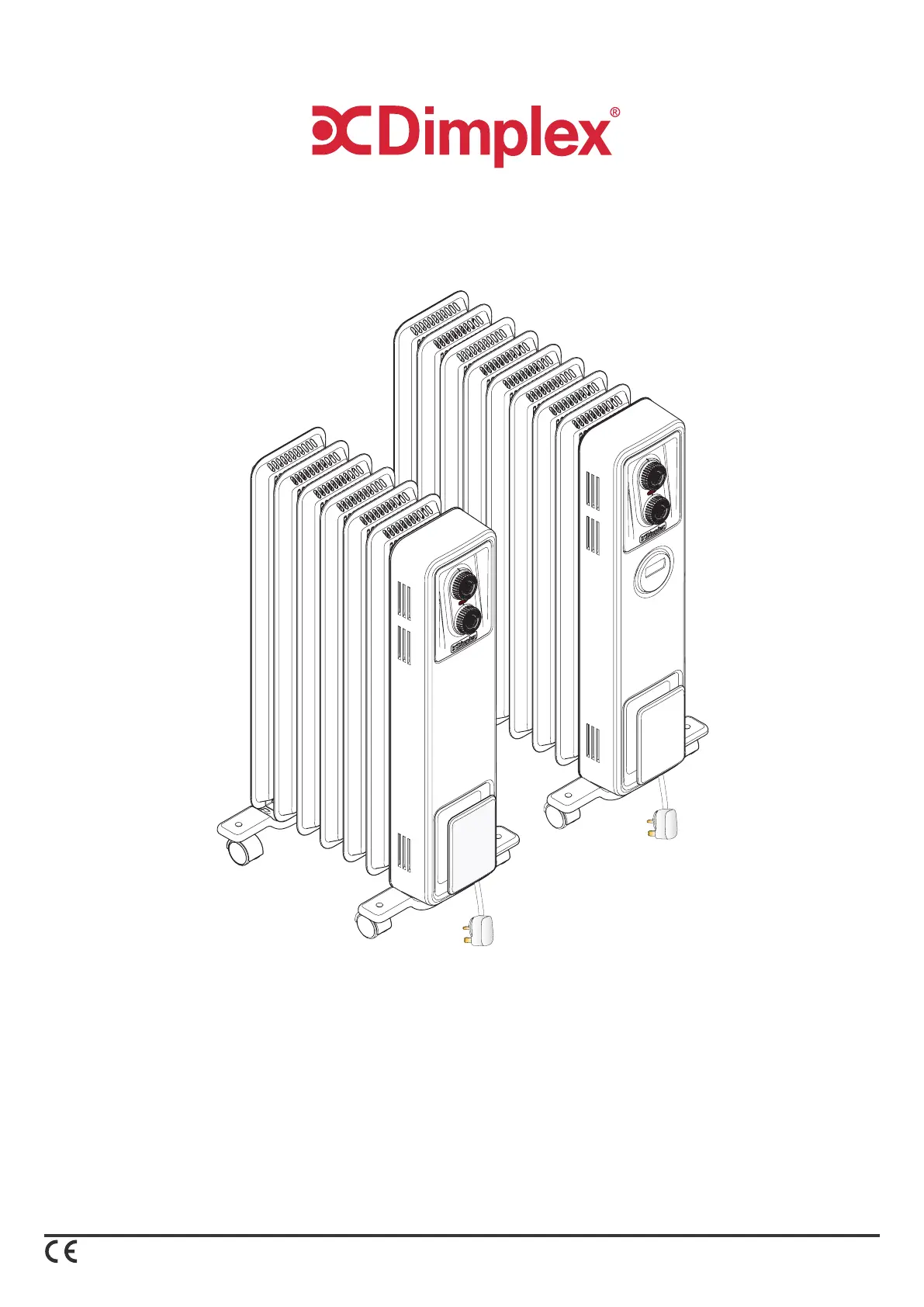

Dry Column Heater

ECR15, ECR15Ti, ECR20, ECR20Ti & ECR20Tie

Designed to provide gentle background heating, to take the chill o a room. Ideally to be used with a principal

source of heating.

ECR15

ECR20Tie

Installation and Operating Instruction

away unless continuously supervised.

Children aged from 3 years and less than 8 years

shall only switch on/o the appliance provided

that it has been placed or installed in its intended

normal operating position and they have been

given supervision or instruction concerning

the use of the appliance in a safe way and

understand the hazards involved. Children aged

from 3 years and less than 8 years shall not plug

in, regulate and clean the appliance or perform

user maintenance.

CAUTION: Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

This radiator complies with stringent safety

standards but to ensure ecient operation

SURFACES OF THE RADIATOR WILL BECOME

HOT AND CONTACT WITH THESE AREAS

SHOULD BE AVOIDED, particularly between the

ns.

The control panel area is designed to be cooler

and allow safe operation of the controls at all

times.

IMPORTANT: The feet supplied with the

appliance must be used.

DO NOT use this heater if it has been dropped

DO NOT use if there are visible signs of damage

to the heater

Use this heater on a horizontal and stable

surface.

WARNING: Servicing and product repairs

should only be undertaken by the manufacturers

approved service agent. Repairs should only be

made by the manufacturer or his service agent.

WARNING: To reduce risk of re, keep textiles,

curtains, or any other ammable material a

minimum distance of 1m from the appliance

WARNING: We do not recommend the use of

this appliance connected through an extension

lead or any external switching device such as a

plug in timer or remote control plug in adaptor.

All heating appliances draw high current

through the mains supply and any weakness in

the connections or components in these devices

can result in overheating of connections which

may result in melting, distortion and even the

risk of re!

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY BEFORE USE AND RETAINED FOR FUTURE REFERENCE

IMPORTANT SAFETY ADVICE

WARNING: To avoid danger of suocation please

remove all packaging materials particularly

plastic and EPS and keep these away from

vulnerable people, children and babies.

WARNING: To avoid the risk of accidental

strangulation from the supply cord all children

and vulnerable people must be supervised

when in the vicinity of the product whether it is

working or not.

DO NOT use the heater in the immediate

surroundings of a bath, a shower or a swimming

pool.

DO NOT place the heater directly below a

xed socket outlet. The socket-outlet must be

accessible at all times to enable the mains plug

to be disconnected as quickly as possible.

DO NOT cover the product.

The heater carries a warning symbol

to alert the user to the risk of re

that exists if the heater is accidentally

covered

DO NOT obstruct the air circulation around the

radiator, for example with curtains or furniture,

as this could cause overheating and a re risk.

See ‘Positioning the Radiator’.

DO NOT use this heater in small rooms when

they are occupied by persons not capable of

leaving the room on their own, unless constant

supervision is provided.

IMPORTANT: If the mains lead of this appliance

is damaged, it must be replaced by the

manufacturer or its service agent or a similarly

qualied person in order to avoid a hazard.

WARNING: In order to avoid a hazard due to

inadvertent resetting of the thermal cut-out,

this appliance must not be supplied through

an external switching device, such as a timer, or

connected to a circuit that is regularly switched

on and o by the utility.

This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience or knowledge if they have been given

supervision or instruction concerning the use of

the appliance in a safe way and understand the

hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall

not be made by children without supervision.

Children of less than 3 years should be kept

ELECTRICAL CONNECTION

WARNING THIS APPLIANCE MUST BE EARTHED

If the socket outlets in your home are not of the 13 amp BS1363

type they will not accept the plug connected to this heater,

therefore cut o the plug. When cut o this plug can constitute

a shock hazard if inserted into a socket outlet. It must therefore

be disposed of safely.

IMPORTANT: The wires in this mains lead are coloured in

accordance with the following code:

BLUE: NEUTRAL

BROWN: LIVE

GREEN & YELLOW: EARTH

As the colours of the wires in the mains lead may not

correspond with the coloured markings in your plug, proceed

as follows:

Connect the BROWN wire to the terminal marked ‘L’ or

coloured RED. Connect the BLUE wire to the terminal marked

‘N’ or coloured BLACK. Note: ‘L’ or ‘N’ must not be connected

to the EARTH terminal marked ‘E’ or ‘ ’ or coloured GREEN

or GREEN AND YELLOW. If in doubt, consult your electrician.

Assembly and Posi

FITTING THE CASTORS

WARNING The radiator must only be operated

with the wheels and castors tted and in the

upright position.

The castors must be tted to the control panel and on

the bracket between the last and second last n on the

opposite end, as shown in Fig.1.

To t the castors, turn the radiator upside down on a

carpet or other soft surface to avoid damage

WARNING : THE RADIATOR IS HEAVY – ENSURE

THAT IT IS SUPPORTED TO PREVENT IT FROM

TOPPLING. Ask a second person to help with this if

necessary.

To t the castors, position the castor plates (A) in

position and secure using the wing bolts . there (B)

are guides to ensure the correct positioning and

orientation of the caster plate.

Return the radiator to the correct orientation so it rests

on the castors. The product is now ready for use.

Fig. 1

This instruction leaet belongs to the appliance

and must be kept in a safe place. If changing

owners, the leaet must be surrendered to the

new owner.

DO ENSURE that the mains lead cannot be

tripped over.

DO NOT operate the radiator with the mains lead

overhanging the ns.

The heater must be on a at stable surface when

in use.

If the radiator is tipped over, unplug it and allow

it to cool before standing it back up

DO NOT pull the radiator along by the mains lead.

The supply cord should be uncoiled before use.
