08/53301/0 (UK) Issue 6

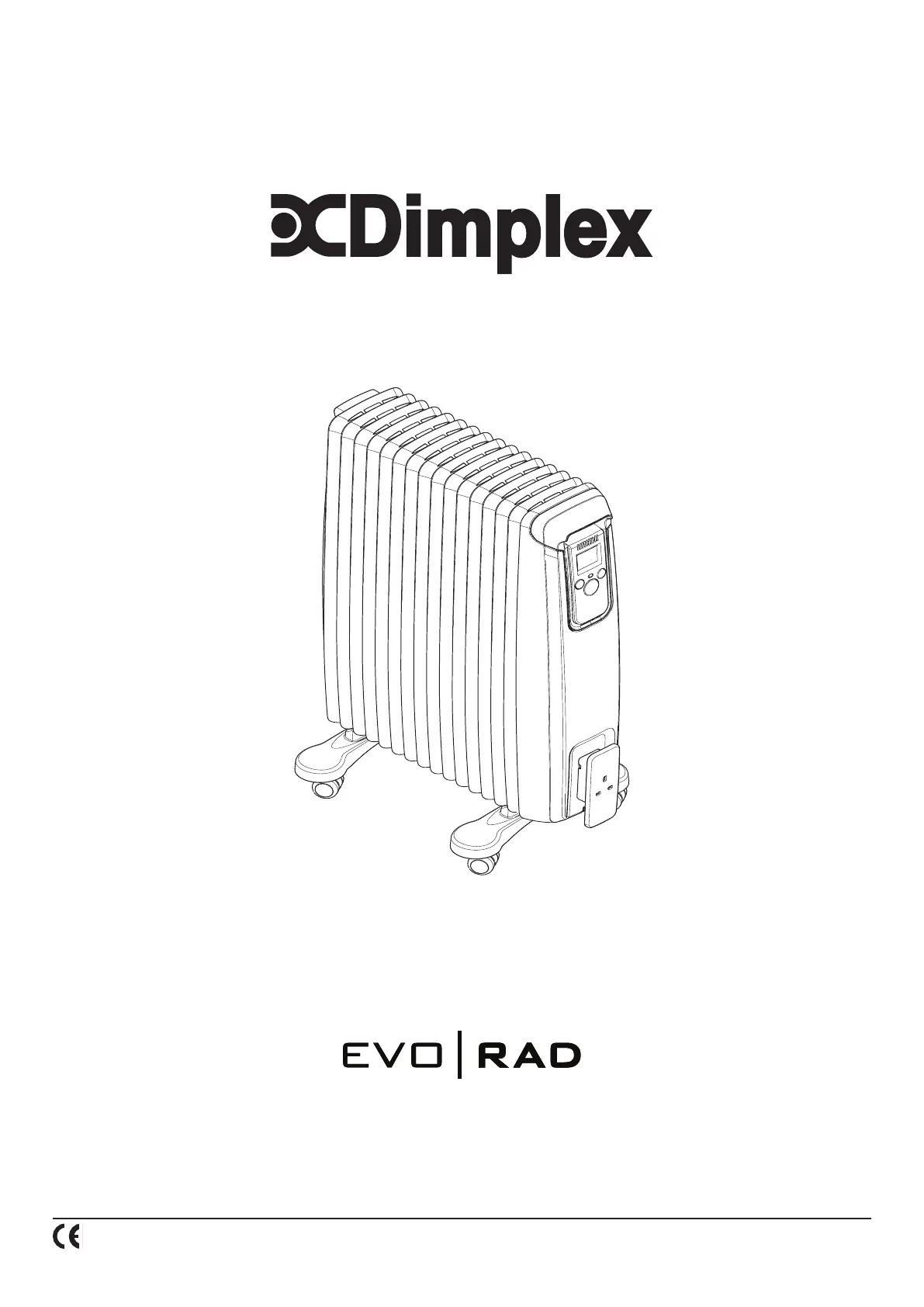

EvoRad2E

THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

As with all portable heating appliances - This product is only suitable for well insulated spaces or occasional use

The product complies with the European Safety Standards EN60335:2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014:1,

EN55014:2, EN61000:3-2 and EN61000:3-3 which cover the essential requirements of EMC Directive 2014/30/EU and the LVD Directive 2014/35/EU.

Neon

Stand By

LCD Display

Temperature

Decrease

Temperature

Increase

Desired

Temperature

Frost protecon

Symbol

Cable wrap &

plug oragest

Time period

(Hours)

Model Identier(s): EvoRad2E

Heat output

Nominal heat output Pnom 2.0 kW

Minimum heat output (indicative) Pmin 0.8 kW

Maximum continuous heat output Pmax,c 2.0 kW

Auxiliary electricity Consumption

At nominal heat output elmax 0.0 kW

At minimum heat output elmin 0.0 kW

In standby mode elSB 0.0005 kW

Type of heat output/ room temperature control

With electronic thermostat room temperature control Yes

Contact details GDHVI, Barn Road,

Dunleer, Co. Louth, Ireland,

A92 WV02

Model Description Watts

EvoRad2E 2kW Oil free radiator with Electronic Thermostat 2000

Important Safety Advice

IMPORTANT: If the appliance is damaged,

check immediately with the supplier before

installation and operation.

This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental capabilities

or lack of experience or knowledge if they have

been given supervision or instruction concerning

the use of the appliance in a safe way and

understand the hazards involved. Children shall

not play with the appliance. Cleaning and user

maintenance shall not be made by children

without supervision.

Children of less than 3 years should be kept

away unless continuously supervised. Children

aged from 3 years and less than 8 years shall

only switch on/off the appliance provided that

it has been placed or installed in its intended

normal operating position and they have been

given supervision or instruction concerning

the use of the appliance in a safe way and

understand the hazards involved. Children aged

from 3 years and less than 8 years shall not plug

in, regulate and clean the appliance or perform

user maintenance.

CAUTION: Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

WARNING: In order to avoid overheating, do

not cover the heater.

This heater carries the warning symbol

indicating that it must not be covered.

WARNING: DO NOT use the heater in the

immediate surroundings of a bath, a shower or

a swimming pool. This heater must not be used

in a bathroom.

DO NOT place the heater directly below a xed

socket outlet.

We recommend that you open a window to

ventilate the room when using the heater for

the rst time.

Unplug the heater when not required for long

periods.

IMPORTANT: If the mains lead of this appliance

is damaged, it must be replaced by the

manufacturer or its service agent or a similarly

qualied person in order to avoid a hazard.

DO NOT use the heater where gas, petrol, paint

or other inammable goods are used or stored.

Warning: The heater complies with stringent

safety standards but to ensure efcient operation

SURFACES OF THE HEATER WILL BECOME

HOT AND CONTACT WITH THESE AREAS

SHOULD BE AVOIDED, particularly between

the ns on the top and sides.

Always ensure that the appliance is stood on a rm, level

base near to, but not directly beneath, a suitable xed

socket outlet.

The heater is tted with castors and a handle for ease of

movement.

It is supplied with a cord and plug ready for use.

The supply cord should be uncoiled before use (see

‘Storage’).

DO NOT pull the heater along by the mains lead.

Fitting the castors

WARNING: DO NOT OPERATE THE HEATER WITHOUT

THE TWO FOOT & CASTOR ASSEMBLIES SECURELY

FITTED.

WARNING: THE HEATER IS HEAVY, TAKE CARE WHEN

LIFTING AND ENSURE THAT IT IS WELL SUPPORTED

DURING ASSEMBLY AND USE TO PREVENT IT FROM

TOPPLING OVER CAUSING INJURY OR DAMAGE.

Fitting the Foot & Castor Assemblies (Refer to Fig.2)

1. Remove the box containing the foot & castor assemblies

from the product packaging.

2. Carefully turn the heater upside down supporting it on a

soft surface (to avoid damage), request the assistance of a

second person if required.

3. Remove the rst set of foot xing screws from the bottom

of the ns identied by a label and set aside carefully. Line

up the rst foot as indicated in g.2 and press it down into

position, drop the two foot xing screws into the two screw

bosses and tighten each one fully with your screw driver.

4. Repeat the above process (3) for the second set of

xing screws on the second n indicated by a label. Once

completed do a nal check to ensure that both feet are

secured properly.

5. Lift and turn the heater upright again (with assistance if

required) and stand it on its castors as shown in g.1, it is

now ready for use.
