08/50836/4 Issue 4

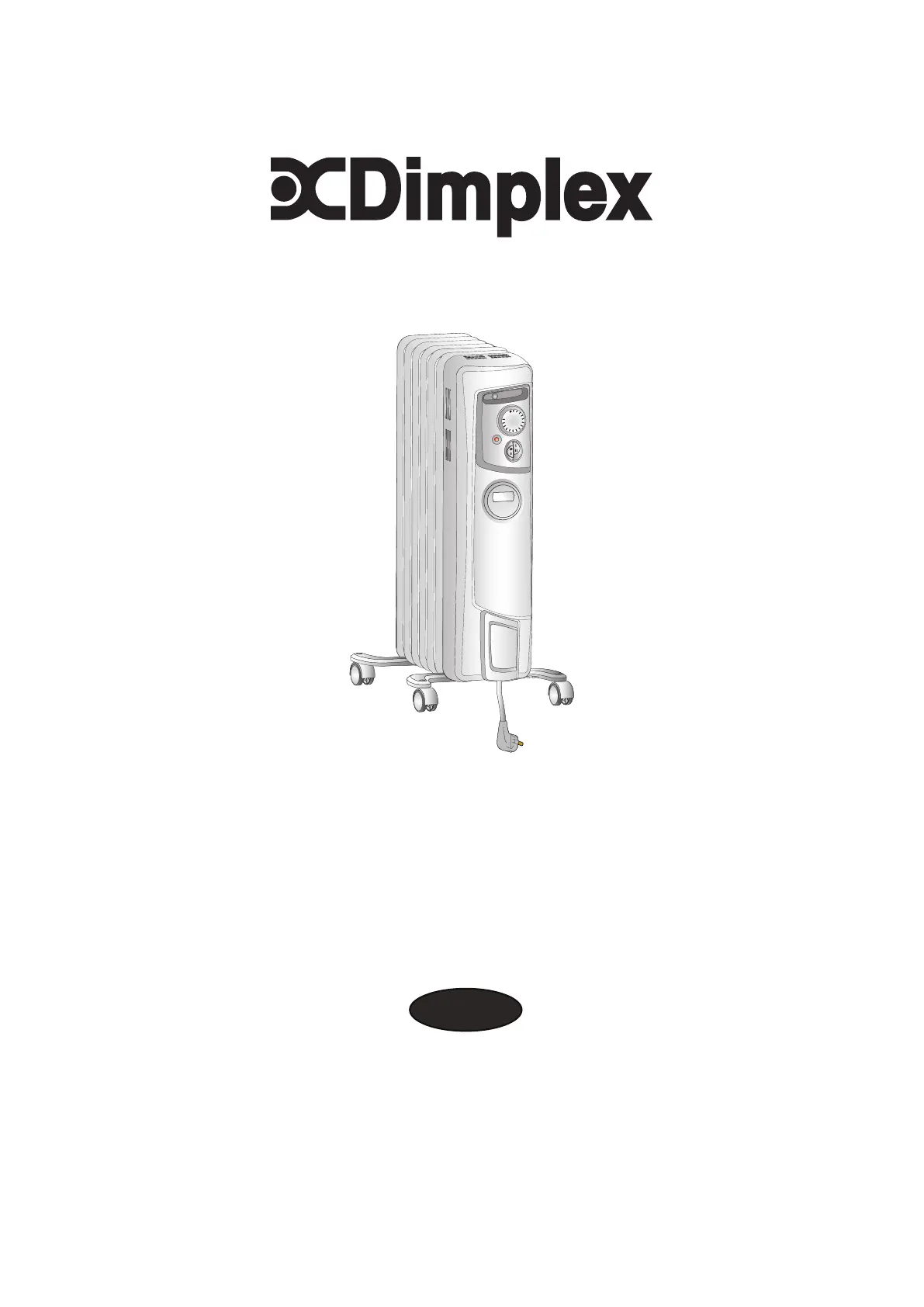

OFC1200, OFC1500, OFC2000, OFC2400, OFC1200TI
OFC1500TI, OFC2000TI, OFC2400TI, OFC1500TIF & OFC2400TIF
AUS/NZ
OFC1500Ti
2
1
All models
4
5
7
13 17:
ON
DLY
OFF
BLK
AD NCEVA
AUTO MAN ON
P1
On/Off see
Table 1
All models
}
All TIF models
A
B
C
3a
3b
5 & 7 nFi
9 & 11 nFi OFC1200
B
A
B
A
OFC2000
OFC2400
B
A
B
A
OFC1500
Thermostat
Neon
On/Off
Heat Switches
7 Day Timer
Cable wrap
Turbo nFa
6
(S1)
All TI & TIF models
Model Description Watts
OFC1200 5 Fin, Thermostat, 2 Heat Settings, Neon 1200
OFC1200TI 5 Fin, Thermostat, 2 Heat Settings, Neon, Electronic Timer 1200
OFC1500 7 Fin, Thermostat, 2 Heat Settings, Neon 1500
OFC1500TI 7 Fin, Thermostat, 2 Heat Settings, Neon, Electronic Timer 1500
OFC1500TIF 7 Fin, Thermostat, 2 Heat Settings, Neon, Electronic Timer, Turbo 1500
OFC2000 9 Fin, Thermostat, 2 Heat Settings, Neon 2000
OFC2000TI 9 Fin, Thermostat, 2 Heat Settings, Neon, Electronic Timer 2000
OFC2400 11 Fin, Thermostat, 2 Heat Settings, Neon 2400
OFC2400TI 11 Fin, Thermostat, 2 Heat Settings, Neon, Electronic Timer 2400
OFC2400TIF 11 Fin, Thermostat, 2 Heat Settings, Neon, Electronic Timer, Turbo 2400
Important Safety Advice
IMPORTANT: If the appliance is damaged,
check immediately with the supplier before
installation and operation.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they
have been given supervision or instruction
concerning the use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised. Children
aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that
it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Children
aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance
or perform user maintenance.
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
This heater carries the warning symbol
indicating that it must not be covered.
DO NOT use the heater where gas, petrol, paint
or other inammable goods are used or stored.
DO NOT use the heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
WARNING: This heater must not be used in
a bathroom.
DO NOT place the heater directly below a xed
socket outlet.
WARNING: In order to avoid overheating, do
not cover the heater.
We recommend that you open a window to
ventilate the room when using the heater for
the rst time.
DO NOT use this heater if it develops a leak.
Unplug the heater and contact your supplier
or service agent.
IMPORTANT: If the mains lead of this appliance
is damaged, it must be replaced by the
manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
Unplug the heater when not required for long
periods.
General
The radiator is designed for operation on an AC electricity supply, and is
suitable for use in domestic dwellings and similar indoor locations.
Always ensure that the appliance is stood on a rm, level base near to, but
not directly beneath, a suitable xed socket outlet.
The radiator is tted with castors and a handle for ease of movement. Selector
switches provide a choice of heat output and an adjustable thermostat enables
the room temperature to be controlled accordingly. It is supplied with a cord
and plug ready for use. The supply cord should be uncoiled before use (see
‘Storage’). DO NOT pull the radiator along by the mains lead.
Important: The radiator must only be operated with the wheels and castors
tted and in the upright position as shown in Fig.1 and Fig.3B.
Warning: The heater complies with stringent safety standards but to ensure
efcient operation surfaces of the heater will become hot and contact with
these areas should be avoided, particularly between the ns on the top and
sides. The control panel area is designed to be at a far lower temperature to
allow the safe operation of the controls at any time.
Electrical
WARNING: THIS APPLIANCE MUST BE EARTHED
This heater must be used on an AC~ supply only and the voltage marked on
the heater must correspond to the supply voltage. Do not switch the appliance
on until properly installed. Please read all the safety warnings and operating
instructions before use. If you use this heater in conjunction with a thermal
control, programme controller, timer or any other device which switches the
heater on automatically observe all safety warnings at all times.
Fitting the castors
The castors can only be tted between the outer ns (as shown in Fig. 2).
Turn the radiator upside down on a carpet or other soft surface to avoid
damage.
WARNING: The radiator is heavy, ensure that it is supported to prevent it
from toppling. Ask a second person to help with this if necessary. Locate
the wire clamps and remove the winged nuts (see ‘C’) in Insert the Fig.3A.
non-threaded end of the wire clamp ‘A’ into one of the holes in the castor
plate ‘B’ as shown in Fig.3A, at the same time tilting the opposite end of the
plate slightly. Lower the castor plate and insert the threaded end of the clamp
through the ns and over the boss and into the other hole in the castor plate.
Place the winged nut ‘C’ on the thread and tighten it securely.
Repeat the process for the other castor bracket onto the last n.
Note: The 9 and 11 n column radiator models - use straight castor brackets
and must be tted as shown in Fig.2.
Lift the radiator clear of the oor, then turn it back upright and stand it on its
castors as shown in and . It is now ready for use.Fig.1 Fig.3B
Positioning the Heater
Select the position for the radiator ensuring there is clearance from any
furniture and ttings of at least 300mm above the heater and 150mm each
side. The radiator should only be operated on a at stable surface.
Operation
Important: Objects or clothing must not be placed on this heater. Before using
the heater ensure that all warnings and instructions have been read carefully.
To bring the heater into use plug it in. Neon indicating lights located at the
controls area will cycle on and glow when the appliance is heating.
Controls
Thermostat Fig.4 (see )
The Thermostat (see Fig.4) controls the heat output according to the room
temperature. This ensures that the heater will not produce heat unnecessarily
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Dimplex Oil lled Column Radiators
Models: OFC1200, OFC1200TI, OFC1500, OFC1500TI, OFC 1500TIF OFC2000, OFC2000TI, OFC2400, OFC2400TI & OFC2400TIF
