08/51618/2 Issue 2
OFRC10ECCb, OFRC10CCTFN(B)(W), OFRC15ECCb,
OFRC15CCTFN(B)(W), OFRC20ECCb, OFRC20CCTFN(B)(W),
OFRC24ECCb & OFRC24CCTFN(B)(W)
AUS/NZ

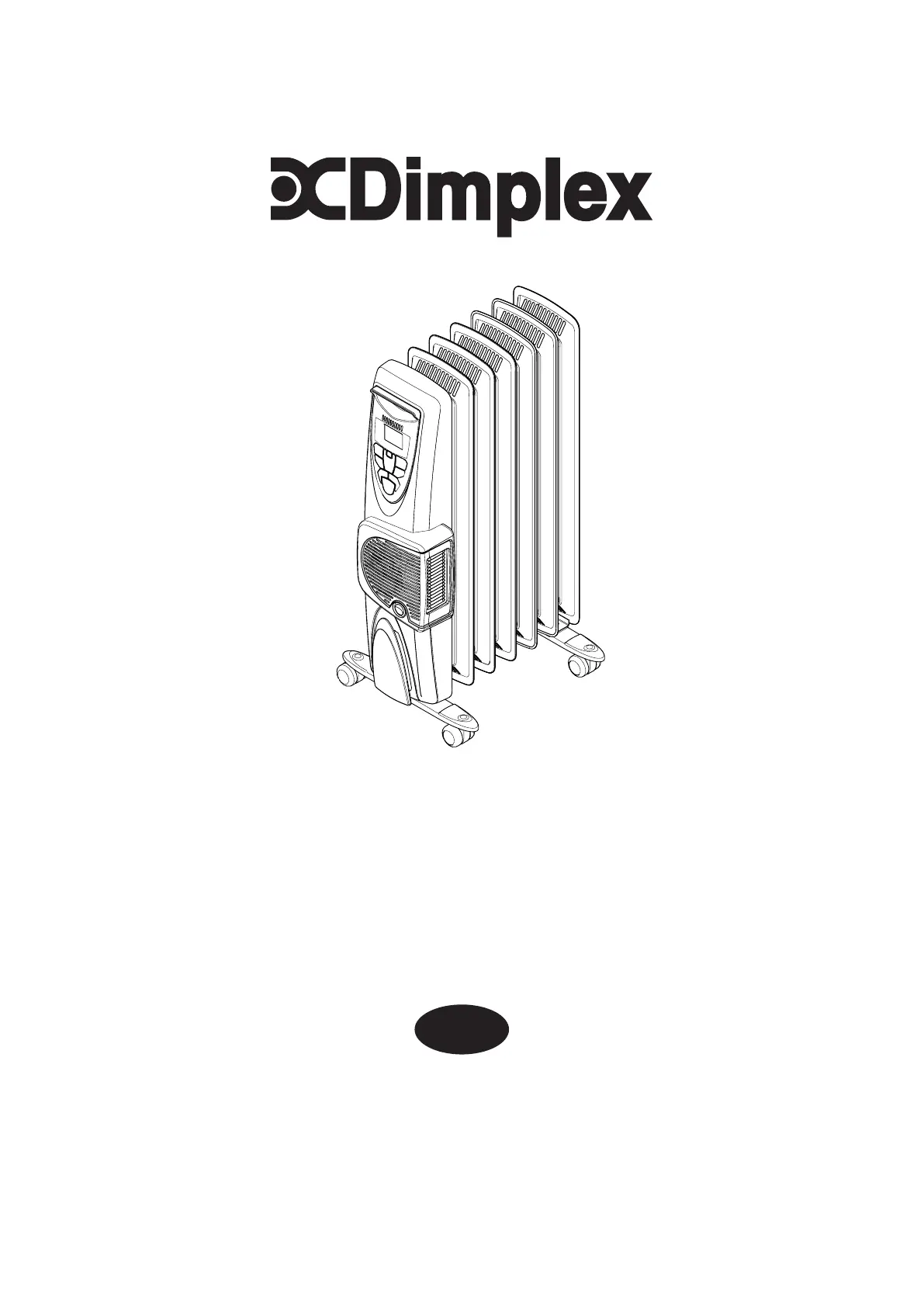

OFRC15CCTFN
1
A
B
C
2
3
4 5
67
89
10 11
12
M
Cable Wrap
Turbo Fan
(OFRCxxCCTFN models only)
Turbo Switch
Remote Control
LCD Display
Remote Sensor
5 nFi
7/9/11 nFi
B
A
B
A
OFRC15ECCb,OFRC20ECCb
& OFRC24ECCb
OFRC10ECCb
Model Description Watts
OFRC10ECCb 5 Fin, Electronic control, 3 Heat Settings 1000
OFRC10CCTFN(B)(W) 5 Fin, Electronic control, 3 Heat Settings 1000
OFRC15ECCb 7 Fin, Electronic control, 3 Heat Settings 1500
OFRC15CCTFN(B)(W) 7 Fin, Electronic control, 3 Heat Settings 1500
OFRC20ECCb 9 Fin, Electronic control, 3 Heat Settings 2000
OFRC20CCTFN(B)(W) 9 Fin, Electronic control, 3 Heat Settings 2000
OFRC24ECCb 11 Fin, Electronic control, 3 Heat Settings 2400
OFRC24CCTFN(B)(W) 11 Fin, Electronic control, 3 Heat Settings 2400
Important Safety Advice
IMPORTANT: If the appliance is damaged,
check immediately with the supplier before
installation and operation.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they
have been given supervision or instruction
concerning the use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised. Children
aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that
it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Children
aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance
or perform user maintenance.
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vulnerable people are present.
This heater carries the warning symbol
indicating that it must not be covered.
DO NOT use the heater in the immediate
surroundings of a bath, a shower or a swimming
pool.
WARNING: This heater must not be used in
a bathroom.
DO NOT place the heater directly below a xed
socket outlet.
CAUTION: Avoid use of an extension cord
because the extension cord may overheat and
cause risk of re.
WARNING: In order to avoid overheating, do
not cover the heater.
We recommend that you open a window to
ventilate the room when using the heater for
the rst time.
Unplug the heater when not required for long
periods.
IMPORTANT: If the mains lead of this appliance
is damaged, it must be replaced by the
manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
DO NOT use the heater where gas, petrol, paint
or other inammable goods are used or stored.
General
The radiator is designed for operation on an AC electricity supply, and is
suitable for use in domestic dwellings and similar indoor locations. The radiator
is tted with castors and a handle for ease of movement. The electronic
control provides a choice of heat settings and enables the room temperature
to be controlled accordingly. It is supplied with a cord and plug ready for use.
The supply cord should be uncoiled before use (see ‘Storage’).
DO NOT pull the radiator along by the mains lead.
Important - The radiator must only be operated with the wheels and castors
tted and in the upright position as shown in Fig. 1.
Warning – The heater complies with stringent safety standards but to ensure
efcient operation SURFACES OF THE HEATER WILL BECOME HOT
AND CONTACT WITH THESE AREAS SHOULD BE AVOIDED, particularly
between the ns on the top and sides.
The control panel area is designed to be at a far lower temperature to allow
the safe operation of the controls at any time.
WARNING – THIS APPLIANCE MUST BE EARTHED
Fitting the castors
Remove the carton containing the castor assemblies from the packing.
Fit the castors to the stub axles by applying hand pressure until each castor
clicks into position . Note that the castors are designed to be a tight (Fig. 3)
t on the axles but will rotate in use.
The castors can only be tted between the outer ns as shown in Fig. 2.
Turn the radiator upside down on a carpet or other soft surface to avoid
damage
WARNING : THE RADIATOR IS HEAVY – ENSURE THAT IT IS SUPPORTED
TO PREVENT IT FROM TOPPLING. Ask a second person to help with this
if necessary. Position castor bracket onto the threaded pins on the (Fig. 3)
control panel. Place the winged nut ‘C’ on the thread and tighten it securely.
Repeat the process for castor bracket ‘B’ onto the last n.
Note: The 5 n column radiator models - OFRC10ECCb uses curved castor
brackets and must be tted as shown in Fig. 2.
Lift the radiator clear of the oor, then turn it back upright and stand it on its
castors as shown in . It is now ready for use.Fig. 1
Positioning the Heater
Select the position for the radiator ensuring there is clearance from any
furniture and ttings of at least 300mm above the heater and 150mm each
side. The radiator should only be operated on a at stable surface.
Tilt switch protection
The heater is tted with a tilt switch to ensure the product is only operated in
the recommended upright position. If the heater is knocked over or tilted to
the side power to the heater will automatically be cut.
Operation
IMPORTANT – Objects or clothing must not be placed on this heater. Before
using the heater ensure that all warnings and instructions have been read
carefully.
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
Dimplex Dry Column Radiators
Models : OFRC10ECCb, OFRC10CCTFN(B)(W), OFRC15ECCb, OFRC15CCTFN(B)(W), OFRC20ECCb, OFRC20CCTFN(B)(W),
OFRC24ECCb & OFRC10CCTFN(B)(W)
