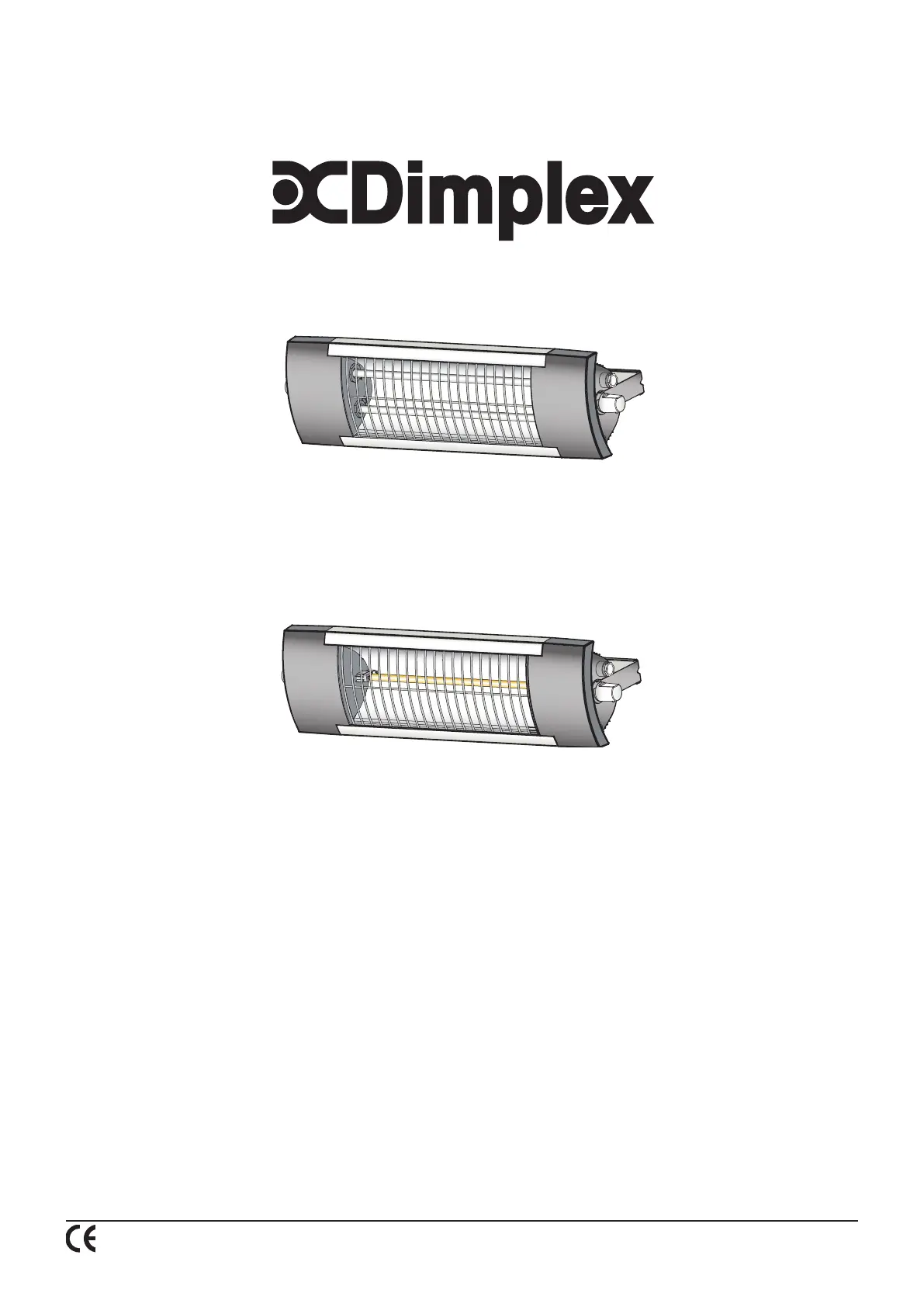

08/19836/3 Issue 3
OPH13
OPH20
The product complies with the European Safety Standards EN60335:2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014:1,
EN55014:2, EN61000:3-2 and EN61000:3-3 which cover the essential requirements of EMC Directive 2006/95/EC and the LVD Directive 2004/108/EC.
1
2
3
500 n.Mi 594
540
500 n.Mi
160
144
2.0m
Recommended
Mounting
Height
Heated Zone
45
1.8m
Min.
Height
380
a) b)
1
2
3
4
OPH13
1
2
3
4
OPH20
1
Keep combustible materials away from the
heater.
DO NOT position patio furniture, sunshades,
awnings and other combustible materials too
close to the heater.
DO NOT look into the heater for prolonged
periods
DO NOT use the heater if the elements are
broken - as injury may occur.
Allow adequate time (minimum of 30 mins.) for
the elements and body casing to cool before
attempting to work on the heater.
DO NOT allow the supply cord to sit or hang in
front of the heater while in use.
The supply cord should be regularly examined
for signs of damage and the appliance is not to
be used if the cord is damaged.
If the supply cord is damaged it must be replaced
by an assembly available from the manufacturer
or service agent.
Note: Provide sufcient slack to the cable to allow
for angular adjustment of the body.
The bulbs are extremely fragile and must be
handled with extreme care at all times. Always
handle the Halogen bulb without touching the
glass (by gripping the ceramic ends gently
but rmly) to maximise bulb life. If the bulb is
accidentally touched by bare ngers remove
the ngerprint with a soft cloth moistened with
methylated spirits.
IMPORTANT: The appliance is to be connected
to a socket outlet having and earth contact.
A double pole isolating switch with a minimum
separation of 3mm in each pole must be tted
to facilitate isolation.
General
The OPH range of heaters are especially designed for use
on patio areas. The heaters provide warmth and comfort for
recreational areas. The OPH13 uses quartz elements which
emit a warm glow of medium wave infra-red. The OPH20
uses Halogen elements which produce a high proportion of
their output in the short-wave infra-red. This provides a high
comfort factor – similar to the natural energy from the sun.
The IPX4 rating means the appliance is suitably rated to be
permanently installed either internally or externally.
Electrical
The installation of this appliance should be carried out by
a competent electrician and be in accordance with the
current IEE wiring regulations and any local or insurance
regulations.
The OPH13 & OPH20 are designed for use on a 230-240V
AC single phase supply. A double pole isolating switch with
a minimum separation of 3mm in each pole must be tted
to facilitate isolation. This switch must either be positioned
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
(IPX4)
Important Safety Advice
Because the Dimplex Outdoor Patio Heater
contains no moving parts little maintenance is
required. Before undertaking any maintenance
work on the heater due attention must be paid
to the following:
DO NOT locate the heater immediately above
or below a xed socket outlet or connection box.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of expierience or knowledge if they have
been given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Cleaning and
user maintenance shall not be made by children
without supervision.
Children of less than 3 years should be kept
away unless contiuously supervised. Children
aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that
it has been placed or installed in its intended
normal operating position and they have been
given supervision or instruction concerning
the use of the appliance in a safe way and
understand the hazards involved. Children aged
from 3 years and less than 8 years shall not plug
in, regulate and clean the appliance or perform
user maintenance.
CAUTION: Some parts of this product can
become very hot and cause burns. Particular
attention has to be given where children and
vunerable people are present.
WARNING: This heater is not equipped with a
device to control the room temperature. Do not
use this heater in small rooms when they are
occupied by persons not capable of leaving the
room on their own, unless constant supervision
is provided.
This heater is designed to be horizontally wall
mounted only, it must not be ceiling mounted.
Always ensure a safe mounting height, at or
above a minimum height of 1.8 metres from
ground level, so that the heater can not be
touched when in operation.
The heater must be wall mounted level ± 5º to
the horizontal.
Young children should be supervised to ensure
that they do not play with the appliance.
Always disconnect the heater from the electricity
supply before attempting to work on or near it.
Always ensure a safe means of access using
an access tower or properly supported ladder.
DO NOT cover the heater.
Dimplex Outdoor Patio Heaters
Model(s) : OPH13 & OPH20
