08/52995//0 Issue 1
Volterra

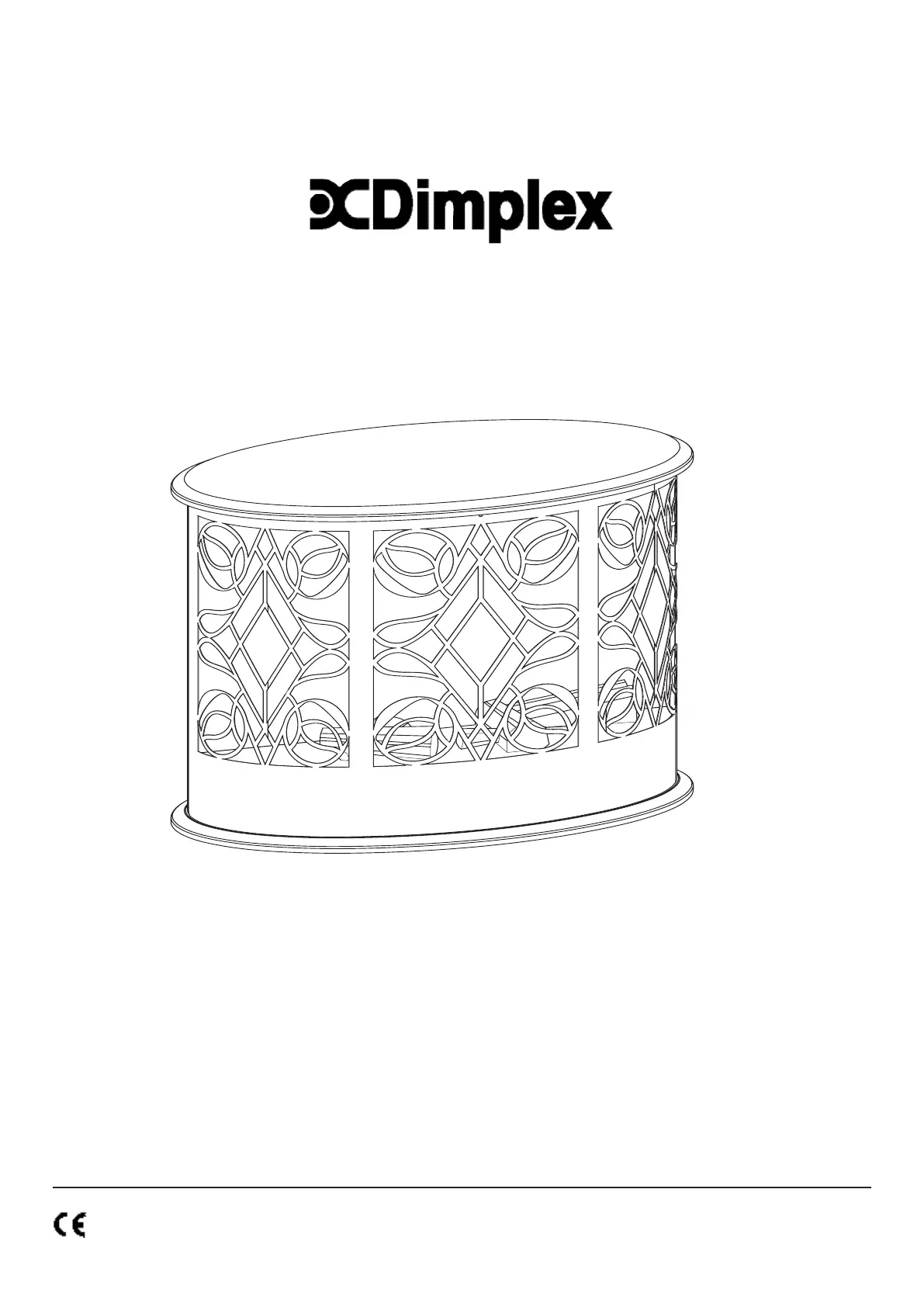

Opti-V Stove
Model: VLT-OV
Instructions
UK
The product complies with the European Safety Standards EN60065 and the European Standard Electromagnetic Compatibility (EMC)
EN55014-1 & EN55014-2, EN6100-3-2 and EN6100-3-3 These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
Patents pending Application No. : GB 1509765.2
Introduction
Thank you for chosing this Dimplex Opti-V stove. Please read
information guide carefully to be able to safely install, use and
maintain your product.
Important Safety Advice
When using electrical appliances, basic precautions should
be followed to reduce the risk of re, electric shock, and
injury to persons, including the following:
If the appliance is damaged, check immediately with the
supplier before installation and operation.
Do not use this appliance in the immediate surroundings of
a bath, shower or swimming pool.
Means for disconnection must be incorporated in the xed
wiring in accordance with the wiring regulations.
Do not use outdoors.
In the event of a fault disconnect the appliance from mains
supply.
Switch off the appliance when not required for long periods.
If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the manufacturer
or its service agent.
Warning - No naked ame sources, such as candles, should
be placed on this apparatus.
Warning - The appliance shall not be exposed to dripping
or splashing and that no objects lled with liquid, such as
vases, shall be placed on the apparatus.
Warning - this appliance is of Class I construction and must
be connected to a mains outlet with protective earthing
connection.
Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED
Do not switch the appliance on until properly installed. Please
read all the safety warnings and operating instructions.
General
Unpack the appliance carefully and retain the packaging for
possible further use, in the event of moving or returning the
appliance to the supplier.
Contents of Carton
• Opti-V Stove Model VLT-OV
• Remote control
• Supply cord
Product Features
Volume Control
Remote or Manual operation
Red light indication of standby mode
Installation
Warning.
Do not connect the appliance until the instruction leaet is
read fully.
Connect the supply cord(kettle type connection) to the socket
at the back of the appliance and plug opposite end to mains
supply.
Operation - remote control: -
The appliance by default is in standby mode, indicated by a
red light at the front of the appliance.
Opti-V Volterra : VLT-OV
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

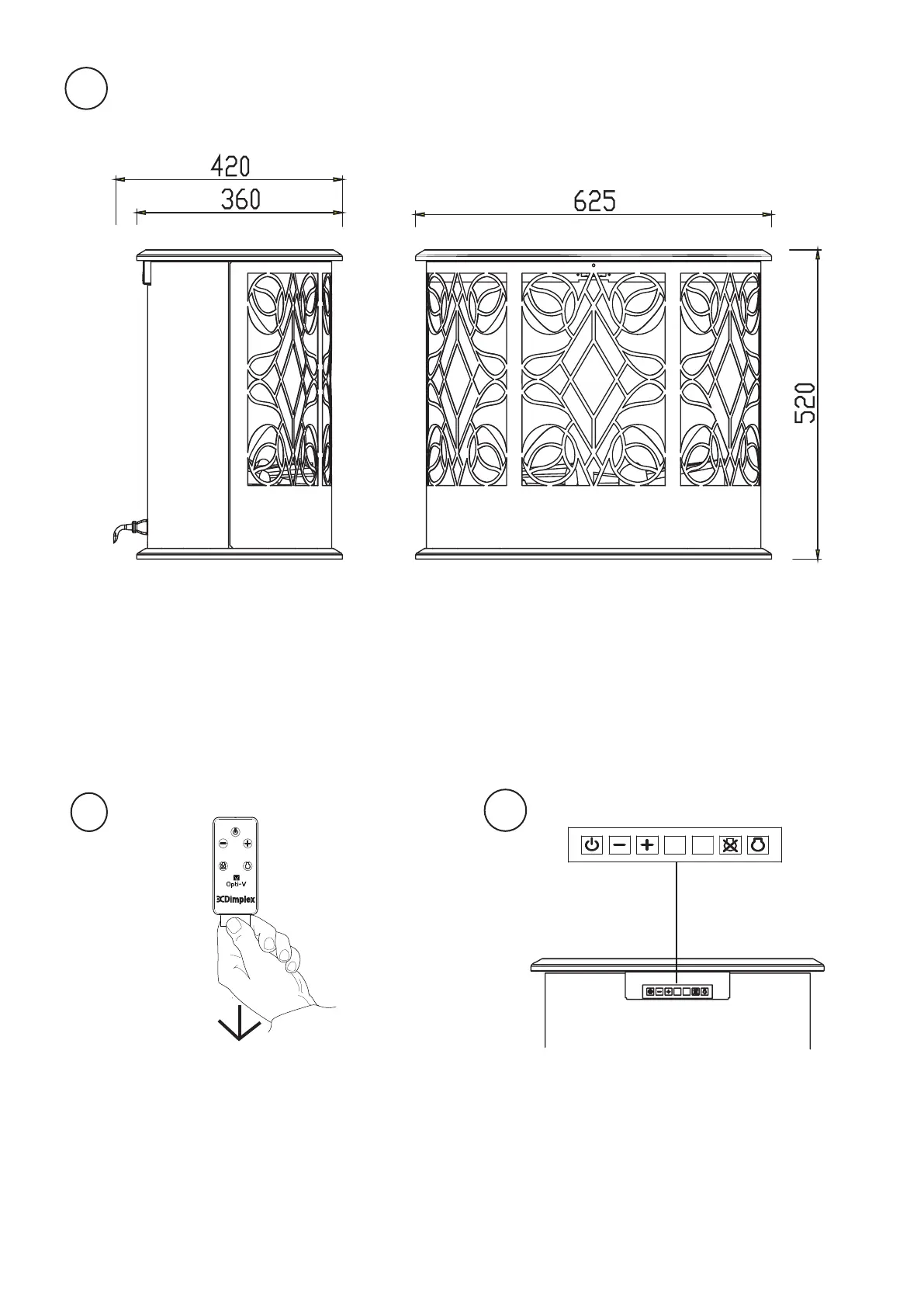

To activate the remote control, remove the battery clear, plastic
strip, which is used to ensure the remote is fully charged before
use - see Fig.2.
To operate, aim the remote control to the front of the appliance.
Press the standby button ( ) on the remote control (see Fig.
2).
The fuelbed will light up and after approximately 7 seconds
the ame will appear.
Note: The user may notice a blank screen for approximately
3 seconds, every 30 minutes. This is normal and should not
be a cause for concern.
The audio volume may be adjusted up or down by pressing
the volume control buttons ( + and -).
To create the shadow effect on oor, press the shadow ‘light
on’ button ( ).
To turn the effect off, press the shadow ‘light off’ button( ).
For battery replacment refer to the embossed diagram on the
back of the remote control.
NOTE - Use Lithium batteries only - CR2025
Attention should be drawn to the environmental aspects of
battery disposal.
Manual Control Operation: -
The manual controls are located at the back(top) of the
appliance.(see ). Fig. 3
Maintenance
WARNING – ALWAYS DISCONNECT FROM THE POWER
SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE.
Techical Information:
100-240V ~ 50/60Hz
Power consumption 28W
Stand-by Power 1W
Cleaning
For general cleaning use a soft clean duster – never use
abrasive cleaners.
Recycling
For electrical products sold within the European Community.
At the end of the electrical products useful life it
should not be disposed of with household waste.
Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice
in your country.
After Sales Service
Should you require after sales service or should you need to
purchase any spares, please contact the retailer from whom
the appliance was purchased.
Please retain your receipt for proof of purchase.
UK
1
3
2
520
625
360
420
