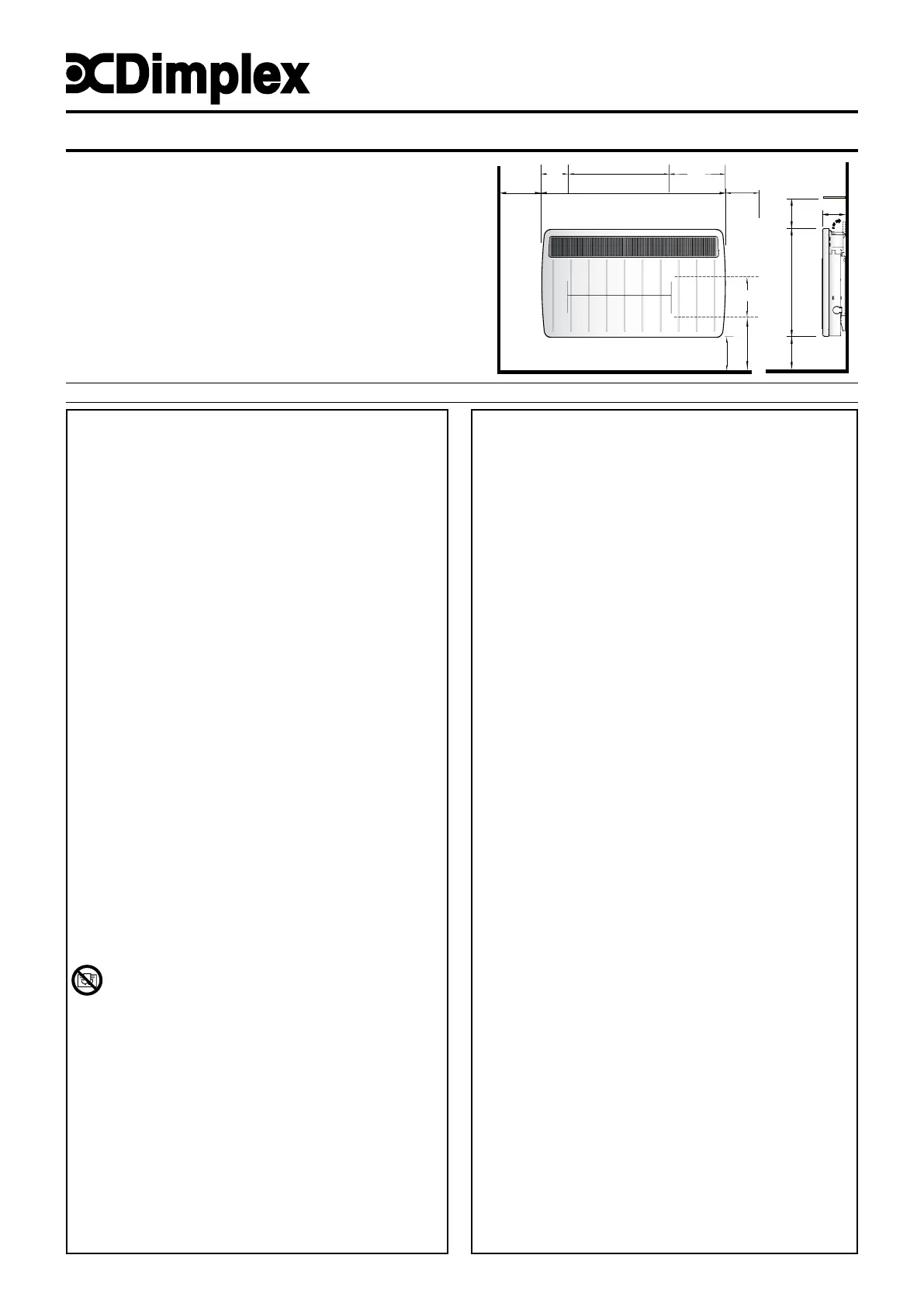

Installation and Operating Instructions

INDPUKP5RG Issue 6

PLX Panel Convector Heaters

Dimensions

(millimetres)

Model s( )

PLX 500/NC/TI 500 450 108 116

PLX 750/NC/TI 750 620 108 286

PLX 1000/NC/TI 1000 620 108 286

PLX 1250/NC/TI 1250 688 108 354

PLX 1500/NC/TI 1500 688 108 354

PLX 2000/NC/TI/TX 2000 860 108 526

PLX 3000/TI/TX 3000 860 143 526

Important Safety Advice

When using electrical appliances, basic

precautions should always be followed to

reduce the risk of re, electrical shock, and

injury to persons, including the following:

IMPORTANT – The wall bracket supplied with

the appliance must be used.

WARNING – Do not use this heater in the

immediate surroundings of a bath, a shower

or a swimming pool.

IMPORTANT – If the heater is installed in a

room containing a bath or shower, it must be

so installed that switches and other controls

cannot be touched by a person using a bath

or shower.

Do not use outdoors.

Do not locate the heater immediately below a

xed socket outlet or connection box.

WARNING: In order to avoid overheating, do

not cover the heater. Do not place material

or garments on the heater, or obstruct the

air circulation around the heater, for instance

by curtains or furniture, as this could cause

overheating and a re risk.

NEVER cover or obstruct in any way the heat

outlet slots at the top of the heater or the air

inlet slots in the base of the heater.

The heater carries the Warning symbol

indicating that it must not be covered.

CAUTION - Some parts of this product can

become very hot and cause burns. Particular

attention has to be given where children and

vulnerable people are present.

This appliance can be used by children aged

from 8 years and above and by persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given supervision

or instruction concerning use of the appliance

in a safe way and understand the hazards

involved.

Fig. 1

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE

Watt A B X

150

MIN

150

MIN

150

MIN

430

119 215

310

150

150 min

255

Children shall not play with the appliance.

Cleaning and user maintainance shall not be

made by children without supervision.

Children of less than 3 years should be kept

away unless continuously supervised.

Children aged from 3 years and less than 8

years shall only switch on/off the appliance

provided that it has been placed or installed

in its intended normal operating position and

they have been given supervision or instruction

concerning use of the appliance in a safe

way and understand the hazards involved.

Children aged from 3 years and less than 8

years shall not plug in, regulate and clean the

appliance or perform user maintainance.

Note that due care and consideration must be

taken when using this heater in series with a

thermal control, a program controller, a timer

or any other device that switches on the heat

automatically, since a re risk exists when the

heater is accidentally covered or displaced.

If the supply cord is damaged it must be

replaced by the manufacturer or service agent

or a similarly qualied person in order to avoid

a hazard.

WARNING: Servicing and product

repairs should only be undertaken by the

manufacturers approved service agent or a

similarly qualied person, using only exact

manufacturer approved spare parts.

IMPORTANT – The supply circuit to the heater

must incorporate a double pole isolating switch

having a contact separation of at least 3mm.

WARNING: PLX****NC heaters are not

equipped with a device to control the room

temperature. Do not use these heater in small

rooms when they are occupied by persons

not capable of leaving the room on their own,

unless constant supervision is provided.

Access to the controls

The controls cover (see ‘x’ in Fig. 1) on your heater has a

latch which may be locked shut if desired using a small bladed

screwdriver - see .Fig. 3

To open the cover insert the blade of the screwdriver in the

small slot and rotate a quarter of a turn clockwise to disengage

the latch. The cover may then be hinged back towards the wall

for access to the controls.

Operation - Thermostat only models

Control of Output and Temperature Fig. 4(see )

The switch marked and controls the electricity supply to the O I

heating elements. The OFF position is marked .O

The switch marked - (half heat – full heat) provides a I II

choice of output as desired.

Thermostat Operation

The heater is tted with an adjustable thermostat enabling

the room temperature to be controlled by adjusting the setting

accordingly. The * setting represents a room temperature of

approximately 5°C and may be used for protection against

frost. Higher temperature settings range from 1-6 (max.)

creating a room temperature of approximately 30°C.

A neon indicator light glows when the appliance is actually

heating.

Switch on the heater and turn the thermostat knob to mark

6 opposite the indicator mark (located on centre right of the

knob - see & ), and set selector switch to full heat Fig. 4 5

output to warm the room rapidly. When the room temperature

has reached the desired level, turn the thermostat knob back

slowly until the thermostat just clicks off. The heater will then

maintain the room temperature at the chosen level, provided

that the correct size of heater has been selected for the room

to be heated.

NOTE – Should your heater fail to come on when the

thermostat knob is at a low setting, this may be due to the

room temperature being higher than the thermostat setting.

General

NOTE: The PLX Convector is designed for wall mounting on

the wall brackets supplied. The wall brackets supplied with the

appliance must be used. It should only be operated when in

the upright position as shown.

All models are splashproof to IP24 standard.

Models PLX…TI are tted with a 24 hour programmable timer.

Models PLX…TX are tted with a 7 day programmable timer.

Models PLX…NC are tted with no controls, for use with

external thermostatic or programming controllers.

Before connecting the heater check that the supply voltage is

the same as that stated on the heater.

Please note that lit cigarettes, candles and oil burners,

combined with the convection effect of electric heaters

can cause soot deposits to build up on the surface directly

above and to the sides of the heater. This is not the fault

of the heater. Extensive burning of candles or smoking

in the operating environment of this product can produce

heavy discoloration within a few months of use.

Wall Mounting

IMPORTANT – The wall brackets supplied with the appliance

must be used. The heater should be positioned observing

the minimum clearances stated around the heater - see

Fig. 1.

DO NOT locate the heater immediately below a xed socket

outlet or connection box.

1. Remove wall mounting bracket from the back of

the heater by depressing the spring latch at the top

of each bracket - see .Fig. 2

2. Fix the wall bracket securely to the wall through the

four screw holes provided.

3. Present the heater to the wall bracket, and engage

lower slots in the back with bracket.

4. Raise the heater to upright position and push the

heater onto brackets to engage top latch.

Fig. 3

Fig. 4

Fig. 2

255

MIN

Electrical

WARNING – THIS APPLIANCE MUST BE EARTHED

The electrical installation must be carried out by a competent

electrician, and be in strict accordance with the current I.E.E.

regulations for Electrical Equipment in Buildings.

The heater is tted with a length of exible cable type H05VV-F

size 3 x 1.0mm2 on models PLX 500 - 2000 and size 3 x 1.5mm

on PLX 3000 models, for connection to the xed wiring of

the premises through a suitable connection box positioned

adjacent to the heater.

The supply circuit to the heater must incorporate a double pole

isolating switch having a contact separation of at least 3mm.

Supplementary Earth Bonding

Should Equipotential Earth Bonding be required the earthing

conductor in the supply cord is deemed to provide the

supplementary bonding connection (see Regulation 544.2.5,

17th Edition I.E.E. Wiring Regulations).

Operation - TI and TX Timer Models

Control of Output and Temperature Fig. 5(see )

The slide switch on the timer unit controls the electricity supply

to the heating elements on TI and TX models.

The switch marked - (half heat – full heat) provides a I II

choice of output as desired.

Thermostat Operation

- see above.

Using the Timer

The heater must be connected to the electricity supply for the

timer to operate. Set the timer by rotating the dial clockwise

until the correct time of day is indicated opposite the datum

mark (located at centre front of the timer - see ).Fig. 5

‘OFF’ Position

Set the timer switch to position. The timer operates but the

heater will not output any heat, as the electricity supply to the

heating elements has been disconnected.

Manual Operation

Set the timer switch to position. The heater will now

operate continuously under the control of the thermostat - see

‘Thermostat Operation’ above.

Automatic Operation

Set the timer switch to position. The panel will now operate

during set ‘ON’ periods under the control of the thermostat.

To set the timer’s ‘ON’ and ‘OFF’ periods:

1. Using your nger tip or the tip of a

pencil, push in as many segments as

necessary around the dial, according

to the times you don’t require heat –

see Fig. 6. Each segment pushed

in switches the heater OFF for that

part of the hour. All other segments

will be ‘ON’.

2. You can select as many ‘ON’ periods as you like, within the

24-hour day. The settings will repeat every day until changed.

3. To change ‘ON’ and ‘OFF’ times, simply push in any ‘ON’

segments you wish to cancel and pull out new ‘ON’ segments

as required.

Note: On TI models each segment on the timer represents

20 mins.

TX Models

TX Models are tted with 7 day programmable timers. In all

other respects they are identical in installation and operation

to 24 hour timer operation on TI models.

1. Setting the Time

The current day and time is set by rotating the timer dial

clockwise until the correct day and time is indicated opposite

the datum mark.

2. Automatic Operation

Set the time switch to the symbol. Select the days and

Fig. 5

Fig. 6

times you require the heater to come on by pulling out the

appropriate segments. Each segment represents a 2 hour 20

minute period for the day indicated. The timer may be set to

give as many ‘ON’ periods of any length required in multiples

of 2 hours and 20 minutes. The programme will repeat itself

every 7 days until changed.

The programme may be over-ridden at any time by switching to

or and can be reinstated by switching back to setting.

Safety - Overheat protection

For your safety this appliance is tted with a thermal cut-out.

In the event that the product overheats for some reason, the

cut-out prevents excessive temperatures on the product by

cutting the power to the heater. Once the heater has cooled

down, it will reset automatically, it will continue to cycle on and

off automatically until the reason for overheating is removed.

Cleaning

Before commencing cleaning, unplug the heater and allow

it to cool. Disconnect the electricity supply to the appliance.

The outside can be cleaned by wiping it over with a soft damp

cloth and then dried. Do not use abrasive cleaning powders or

furniture polish, as this can damage the surface nish.

To release heater from the wall bracket for cleaning or

redecoration, depress latch on both brackets (see ) and Fig. 2

hinge forward.

Recycling

For electrical products sold within the European

Community.

At the end of the electrical products useful life

it should not be disposed of with household

waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for

recycling advice in your country.

After Sales Service

If this product appears damaged when rst received or does not

function correctly contact us by email aftersales@dimplex.co.uk

or call 0844 879 3588 and we will be able to help. For ROI please

call 01 842 8222.

Do Not Return the product in the rst instance as this may delay

us providing you with a satisfactory service.

ACCIDENTAL DAMAGE IS NOT COVERED UNDER THE

WARRANTY.

Your product is guaranteed for two years from date of purchase. Within

this period we undertake to repair this product free of charge provided it

has been installed and operated in accordance with these instructions.

Should you require assistance with this product please go to www.

dimplex.co.uk and click on “Customer Support” or email us at

aftersales@dimplex.co.uk

Alternatively call our contact centre on 0844 879 3588 (UK only). This

is a Lo-call no. from a BT landline - other providers including mobile

phones may charge you more. For ROI please call 01 842 8222.

To assist you, we will need the following information: model no and

serial no (these can be found on the product), nature of the fault and

date of purchase. Please retain your receipt as proof of purchase.

Your rights under this guarantee are additional to your statutory rights,

which in turn are not affected by this guarantee.

Spares can be purchased online, go to www.dimplex.co.uk/

outlet_store

Produktspecifikationer

Varumärke:	Dimplex
Kategori:	Värmare
Modell:	PLX1250NC

Behöver du hjälp?

Om du behöver hjälp med Dimplex PLX1250NC ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Värmare Dimplex Manualer

Dimplex DX 521 Bruksanvisning

13 Januari 2025

Dimplex VF75A Bruksanvisning

8 Januari 2025

Dimplex Mini Cube Bruksanvisning

31 December 2025

Dimplex DX 425E Bruksanvisning

31 December 2025

Dimplex DTD4T Bruksanvisning

31 December 2025

Dimplex OFRC24TFNB Bruksanvisning

16 Oktober 2024

Dimplex OFC1500 Bruksanvisning

11 Oktober 2024

Dimplex OFC1500TIFW Bruksanvisning

9 Oktober 2024

Dimplex MPH500 Bruksanvisning

8 Oktober 2024

Dimplex ECOT4FT Bruksanvisning

8 Oktober 2024

Värmare Manualer

Nyaste Värmare Manualer

Bestron AFH211G Bruksanvisning

14 Januari 2025

Breville the Smart Tilt Control Max LCE308 Bruksanvisning

14 Januari 2025

Breville BodyZone BZB437 Bruksanvisning

14 Januari 2025

Duux Edge Oil Bruksanvisning

14 Januari 2025

Eurom Fireball 60T Bruksanvisning

9 Januari 2025

Kambrook KFH600 Bruksanvisning

9 Januari 2025

Magnavox MG-QGW15-442A Bruksanvisning

8 Januari 2025

Magnavox MH-2000WW Bruksanvisning

8 Januari 2025

Magnavox MG-HT1109 Bruksanvisning

8 Januari 2025

Magnavox MG-KPT-2000 Bruksanvisning

8 Januari 2025
