Sida 1/40

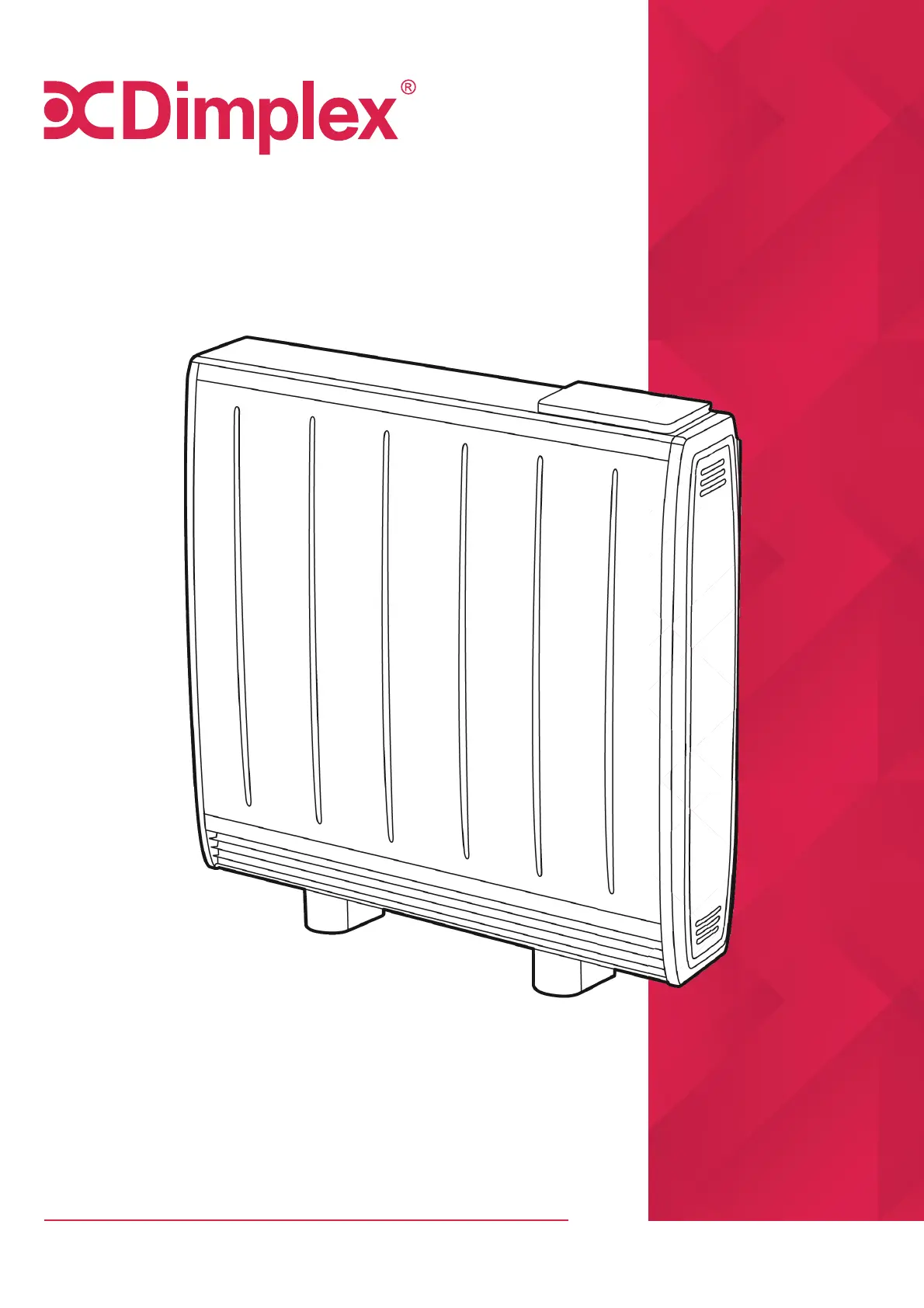

- 1 -
300001917 ISSUE: 1 Series: Y
Quantum Series Heater
Models: QM050 / QM070 / QM100
QM125 / QM150
INSTALLATION MANUAL
- 2 -
Warnings in this document are identifi ed by a warning triangle against a
grey background.
Keywords at the start of a warning indicate the type and seriousness of
the ensuing risk if measures to prevent the risk are not taken.
The following keywords are defi ned and can be used in this document:
○DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
○WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
○CAUTION indicates a hazardous situation which, if not avoided, could result in
minor to moderate injury.
○NOTICE is used to address practices not related to personal injury.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
CAUTION
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR
DAMAGE AND MAY INVALIDATE YOUR GUARANTEE
IMPORTANT SAFETY ADVICE
When using electrical heaters, basic precautions should always be followed to reduce
the risk of fi re, electrical shock, and injury to persons, including the following:
IMPORTANT – The wall bracket supplied with the heater must be used.
IMPORTANT – All packaging should be disposed of in an appropriate manner.
OVERHEATING WARNING
WARNING - In order to avoid overheating, do not cover or obstruct the heater. Do
not place material or garments on the heater, or obstruct the air circulation around the
heater, for instance by curtains or furniture, as this could cause overheating and a fi re
risk. NEVER cover or obstruct in any way the heat outlet slots at the top of the heater
or the air outlet slots in the base of the heater.
WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.
The heater carries a warning ‘DO NOT COVER’ to alert the user to the risk of fi re
that exists if the heater is accidentally covered.
CAUTION - Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are present.
For your safety this heater is fi tted with a thermal cut-out. In the event that the product
overheats for some reason, the cut-out prevents excessive temperatures on the product
by cutting the power to the heater. Once the heater has cooled down, it will reset
automatically, it will continue to cycle on and o automatically until the reason for
overheating is removed.
The display screen may fl ash red to indicate the product has overheated. To reset the
display, remove the obstruction and hold Enter for 10 seconds.
- 3 -
SUITABLE APPLICATIONS
WARNING - This heater is suitable for normal dwelling purposes and should not be
used in any other type of environment. This product should only be used in the country
where it was purchased from by a recognised commercial retailer. Do not use outdoors.
SERVICING AND REPAIRS
WARNING - Servicing and product repairs should only be undertaken by the
manufacturers approved service agent or a similarly trained or qualifi ed person, using
only exact manufacturer approved spare parts.
PLEASE NOTE: Household dust, lit cigarettes, candles and oil burners, combined with
the convection e ect of electric heaters can cause signifi cant soot deposits to build
up on the surface directly above and to the sides of the heater. This is not a fault of the
heater. Extensive burning of candles or smoking in the operating environment of this
product can produce heavy discolouration within a few months of use.
OPERATING WARNINGS
IMPORTANT: Remember to observe all safety warnings and precautions when
operating the heater on the automatic or timer modes, either attended or unattended
since a fi re risk exists when the heater is accidentally covered, obstructed or displaced.
CAUTION: Do not use if either of the heater’s mains power leads become damaged. If
the supply cord is damaged it must be replaced by the installer or an approved Dimplex
service partner.
Do not sit or stand on the heater.
Ensure minimum clearances between the heater and other objects / surfaces are
maintained.
ELECTRICAL INSTALLATION
WARNING - Minimum clearances and IP zone requirements must be adhered to in
accordance with the current wiring regulations.
Mains cables are not provided with this heater.
WARNING - The electrical installation of this heater must be carried out by a suitably
qualifi ed or trained electrician, and be in strict accordance with current wiring regulations.
The peak supply must be connected via a switched fused spur with a fuse rated suitably
for the appliances fl ex, the o -peak supply, via a 20A double pole isolated switch.
In both instances a plug and socket arrangement MUST NOT be utilised. The contact
separation to be a minimum of 3mm.
If the product is installed as a single supply (see page 17 for more details), a 20A DP
switch must be used as the supply is covering peak and o peak loads.
Failure to follow these instructions will mean that the manufacturer’s instructions have
not been adhered to. THERE ARE NO EXCEPTIONS.
• This heater must be earthed
• Not suitable for connection via a plug top
• Do not locate the heater immediately above, below or in front of a fi xed electrical point
i.e. socket outlet.
This appliance is intended for installation to a single phase supply only and is not suitable
for connection to 3 phase supplies.
