Sida 1/48
08/54003/0 ISSUE: 1

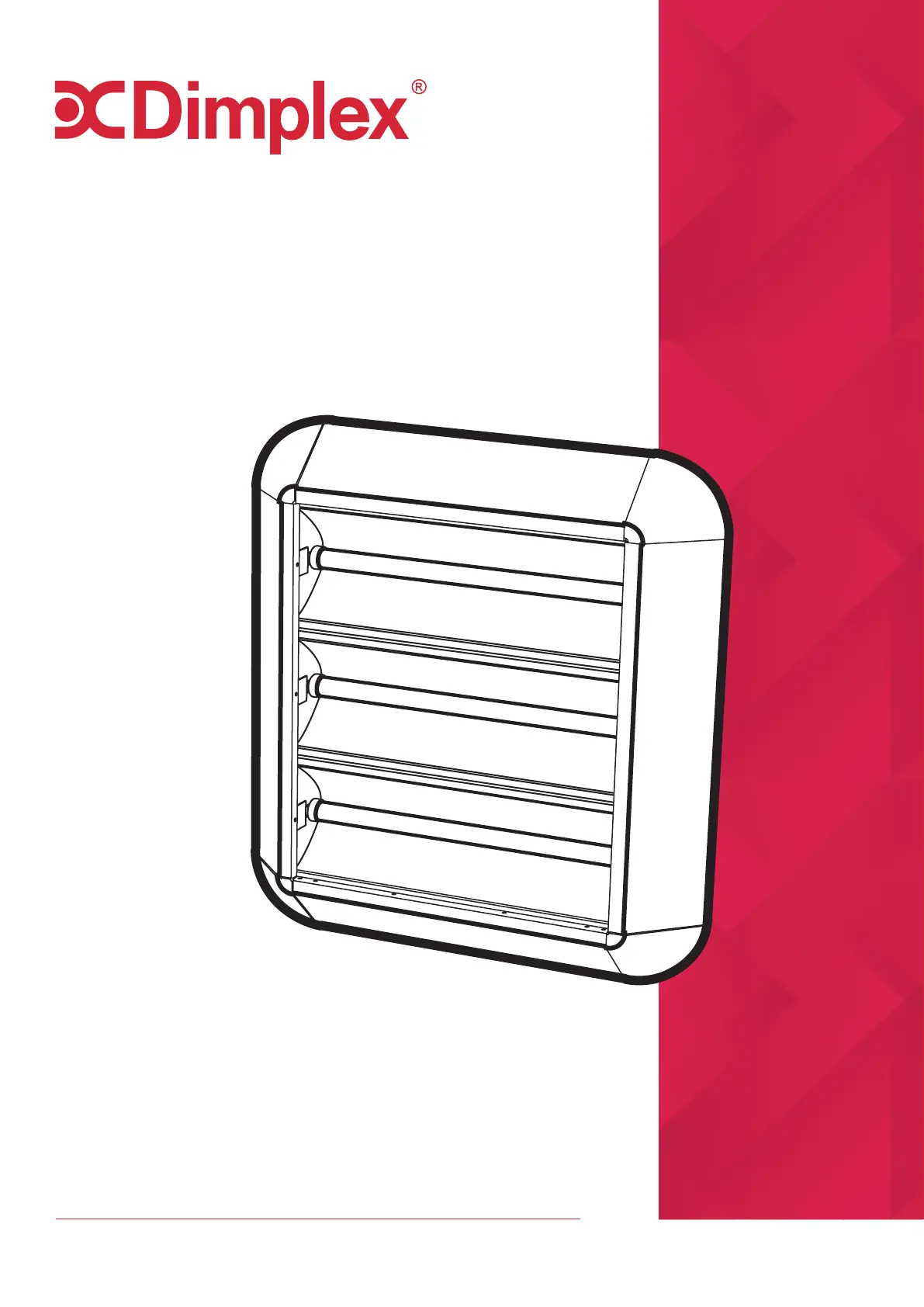

Quartzray Infrared Heater
Models: QXD1500E / QXD3000E / QXD4500E
INSTRUCTION MANUAL
Installation and Operating
This product is supplied and operated with a Bluetooth Remote Control handset
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR
FUTURE REFERENCE. Note also the information presented on the appliance
IMPORTANT SAFETY ADVICE
• Because the Dimplex Quartz Radiant Heater contains no moving parts little
maintenance is required. Before undertaking any maintenance work on the
heater due attention must be paid to the following:
• The installation of these appliances must always be carried out by a
competent electrician and be in accordance with the current wiring
regulations and relevant Building Regulations.
• The radiated heat from the heater is considerable and must be taken into
account when locating the heater. Ensure that the heater is not used in close
proximity to the skin or eyes.
• Always isolate the heater from the supply before undertaking any
maintenance work on the appliance.
• This heater is designed to be horizontally wall mounted only, it must not be
ceiling mounted.
• Always ensure a safe mounting height, at or above a minimum height of 1.8
metres from ground level, so that the heater can not be touched when in
operation.
• The heater must be wall mounted level ± 5º to the horizontal.
• Do not locate the heater immediately above or below a fixed socket outlet or
connection box.
• This heater must not be located immediately above or below a fixed socket
outlet or connection box.
• The heater must be installed in a location that is free from vibration.
• The QXD range of heaters are designed for internal use only. They are not
rated as flame-proof and must not be used when flammable dusts, gases, or
vapours, etc. are likely to be present in the atmosphere. If in doubt, advice
should be sought from the Health and Safety Executive inspectors or local fire
ocers.
• Quartz lamps are extremely fragile and must be handled with extreme care
at all times. Avoid touching the surface of the quartz sleeve with bare fingers.
If the sleeve is accidentally touched remove the finger print with a soft cloth
moistened with methylated spirits.
• The life expectancy of the halogen lamps in normal operating conditions is
over 3000 hours.
WARNING
1. This appliance must be earthed.
2. Means for disconnection from the electrical supply must be incorporated in
the fixed wiring in accordance with the wiring regulations.
3. Do not use this heater in the immediate surroundings of a bath, a shower or a
swimming pool.
4. This appliance can be used by children aged from 8 years and above and
2
persons with reduced physical, sensory or mental capabilities or lack of
experience or knowledge if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
5. Children of less than 3 years should be kept away unless continuously
supervised.Children aged from 3 years and less than 8 years shall only switch
on/o the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervision or
instruction concerning the use of the appliance in a safe way and understand
the hazards involved. Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or perform user maintenance.
6. The supply circuit to the heater must incorporate a double pole isolating
switch having a constant separation of at least 3mm in all poles.
CAUTION
• Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.
• Always disconnect the heater from the electricity supply and leave to cool for a
minimum of 30 minutes before attempting to work on or near it.
• Always ensure a safe means of access using an access tower or properly
supported ladder.
• Do not cover the heater.
• Do not position any combustible or heat sensitive materials too close to the
heater.
• Do not use heater if the elements are broken - as injury may occur.
• Allow adequate time (minimum of 30 mins.) for the elements and body casing
to cool before attempting to work on the heater.
• Wiring between the heater and the spur outlet or isolation switch must be in a
heat resisting cable (e.g. polychloroprene).
Provide sucient slack to the cable to allow for angular adjustment of the body.
WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a battery go straight to a
hospital emergency room.
• Examine devices and make sure the battery compartment is correctly
secured, i.e. that the battery cover is fitted securely. Do not use if the
compartment is not secure.
• Dispose of used batteries immediately and safely. Flat batteries can still be
dangerous.
3
