8/54150/0 (AU/NZ) Issue 5

OCN : 11823

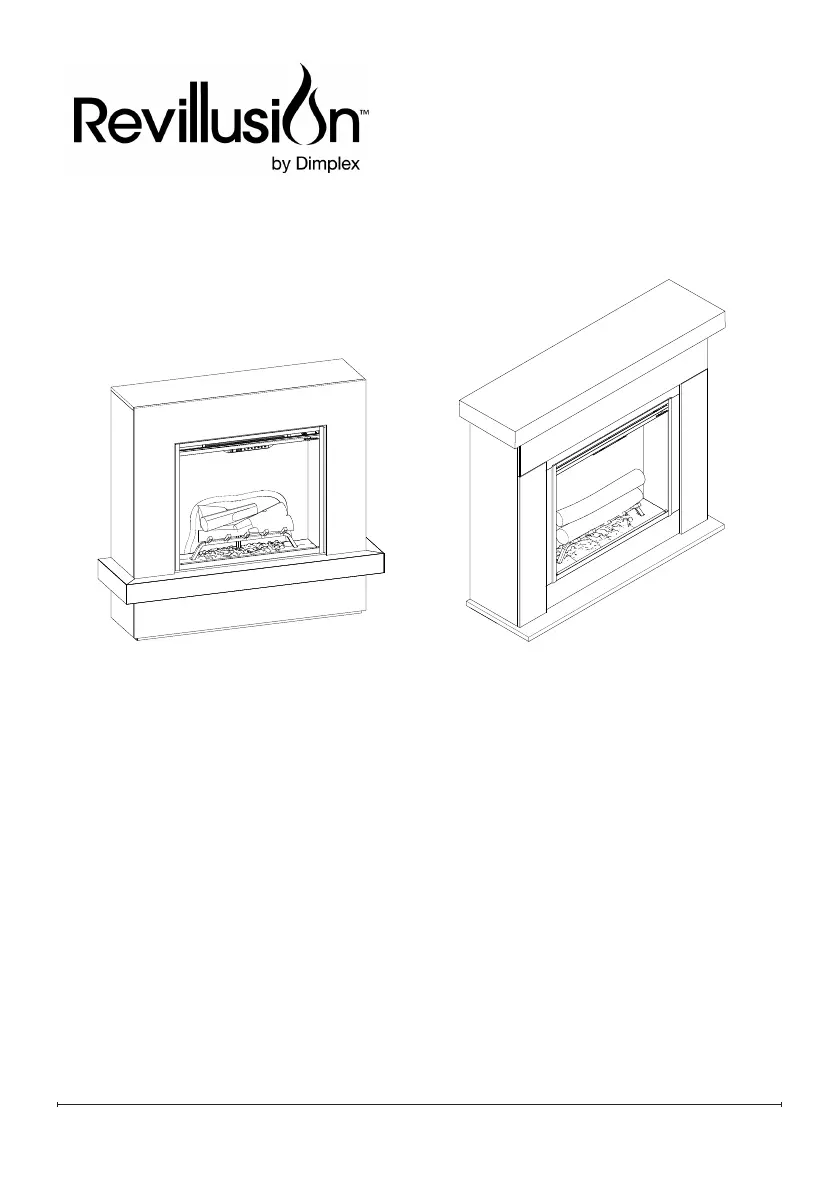

Revillusion™ Suites

Sherwood Suite Huxley Suite

SWD20-AU HXY20-AU

Owner’s Manual

IMPORTANT SAFETY INFORMATION: Read this manual rst before attempting

to install or use the Revillusion™ Built-in Electric Firebox. Always comply with the

warnings and safety instructions contained in this manual to prevent personal

injury or property damage.

Table of Contents

SAVE THESE INSTRUCTIONS

Conventions used in this manual:

! NOTE: Procedures and techniques considered important enough to emphasize.

CAUTION: Procedures and techniques which, if not carefully followed, will result in

damage to the equipment.

WARNING: Procedures, precautions and techniques which, if not carefully followed,

will expose the user to the risk of re, serious injury, or death.

Welcome ..............................................................3

IMPORTANT INSTRUCTIONS ............................4

Setup & Product Dims ..........................................6

Operation ..............................................................8

Maintenance ...................................................... 11

Welcome

Thank you for purchasing a Revillusion™ Built-in Electric Firebox by Dimplex.

CAUTION: Read all instructions and warnings carefully before starting installation.

Failure to follow these instructions may result in a possible electric shock or re hazard

and will void the warranty.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

Please consult your warrenty card for our contact details.

Rating Label
