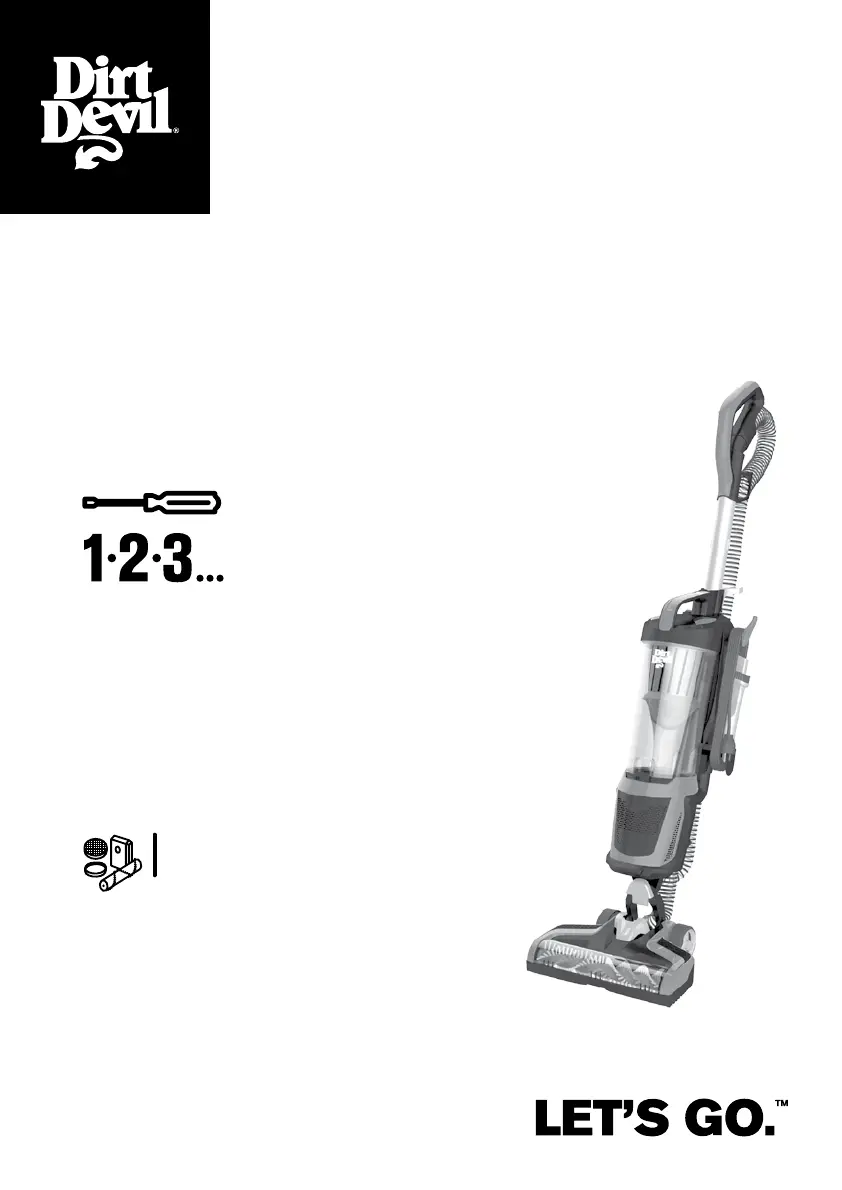

Carpet + Hard Floor Steerable Upright

USER MANUAL

961152045 / R0 12/16

Français - page 17

Español - página 33

REPLACEMENT PARTS

• PRE-MOTOR FILTER F112

• EXHAUST FILTER F111

RazorTM Vac

My Model is: _________

HI. WELCOME.

PRODUCT

REGISTRATION

For quick reference, please record your product information below.

Model #:

Mfg. Code:

(Mfg. code located on the back or bottom of product)

Warranty Registration

Be sure to register your product online at www.DirtDevil.com or

call 1-800-321-1134 to register by phone.

Hint: Attach your sales receipt to this Owner’s manual. Veriﬁcation of date of purchase may be

required for warranty service of your Dirt Devil ® product.

Congrats on purchasing your new RazorTM Vac -

Carpet + Hard Floor Steerable Upright Vacuum.

Inside, you’ll ﬁnd everything you want to know

from the tools to how to.

So what are you waiting for? LET’S GO.™

This product uses the following parts:

PRE-MOTOR FILTER F112

EXHAUST FILTER F111

Find GENUINE Replacement Parts at www.dirtdevil.com

TABLE OF

CONTENTS

Quick Start Assembly 6

Tools 7

How to 8-13

Troubleshooting 14

Limited Warranty 15

WARNING

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED

COMMERCIALLY WARRANTY IS VOI D.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.

• Operate cleaner only at voltage speciﬁed on data plate on bottom of cleaner.

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before

cleaning or servicing.

• Do not use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close

attention is necessary when used by or near children. To avoid injury or damage, keep children

away from product, and do not allow children to place ﬁngers or other objects into any

openings.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return it to a service center for

inspection prior to continuing use.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp

edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord

away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any objects into openings. Do not use with any opening blocked; keep free

of dust, lint, hair, and anything that may reduce air ﬂow.

• Keep hair, loose clothing, ﬁngers, and all parts of body away from openings and

moving parts. Brush roll continues to rotate when in upright position.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the

cleaner from falling, always place cleaner at bottom of stairs or on ﬂoor.

Do not place cleaner on stairs or furniture, as it may result in injury or damage.

• Do not use to pick up ﬂammable or combustible liquids, such as gasoline, or use in areas where

they may be present.

• Unplug before connecting Turbo Tool.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or

hot ashes.

• Do not use without ﬁlters and/or dirt cup in place.

• WARNING: This product contains chemicals known to the State of California to cause cancer,

birth defects or reproductive harm.

WASH HANDS AFTER USING.

WARNING:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified

electrician to install the proper outlet. Do not change the plug in any way.

CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.

• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.

• Do not use sharp objects to clean out hose as they can cause damage.

• With brush roll on, do not allow cleaner to sit in one location for an extended period of time, as

damage to ﬂoor can result.

• Brush roll continues to turn while product is turned on and the handle is in the upright

position. To avoid damage to carpet, rugs, and ﬂooring, avoid tipping cleaner or setting it on

furniture, fringed area rugs or carpeted stairs during tool use.

SAVE THESE INSTRUCTIONS

NOTICE

A THERMAL PROTECTOR HAS BEEN DESIGNED INTO

YOUR CLEANER TO PROTECT IT FROM OVERHEATING.

WHEN THE THERMAL PROTECTOR ACTIVATES THE

CLEANER WILL STOP RUNNING.

If this happens proceed as follows:

1. Turn cleaner OFF and unplug it from the electrical outlet.

2. Empty dirt cup.

3. Inspect the nozzle inlet, hose connector, hose, dirt cup inlet, cyclonic ﬁlter,

rinsable ﬁlter, and HEPA ﬁlter. Clear obstructions if present.

4. When cleaner is unplugged and motor cools for 30 minutes, the thermal

protector will deactivate and cleaning may continue.

If the thermal protector continues to activate after following the

above steps, your cleaner needs servicing.

INSERT CLEANING

WAND INTO TOP OF VAC.

SECURE YOUR HOSE

HERE AND HERE.

NOW, WRAP THE CORD

AROUND CORD HOOKS.

YOUR DIRT DEVIL

RAZORTM VAC IS

READY TO CLEAN!

NEED HELP?

Go to dirtdevil.com/support or

contact our Customer Service

Department at (800) 321-1134

8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

Pick up the conversation on...

Twitter@DirtDevil

Facebook.com/DirtDevil

QUICK START

TOOLS

PRESS THE WAND RELEASE

BUTTON.

ON-DEMAND

CLEANING WAND

PULL WAND UP & OUT.

PUSH THE TOOLS ON THE WAND*

FOR CONVENIENT CLEANING.

WHEN YOU’RE DONE, TWIST &

PULL TO TAKE THEM OFF.

2-IN-1 COMBO TOOL:

USE THE CREVICE TOOL FOR

TIGHT SPACES,CORNERS AND

ALONG STAIR EDGES AND

BASEBOARDS. TRY THE DUSTING

BRUSH FOR FURNITURE, TABLE

TOPS, LAMPS, BLINDS AND

MORE.PRESS THE LOCK BUTTON

(A) DOWN AND SLIDE TO SWITCH

BETWEEN MODES.

WAND

RELEASE

*Accessories not included on all models.

CAUTION

Not to be used for grooming a pet.

WARNING

Unplug vacuum before connecting hose, wand or tools.

TURBO TOOL®: FOR

UPHOLSTERED FURNITURE,

DRAPERIES, MATTRESSES

AND STAIRS.

ABOVE FLOOR CLEANING

Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling,

always place cleaner at bottom of stairs or on ﬂoor. Do not place cleaner on stairs or furniture, as it may result in

injury or damage. When using tools, always ensure handle is in upright position.

CAUTION

ATTACH EXTENSION WAND

AND 2-IN-1 TOOL FOR

IMPROVED CLEANING.*

RE MOVE ON-DEMAND

CLEANING WAND FOR

CONVENIENT ABOVE

FLOOR CLEAN ING.

HOW TO

*Accessories not included on all models.

EMPTY THE DIRT CUP

This would be a good point to check the condition of your ﬁlter. Dirty? Check out page 11 for cleaning steps.

To reduce the risk of personal injury - Unplug before

cleaning or servicing. Do not use vacuum without dirt cup

or ﬁlters in place.

WARNING

MAX

FILL

LINE

DUMP THE DIRT WHEN IT'S FULL. PUSH THE RELEASE BUTTON (A)

THEN PULL OUT THE DIRT CUP.

NOW DITCH THE DIRT BY

PUSHING THE LOWER BUTTON (B).

GIVE IT A WIPE TO REMOVE DUST.

PLACE BACK IN BOTTOM FIRST.

PUSH THE TOP OF THE CUP

AGAINST THE BACK PANEL AND

IT'LL CLICK INTO PLACE.

CLEAN THE RINSABLE FILTER

REMOVE THE DIRT CUP. TWIST

THE HANDLE TO REMOVE THE

TOP FROM THE DIRT CUP.

GENTLY REMOVE THE FILTER

FROM THE THE HANDLE.

ALL PIECES ARE RINSABLE.

TWIST THE HANDLE TO REMOVE

THE TOP FROM THE DIRT CUP.

GENTLY REMOVE THE FILTER

FROM THE THE HANDLE.

SLIDE THE FILTER BACK INTO

THE HANDLE, PLACE THE

HANDLE BACK ON THE DIRT

CUP AND TWIST TO CLOSE.

REPLACE THE DIRT CUP INTO

THE VACUUM.

For replacement ﬁlter visit dirtdevil.com or call us at (800) 321-1134.F112

HOW TO

CLEAN THE EXHAUST FILTER

PUSH THE TAB ON THE FRONT

OF THE COVER TO PIVOT OUT.

PUT THE DRY FILTER BACK. NOW

LINE UP THE FILTER COVER WITH

THE BOTTOM TABS FIRST AND

THEN SNAP BACK INTO PLACE.

PULL OUT THE FILTER.RINSE

DIRT FROM BOTH SIDES, AND

LET AIR DRY FOR 24 HOURS

BEFORE REINSTALLING OR

UNTIL DRY.

WARNING

To reduce the risk of personal injury - Unplug before

cleaning or servicing. Do not use vacuum without dirt

cup or ﬁlters in place.

For replacement ﬁlter visit dirtdevil.com or call us at (800) 321-1134.F111

ALL PIECES ARE RINSABLE.

WARNING

To reduce the risk of personal injury – Unplug before

cleaning or servicing. Do not use vacuum without dirt

cup or ﬁlters in place.

CLEAN THE CYCLONIC

ASSEMBLY

TWIST COUNTER-CLOCKWISE

TO OPEN THE DIRT CUP.

USE THE DUSTING TOOL

TO CLEAN THE CYCLONIC

ASSEMBLY.*

HOW TO

*Accessories not included with all models.

CLEAN THE BRUSH ROLL

CAUTION

To reduce the risk of injury from moving parts - Unplug

before servicing.

TURN YOUR VACUUM OVER.

PRESS THE B RUSH ROLL

RELEASE TABS WHERE CIRCLED.

REMOVE AN D CLEAN THE

BRUSH ROLL.

Any other servicing should be done by an authorized service representative. If appliance is not

working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it

to a service center prior to continuing use.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

Vacuum

won’t run

1. Power cord not firmly

plugged into outlet.

1. Plug unit in firmly.

2. 2. No voltage in wall plug. Check fuse or breaker in home.

3. Blown fuse or tripped

breaker.

3. Replace fuse/reset breaker in home.

4. Thermal Protector activated. 4. Unplug and allow vacuum to cool for 30min.

(This willl reset the thermal protector)

Dust escaping

from vacuum

1. 1. Dirt cup full. Empty dirt cup.

2. Dirt cup not installed

correctly.

2. Review Dirt Cup removal & replacement.

3. Hose not installed correctly. 3. Review Hose installation.

Smoky/burning

smell detected

1. Brush 1. roll. roll is clogged. Clear/remove debris from brush

Vacuum tools

won’t pick-up

1. Hose clogged 1. Remove hose and tools; remove obstruction.

2. Dirt cup full 2. Empty dirt cup.

3. One or both filters are

clogged.

3. Remove both filters and clean.

4. Release handle/wand to

actuate internal valve.

4. Pull handle up and out of unit.

5. Vacuum not picking

up debris.

5. Brush roll could be turned off or the belt

could be broken.

To reduce the risk of personal injury - Unplug before cleaning or servicing.

WARNING

NOTE: Any other servicing should be done by an authorized service representative. If appliance

is not working as it should, has been dropped, damaged, left outdoors or dropped into water,

take it to a service center prior to continuing use.

TROUBLESHOOTING

LIMITED

WARRANTY

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner’s Manual,

your Dirt Devil® product is warranted against original defects in material and workmanship. During

the Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in

products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to a Dirt Devil

® Authorized Warranty

Service Dealer along with proof of purchase. For an automated referral to authorized service outlets

in the U.S.A., phone: 1-800-321-1134 OR visit Dirt Devil® online at www.DirtDevil.com. For additional

assistance or information concerning this Warranty or the availability of warranty service outlets,

phone the Dirt Devil® Consumer Response Center, Phone 1-800-321-1134, Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial

and equipment rental services), brush roll, belt, bags, filters, improper maintenance of the product,

damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Royal

Appliance Mfg. Co. (“Royal”, “we”), owner’s acts or omissions, use outside the country in which the

product was initially purchased and resales of the product by the original owner. This warranty does

not cover pick up, delivery, transportation or house calls.

This warranty does not apply to products purchased outside the United States, including its

territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty

does not cover products purchased from a party that is not an authorized retailer, dealer, or

distributor of Royal products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and

construed under the laws of the state of Ohio. The Warranty Period will not be extended by any

replacement or repair performed under this Warranty. THIS WARRANTY IS THE EXCLUSIVE

WARRANTY AND REMEDY PROVIDED BY ROYAL. ALL OTHER WARRANTIES, EXPRESSED OR

IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR

PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL ROYAL BE LIABLE FOR ANY SPECIAL, INDIRECT,

INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY

CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT

PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow

the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty

gives you specific rights; you may also have others that vary from state to state.

WAR RANTY

Call our Customer

Service Department

at (800) 321-1134

8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

www.dirtdevil.com

Find GENUINE

Replacement Parts at

www.dirtdevil.com

This product uses the following parts:

PRE-MOTOR FILTER F112

EXHAUST FILTER F111

OUR VACS SPEAK

VOLUMES

Pick Up the Conversation On…

Twitter@DirtDevil

Facebookcom/DirtDevil

GUIDE D’UTILISATIO

961152045 / ID116243 / R0 12/16

OBTENEZ DES PIÈCES

• FILTRE SITUÉ AVANT LE MOTEUR F112

• FILTRE D’ÉVACUATION F111

Aspirateur-balai cyclonique pour

tapis et planchers durs

RazorTM Vac

Mon modèle est : __________

Produktspecifikationer

Varumärke:	Dirt Devil
Kategori:	dammsugare
Modell:	Razor Pet

Behöver du hjälp?

Om du behöver hjälp med Dirt Devil Razor Pet ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

dammsugare Dirt Devil Manualer

Dirt Devil m 5050 infitnity vx 8 Bruksanvisning

9 April 2025

Dirt Devil m 2734 0 centrino Bruksanvisning

8 April 2025

Dirt Devil REBEL25 - DD2225 Bruksanvisning

6 April 2025

Dirt Devil M2991-2 Centrino Cleancontrol 2 Bruksanvisning

2 April 2025

Dirt Devil M2700 - Centrino SX3 Bruksanvisning

2 April 2025

Dirt Devil M 2881 Bruksanvisning

1 April 2025

Dirt Devil m 5036 4 infinity vs8 turbo Bruksanvisning

31 Mars 2025

Dirt Devil YAZZ - DD2325 Bruksanvisning

30 Mars 2025

Dirt Devil M2881-6 Centrino Cleancontrol Bruksanvisning

29 Mars 2025

Dirt Devil M 7023 Rocco Bruksanvisning

29 Mars 2025

dammsugare Manualer

Nyaste dammsugare Manualer

Electrolux zp 3520 clario Bruksanvisning

9 April 2025

Miele medicair s 600 serie Bruksanvisning

9 April 2025

Bort BSS-1800N-ECO Bruksanvisning

9 April 2025

Dibea UV-808 Bruksanvisning

9 April 2025

Bestron ABG100AMP - AMIGO Bruksanvisning

9 April 2025

Progress pc 6015 Bruksanvisning

9 April 2025

Hyundai HSV100721 Bruksanvisning

9 April 2025

Miele Guard L1 Cat & Dog Flex Bruksanvisning

9 April 2025

Miele Guard M1 Bruksanvisning

9 April 2025

Gtech SC02 Bruksanvisning

9 April 2025
