DJI E310
Multirotor Propulsion System
V1.0
2014.12
User Manual
Disclaimer
Thank you for purchasing the E310 (hereinafter referred to as “product”). Read this disclaimer carefully
before using this product. By using this product, you hereby agree to this disclaimer and signify that
you have read it fully. Please strictly install and use this product in accordance with the manual. DJI
assumes no liability for damage(s) or injuries incurred directly or indirectly from using, installing or
retting this product improperly, including but not limited to using accessories not designated. Ensure
your ESC rmware matches the motor you will attach it to. Otherwise, you are responsible for all
consequences caused by your own conduct.
This device complies with part 15 of the FCC Rules.
DJI is the registered trademark of SZ DJI Technology Co., Ltd. (abbreviated as “DJI”). Names of
product, brand, etc., appearing in this manual are trademarks or registered trademarks of their
respective owner companies. This product and manual are copyrighted by DJI with all rights
reserved. No part of this product or manual shall be reproduced in any form without the prior written
consent or authorization of DJI.
This disclaimer is made in various language versions; in the event of divergence among different
versions, English
version shall prevail.
Cautions
When powered on, the motors and propellers will rotate very quickly and may cause serious
damage and injury. Therefore, please always be aware for your safety.
1. Always y your aircraft a safe distance away from people, animals, high-voltage lines and other
obstacles.
2. Do not get close to or touch the motors or propellers when powered on, as this may cause
serious injury.
3. Make sure there is no short circuit or open circuit.
4. Check that the propellers and the motors are installed correctly and rmly before ight.
5. Check whether all parts of your aircraft are in good condition before ight. Do not y with worn or
broken parts.
6. Use compatible DJI parts.
Legend
Important Hints and Tips
If you have any problems you cannot solve, please contact your local dealer or DJI customer service.
DJI Support Website:
www.dji.com/support
©
2014 DJI. All Rights Reserved.
1
About
The E310 Multirotor Propulsion System is a tuned propulsion system customized for multi-rotor aircraft
weighing 1 to 2.5 kg. It is efcient, reliable and minimizes vibrations. A revolutionary Electronic Speed
Control (ESC) with a sinusoidal drive replaces the traditional square wave drive, and along with the
new AC permanent magnet synchronous motor, the whole propulsion system is brought into an era
of higher efciency while providing a steady torque output. The integrated sensors and patented
algorithms give the whole system a high level of intelligence and redundancy, and advanced features
include closed loop torque control, real-time system health diagnosis, distinct functional redundancy
for the communication link, and more. Furthermore, the ESC’s rmware can be upgraded by users,
enabling you to enjoy the continual development of the system.

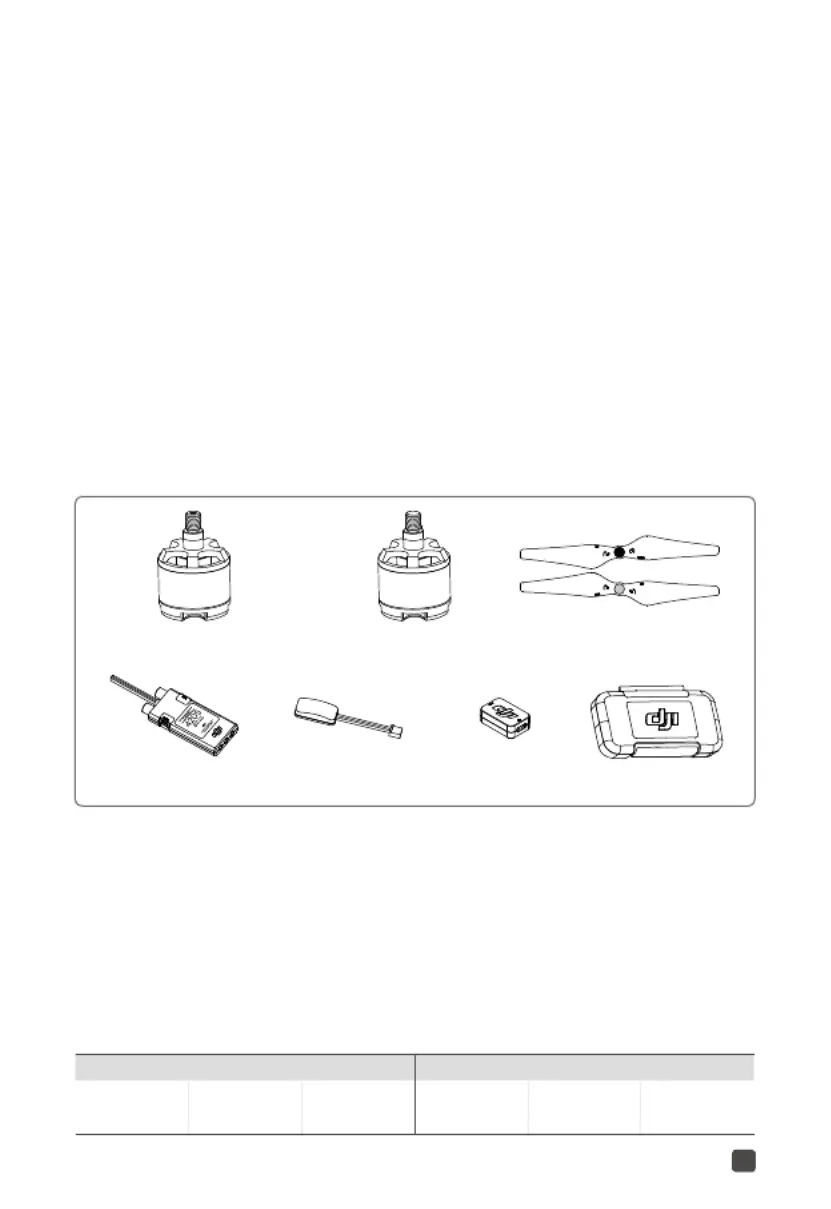

1. In the Box
The E310 is available in two different package congurations. The descriptions below correspond
with the Quad-rotor and Hexa-rotor packages, respectively. Please ensure that you have the correct
quantities of each part before beginning the installation process or using the product.
E.g. “Propeller Pair ×4 or ×5” indicates that there are four pairs of propellers included in the
conguration for Quad-rotors and ve pairs of propellers included in the conguration for Hexa-rotors.
Motor(Clockwise rotation)
×
2 or
×
3 Motor (Counter clockwise rotation) ×2 or ×3
Propeller Pair ×4
or
×5
In the toolbox: Power hub, Screws (M2.5×6.3), Screws (M3×8.1), Screws (M3×5.5), Wrench for propellers, Foam
double sided adhesive tape, 2.0
mm hexagonal wrench, etc.
2. Gain Value Settings
The new E310 ESC, with a sinusoidal drive replacing the traditional square wave drive, offers
improved acceleration and deceleration performance. Before using, reduce the gain values
according to your ight control system and frame to achieve the same sensitivity as older ESCs (which
use a traditional square wave drive). The table below shows typical gain values when using the E310
with a DJI A2ight control system and a DJI F450 multirotor ying platform:
Basic Attitude
Pitch Roll Pitch Roll VerticalYaw
40% 40% 60% 160% 160% 100%
© 2014 DJI. All Rights Reserved.
2
ESC ×4
or
×6 Outer ESC LED Indicator ×4
or
×6 Updater
×1 Toolbox
×1
