INSTALLATION & OPERATING
INSTRUCTIONS
Awning Power Wand
Model 3316736.000
Read these instructions carefully. These instructions MUST stay with this product.
USA
SERVICE OFFICE
Dometic Corporation
1120 North Main Street
Elkhart, IN 46514
CANADA
Dometic Corporation
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
CANADA
SERVICE CENTER &
DEALER LOCATIONS
Visit:
www.eDometic.com
REVISION D
Form No. 3316779.000 6/17
(French 3316780.000_D)
©2017 Dometic Corporation
LaGrange, IN 46761
IMPORTANT SAFETY INSTRUCTIONS AND DOCUMENT SYMBOLS 2
....................................
A. Recognize Safety Information 2
.............................................................
B. Understand Signal Words 2
................................................................
C. Supplemental Directives 2
.................................................................
D. General Safety Messages 2
................................................................
GENERAL INFORMATION 2
......................................................................
INSTALLATION 3
...............................................................................
A. Installing The Battery 3
....................................................................
B. Mounting The Connection Enclosure 3
.......................................................
C. Connecting The Wires 4
...................................................................
OPERATION 4
.................................................................................
A. Operating The Power Wand 4
..............................................................
MAINTENANCE 4
..............................................................................
A. Removing The Battery 4
...................................................................
B. Charging the Battery 4
....................................................................
2
IMPORTANT SAFETY INSTRUCTIONS AND DOCUMENT SYMBOLS
This manual has safety information and instructions to help you eliminate or reduce the risk of accidents and injuries.
A. Recognize Safety Information
This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
B. Understand Signal Words
A signal word will identify safety messages and property damage messages, and will indicate the degree or level of hazard seriousness.
indicates a hazardous situation that, if avoided, could result in death or serious injury.NOT
indicates a hazardous situation that, if avoided, could result in minor or moderate injury.NOT
is used to address practices related to physical injury.NOT
Indicates additional information that is not related to physical injury.
C. Supplemental Directives
Read and follow all safety information and instructions to avoid possible injury or death.
Read and understand these instructions before [installation / use / service / maintenance] of this product.
Incorrect [installation / operation / service / maintenance] of this product can lead to serious injury.
The installation comply with all applicable local or national codes, including the latest edition of the following standards:MUST
U.S.A.
• ANSI/NFPA70, National Electrical Code (NEC)
• ANSI/NFPA 1192, Recreational Vehicles Code
CANADA
• CSA C22.1, Parts l & ll, Canadian Electrical Code
• CSA Z240 RV Series, Recreational Vehicles
D. General Safety Messages
Failure to obey the following warnings could result in death or serious injury:
• This product MUST be [installed / serviced] by a qualied service technician.
• PROJECTILE HAZARD. The unit can become a projectile if le attached during transit. Do NOT modify this product to allow
permanent installation. Failure to obey this warning could result in death or serious injury.
• FIRE OR EXPLOSION HAZARD. Use only an approved Dometic charger. Failure to obey this warning could result in battery
damage, death or serious injury.
• FIRE OR EXPLOSION HAZARD. Do disassemble, crush, puncture or incinerate product. Failure to obey this warning NOT
could result in death or serious injury. If the battery is disassembled, crushed or punctured, it could cause a re or explode.
If it is incinerated, it could explode.
• Always disconnect the Power Wand and remove it from the awning aer use. Be sure to install the mud plug on the connec-
tor to prevent debris from collecting. Otherwise, damage to product and/or RV could occur.
• This product is intended for use on awnings with wind sensors, controllers, or devices that require constant power. NOT
Otherwise, damage to product and/or RV could occur.
GENERAL INFORMATION
INCLUDED HARDWARE
(1) Connection Enclosure (1) Connection Harness
(1) Mud Plug
BASIC COMPONENTS
Power Wand Battery
Charger
REQUIRED TOOLS
Wire Strippers Crimp Tool
3/8" Socket/Bit Electric Drill
3

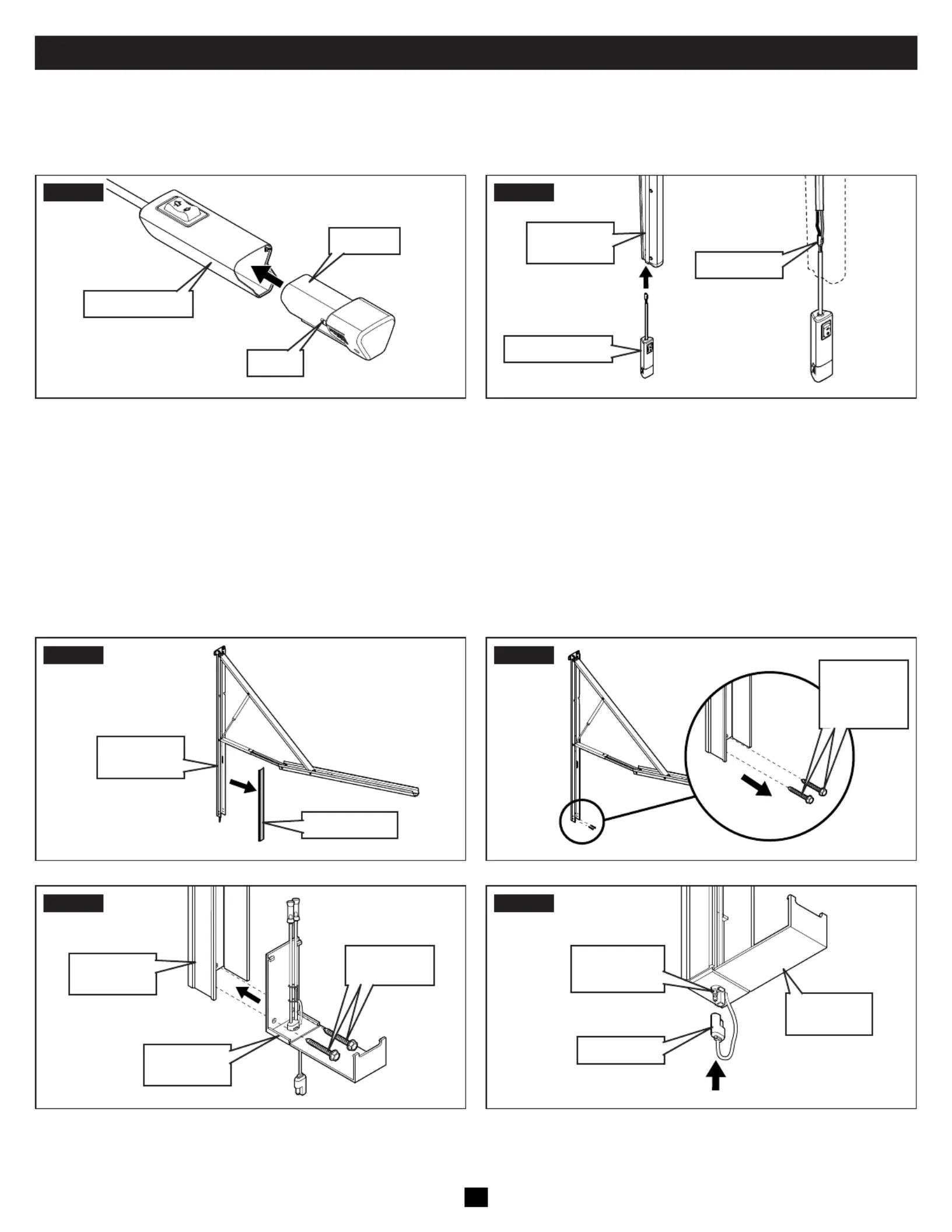

INSTALLATION
These instructions assume an awning is already installed. The awning pictured may vary from the actual awning installed but the
installation procedure remains the same.
A. Installing The Battery
STEP1
Battery
Power Wand
Snaps
B. Mounting The Connection Enclosure
STEP1
Power Wand
Hardware
Arm Connector
The awning may have to be opened slightly to allow room
to mount the connection enclosure.
• TEMPORARILY connect the Power Wand to the hardware
arm wiring by carefully pushing the black and red wires of
the hardware arm harness into the two-place connector on
the Power Wand.
• Open the awning by operating the switch on the Power
Wand.
• Remove the temporary connection before proceeding with
the installation.
STEP2
Wire Cover
Hardware
Arm
STEP3
Mounting
Screws or
Pop Rivets
STEP4
Mounting
Screws
Hardware
Arm
Mounting
Enclosure
• Re-install the screws or pop rivets that were removed in
STEP3.
STEP5
Mud Plug
Wire
Connection
Mounting
Enclosure
• Place the mud plug over the red and black connection
wires from the hardware arm.
