Sida 1/12
RM2350
8251227-05 MO-M 0911
RA/RM-1D
INSTALLATION
&
OPERATING
INSTRUCTIONS
FOR YOUR SAFETY
If you smell gas:
1. Open windows and door.
2. Don’t touch electrical switches.
3. Extinguish any open ame.
4. Turn o󰀨 the gas supply at the source.
5. Contact a qualied person.
FOR YOUR SAFETY
Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualied installer,
service agency or the gas supplier.
!WARNING
2
INSTALLATION INSTRUCTIONS 3 ____________
GENERAL INFORMATION 3 . . . . . . . . . . . . . . . . . . . . . . . . .
PACKAGING 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VENTILATION REQUIREMENTS 3 . . . . . . . . . . . . . . . . . . . .
CLEARANCES 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIMENSIONS 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLING THE REFRIGERATOR . . . . . . . . . . . . . . . . . 4
SECURING THE REFRIGERATOR . . . . . . . . . . . . . . . . . . 4
CONNECTIONS 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RE-HINGING THE DOOR . . . . . . . . . . . . . . . . . . . . . . . . . 6
MOUNTING THE DOOR PANEL . . . . . . . . . . . . . . . . . . . . . 6
REFRIGERATOR REMOVAL 6 . . . . . . . . . . . . . . . . . . . . . . .
OPERATING INSTRUCTIONS 7 ______________
GAS, AC AND DC OPERATION . . . . . . . . . . . . . . . . . . . . . 7
REGULATING THE TEMPERATURE . . . . . . . . . . . . . . . . . 8
TURNING OFF THE REFRIGERATOR 8 . . . . . . . . . . . . . . . .
STORAGE COMPARTMENTS 8 . . . . . . . . . . . . . . . . . . . . . .
PRODUCT CARE 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MAINTENANCE & SERVICE 9 _______________
REPLACING THE HEATER . . . . . . . . . . . . . . . . . . . . . . . . 9
PERIODIC MAINTENANCE 9 . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 10 . . . . . . . . . . . . . . . . . . . . . . . . . . .
APPENDIX ____________________________ 11
REARVIEW EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . 11
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CONTENTS INTRODUCTION
We are pleased that you have chosen this refrigerator and
hope you will derive much satisfaction from using it.
The refrigerator is designed for storage of foods and storage
of frozen foods and making ice.
The installation and servicing should only be carried out by
an authorized/qualied person.
It is important to read through these instructions carefully
before using the refrigerator. To ensure good refrigeration and
economical operation, the refrigerator must be installed and
used as described in these instructions.
Follow the instructions in this manual. The refrigerator is
quality guaranteed. However, we are not responsible for any
failures caused by improper adjustments and unfavourable in-
stallation conditions. Please contact service point or distribu-
tor service dept. for assistance.
DATA PLATE
Check the data plate, located inside the refrigerator, to ensure
that you have received the right model and that it is suitable
for the available gas supply and pressure.
The right gas pressure is . . . . . . . . . . . . . . . . . . 2.75 kPa
The right voltage is . . . . . . . . . . . . . . . . . . 230 - 240 volt
The right gas consumption is . . . . . . . . . . . . . . 1.05 MJ/h
The data plate contains e. g. the following details:
Model designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Since these details will be needed if you have to contact serv-
ice personnel, it is a good idea to make a note of them here.
SYMBOLS
The following symbols are used throughout the manual:
Indicates a potentially hazardous
situation, which, if not avoided,
could result in death or serious
injury.
Indicates a potentially hazardous
situation, which, if not avoided,
may result in minor or moderate
injury.
Used without the safety alert
symbol indicates, a potentially
hazardous situation which, if not
avoided may result in property
damage.
Step-by-step instructions
CAUTION
!
WARNING
!
CAUTION
3
INSTALLATION INSTRUCTIONS
GENERAL INFORMATION
The installation, servicing and gas installation must be per-
formed by an authorised/qualied person. The refrigerator
must be installed in accordance with the manufacturers in-
stallation instructions, local gas tting regulations, municipal
building codes, electrical wiring regulations, AS5601.2 “Gas
Installations” and any other statutory regulations.
PACKAGING
The packaging of this appliance is design to withstand the
transportation from the factory to the point where it will be
installed in the recreational vehicle.
Before starting to install the appliance, please, make sure all
parts of the packaging have been removed, so there will not
be anything left that may come into contact with heat parts of
the appliance or obstruct the combustion exhaust gases or the
air movement around the cooling unit.

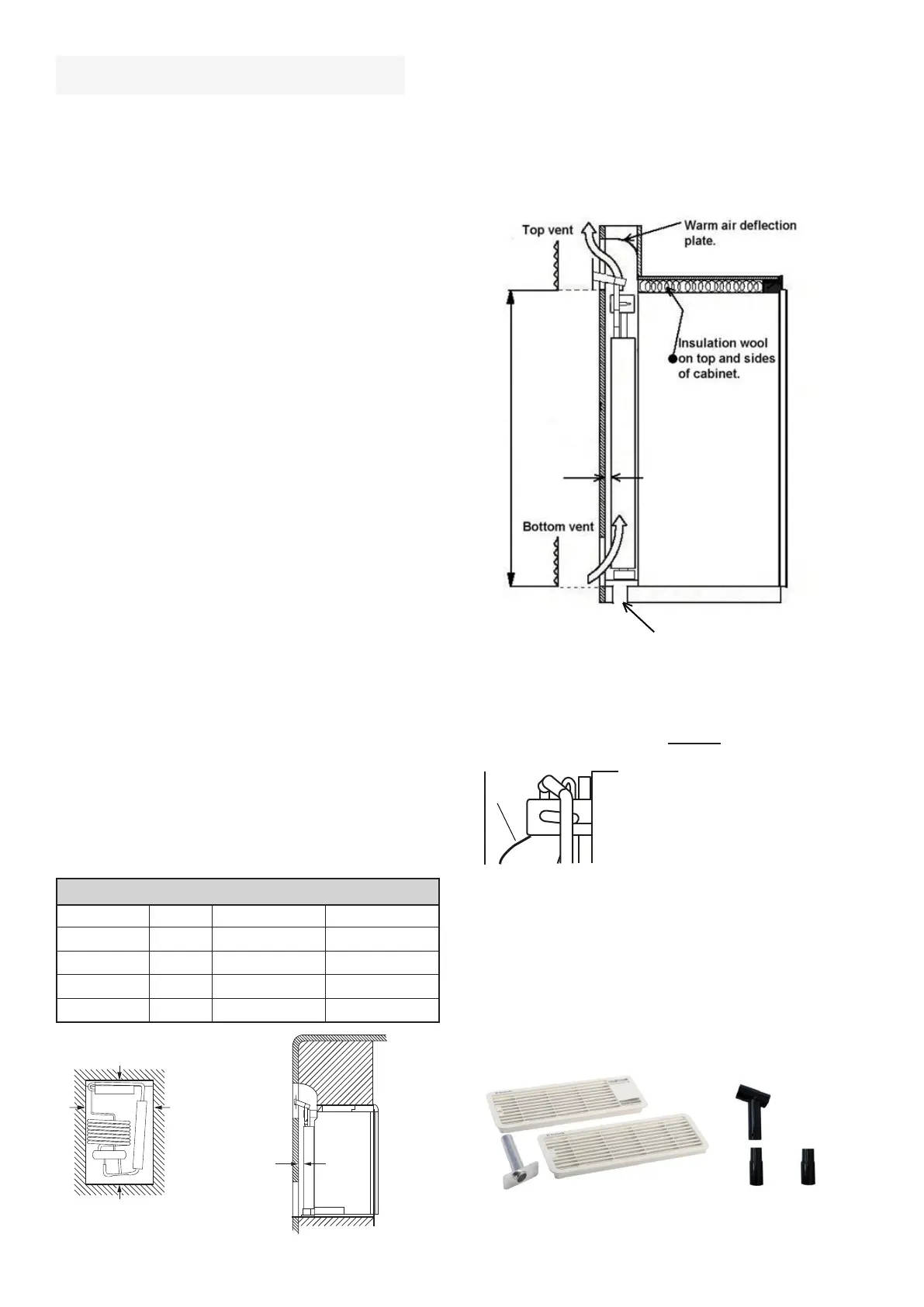

VENTILATION REQUIREMENTS
The installation shall be made in such a manner as to separate
the combustion system from the living space of the mobile
home or recreational vehicle. Proper installation requires one
lower fresh air intake and one upper exhaust vent.
We recommend tting the Dometic ventilation system, which
is specially developed by Dometic for this purpose. The ven-
tilation kits must be installed and used without modication.
An opening toward the outside at oor level in the refrigera-
tor compartment must be provided for ventilation of heavier-
than-air fuel gases. The lower vent of the recommended kits
is provided with proper size openings. The ow of combus-
tion and ventilating air must not be obstructed.
The lower side vent provides an adequate access opening
for ready serviceability of the burner and control manifold
of the refrigerator. This should be centred on the back of the
refrigerator.
CLEARANCES
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIAL
inch mm
Top G0 0
Side K0 0
Bottom L0 0
Rear M1 25
M
G
KK
L
If the lower grille is not at oor level where leaking gas can
escape, a 40 mm hole to the outside should be made in the
oor of the recess to drain any unburned gas to the outside.
Fit the hole with wire mesh and an angled plate to protect it
from stones, mud etc.
MINIMUM VENTILATION REQUIREMENTS
Optional ventilation hole
minimum 40 mm diameter
Optimal
top vent height
is no lower than
top of the
cabinet.
min. clearance 10 mm
max. clearance 25 mm
Notice: If the design of the vehicle does not allow you to
install the top exhaust vent directly above the condenser of
the refrigerator (what Dometic recommends):
“Minimum top vent height is (top of upper vent 746 mm
opening)”
To compensate for the
lowered vent it is required
that the deflector plate (1)
is installed so that it
touches the leading
bottom edge of the
condenser unit.
1
Ventilation System (Not Included)
Ventilation components are:
-1x AS1625 vent kit (top & bottom vents with frames)
-1x TP (includes 1x tee piece & 1x extension)
-Extra extensions may be required depending on the
height of refrigerator and vent height.
TPX
A
S 1625 vent it k TP Kit TPX
Extension
