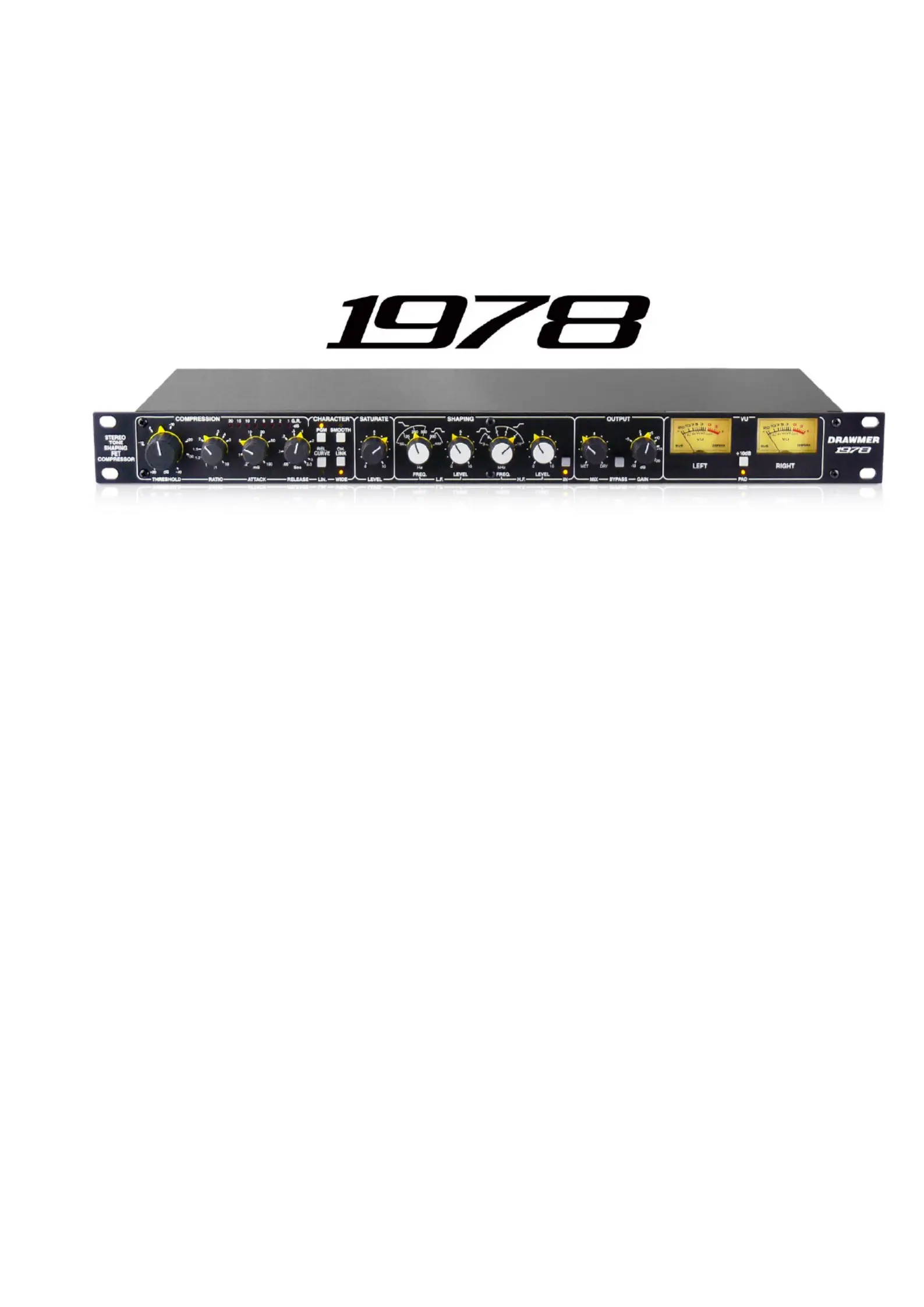

DRAWMER
STEREO TONE SHAPING
FET COMPRESSOR
OPERATOR’S MANUAL
CONTENTS
Warranty
Safety Consideration
Chapter 1 - Introduction
Introduction
Installation

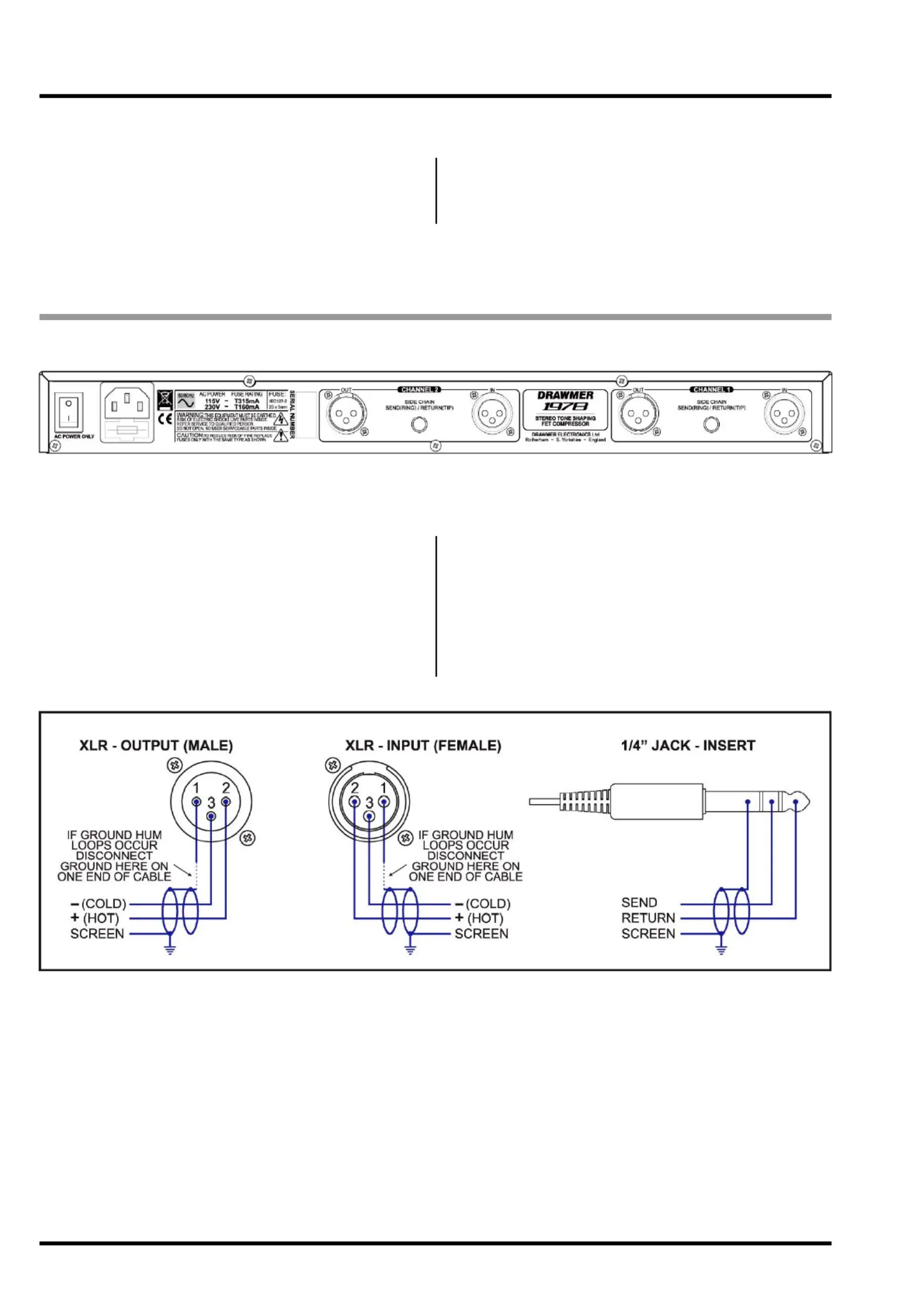

Audio Connections
Power Connection
Chapter 2 - Control Description
Control Description
Chapter 3 - General Information
If a fault develops
Contacting Drawmer
Specification
Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2DRAWMER 1978 OPERATOR’S MANUAL
Drawmer Electronics Ltd., warrants the Drawmer 1978 Stereo
Tone Shaping FET Compressor to conform substantially to
the specifications of this manual for a period of one year from
the original date of purchase when used in accordance with
the specifications detailed in this manual. In the case of a
valid warranty claim, your sole and exclusive remedy and
Drawmer’s entire liability under any theory of liability will be to,
at Drawmer’s discretion, repair or replace the product without
charge, or, if not possible, to refund the purchase price to you.
This warranty is not transferable. It applies only to the original
purchaser of the product.
For warranty service please call your local Drawmer dealer.
Alternatively call Drawmer Electronics Ltd. at +44 (0)1709
527574. Then ship the defective product, with transportation
and insurance charges pre-paid, to Drawmer Electronics Ltd.,
Coleman Street, Parkgate, Rotherham, S62 6EL UK. Write the
RA number in large letters in a prominent position on the
shipping box. Enclose your name, address, telephone number,
copy of the original sales invoice and a detailed description of
the problem. Drawmer will not accept responsibility for loss or
damage during transit.
This warranty is void if the product has been damaged by
misuse, modification or unauthorised repair.
THIS WARRANTY IS IN LIEU OF ALL WARRANTIES,
WHETHER ORAL OR WRITTEN, EXPRESSED, IMPLIED OR
STATUTORY. DRAWMER MAKES NO OTHER WARRANTY
EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
OR NON-INFRINGEMENT. PURCHASER’S SOLE AND
EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE
REPAIR OR REPLACEMENT AS SPECIFIED HEREIN.
IN NO EVENT WILL DRAWMER ELECTRONICS LTD. BE
LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY
DEFECT IN THE PRODUCT, INCLUDING LOST PROFITS,
DAMAGE TO PROPERTY, AND, TO THE EXTENT PERMITTED
BY LAW, DAMAGE FOR PERSONAL INJURY, EVEN IF
DRAWMER HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Some states and specific countries do not allow the exclusion
of implied warranties or limitations on how long an implied
warranty may last, so the above limitations may not apply to
you. This warranty gives you specific legal rights. You may
have additional rights that vary from state to state, and country
to country.
In the interests of product development, Drawmer reserve the right to modify or
improve specifications of this product at any time, without prior notice.
ONE YEAR LIMITED WARRANTY
COPYRIGHT
This manual is copyrighted 2015 by Drawmer Electronics Ltd. With all rights reserved. Under copyright
laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated
into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, with-
out the written permission of Drawmer Electronics Ltd.
DRAWMER
1978
Stereo Tone Shaping
FET Compressor
SAFETY CONSIDERATIONS
CAUTION - MAINS FUSE
TO REDUCE THE RISK OF FIRE
REPLACE THE MAINS FUSE ONLY WITH
A FUSE THAT CONFORMS TO IEC127-2.
250 VOLT WORKING, TIME DELAY TYPE
AND BODY SIZE OF 20mm x 5mm.
THE MAINS INPUT FUSE MUST BE
RATED AT 230V=T160mA and 115V=T315mA.
CAUTION - MAINS CABLE
DO NOT ATTEMPT TO CHANGE
OR TAMPER WITH THE
SUPPLIED MAINS CABLE.
CAUTION - SERVICING
DO NOT PERFORM ANY SERVICING.
REFER ALL SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
3
DRAWMER 1978 OPERATOR’S MANUAL
DRAWMER
1978
STEREO TONE SHAPING FET COMPRESSOR
CHAPTER 1
INTRODUCTION
The Drawmer 1978 builds on the success of the award
winning 1973 multiband FET compressor and adorns an
unparalleled array of controls to give complete mastering
over your mix, and all in a deceptively simple 1U frame.
In addition to the usual Ratio, Threshold, Attack and
Release controls, the 1978 features four character
switches offering a wide range of compression flavours,
as well as a variable saturation control to add harmonic
distortion to the signal. Side chain functionality is also
included with side chain insert points on both channels
and a very comprehensive and flexible Side Chain EQ
section which offers LF and HF controls with a choice of
specific shapes and frequencies for precise frequency-
conscious compression such as de-essing. A wet/mix
control also allows you to blend the processed signal with
the dry for parallel compression.
In addition, a fast reacting Dual colour backlit VU Meter is
employed to provide a visual indication of the amount of
saturation added. Time delay relays are incorporated into
the outputs to provide clean power-up and down with no
pops or bangs, and a low hum toroidal linear power supply.
The Drawmer 1978 is a truly flexible compressor made in
the UK with high-quality components.
The 1978 is a Buss Compressor like no other - compression
with character, controlled distortion, tonal shaping, wet/
dry mixing - others have tried but have never managed to
build a compressor that is this versatile and yet intuitive.
It's never been easier to get that elusive characteristic
sound that sets you apart from the rest. Glue your mix,
bring out the bass, control the highs, add warmth,
distortion, smoothen, widen, sound less digital more
analogue - and at a price that's right for even the smallest
studio.
Fast Reacting Stereo FET Design compressor with excellent Left/Right Tracking across the Full Range
of compression and in a 1u rack mount housing.
Threshold, Ratio, Attack and Release controls and Gain Reduction Metering provide familiar and initiativ
control over the audio. Anyone that knows how to use a compressor can operate the 1978.
4 character switches provide a multitude of compression flavour combinations that allow the 1978 to
take on the characteristics of other compressors.
Comprehensive side chain EQ giving simultaneous control of frequency and level of filtering for the low
and high bands. This works in conjunction with the rear panel stereo insert points that provide even
further control.
Variable Wet/Dry Mix plus Output Gain Knobs give a 'Parallel Compression' function without the need
for external mixing devices, providing Complete and Effortless Control over the amount of compression
used and Output Levels.
Two Analogue V.U. Meters with Switchable +10dB Meter Rescale Mode. These have additional dual
colour backlighting that act as a visual indication for the amount of saturation.
Time delay relays on outputs for clean power up/down.
Internal Low Hum Toroidal Linear Power Supply with Voltage Selector Switch.
Classic Drawmer Build Quality with Rugged Steel Chassis and Aluminium Front Panel.
Designed and manufactured by Drawmer in the UK.
The key features are as follows:
•
•
•
•
•
•
•
•
•
•
