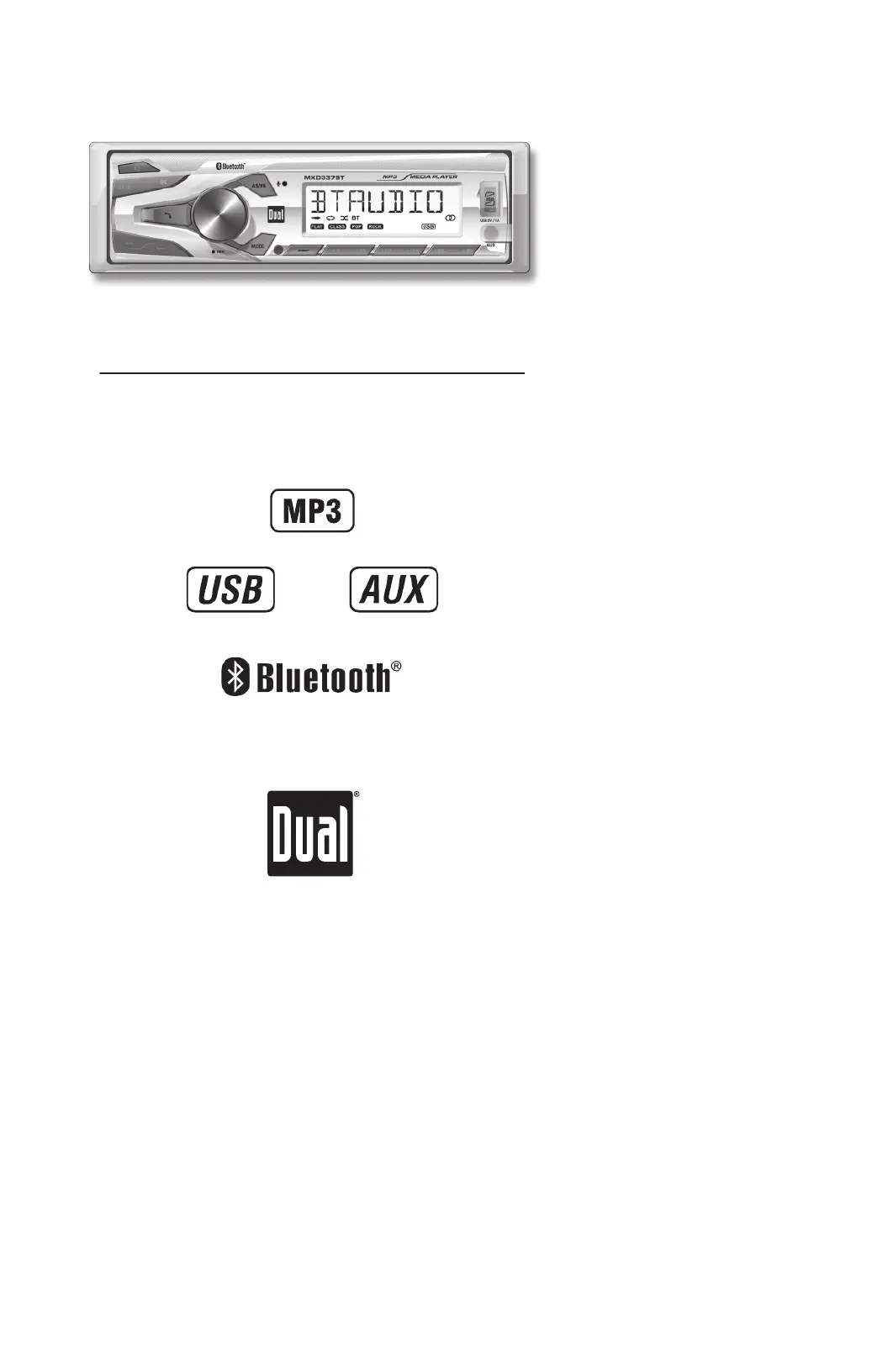

INSTALLATION/OWNER'S MANUAL
AM/FM Marine Receiver with Bluetooth and Fixed Face
MXD337BT
2
MXD337BT INSTALLATION
Preparation
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
Getting Started
•
Remove trim ring from unit.
•
Insert the supplied keys into the slots as shown, and slide the unit out of the
mounting
sleeve.
•
Install mounting sleeve into opening, bending tabs to secure.
•
Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
•
Certain vehicles may require an installation kit and/or wiring
harness adapter (sold separately).
•
Test for correct operation and slide into mounting sleeve to secure.
•
Snap trim ring into place.
TYPICAL FRONT-LOAD DIN MOUNTING METHOD
3
MXD337BT INSTALLATION

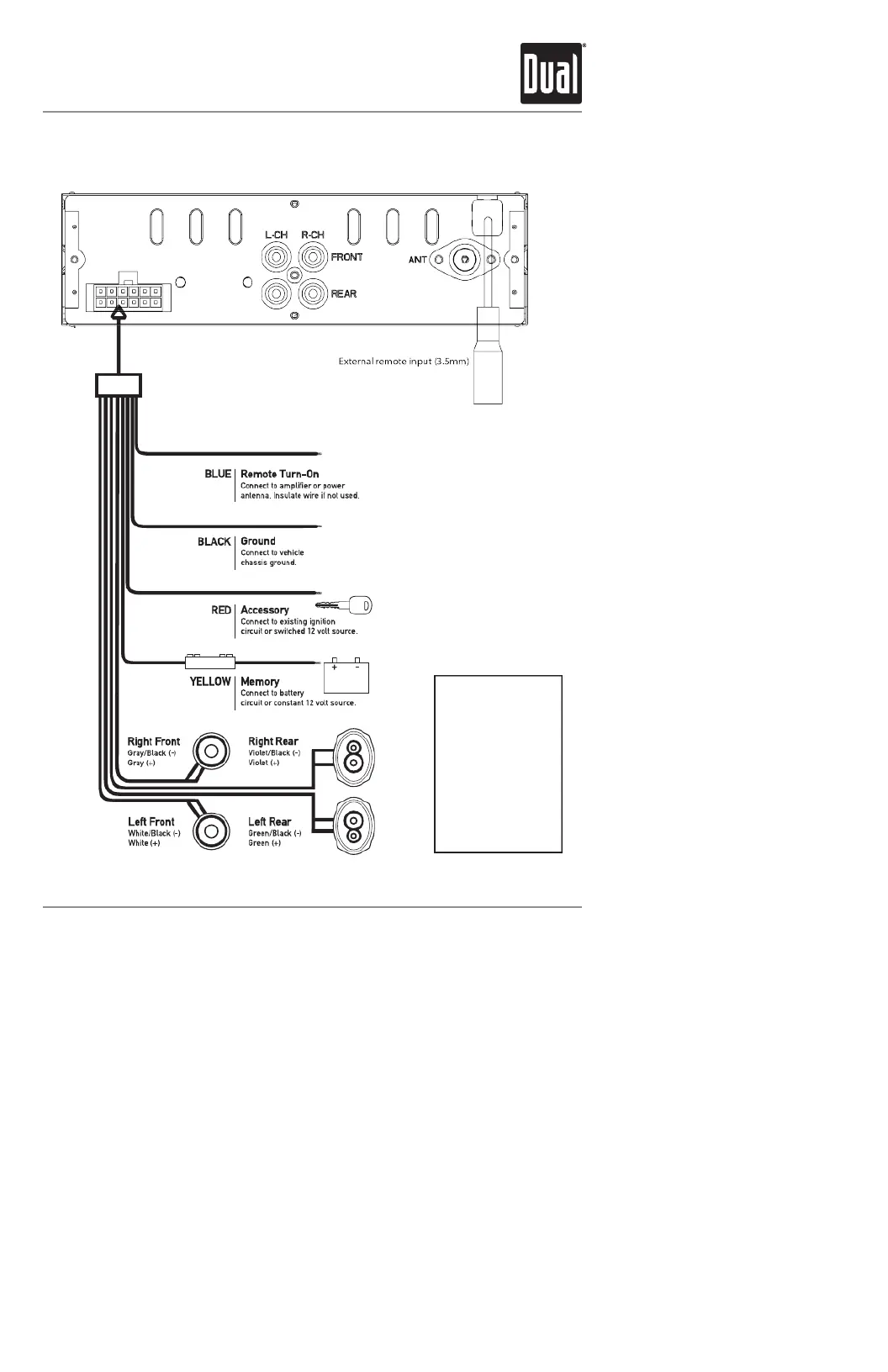

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The unit uses
one 10 amp AGC fuse
located beside
the Heat Sink
10 AMP
AGC Fuse
