Sida 1/16

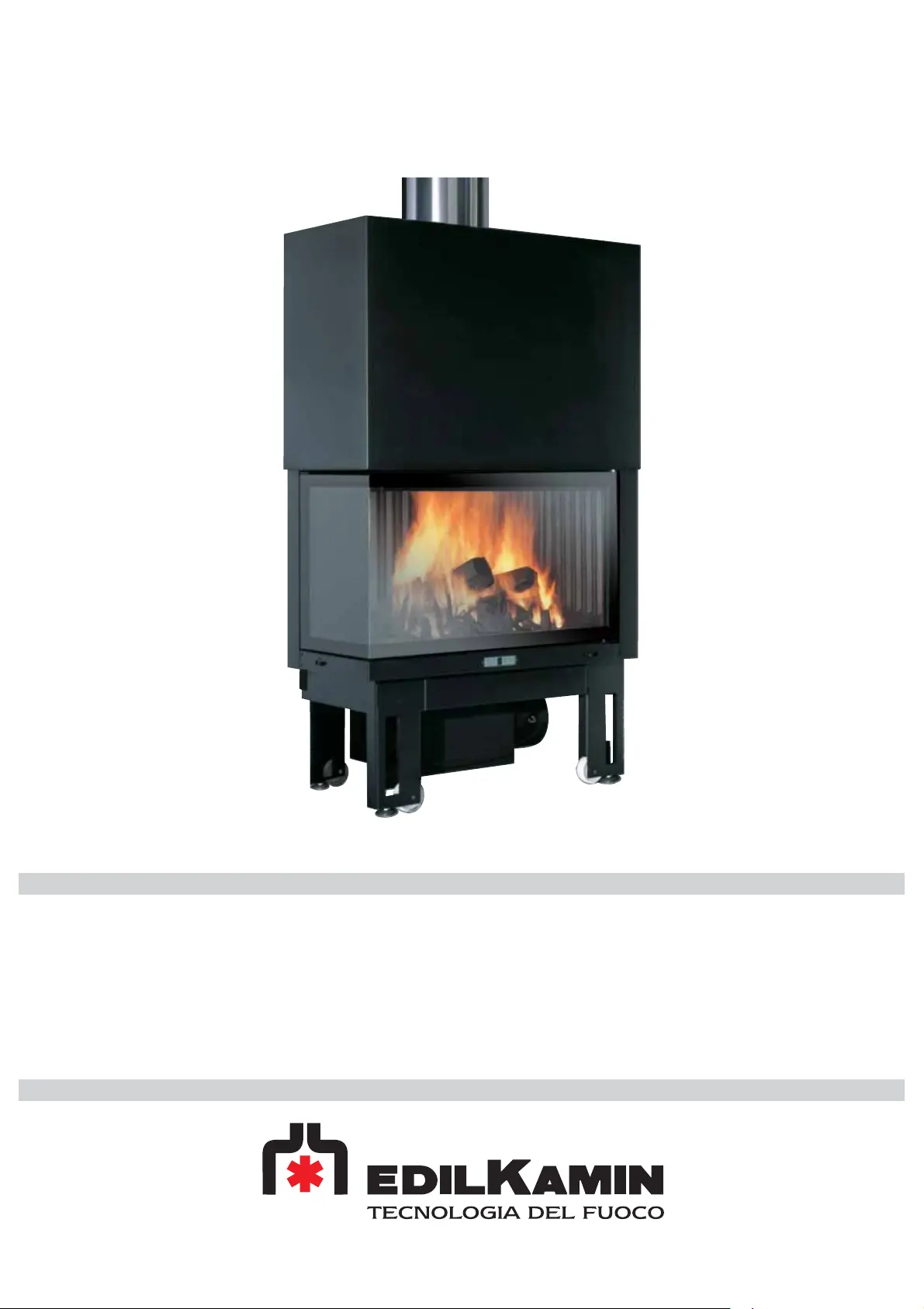

TITANO UP2
UK
Installation, use and maintenance
12
ENGLISH
Dear Sir/Madam
Congratulations and thank you for choosing our product.
Please read this document carefully before you use this product in order to obtain the best performance in complete
safety.
For further details or assistance, please contact the DEALER where you purchased the product or visit the TECHNI-
CAL ASSISTANCE CENTRES page on our website www.edilkamin.com.
NOTE
- After you remove the packaging, please inspect the unit for any damage or missing parts ("stay cool" handle, warran-
ty booklet, glove, technical data sheet).
In case of anomalies please contact the dealer where you purchased the product immediately. You will need to present
a copy of the warranty booklet and valid proof of purchase.
Commissioning/ testing
Commissioning and testing must be performed by an authorized Edilkamin Technical Assistance Centre. Failure to do
so will void the warranty. Commissioning, as specified in standard UNI 10683 (section "3.2") consists in a series of
controls performed on the installed fireplace in order to ascertain the correct operation of the system and its complian-
ce to applicable regulations.
To locate the Technical Assistance Centre closest to you, please ask your local dealer, call our toll-free number, or visit
our website www.edilkamin.com.
- Incorrect installation, incorrect maintenance, or improper use of the product, shall relieve the manufacturer from any
damage resulting from the use of this product.
- the proof of purchase tag, necessary for identifying the fireplace, is located:
- on the top of the package
- in the warranty booklet found inside the firebox
- on the ID plate affixed to the back side of the unit;
This documentation must be saved for identification together with the valid proof of purchase receipt. The data contai-
ned therein must be reported when requesting information and made available should servicing be required;
- All images are for illustration purposes only; actual products may vary.
The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - tax code and VAT no.
00192220192
Declares under its own responsability as follows:
The wood-combustion fireplace listed below complies with Regulation EU 305/2011 (CPR) and the harmonised European Standard EN
13240:2001 + A2:2004 + AC:2006 + AC:2007
WOOD BURNING FIREPLACES, trademark EDILKAMIN, called TITANO UP2
Year of manufacture: Ref. Data nameplate
Declaration of performance (DoP - EK ): Ref. data tag plate 175
Also declares as follows:
the wood burning fireplaces TITANO are in compliance with the requirements of the European directives:UP2
2006/95/EEC - Low voltage directive
2004/108/EEC - Electromagnetic compatibility directive
EDILKAMIN S.p.a. will decline all responsability of malfunctioning or damage to the equipment in case of unauthorized substitution, assem-
bly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.
13
ENGLISH
• AVAILABLE VERSIONS
N natural convection
V forced ventilation
• CLEAN COMBUSTION SYSTEM: S.C.P.
Ensures high thermal efficiency and clean emissions
The system combines an innovative air distribution method of
primary combustion (A) and post-combustion (B)
the primary combustion air is fed into the firebox and is uniformly
distributed over the embers. This allows for the maximum possible
oxygenation and power necessary for optimal combustion;
air for post-combustion is taken in from the room through two
holes located at the base of the fireplace. This air heats up while travel-
ling through a channel designed specifically for this purpose at the back
of the firebox. The air is emitted into the roof of the firebox through a
well distributed drip system, in order to obtain the air/smoke mixture at
a high temperature.
• MANIGLIA ASPORTABILE PER APERTURA PORTELLONE
The handle of the hatch is not fixed to the same hatch but is inserted
when required.
The handle fits into the bottom of the door, by hooking it onto the pins.
The handle is only needed to lift or lower the hatch.
• BUILT-IN SYNOPTIC PANEL
for models with forced ventilation:
it allows you to manage and control the operating phases (ignition and
turning off) as well as adjust the fan speed from 1 to 9 in automatic or
manual mode.
• COMBUSTION AIR
New distribution system with:
A primary air brushing the surface of the hearth, controlled by
a recessed damper (use with protective tool)
B secondary air fed in directly from the top of the door thus
keeping the glass clean
C post-combustion air, pre-calibrated, it comes in from the
ceiling of the firebox
THE TECHNOLOGY
A
B
COMBUSTION DIAGRAM
post-combustion
air
primary air
A
B
primary combustion post-combustion
secondary air and
post-combustion
glass cleaning
C
A
B
B
B
A
C
primary air control lever
Closed
Open
secondary air inlet
