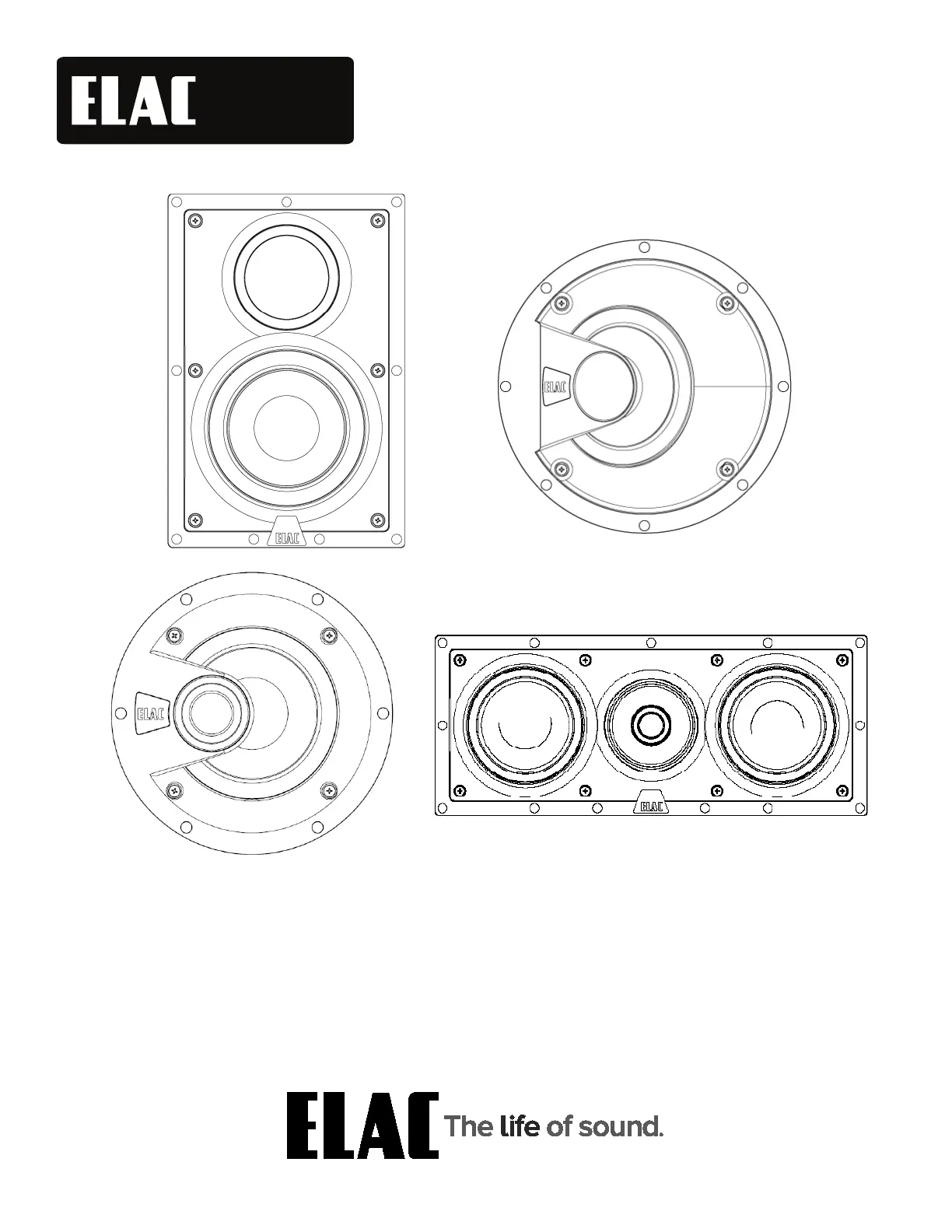

OPERATING INSTRUCTIONS
IW-V62-W Vertex Series 2 - 6.5” In-Wall Speaker
IC-V62-W Vertex Series 2 - 6.5” In-Ceiling Speaker
IW-VC52-W Vertex Series 2 - Dual 5.25” In-Wall Center Speaker
IC-VT-62-W Vertex Series 2 - 6.5” Home Theater In-Ceiling Speaker
IC-V82-W Vertex Series 2 - 8” In-Ceiling Speaker
Vertex Series
INTRODUCTION
Congratulations on your purchase of these fine loudspeakers and welcome to the ELAC family. Ever since we
started in 1926, we have striven to create the very best products available. Our passionate team members are
always looking for ways to improve your listening enjoyment. We thank you for making this choice.
These ELAC Vertex Series 2 In-Wall speakers are designed to accurately reproduce the full range of music
and film sound, while requiring absolutely no floor space. This compact format is ideal for applications where
traditional loudspeakers would be impractical or impossible. In-Wall speakers are ideal for Surround Sound
applications, anywhere space is a consideration, or to bring music into additional rooms of the house.
Please take a few minutes to carefully read this manual before you get started. Also, be sure to keep this manual
in a safe place should you need to refer to it in the future.
The information contained in this manual is applicable to these five ELAC models
IW-V62-W Vertex Series 2 6.5” In-Wall Speaker
This speaker is perfect for most applications for Home Theater & Music, providing extremely accurate
reproduction of the entire frequency range.
IC-V62-W Vertex Series 2 6.5” In-Ceiling Speaker
This speaker is perfect for installation in ceilings and provides the same exceptional sound reproduction as its
in-wall counterpart.
IW-VC52-W Vertex Series 2 Dual 5.25” In-Wall Center Speaker
This speaker is perfect for the exceptional reproduction of the dialogue in a TV broadcast, music, and the
complex requirements of the Center Channel in a Home Theater system.
IC-VT62-W Vertex Series 2 6.5” Home Theater In-Ceiling Speaker
This Speaker is designed for use in ceiling base home theaters.
IC-V82-W Vertex Series 2 - 8” In-Ceiling Speaker
This speaker is perfect for installation in ceilings and provides the same exceptional sound reproduc-
tion as its in-wall counterpart.
One of the main challenges during installation is to overcome the narrow directivity of the woofer and tweeter
by trying to aim the speaker towards the listener. Some speakers simply provide a swiveling tweeter that can be
rotated through a narrow range to “aim” it at the listener. The typical range provided in practice produces almost
no change in the sound balance, and does nothing to address the directivity of the woofer. The ELAC IC-VT62-W
is designed so that both the woofer and tweeter are mounted at a 30 degree angle that allows the sound to be
better directed toward the listening area.
1
SAFETY INSTRUCTIONS
Use Only As Directed
Observe all warnings on the speaker and in this manual.
Please check the speaker for damage before use.
Carefully consider the proper location before beginning the installation
Observe the correct polarity when connecting these speakers, according to the instructions in this
manual.
Location
Speakers should be mounted close to, or slightly above ear level whenever possible.
Allow at least 1.5” of clearance between the wall “cut-out” and any studs or joists
Please refer to the specification chart for the required depth for each model.
Use the included template for proper “cut-out” of drywall
Do not install the speaker near any heat sources such as radiators, heating valves, stoves or apparatus
(including amplifiers) ,or in areas where there is a risk of explosion.
Do not install the speaker near transformers. EMF fields can cause unwanted noise
Do not install the speaker in locations that are extremely humid, exceptionally hot, cold or prone to
vibrations
Overload
Extreme overload of the device due to very high volume may cause damage to individual components.
Because of the possible danger, you should never leave loudspeakers under extreme overload
conditions unattended.
Volume
CAUTION: Continuous high volume may cause severe damage to your hearing. Please listen responsibly.
Disposal
The packaging is made from recyclable materials. Please be responsible & dispose of these packaging
materials in an environmentally sensitive manner.
2
