GEIST™ SWITCH IRA

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1193/590-2228-501A 1

Models:

SA1-02003, SA1-02003XS

Switch Type:

Rear air intake-front (port) exhaust

2U switch or two 1U switches

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir

device.

WARNING: Take precaution to

avoid interference with the switch’s

input power cords when installing

behind a live switch.

1. Preparing for installation

Before installing the SwitchAir

device, remove and save the

upper and lower screws that

attach each of the two switch

mounting bracket rails (left and

right) to the front rack uprights

(if necessary). Leave the middle

screws in place.

The SwitchAir device is not

shipped in the fully extended

position. Pull evenly on the

chassis mounting tabs for the

desired depth.

2. Installing the device

Insert the SwitchAir device into

the open rack space at the

same U height as the 2U switch

(or two 1U switches). As the

SwitchAir device is pushed into

the space, the SwitchAir rail

tabs engage the switch

mounting bracket rails for

support during installation.

Keep pushing the SwitchAir

device into the space until the

SwitchAir front chassis

mounting tabs are flush with

the rack’s front rails.

Reinstall the previously

removed screws to complete

the installation.

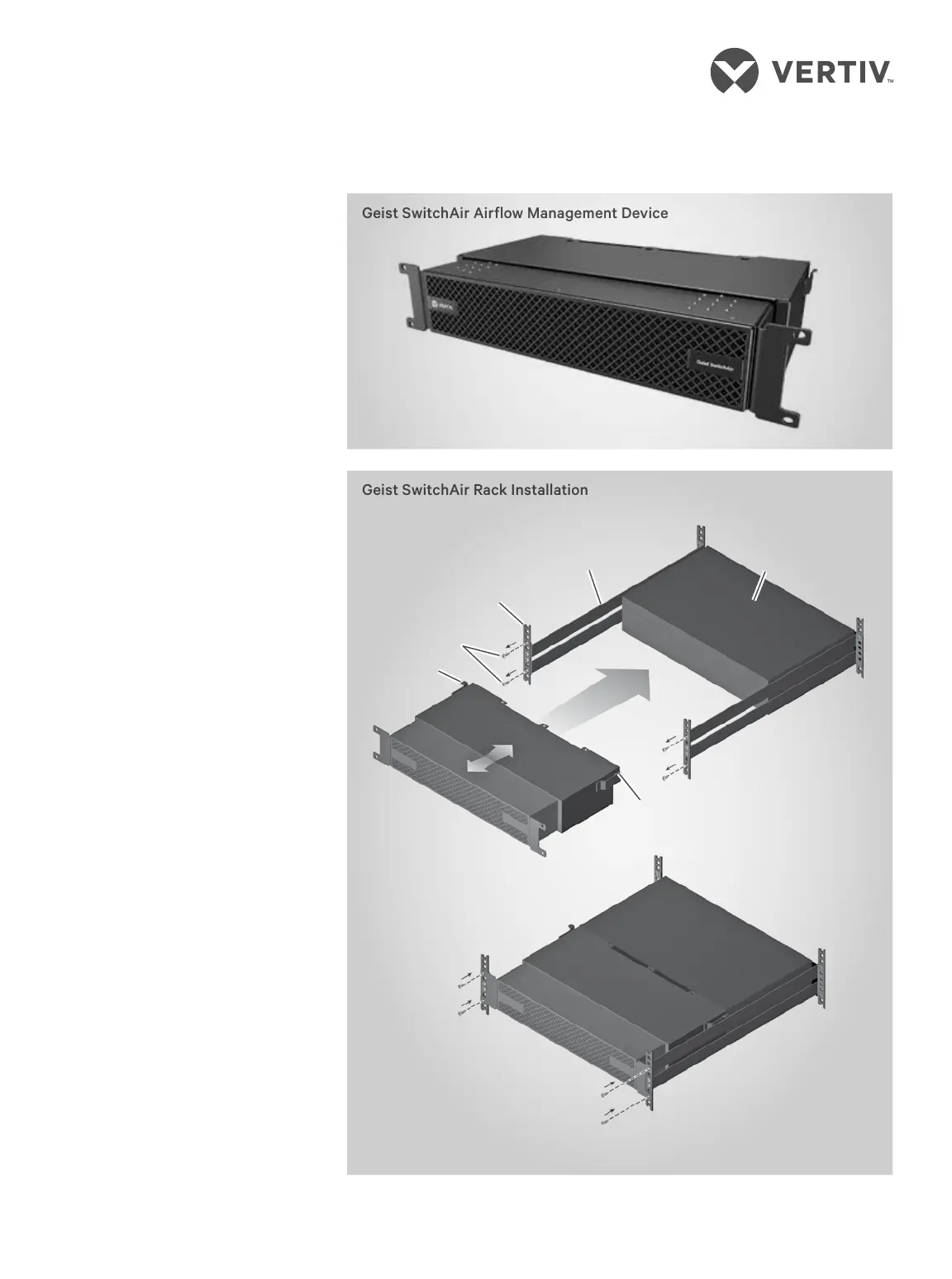

Geist SwitchAir Airflow Management Device

Geist SwitchAir Rack Installation

Switch

Switch mounting

bracket rails

Top and

bottom screws

Rack uprights

Expand to

fit

Rail tab

To contact Vertiv Technical Support: visit www.VertivCo.com

trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no

responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice.

2 VM1193/590-2228-501A
