GEIST™ SWITCH IRA

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1223/590-2230-501A 1

Models:

SA1-02005

Switch Type:

Left side air intake-front (port)

exhaust 2U switch

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir

device.

WARNING: Take precaution to

avoid interference with the switch’s

input power cords when installing

behind a live switch.

1. Installing the airflow

channel

NOTE: The following

instructions install the SwitchAir

SA1-02005 device to move air

along the left side of the rack.

For right-side airflow, rotate the

channel and SwitchAir device

180˚and install them using the

same procedure.

Using customer-provided

hardware, insert the cage nuts

into the four holes on the front

of the channel.

Select a 2U space in the rack.

With the channel facing the

centerline of the rack, hold the

channel on the inside of the left

rack upright. Fasten in place

using screws only in the top and

bottom holes of the 2U space.

2. Installing the wiper

Attach the SwitchAir wiper

using the provided screws.

Orient the wiper with the tab

facing away from the centerline

of the switch.

3. Installing the switch

Slide the network switch into

the rack’s 2U space at the

installed channel’s height. Using

customer-provided cage nuts

and screws, mount the switch

to the rear rack uprights.

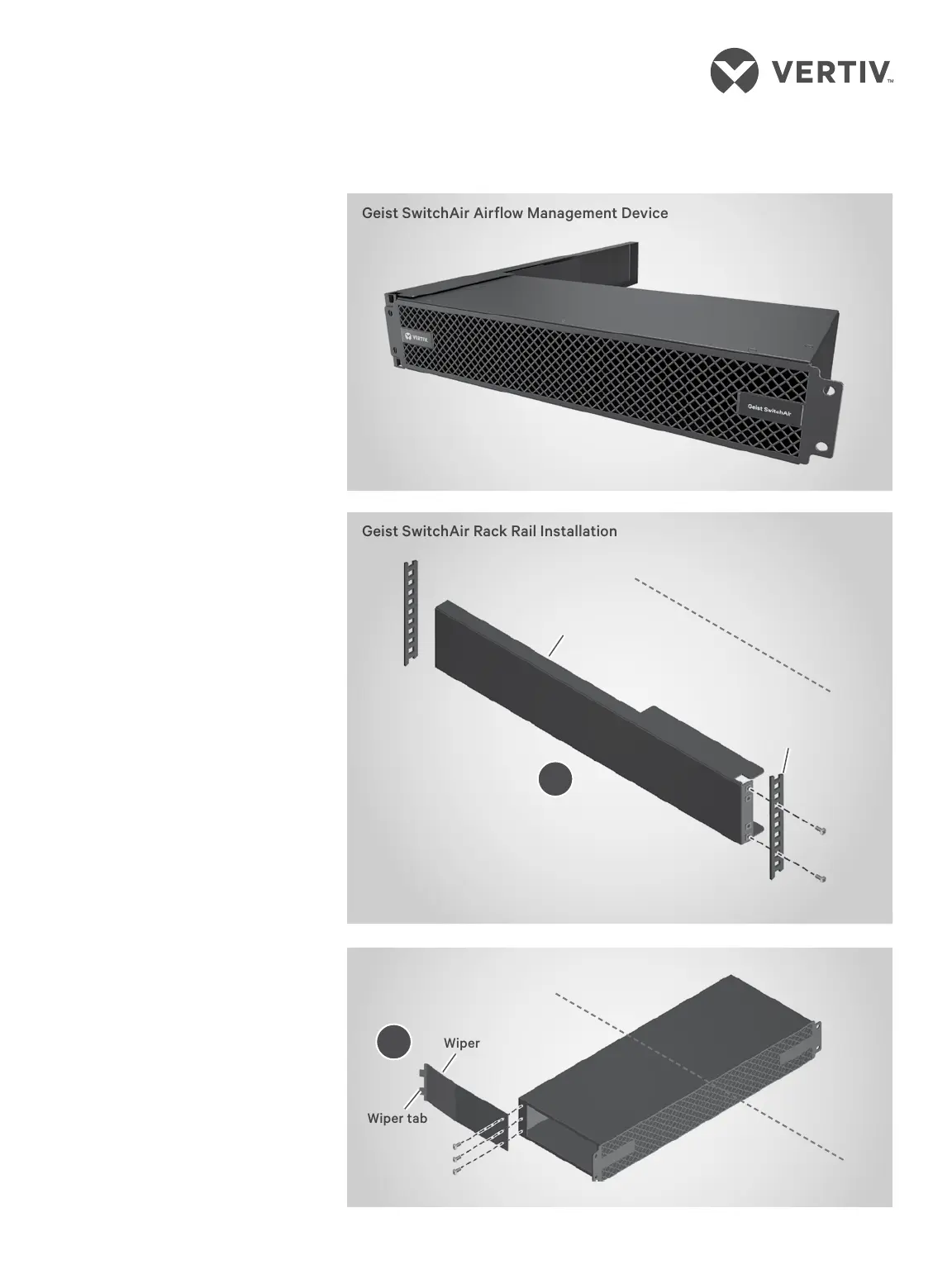

Geist SwitchAir Airflow Management Device

Geist SwitchAir Rack Rail Installation

Wiper

Wiper tab

Geist SwitchAir Wiper Installation

Left front

rack upright

Airflow

channel

Top and bottom

screws of 2U space

CENTERLINE

OF RACK

CENTERLINE

OF DEVICE

To contact Vertiv Technical Support: visit www.VertivCo.com

trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no

responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice.

GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

2 VM1223/590-2230-501A

4. Installing the SwitchAir

device into the rack

Insert the SwitchAir device into

the open rack space at the

same 2U height as the switch.

As the SwitchAir device is

inserted into the space, the

wiper makes contact with the

rear corner of the switch.
