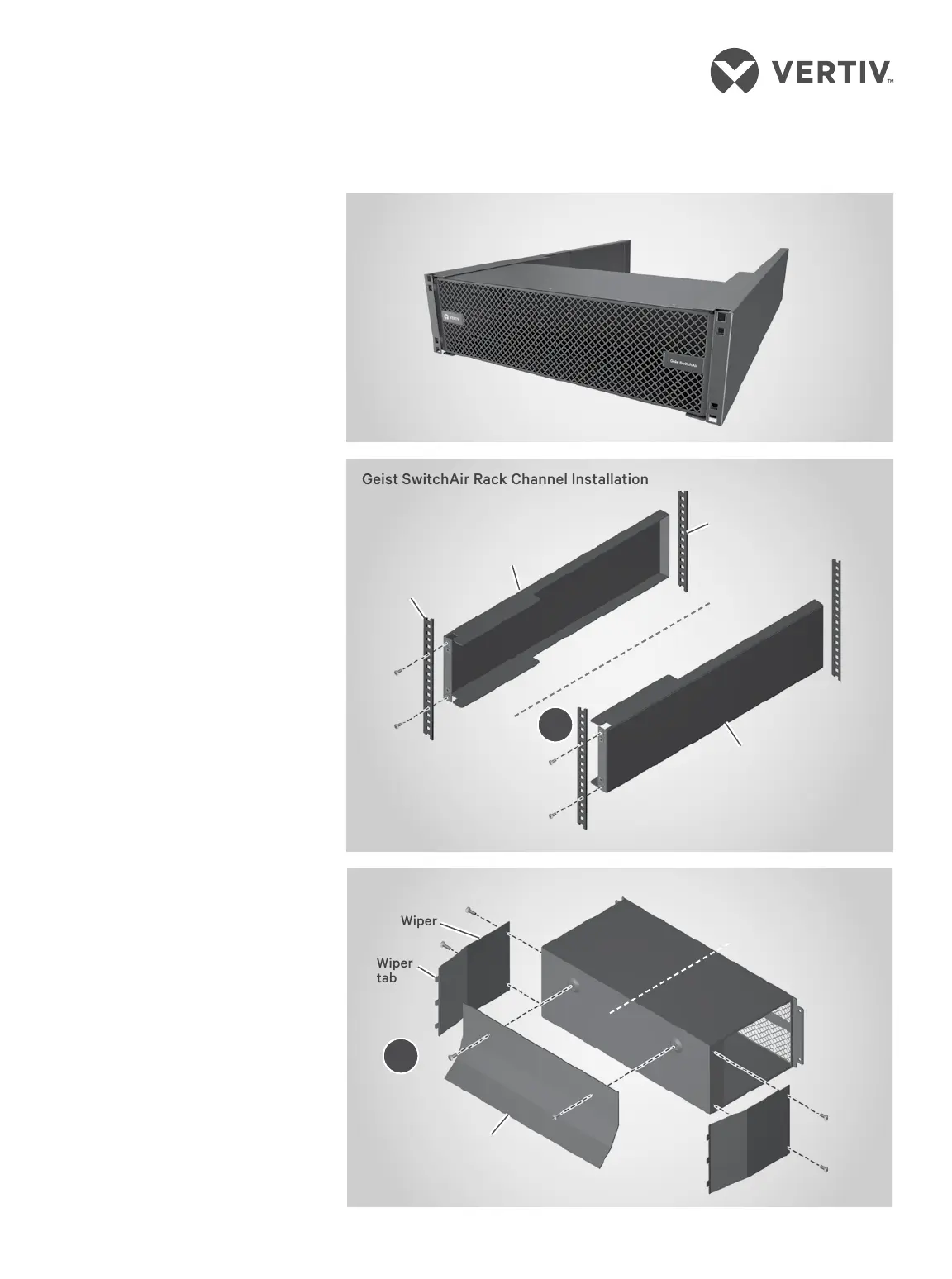

GEIST™ SWITCH IRA

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1192/590-2232-501A 1

Models:

SA1-03001

Switch Type:

Side air intake-front (port) exhaust

3U switch or three 1U switches

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir

device.

WARNING: Take precaution to

avoid interference with the switch’s

input power cords when installing

behind a live switch.

1. Installing the airflow

channels

Using customer-provided

hardware, insert the cage nuts

into the four holes on the front

of each channel.

Select a 3U space in the rack.

Position the left channel to the

inside of the left rack upright.

Orient it to face the centerline

of the rack.

Fasten the channel in place with

screws using only the top and

bottom holes of the 3U space.

Repeat the procedure for the

channel on the opposite rack

side.

2. Installing the wiper and

deflector

Attach the SwitchAir wipers on

the device using the provided

screws. Orient the wipers so

their tabs face away from the

centerline of the device.

Use the provided hardware to

attach the deflector to the back

of the SwitchAir device.

3. Installing the switch

Slide the network switch into

the rack’s 3U space at the

installed channel’s height. Using

customer-provided cage nuts

and screws, mount the switch

to the rear rack uprights.

Geist SwitchAir Rack Channel Installation

Wiper

tab

Geist SwitchAir Wiper Installation

Rear rack

upright

Airflow

channel

Top and bottom holes

of 3U space

CENTERLINE

OF RACK

CENTERLINE

OF DEVICE

Airflow

channel

Front rack

upright

Geist SwitchAir Airflow Management Device

Deflector

To contact Vertiv Technical Support: visit www.VertivCo.com

trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no

responsibility, and disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications are subject to change without notice.

GEIST™ SWITCHAIR AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

2 VM1192/590-2232-501

4. Installing the SwitchAir

device into the rack

Insert the SwitchAir device into

the open rack space at the

same 3U height as the switch.

As the SwitchAir device is

inserted into the space, the

wipers make contact with the

rear corners of the switch.
