Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?
Yes, we can.
Erica Pico VC EG is versatile looping AD/ASR envelope generator
with voltage control over attack and decay times. It has
automatic Trigger/Gate detection, as well as “drone mode” –
at full CW setting of the Decay knob, the envelope is full open.
In the LOOP mode you can retrigger envelopes for even more
interesting modulations.
PICO
VC EG
FEATURESTECHNICAL SPECS
AD/ASR envelope
Automatic Trigger/Gate detection
Manual and voltage control over Attack and Decay time
Manual trigger button
Input protection against overvoltage
Protection against reverse PSU connection
Output amplitude 0V - 10V
Attack time 5ms – 1s
Decay time 5ms – 50s
CV level (full span) -5V - +5V
Power consumption +17mA, -13mA
Module width 3HP
Module depth 35mm
PICO
VC EG
ATTACK
DECAY
LOOPM.TR
FREE
PICO
OUT
TRG
D CV
A CV

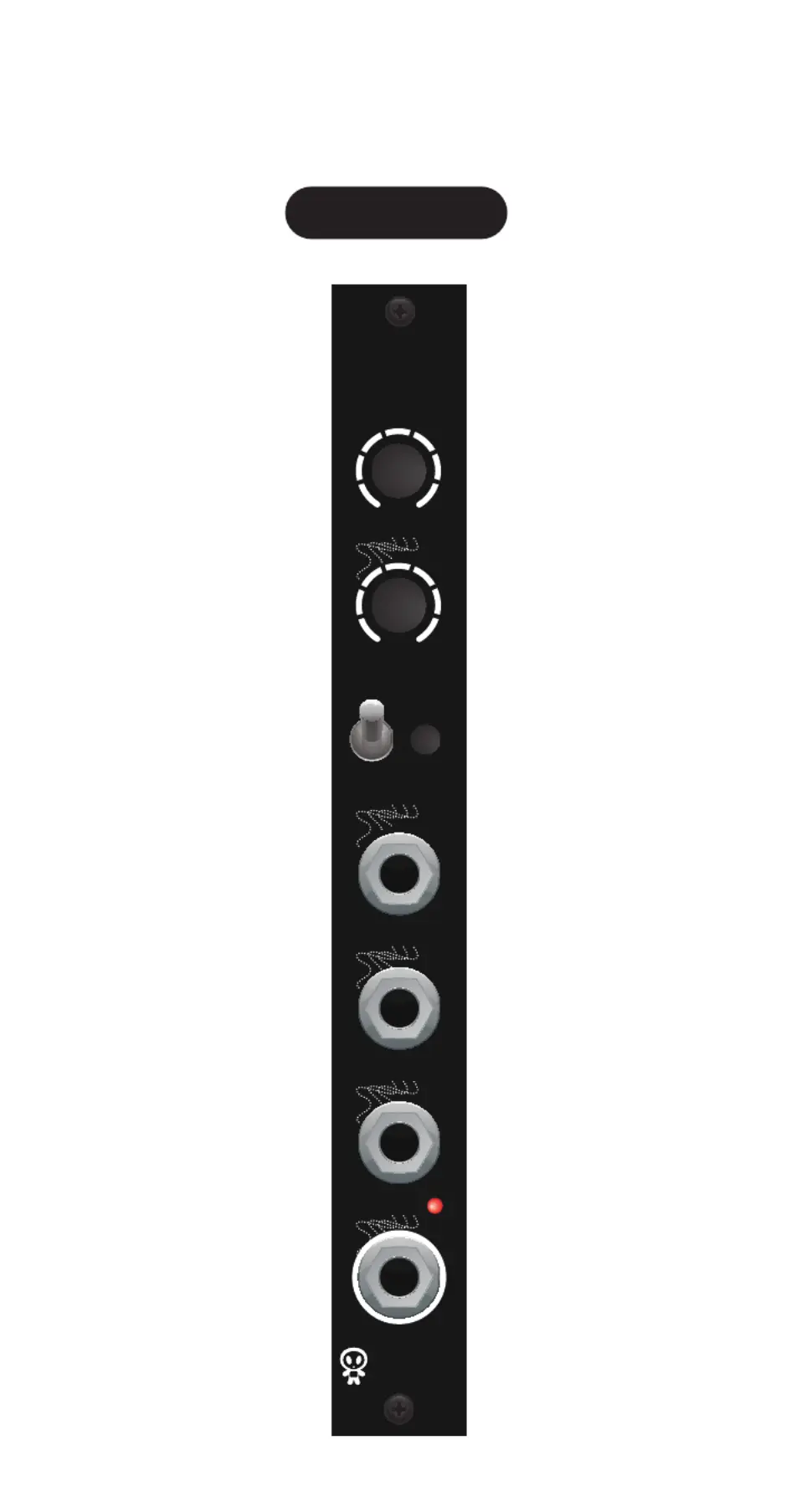

This knob sets Attack time.
The incoming CV is added to
the knob setting.
This knob sets Decay time.
The incoming CV is added to
the knob setting.
Select between looping mode and
triggered mode! In looping mode, when
CV is applied to attack and/or decay
controls, the module can work as a
drone generator
This is the manual trigger button
This is the Decay CV input
This is the Trigger/Gate input. If
gate is applied, the module advances
to the ASR mode automatically
This is the output of the module.
The LED gives visual feedback on
the output voltage
PICO
VC EG
This is the Attack CV input
Water is lethal for most of the electric devices, unless they are made
waterproof. This Erica Synths module is NOT intended for use in a humid or
wet environment. No liquids or other conducting substances must get
into the module. Should this happen, the module should be disconnected
from mains power immediately, dried, examined and cleaned by a qualified
technician.
Do not expose the module to temperatures above +50° C or below -20° C.
If you have transported module in extreme low temperatures, leave it in
room temperature for an hour before plugging it in.
Transport the instrument carefully, never let it drop or fall over.
Warranty does not apply to modules with visual damages.
The module has to be shipped in the original packaging only. Any module
shipped to us for return, exchange and/or warranty repair has to be in its
original packaging. All other deliveries will be rejected and returned to you.
Make sure you keep the original packaging and technical documentation.
This device complies to the EU guidelines and is manufactured RoHS conform-
ing without use of led, mercury, cadmium and chrome. Nevertheless, this
device is special waste and disposal in household waste is not recommended.
Safety Instructions
Please follow the instructions for use of the Erica Synths module
below, ‘cause only this will guarantee proper operation of the module
and ensure warranty from Erica Synths.
You will find Erica Synths terms of warranty at
www.ericasynths.lv
You will find Erica Synths terms of warranty at www.ericasynths.lv
Items for return, exchange and/or warranty repair have to be sent to:
Erica Synths
Andrejostas Str 43
Riga
Latvia
LV-1045
User manual by Girts Ozolins@Erica Synths
Design by Ineta Briede@BLACK8
Copying, distribution or any commercial use in any way is prohibited and needs the written
permission by Erica Synths. Specifications are subject to change without notice.
In case of any questions, feel free to contact us through www.ericasynths.lv or via e-mail
info@ericasynths.lv
