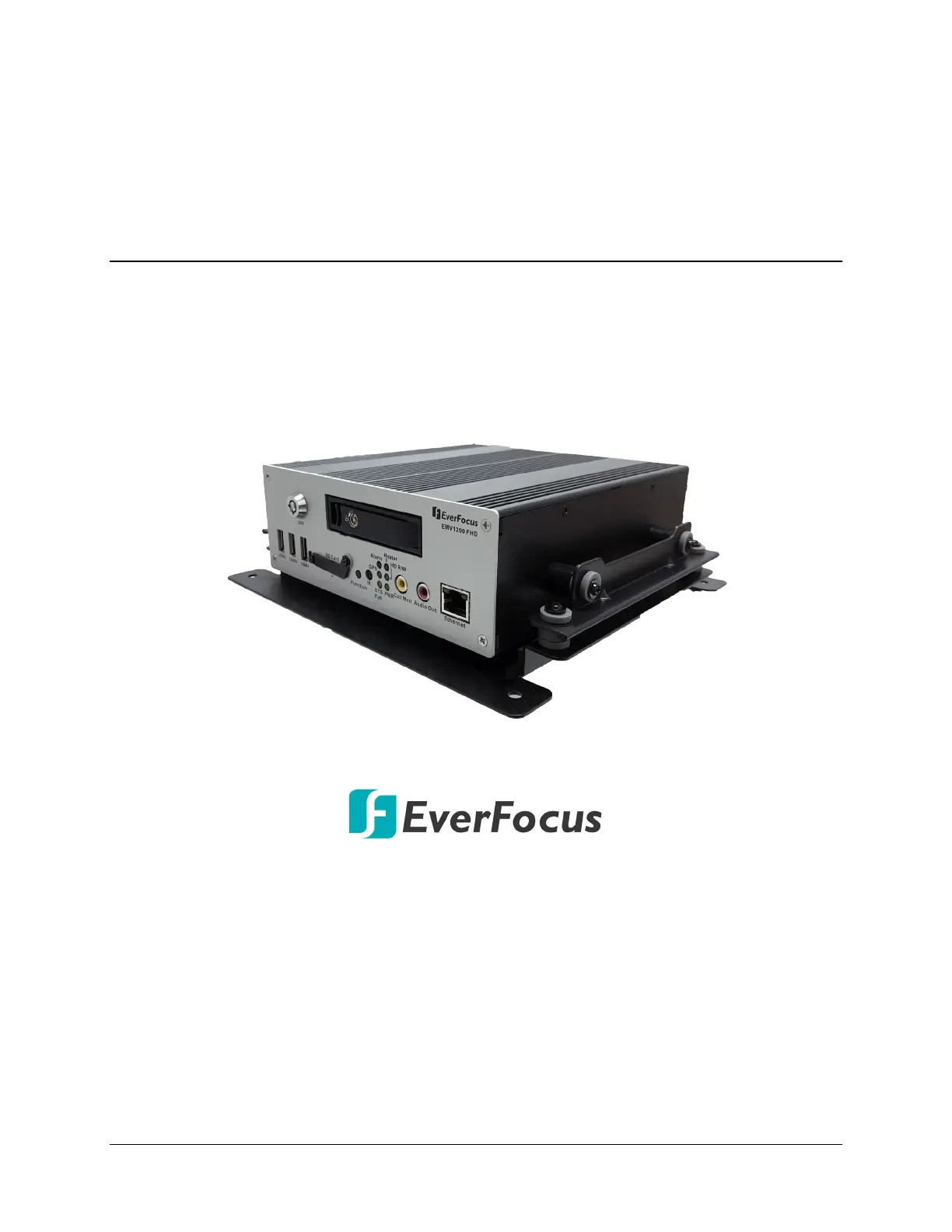

EMV1200 FHD / EMV800 FHD
12CH/8CH Hybrid Mobile DVR
Quick Installation Guide
Copyright © EverFocus Electronics . Corp
Release Date: 8 May, 201
All the images including product pictures or screen shots in this document are for example only.
The images may vary depending on the product and software version. Information contained in
this document is subject to change without notice.
8 EMV1200 FHD / EMV 00 FHD Hybrid Mobile DVR
1
1. Introduction
The latest EverFocus digital video recorder generation is based on H.264 compression
technology, resulting in enhanced recording capacity and improved network image transmission
speed with high image quality. The EMV800 FHD / EMV1200 FHD can support both of analog
(AHD/TVI/SD) and IP cameras, delivering up to 1080p (analog) and up to 4MP . (IP) image quality
Its comprehensive features along with the embedded 3- -axis g sensor function enable the almost
universal application of this mobile DVR series. It supports various interfaces such as alarm I/O,
three USB ports, one - - RS 485 and three RS 232 for connecting to devices such as Panic Button or
CAN bus. You can also optionally connect receiver, 3G, 4G and WiGPS -Fi Antenna to the mobile
DVR. The design of RCA video/audio outputs at front panel makes your installation easy. You
can install one .5”hard disk or SSD in the mobile DVR. You can also install one SD Card for 2
alarm event backup recording. The User Interface has been specially designed to fit mobile
small-sized monitor.
EMV800 FHD / EMV1200 FHD are equipped with anti-shock and anti-vibration housing. The
a viation M12 connectors are also equipped. The power supply supports voltage regulator, and
delay on/off. In addition, the mobile DVRs are SAE-J1455, EN50155, E-Mark, CE and FCC
certified.
You can use EverFocus Mobile Applications, MobileFocus, to remotely view the camera streams
from the mobile DVR through your handheld devices; or use EverFocus Xfleet system for remote
fleet management You can also use EverFocus EF. -Reader to remotely back up recordings from
the HDD/SD card of the mobile DVRs. The mobile DVR series is the ideal solution for your mobile
surveillance needs.
Minimum System Requirements
Before installing, please check that your computer meets the following system requirements.
Operating System
Windows XP (32-bit) / Win7 (32 and 64-bit)
CPU
Intel Core I3-2100
RAM
2GB
VGA
Intel HD 2000
LAN Speed
10 / 100 / 1000 Mbps (RJ45)
Web Browser IE11 and later, Firefox 50 and earlier, Chrome 44 and earlier, EF browser
Other Remote
Application
1. EverFocus’ Xfleet fleet management s s . erver ystem
2. EverFocus’ mobile app: MobileFocus (iOS / Android); MobileFocusHD
(iPad).
8 EMV1200 FHD / EMV 00 FHD Hybrid Mobile DVR
2
Packing List
• Mobile DVR x 1
• HDD Tray Lock Key x 2 (with 4 screws for screwing HDD. See 2.2 Hard Disk Installation)
• HDD Power Lock Key x 2 (with 4 black screws and 8 spacers for mounting the mobile DVR.
See 2.1.1 Mounting)
• IR Remote Control (with two AAA batteries. See Note 4) x 1
• Power Harness Cable x 1
• Video Cable x 3 (EMV1200 FHD); p3-x2 ) (see (EMV800 FHD 3.2 Video Cable / Power-Out
Cable)
• Audio Cable x 1 (see 3.3 Audio Cable)
• D- ) Sub Cable x 1 (see 3 -.4 D Sub Cable
• Power- 1 Out Cable x (see 3.2 Video Cable / Power-Out Cable)
• CD x 1 (Please see Note 3.)
• Quick Installation Guide x 1
Optional Accessories
The mobile DVRs feature Wi-Fi/3G/4G. You can optionally connect Wi-Fi/3G/4G module and
antenna to the mobile DVR for networking, or connect a GPS receiver for GPS function.
• 3G Antenna: For using 3G network
function
3G Antenna
3G Module
• 4G Antenna: For using 4G LTE network (LTE
frequency bands differ among regions)
4G Ant
• Wi-Fi Antenna: -For using Wi Fi function
Wi-Fi Antenna
Wi-Fi Module
• GPS Receiver :(LS23035) For using GPS
function
• R D S einforced ata torage Device (64GB)
For recordings backup
1. Equipment configurations and supplied accessories vary by country. Please consult your
local EverFocus office or agents for more information. Please also keep the shipping
carton for possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.
3. The CD contains the IP Utility software, User Manual and Quick Installation Guide.
4. Risk of explosion if battery is replaced by an incorrect type Dispose of used batteries .
according to the instructions.
a. Use only two AAA dry cell batteries.
