CS 3T • Setup Guide
This setup guide contains installation information about the CS 3T speaker cartridge for the Extron CS 123T SpeedMount
® Ceiling
Speaker System. The CS 3T can be installed as a standalone speaker or in conjunction with the CS 120P plenum rated enclosure.
When a CS 3T speaker is installed in a CS 120P enclosure, the entire assembly is plenum rated.
WARNING: May result in serious injury. Installation and service must be performed by authorized personnel only.
AVERTISSEMENT : L’installation et l’entretien doivent être effectués par le Risque potentiel de blessure grave.
personnel autorisé uniquement.
NOTE: Installation of conduit and conduit adapters must conform to all applicable building codes and local ordinances.
Installing the CS 3T in a Suspended Ceiling
IMPORTANT:
Refer to www.extron.com for the complete
user guide, installation instructions, and
specifications befor
e connecting the
pr
oduct to the power sour
ce.
For hard ceiling installations, see the .CS 123T User Guide
1. Remove power from all devices.
NOTE: If the baffle and grille are to be painted, see the for more information.CS 3T and CS 120P User Guide
2. Cut a hole for the CS 3T. Use the provided cutout template to outline the hole to be cut in the ceiling tile as described
below.
a. Remove the ceiling tile and draw diagonal lines across the non-visible side from opposite corners to locate its center.
Mark the intersection where the lines cross.
b. Position the center hole of the cutout template directly over the center of the tile, marked in stepa.
c. Trace a circle on the ceiling tile as follows:
For installations in ceilings that are NOT fiberglass or when installing the speakers in an open back
configuration: Trace a circle around the cutout template.
NOTE: The fiberglass tile adapters are not needed and can be discarded.
For installations in a fiberglass tile ceiling with the CS 120P:
NOTE: A set of fiberglass tile adapters is provided with both the CS 3T and the CS 120P. Only one set is needed to
install the CS 3T with the CS 120P kit in fiberglass tile.
i. Place the berglass tile adapter around the outer diameter of the template that was positioned in step b.
ii. Trace a circle around the outer diameter of the adapter.
d. Cut out the circle traced in the ceiling tile.
e. Replace the ceiling tile in the ceiling.
3. Remove the adjacent ceiling tile next to the tile where the speaker will be installed.
4. Install the CS 120P or ceiling mount kit.
• If using the CS 120P, see the to install it.CS 120P Setup Guide

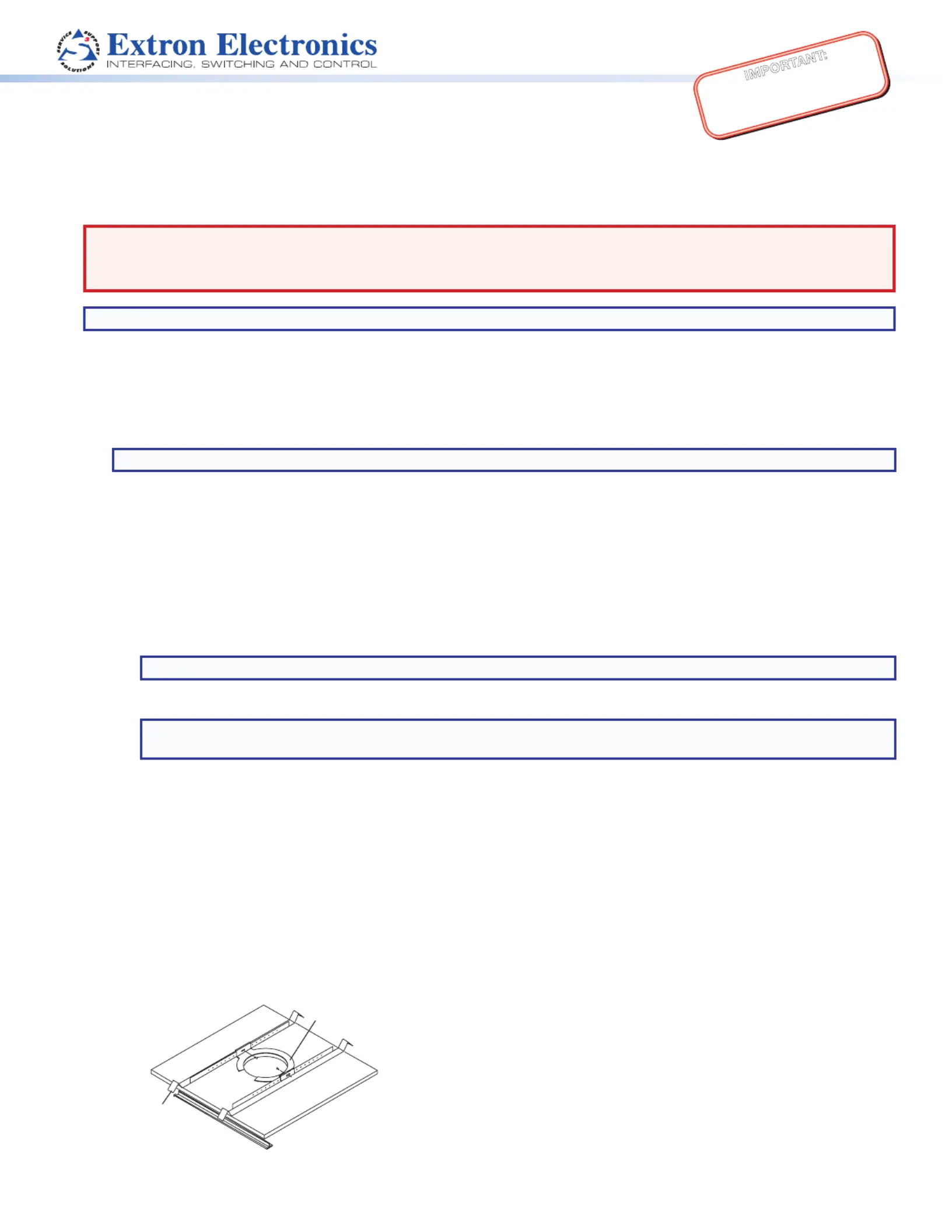

• If not using the CS120P, attach two V-rails and one C-ring across the tile above the hole that was cut in step 2 (see the
illustration below). The berglass tile adapter is not needed.
V-
rail
C-ring
1
CS 3T • Setup Guide (Continued)
2
5. Route the speaker wires through the ceiling tile hole.
6. Remove the grille carefully from the CS 3T.
NOTE: Grille hooks are provided for grille removal, if needed.

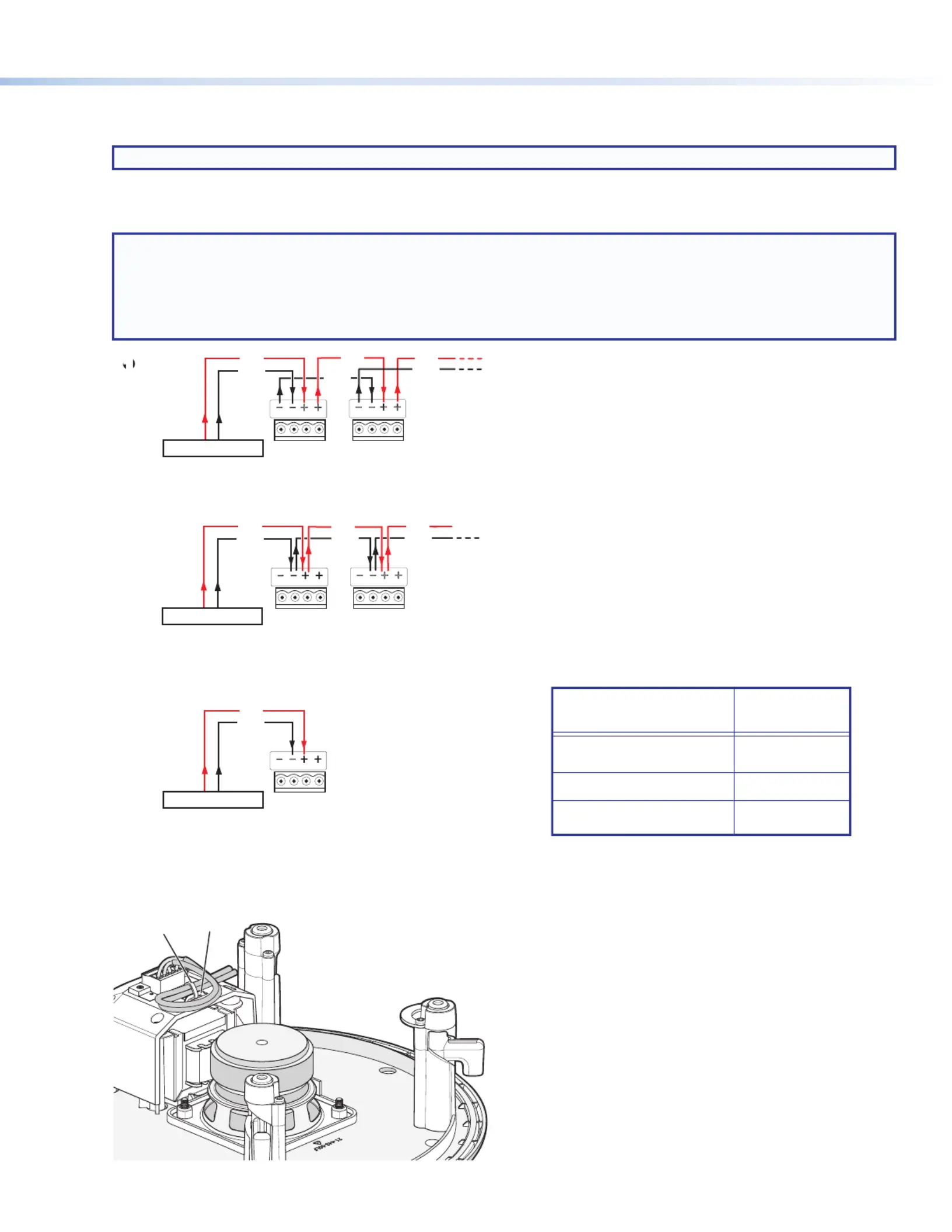

7. Attach speaker wires from the ceiling tile hole to the included 4-pole captive screw connector using one of the three
methods shown below.
NOTES:
• See the wire gauge table below for the maximum number of wires per terminal.
• Do not tin the wires. Tinned wires do not remain secure in the captive screws and can break easily after several
bends.
• See the for detailed information on wiring congurations.CS 3T and CS 120P User Guide
Wiring Multiple Speakers in Parallel
When a chain of speakers is wired this way, disconnecting
one speaker does not remove power from the remaining
speakers in the chain.
Wiring a Single Speaker
Wiring Multiple Speakers Using Loop-through
When a chain of speakers is wired this way, disconnecting
one speaker removes power from all downstream speakers.
Speaker 1 Speaker 2
IN
–
LOOP
–
IN
+
LOOP
+
IN
–
LOOP
–
IN
+
LOOP
+
(Black)
(Red) (Red)(Red)
(Black)
(Black)
Power Amplier
Speaker 1 Speaker 2
IN
–
LOOP
–
IN
+
LOOP
+
IN
–
LOOP
–
IN
+
LOOP
+
(Black)
(Red) (Red)
(Black)
Power Amplier
(Black)
(Red)
Speaker 1
IN
–
LOOP
–
IN
+
LOOP
+
(Red)
(Black)
Power Amplier
1
2
3
8. Insert the captive screw plug into the 4-pole receptacle on the transformer cap.
9. Secure the speaker wire to the strain relief tie-down point, using the included zip tie.
Zip Tie
Strain Relief
Tab
Number of Wires per
Connection Point
Maximum
Wire Gauge
1 12 GAW
2 16 GAW
4 18 GAW
Wire Gauge Table
CS 3T • Setup Guide (Continued)
3

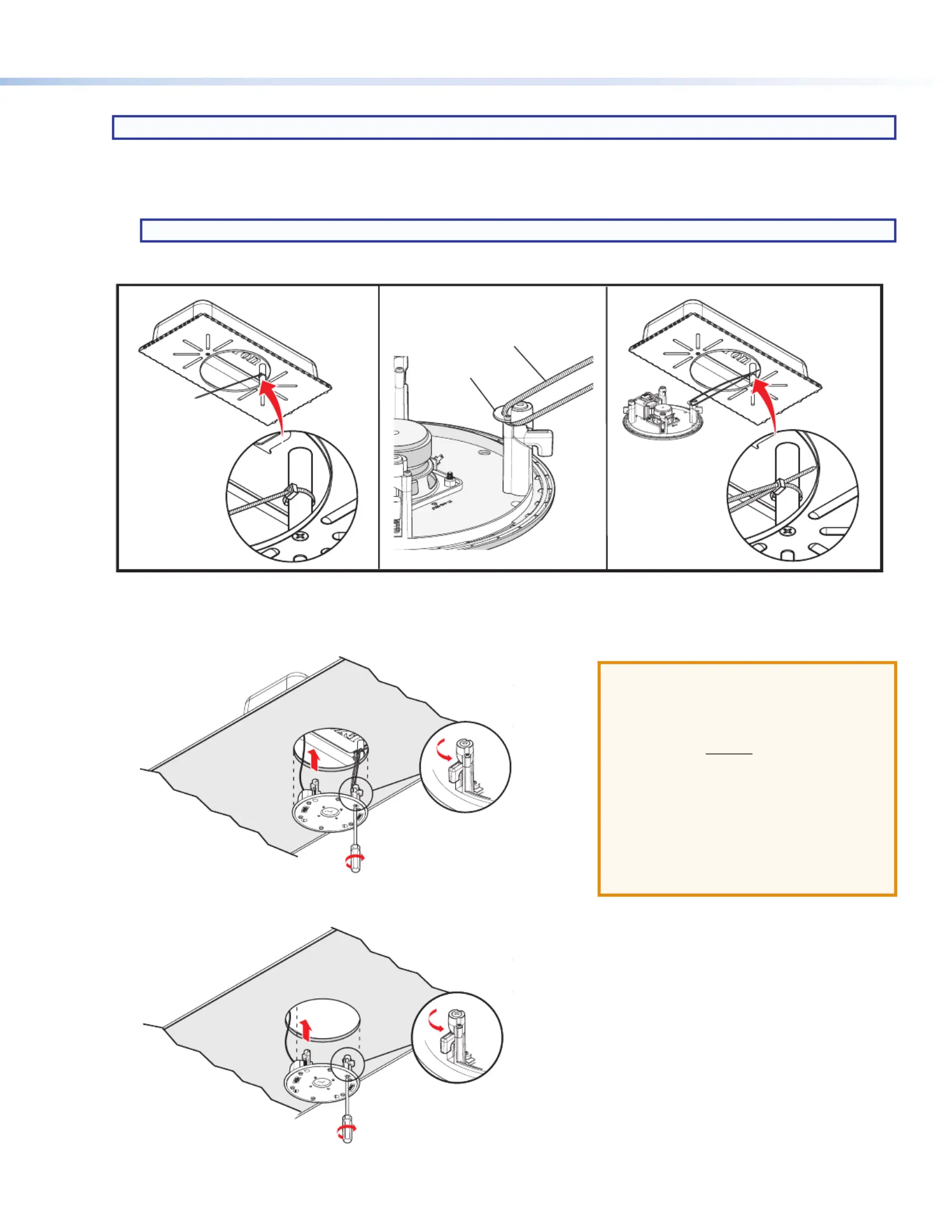

10. Attach secondary support lines (CS 120P configuration).
NOTE: Skip this step if the speaker is to be used in the open back conguration and proceed to step 11)
a. Insert the free end of the zip tie, located inside of the CS 120P (see figure 1 below), through the secondary attachment
point of the speaker (see figure 2 below).
b. Insert the free end of the zip tie into the locking connector on the opposite end of the zip tie (see figure 3 below).
NOTE: Leave enough slack in the zip tie so that the speaker can be securely installed in the enclosure.
c. Tighten the zip tie.
Figure 1 Figu 2re Figure 3
Secondary
Tie off Point
Zip Tie
11. Mount the CS 3T.
a. Insert the CS 3T through the bottom of the hole in the ceiling tile that was cut in step 2 on page 1.
b. Tighten the four screws (clockwise) until the speaker is securely clamped to the ceiling.
Mounting the Speaker
with the CS 120P
Mounting the Speaker
without the CS 120P
c. If using the CS 120P, proceed to on page 4.step 13
ATTENTION:
• To avoid damaging the speaker, do
not overtighten the four screws. Use
a manual screwdriver to tighten the
screws. use a cordless drill or Do not
electric screwdriver.
• Pour éviter d’endommager l’enceinte,
ne serrez pas trop les quatre vis.
Utilisez un tournevis manuel pour
serrer les vis. N’utilisez pas de
perceuse-visseuse ou de tournevis
électrique.
