Sida 1/2
• Live sound PA system or live sound monitor
• DJ system
• School and corporate audio visual sound
reinforcement
• Background music/announcements: restaurants,
pubs, ecc...
• Transportation terminals, clubs, auditoriums,
theatres, gyms, houses of worship
• Sturdy gas-injected polypropylene molded enclosure
• Processed 2-way active loudspeaker
• 12" LF woofer / 2.5" voice coil
• 1" exit throat HF compression driver
• DSP with 4 EQ presets
• 2 x M10 suspension points, 1.38" top-hat speaker
stand socket, wall bracket mount flange plate
• Stage monitor angling facility with 12°, 40°, 55° taper
• Completely manufactured in Italy
The FBT JMaxX 112A two way active reinforcement speaker system shall incorporate 1 x 12" LF woofer with 2.5" voice coil and 1"
exit throat HF compression driver with 1.4" voice coil coupled to a 90°H x 60°V constant directivity horn. Thanks to the asymmetrical
shape also allows use as a stage floor monitor at 12°, 40°, 55°. The FBT JMaxX 112A shall meet the following performance criteria:
frequency response of 48Hz to 20kHz, maximum SPL of 131 dB, 700W RMS + 200W RMS Class D power amplifiers. The FBT
JMaxX 112A provides a DSP with 4 factory equalization presets. With its eye-catching gas-injected forms designed to virtually
eliminate undesired enclosure resonance and reinforce strong low frequency performance, The FBT JMaxX providing a myriad of
possibilities for bands, DJ and solo artists. A front face steel grille protects the woofer fro external damage. The control panel provides
XLR/Jack input, XLR link, level, preset switch, HP filter button, line/mic button, two status led (PRT-LIMITER / ON). The two M10 fly
points built into the cabinet, along with the optional mounting bracket, allow the The FBT JMaxX 112A speaker to be surface mounted
on walls or ceilings and standard 1.38" speaker stand socket allow the The FBT JMaxX 112A to be mounted on speaker stand.
PEAK SPL: free space, based on max power amp rating and system peak sensitivity, 10mS time average
CONT SPL: free space, based on power amp rating and LF transducer average sensitivity data, 125mS time average
MAX PEAK: based on max peak output voltage and nominal speaker impedance
MAX: 2mS burst, RMS power on nominal speaker impedance
Frequency Response
Input Impedance
Nominal Power Requirement
Buil-in Amplifiers LF / HF
Crossover Frequency
Power Consumption
Dispersion
System Type
Maximum SPL (cont / peak)
220-230Vac
125 / 131dB
22kOhm
48Hz 20kHz
1.6kHz
2-way
max. peak: 1400/400W
600W
max.: 700/200W RMS
90°H x 60°V
Power Cord
Enclosure Material
Low Frequency Woofer
High Frequency Driver

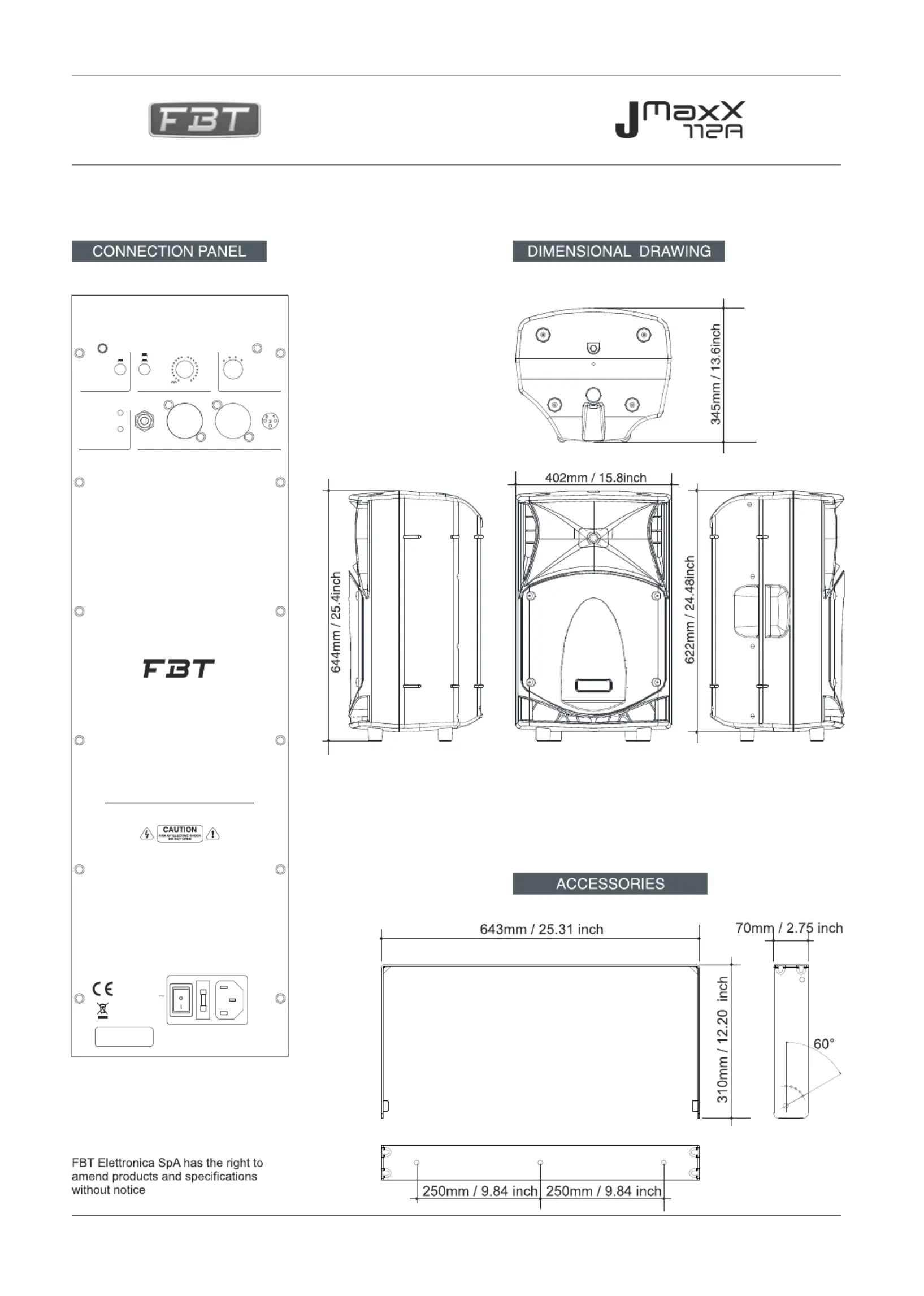

Net Dimensions (WxHxD)
Input Connectors
Shipping Dimensions (WxHxD)
Net Weight
Shipping Weight
12" / 2.5" coil
1" / 1.4" coil
XLR / Jack
30.4 lb
15.8 x 25.4 x 13.6 inch
19.7 x 29.3 x 17.3 inch
polypropylene
36.4 lb
16.4 ft
220 - 230 V
50/60 Hz
T4A - 250 V
Power Consumption 600W
Replace fuse with same type and rating.
PRT / LMT
ON
IN LINK
LINE
MIC
HP FILT
0
+6dB line
+36dB mic
4
123
1 - ORIGINAL
2 - FLOOR / VOCAL
3 - BOOST / LOUNGE
4 - CLUB / DJ
PRESET
J
MaxX
112A
ON
1 - SHIELD
2 - HOT
3 - COLD
MADE IN ITALY
TO PREVENT RISK OF FIRE OR ELECTRIC SHOCK
DO NOT REMOVE COVER ( OR BACK )
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
THIS APPARATUS MUST BE EARTHED
NEVER EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
BEFORE CONNECTING THE APPARATUS TO THE MAINS
MAKE SURE THE SUPPLY VOLTAGE MATCHES THE ONE INDICATED
STATUS
PROCESSED 2-WAY ACTIVE LOUDSPEAKER
