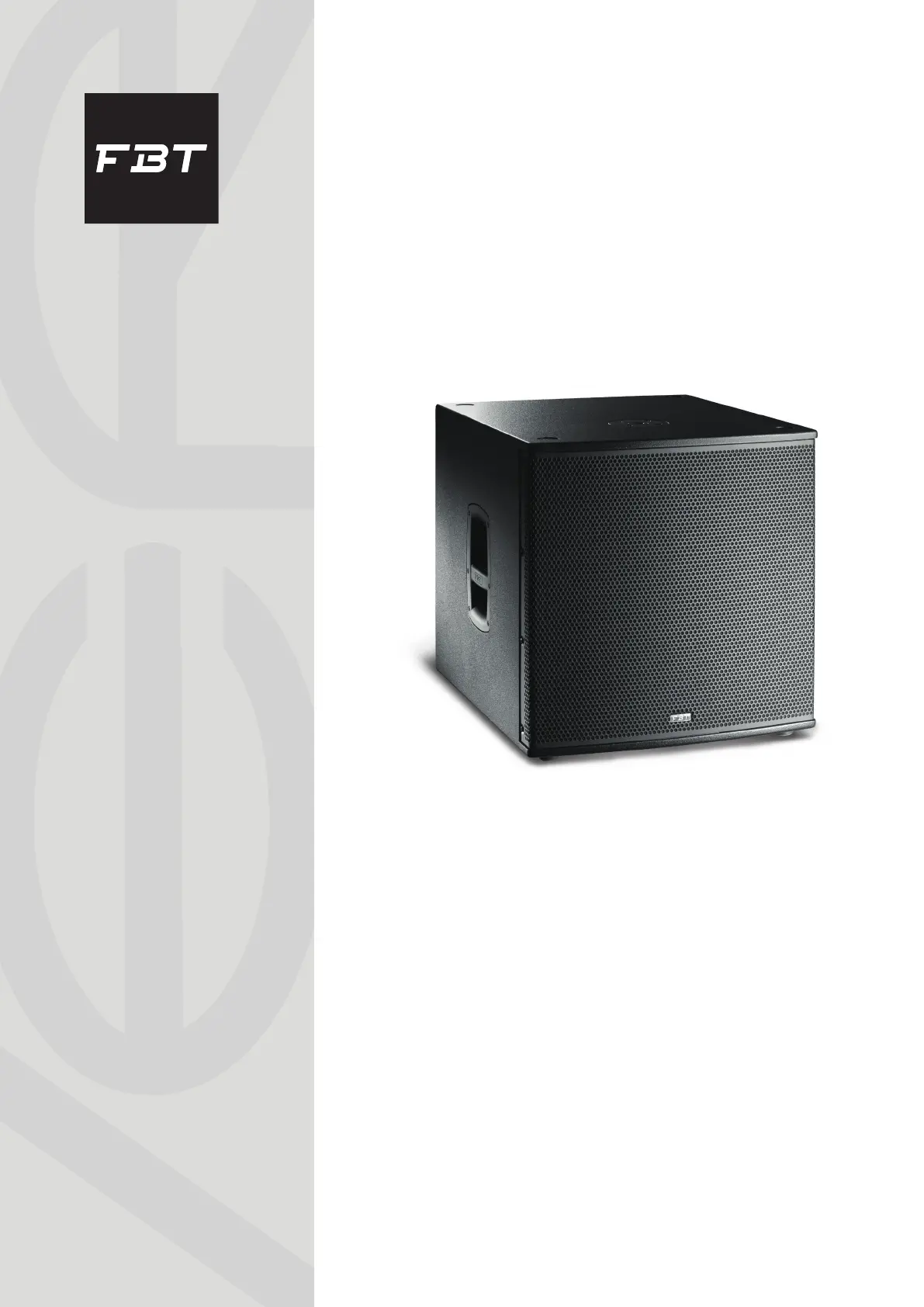

The FBT VERTUS CLA 118SA processed active subwoofer is the perfect low frequency extension and reinforcement of the FBT
VERTUS CLA406A array.
FBT VERTUS CLA
118SA
Neutrik Powercon
Cable Duplex power supply connectors.
The FBT VERTUS CLA 118SA shall meet the following performance criteria: frequency response of 33Hz
to 120Hz, maximum SPL of 138dB, Class D 1200W RMS amplifier with switch mode power supply, 1 x 18" B&C high excursion
woofers with 3" voice coil. The FBT VERTUS CLA 118SA provides a DSP processor with 8 available presets. The
feature 0,59" birch plywood construction coated with a textured black finish and the front shall be protected by a heavy duty
metal grille. The control panel provides XLR in&link, Volume, Preset, Delay, 0°-180° phase switch, 3 status led,
School and corporate audio visual sound reiforcement
Background music/announcement: Restaurants, Pubs
Transportation terminals, Clubs, Auditorium, Theatres,
Gyms, Houses of worship
Suitable for low frequen cy extension and
reinforcement of the CLA 406A array, especially for live
performance
Active subwoofer in bass-reflex design
0,59" birch plywood enclosure
1 x 18" B&C high excursion woofer with 3" voice coil
1200W RMS Class D power amplifier with switch mode
power supply
DSP processor with 8 presets
Neutrik Powercon Cable Duplex power supply
connectors
M20 (0,78") top mount speaker stand socket
Two diecast aluminium carrying handles
Completely Manufactured in Italy
bass reflex
33Hz - 120Hz
omnidirectional
preset dependant
134dB / 138dB half-space
555 x 572 x 660mm
MAX: 2mS burst, RMS power on nominal speaker impedance
MAX PEAK: based on max peak output voltage and nominal speaker impedance
1 x 18" - 3" coil
21,85" x 22,51" x 25,98"
800 x 755 x 700mm
31,49" x 29,72" x 27,55"
91,49 lbs / 41,5 kg
113,53 lbs x 51,5 kg
0,59 birch plywood
Built-in Amplifier max: 1200W RMS
peak: 2400W RMS
22k OhmInput Impedance
Maximum SPL (continuous/peak)
AC Power Requirement 640 VA
XLR with loop
CONT. SPL: half space, based on continuos power amp rating and LF transducer average sensitivity data, 125mS time average
PEAK SPL: half space, based on peak power amp rating and system peak sensitivity, 10mS time average
CLA 118SA
Processed Active Subwoofer
FEATURES
PRODUCT DESCRIPTION
APPLICATIONS
ELECTRICAL PERFORMANCE PHYSICAL
with pallet
CONNECTION PANEL
DIMENSIONAL DRAWING
ON
GND
LIFT PHASE
180˚
0˚
+6dB
0
0
0
0
0.5
1
1.5 2
2.5
3
3.5
PRESETLEVEL
DELAY
mt.
1
2
3
4 5
6
7
8
IN LINK
PEAK
OFF
ON
TO PREVENT THE RISK OF FIRE OR ELECTRIC
SHOCK NEVER EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
MADE IN ITALY
8
8
8
88
A
A
A
AA
M
M
M
MM
P
P
P
PP
DO NOT EXCEED RATED MAX CURRENT DRAW FROM AC LOOP OUTPUT CONNECTOR
POWER
CONSUMPTION: 640W
AC LOOP OUT
220-230V 50/60Hz
13.2A max
AC INPUT
220-230V 50/60Hz
2.8A max
All accessories are specically rated in
agreement with structural computations.
Nev er use other acces sor ies wh en
assembling the cabinets than the ones
pr ovi ded by FB T; F BT wi ll de cli ne
responsibility over the entire accessories
range if any component is purchased from a
dierent supplier.
LMT
PRT
VERTUS CLA 118SA
2-Deep
3-Punch
4-DJ
CARDIOID REAR:
5-Original
6-Deep
7-Punch
8-DJ
1-Original
555mm / 21.85"
572mm / 22.51"
555mm / 21.85"
660mm / 25.98"
VT-S 0 406
Speaker stand h 0
VT-S 30 406
Speaker stand h 30cm
CLA 118SA
Processed Active Subwoofer
ACCESSORIES
FREQUENCY RESPONSE
115
110
105
100
95
90
85
80
75
70
65
60
55
20 Hz 50 100 200 500 1k 2k
dB SPL
KBW-1004S
4 Wheels Kit with brake 100 mm ø
