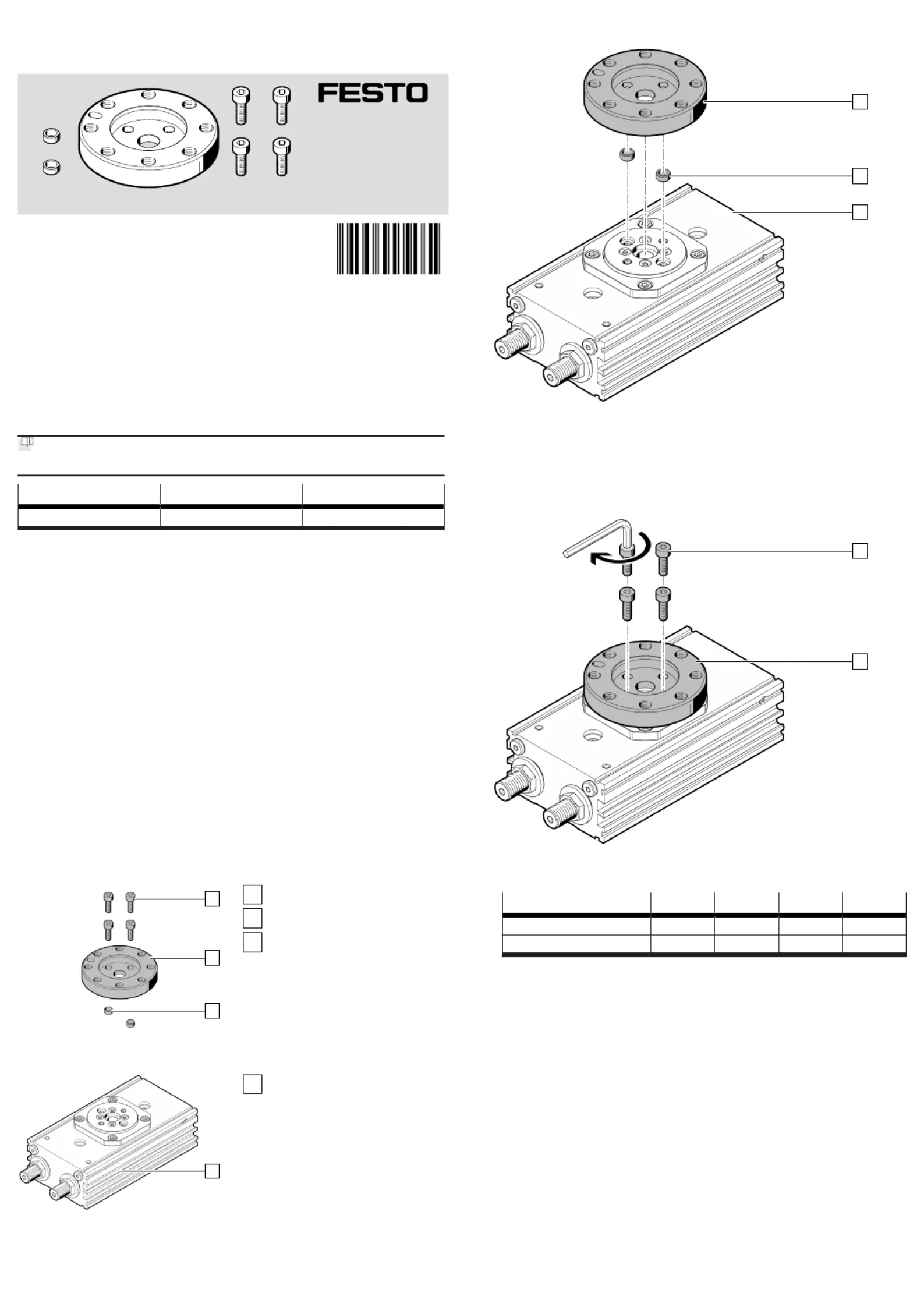

Sida 1/1
DARF-Q13-...-1
Push-on flange
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Assembly instructions
8182529
2023-10
[8182531]
8182529
Translation of the original instructions
© 2023 all rights reserved to Festo SE & Co. KG
1 Applicable documents
All available documents for the product
èwww.festo.com/sp.
Document Product Content
Operating instruction Quarter turn actuatorDRRS
Tab. 1: Applicable documents
2 Safety
2.1 Safety instructions
Before working on the product, switch off the compressed air supply and lock it
to prevent it from being switched on again.
2.2 Intended use
The push-on flange attaches the payload to the flange shaft of the
quarter turn actuator DRRS.
2.3 Training of qualified personnel
Work on the product may only be carried out by qualified personnel who can
evaluate the work and detect dangers. The qualified personnel have knowledge
and experience in dealing with pneumatic drives and pneumatic axes.
3 Additional information
Contact the regional Festo contact if you have technical problems
èwww.festo.com.
Accessories and spare parts èwww.festo.com/catalogue.
4 Product Range Overview
4.1 Scope of delivery
1
2
3
Fig. 1: Scope of delivery
1
Screw (4x)
2
Push-on flange (1x)
3
Centring sleeve (2x)
4.2 Not in scope of delivery
4
Fig. 2: Not included in the scope of
delivery
4
Quarter turn actuator (1x)
DRRS
5 Assembly
3
4
2
Fig. 3: Positioning centring sleeves
The push-on flange[2] can be mounted with an offset of 90° on the flange shaft of
the quarter turn actuator[4].
1. Position the centring sleeves[3].
2. Position the push-on flange[2] centrally.
1
2
Fig. 4: Mounting push-on flange
Mount the push-on flange[2] with the screws[1]. Observe tightening torque.
DARF-Q13-...-1 -12 -16 -20 -25
Screw M3x8 M4x10 M4x12 M5x12
Tightening torque [Nm] 1.2±20% 2.3±20% 3.2±25% 5.6±25%
