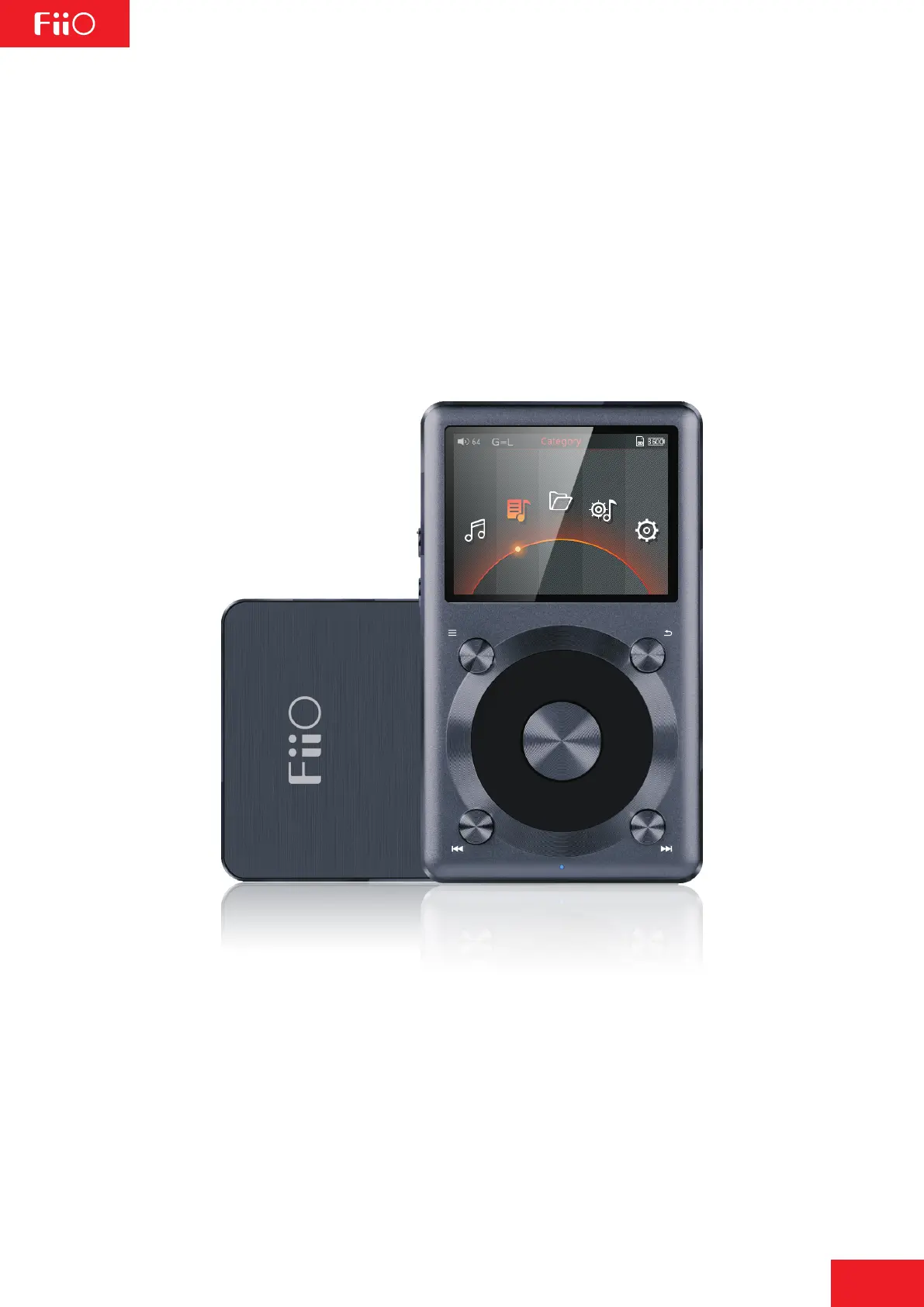

X3 Complete User Manual

(applies to FW1.0 and later)

Foreword:

Thank you for purchasing FiiO’s X3, our 192kHz/24bit high resolution lossless music

player. To let you better utilize the X3, we have prepared this complete user manual

and collected and answered some frequently asked questions by users. We hope this

manual will help you get to know the X3 and unleash its full potential.

4. Browse Files

Turn the scroll wheel to select “Browse Files” and press OK to browse the music files

contained in the micro SD card TF card not found” would pop up if there is no micro SD (“

card inserted) or any external storage connected to the X3 via USB OTG connection (“OTG”).

Turn the scroll wheel to select between items, press OK on a song to play it or press OK on a

folder to enter the folder.

5.Play settings

Turn the scroll wheel to choose between menu items and use the Previous, Next or OK key to

choose between options on the chosen menu item. On items with a submenu

(indicated by “>”), press OK to enter the submenu.

1) Play mode

Four play modes are available: sequential (plays to the end of the list and stops), loop all, loop

single song and shuffle.

2) Resume mode

Controls where the X3 starts playing from when it is switched off and switched back on.

Off: no memory of the last song played when X3 is switched off.

Song: resumes playback from the start of the last song played when the X3 was switched off.

Position: resumes playback from the last position on the timeline of the last song played when

the X3 was switched off.

3) Gapless playback

Turn this on to play e.g. a live performance divided into several tracks without breaks in

between tracks.

4) Max volume

To protect your headphones and your hearing, the max volume can be limited to a value between

30 and 120 (unlimited maximum is 120). Press OK to show the adjustment submenu, turn the

scroll wheel to adjust the limit value and press OK to store the change.

5) Default volume

Memory: recalls the volume set when the player was powered off.

Custom: always powers on the player at the volume defined in “Fixed volume setting”.

Fixed volume setting: adjustable only when “Power on volume” is set to“Custom”. Press OK

to show the adjustment submenu, turn the scroll wheel to change the power-on volume setting

and press OK again to store the change.

6) Gain

There are Low and High gain settings available. Low gain may be selected to extend battery life

under usual operating conditions; High gain may be selected to drive low-efficiency /

high-impedance headphones more fully to obtain further musical enjoyment.

7) Equalizer

There are several preset equalizer settings as well as a custom setting available. All presets as

well as the custom setting are editable. Press the previous and next keys to switch between

presets (Off, Rock, Classical, Jazz, Pop, Dance, Vocal, Blues, Metal and Custom). Press OK to

enter editing mode (arrow will appear above one of the EQ bands), turn the scroll wheel to

choose between different frequency bands, press OK to select a frequency band for editing and

turn the scroll wheel to adjust the frequency band up or down, and then press OK to store the

change and use the scroll wheel to choose another frequency band for editing. Press the back

button to store changes / exit to EQ band selection / preset selection.
