WARNING - A REGULATED UL / CSA APPROVED 12V DC power
supply is REQUIRED for use with this camera. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.
Product Information
User Manuals Quick Start Guides
Specification Sheets
Video Tutorials & DemosLatest News
1 x Sunshade Housing
1 x Sunshade Screw
3 x Mounting Screws
1 x Allen Key
Contents
ULTRA RESOLUTION
IR NIGHT VISION CAMERA
MODEL: DBB43TL
QUICK START GUIDE
English Version 3.0
www.digimerge.com
IT’S ALL ON THE WEB!
www.digimerge.com
VISIT
Digimerge Technologies Inc.
Copyright © 2013
As our products are subject to continuous improvement, Digimerge
reserves the right to modify product design, specifications and prices,
without notice and without incurring any obligation. E&OE
1 x Ultra Resolution Color Camera
Features
Safety Precautions
• Use an appropriate low voltage power cable to prevent
fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens cover.
• Ultra Resolution 1/3” image sensor / 600TV
• True Day/Night with Mechanical ICR
• 3.6mm Wide Angle lens
• Cold climate capability (minimum operating
temperature -22°F/-30°C)
• 70ft (21m) IR Night Vision*
• IP66 Weatherproof Rating**
• Cable through bracket design
• 12V DC Operation
* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on
the camera application.
** Not recommended for submersion in water.
Image Sensor 1/3” Color Image Sensor
Video Format NTSC
Effective Pixels H: 728 V: 488
Horizontal Resolution 600 TVL
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 52dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/12,000 sec.
Min. Illumination 0.2 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens Focal Length / Type 3.6mm F2.0 / Fixed
FOV (Diagonal) 78°
Termination BNC Type
IR Range / Qty. 70ft / 21m; 20 IR LED’s
Power Requirement 12V DC ±10%
Power Consumption 12V: 200mA Max with IR LED
Operating Temp. Range –22° ~ 122°F / –30° ~ 50°C
Environmental Rating IP66
Dimensions (LxWxH) 7.4” x 2.6” x 2.4”
189mm x 67mm x 60mm
Weight (including stand) 0.7lbs / 0.3kg
Dimensions
Camera SpecificationsSetting up the Camera
189mm / 7.4”
60mm / 2.4”
67mm / 2.6”
1. Connect the BNC connector of the camera to
the video cable.
2. DC Power— : Connect a Power Adapter
12V DC Power Adapter (not included) to the
camera. Plug the Power Adapter into a local
power outlet.
• DC Power— (not included): Power Pigtail
Connect a Power Pigtail to the camera.
Connect the terminating wires of the cable
directly to the DC power source.
NOTE: For pigtail connection with 12V DC, make sure
to check polarity specifications on the power adapter.
ATTENTION - This camera includes an Auto Mechanical IR Cut Filter.
When the camera changes between Day/Night viewing modes, an
audible clicking noise may be heard from the camera. This clicking is
normal, and indicates that the camera filter is working.
1. Twist the ring to tighten/
loosen the stand connection
and adjust the camera’s
horizontal position.
2. Loosen the screw near the stand
and adjust the camera’s vertical
position.
3. If needed, loosen the screw near
the camera and twist the camera
head on the mounting stand.

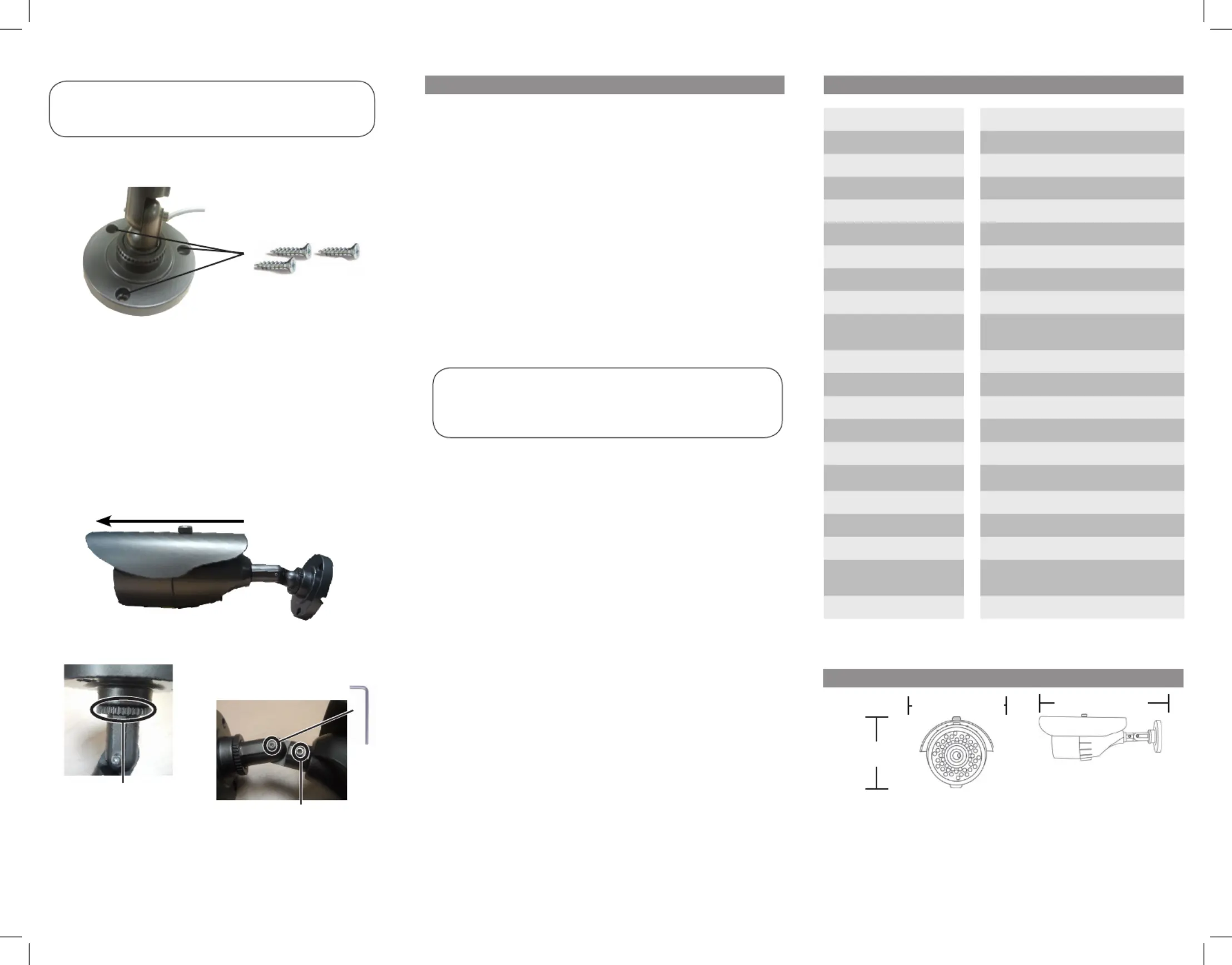

1. Set the camera in the desired mounting position
and mark holes for the screws.
Installing the Camera
2. Drill the holes for the mounting screws.
3. Connect the video and power cables as shown in
the next section ‘Setting up the Camera‘.
4. Mount the camera stand to the desired surface
using the provided screws.
5. Place the sunshade on top of the camera with
the large end pointing in the same direction as
the lens. Insert the sunshade screw.
ATTENTION - Test the camera prior to selecting a permanent
mounting location by temporarily connecting the camera(s) and
cables to the DVR.
6. Set the position and angle of the camera using
the provided Hex Allen Key.
