Product Information
User Manuals Quick Start Guides
Specification Sheets
Video Tutorials & DemosLatest News
Mounting screws x 3
1 x Allen key
Drywall anchors x 3
Contents
900 TVL OUTDOOR
IR BULLET CAMERA
MODEL: DBB533TL
QUICK START GUIDE
English Version 1.0
www.flirsecurity.com/pro
IT’S ALL ON THE WEB!
www.flirsecurity.com/pro
VISIT
FLIR Systems Inc.
Copyright © 2014
As our products are subject to continuous improvement, FLIR Systems
Inc. reserves the right to modify product design, specifications and
prices, without notice and without incurring any obligation. E&OE
1 x Weatherproof IR bullet camera
Features
Safety Precautions
• Use an appropriate low voltage power cable to prevent fire
or electrical shock.
• Make sure to install the camera in an area that can support
the camera weight.
• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning material.
Please use a soft cloth to clean the lens cover.
• 1/3” Sony Exmor™ Megapixel sensor with 960H DSP
• Outstanding image clarity in low light conditions
• Advanced 3D Digital Noise Reduction (3D-DNR)
• 90ft (27m) Smart IR Night Vision*
• 3.6mm wide angle lens
• IP66 Weatherproof rating**
• Cable through bracket design
• 12V DC operation
* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application.
** Not intended for submersion in water. Installation in a sheltered
area is recommended.

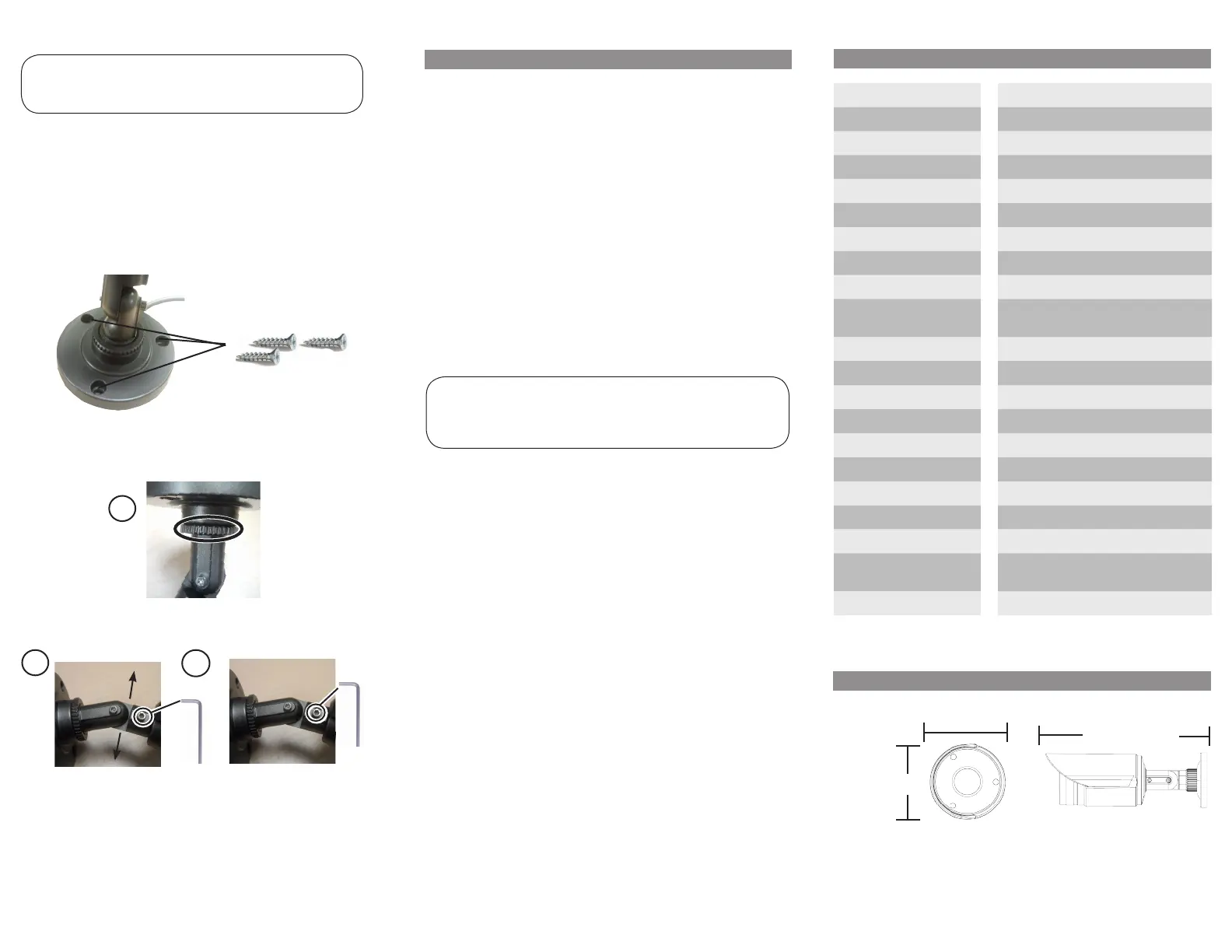

1. Use the camera base to drill holes for the
mounting screws and cable.
NOTE: Insert the included drywall anchors if installing
the camera in drywall.
2. Connect the video and power cables as shown in
the next section ‘Setting up the Camera‘.
3. Mount the camera stand to the desired surface
using the included mounting screws.
Installing the Camera
4. Set the position and angle of the camera using
the provided Allen key.
Setting up the Camera
1. Connect the BNC connector of the camera to
the video cable.
2. DC Power— : Connect a Power Adapter
12V DC power adapter (not included) to the
camera. Plug the power adapter into a local
power outlet.
• DC Power— (not included): Power Pigtail
Connect a power pigtail to the camera.
Connect the terminating wires of the cable
directly to the DC power source.
NOTE: For pigtail connection with 12V DC, make sure
to check polarity specifications on the power adapter.
ATTENTION - Test the camera prior to selecting a permanent
mounting location by temporarily connecting the camera(s) and
cables to the DVR.
ATTENTION - This camera includes an Auto Mechanical IR Cut Filter.
When the camera changes between Day/Night viewing modes, an
audible clicking noise may be heard from the camera. This clicking is
normal, and indicates that the camera filter is working.
BC
B) Loosen lower screw with the
included Allen key to adjust the
camera’s vertical position.
C) Loosen upper screw
with the included Allen
key to rotate the camera
housing.
A
A) Turn the adjustment ring to tighten / loosen the
stand connection. Adjust the camera’s horizontal
position.
5. Remove the protective film from the camera lens.
Image Sensor 1/3” Sony Exmor™ Megapixel CMOS
Video Format NTSC
Effective Pixels H: 1305 V: 1049
Horizontal Resolution 900 TVL
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 48dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/100,000 sec.
Min. Illumination 0.01 LUX (IR Off)
0 LUX (IR LEDs ON)
Video Output Composite 1.0Vpp @ 75ohm
Lens Focal Length / Type 3.6mm F2.0 / Fixed
FOV (Diagonal) 92°
Termination Video: BNC Female
IR Range / Qty. 90ft / 27m 24 IR LED`s;
Power Requirement 12V DC ± 10%
Power Consumption 12V: 345mA MAX with IR LED
Operating Temp. Range –4° ~ 122°F / –20° ~ 50°C
Environmental Rating IP66
Dimensions (LxWxH) 8.2” x 2.5” x 2.7”
209mm x 64mm x 68mm
Weight (including stand) 0.9lbs / 0.4kg
Dimensions
Camera Specifications
209mm / 8.2”
68mm / 2.7”
64mm / 2.5”
