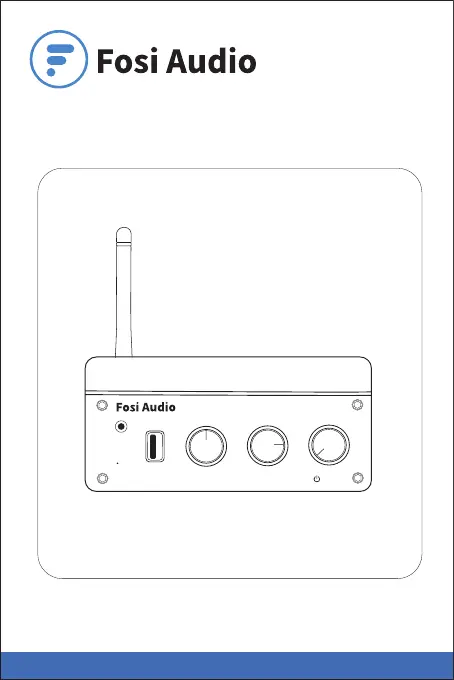

BL20A Bluetooth Power Amplifier User’s Manual
Red:AUX/USB
Blue:BT
- Treble +
- Bass +
IR
BL20A BLUETOOTH POWER AMPLIFIER
MODE
/VOL
Product Specifications
• Fosi Audio BL20A is a powerful Bluetooth 5.0 HiFi stereo
amplifier with AUX pre-output, which can be used as a
pre-amplifier. Design Treble & Bass control and remote
control to meet your more needs.
• The BL20A supports AUX/U-Disk/Bluetooth input, suitable
for most home passive speakers. Using two low-distortion
TPA3116 high-performance chips to display
ultra-high-definition sound quality.
• Let's join the audiophile’s music journey with Fosi Audio
BL20A!
Input Interface AUX/U-Disk/Bluetooth Input
SNR 92dB
THD <0.001%
Power Amplifier Chip TPA3116×2
Bluetooth Chip ATS2853
Power Adapter 24V/4.5A
DC Input Range DC 12-24V
Frequency Response Range 20Hz- 20KHz
Load Impedance 2-8 Ohm
Input Sensitivity 500mV
U-Disk Capacity Max 32GB
Support Format MP3/WMA/APE/ FLAC/WAV
Max Power Output 100watt×2
Output Interface Speaker’s Output +
3.5MM AUX Pre-out
Bluetooth Transmission
Distance
Bluetooth 5.0, up to 164ft/50m
Output Passive Speakers,
Powered Speakers, Amplifier
Product Weight 0.71lb / 323g
Dimensions 3.54×4.72×1.18 inches
(9×12×3 cm)
Product Overview
1
2 3 5 6
4
Red:AUX/USB
Blue:BT
- Treble +- Bass +
IR
BL20A BLUETOOTH POWER AMPLIFIER
MODE
/VOL
3: U-Disk Input
4: Bass Control
5: Treble Control
6: Multi-function
Knob(Power Switch/
Mode Switch/
Volume Control)
2: AUX/U-Disk/Blue-
tooth Input Indicator
Light
1: Infrared Radiation
Note: Multi- function Knob: Long press to power on/off;
Short press to switch mode; Turn left to decrease the
volume; Turn right to increase the volume.
9: Passive
Speakers Output
10: Bluetooth
Antenna Interface
11: DC Input
12: Bluetooth Antenna 8: 3.5MM AUX
Pre-output
7: 3.5MM AUX Input
