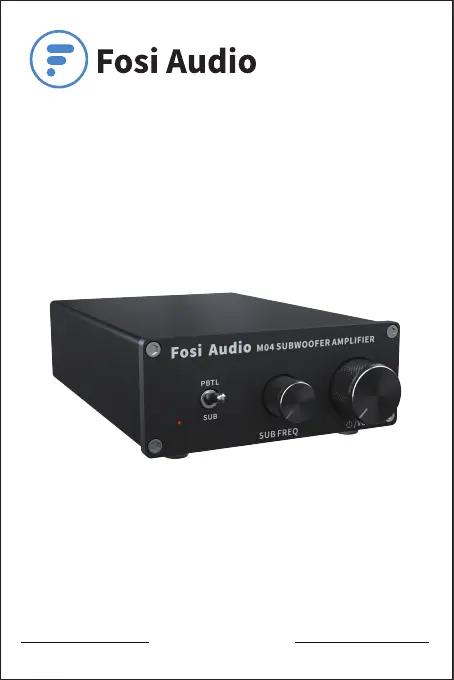

Fosi Audio M04 User Manual
Product Specifications
Small but mighty! Fosi Audio M04 is a 100w mono-channel
class D subwoofer amplifier, with a SUB/PBTL switch you can
select subwoofer bass amplifier or full frequency mono amp,
can be connected to active/passive subwoofer and passive
speaker. Power switch was integrated into volume control, we
made it small but supply an in-wall or stand-alone subwoofer
the power it needed so you can experience room-shaking low
frequency impact (bass) on movie and music soundtracks.
Input Interface:
Output Interface:
Power Adapter:
THD:
RCA input
passive/active subwoofer
+ passive speaker
speaker’s output
Output:
Product Adapter Input
Voltage Range:
DC 12V - 24V
SNR: ≥ 102dB
≤ 0.02% (1KHz, 1W)
Terminating Impedance: 2Ω - 8Ω
Max Power Output: 100watt @3Ω
Input Sensitivity: 600MV
Net weight: 175g
Dimensions (H * W * D): 103 x 57 x 43MM
(4.06 x 2.24 x 1.69’’)
includes knobs
Frequency Response Range: 20Hz-20KHz(±3db)
Bass Frequency Range: 20Hz-200Hz
19V/4.74A
Note: The upgraded version can connect to both passive and
active subwoofer.
Product Overview & Control
Functions
Full Frequency/
Bass Working Mode Switcher
Bass Frequency
Control Knob
(works only in bass mode)
Power
Indicator Power Switch &
Volume Knob
RCA Input Passive Subwoofer/
Speaker Output
DC 12V-24V
Input
