AUTOMATIC ICE MAKER

INSTALLATION INSTRUCTIONS

P/N: A13109106

WARNING

• To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator

from electrical power before connecting a water supply line to the refrigerator.

• Connect the ice maker to a potable water supply only.

An authorized service technician is recommended to install the ice maker kit.

Ice Maker (IM117000) Kit Components

5304520536

Ice Maker

QTY: 1

5304525288

Shoulder Screw

QTY: 5

5304520538/5304520539

Cover with Door

QTY: 1

5304520535

Ice Bin

QTY: 1

5304520537

Bracket (30" only)

QTY: 1

Parts needed for install inside the unit

Tools Needed:

• Flat head screw driver • Phillips or Quadrex driver

• ¼" Hex driver • Gloves

• Drill • Needle nose pliers

Parts needed for install on back side of the unit

NOTE

Check with your local building authority for recommendations on water lines and associated materials prior to

installing your new refrigerator. For household water line hookup from the home water supply system to the unit,

Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5304437642 (with a 6�

Stainless Steel Water Line) and for homes without an existing valve, Frigidaire recommends its Smart Choice®

water line kit 5304493869 (with a 6� Polyline Waterline). Please refer to Frigidaire.com for more information.

5304520540

Water Valve

QTY: 1

218976923

Tube

QTY: 1

241500304

#8 screw

QTY: 2

218515401

Hose and

Harness Clip

(30" only)

QTY: 3

5304455846

Clamp " ¼

QTY: 1

5303001193

Clamp "½

QTY: 1

Ice Maker Installation Instructions

1. Unplug refrigerator from electrical outlet.

2. Lift the freezer shelf up and out. Set aside.

See Figure 1.

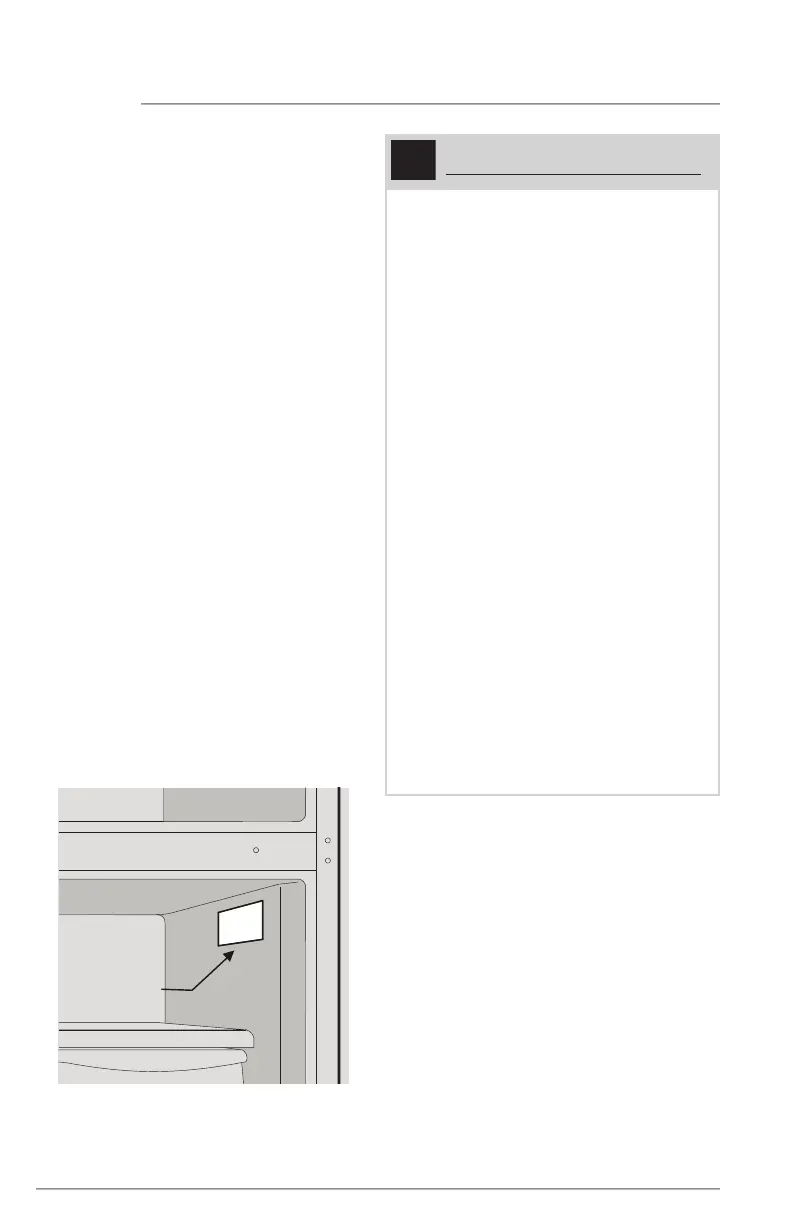

3. Remove water inlet and electrical cover, located

on the inside of the unit, by inserting a ﬂathead

screwdriver on left side of opening in the small

cover. Push to the right to disengage the snap.

See Figure 2.

4. Locate dimples in the freezer liner for screw

placement (a ﬂashlight may help). Align the

shoulder screws with the dimples. Push the

screws to penetrate the freezer liner and drive the

screws in until they are tight against the liner. Use

2 screws on the left side wall, and 3 on the top of

the liner. See Figure 3.

5. For a "30 wide refrigerator install the bracket

onto the ice maker. The Ice maker will slide onto

the mounting features on the bracket and snap

into place. The locking feature is located on the

rear of the ice maker.

6. Plug the ice maker in the electrical connector on

the back wall. Once connected, do not allow the

ice maker to hang unsupported. See Figure 4.

7. Slide the ice maker onto the 2 side wall shoulder

screws. See Figure 5A.

Make sure the ice maker water channel is under

the water ﬁll tube, continue to slide until the ice

maker snaps into place. See Figure 5B.

28 wide refrigerator "

Use the ice maker only

Locking

Feature

30 wide refrigerator"

Use the bracket with the ice maker

Figure 1

Figure 2

To Ceiling

To Wall

Install 5

Shoulder

Screws

Figure 3

Plug

Electrical

Connector

Figure 4

Figure 5

Ice Maker Installation Instructions

9. To install the ice bin, the freezer shelf needs to be

in the lowest position. Slide the ice bin between

the side wall and the right side of the ice maker

housing positioned on the shelf. See Figure 7.

10. Locate the Ice maker installation label on the

rear outside right top corner of the refrigerator.

Cut the label on the dashed lines, and push ﬂaps

inward until they stick to the unit. See Figure 8.

8. Install the plastic shutter into the window in the

front of the cover. The shutter snaps into the clips

on inside face of the cover, no tools are required.

Slide the ice maker cover onto the shoulder

screws on top of the unit until it locks into place

with a snap. See Figure 6.

11. Install the water line by screwing the nut on the

end of the tube onto the water inlet. Tighten the

nut until snug, and then tighten an additional ¼

turn with needle nose pliers. (See Figure 9A.)

12. Install the 2 water line clips on the unit evenly

spaced inside the depressed area located under

the water inlet. Insert the water line tube into the

clips. (See Figure 9B.)

*If you have a unit with an access cover,

continue to page 4 for additional instal-

lation instructions. For a unit without an

access cover, continue to page 5.

Units with access cover

Units without access cover

Figure 6

Figure 7

Cut on dashed lines

and push in on flaps

Figure 8

Water

Line

Clip

Water

Inlet

Figure 9
