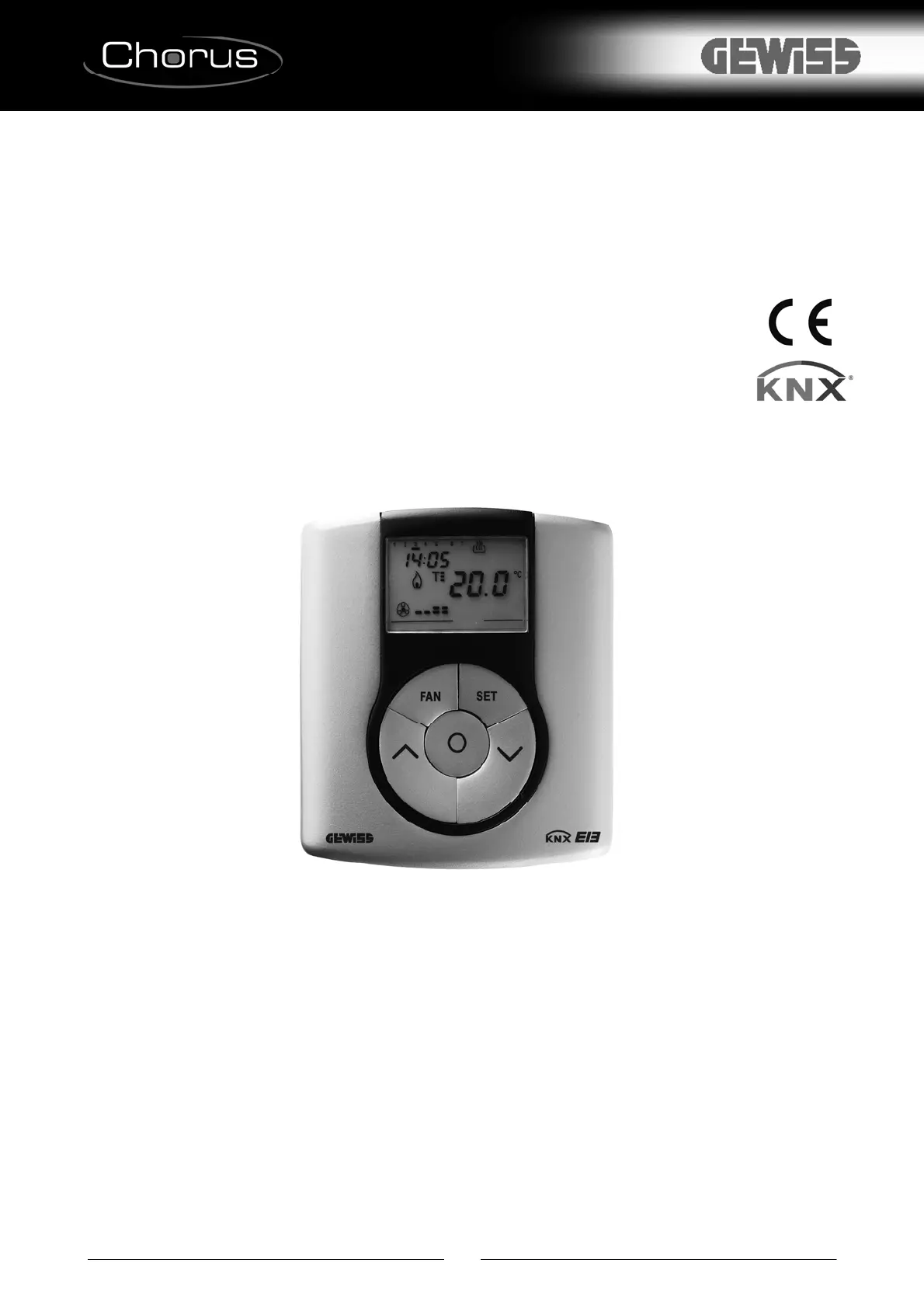

KNX thermostat - wall mounting
GW 10 793 - GW 14 793
Technical Manual
2
Summary
1 Introduction ................................................................................................................................................ 3
2Application ................................................................................................................................................. 3
2.1Limits to the associations ................................................................................................................... 3
3“Main” menu ............................................................................................................................................... 4
3.1Parameters ........................................................................................................................................ 4
3.2Communication objects ..................................................................................................................... 9
4“Load control” menu (fan coil disabled) ................................................................................................... 12
4.1Parameters ...................................................................................................................................... 12
4.2Communication objects ................................................................................................................... 13
5“Load control” menu (fan coil enabled)” ................................................................................................... 15
5.1Parameters ...................................................................................................................................... 15
5.2Communication objects ................................................................................................................... 17
6“Control algorithm (1 bit)” menu ............................................................................................................... 19
6.1Parameters ...................................................................................................................................... 19
6.2Communication objects ................................................................................................................... 21
7“Control algorithm (1 byte)” menu ............................................................................................................ 22
7.1Parameters ...................................................................................................................................... 22
7.2Communication objects ................................................................................................................... 24
8“Fan coil management” menu .................................................................................................................. 25
8.1Parameters ...................................................................................................................................... 27
8.2Communication objects ................................................................................................................... 31
9“Reports” menu ........................................................................................................................................ 33
9.1Parameters ...................................................................................................................................... 33
9.2Communication objects ................................................................................................................... 35
10“Scene” menu ...................................................................................................................................... 38
10.1Parameters ...................................................................................................................................... 38
10.2Communication objects ................................................................................................................... 39
11“Temperature setpoint” menu .............................................................................................................. 40
11.1Parameters ...................................................................................................................................... 40
11.2Communication objects ................................................................................................................... 41
12“External sensor” menu ....................................................................................................................... 42
12.1Parameters ...................................................................................................................................... 42
12.2Communication objects ................................................................................................................... 43
3
1 Introduction
This manual describes the functions of the device named GW1x793 and how to use the ETS configuration
software to change the settings and configurations.
2 Application
The KNX wall thermostat is a device that manages the HVAC system. It is able to regulate the temperature
in the environment in which it is installed, using the KNX system to manage the actuators that control the
solenoid valves, boilers, fan coils etc that comprise the heating and air-conditioning systems. This device,
combined with the KNX wall timed thermostat, can regulate the temperatures per zone and act as a slave
device when a master-slave system is setup.
The device manages two operating modes, HEATING and AIR CONDITIONING, and controls both systems
whilst providing 4 different operating modes for each operating mode
(ECONOMY/PRECOMFORT/COMFORT/OFF), each with its own customisable setpoint.
The device is always able to autonomously manage the temperature in the environment it is installed in,
using control algorithms (two points or proportional) or the use of fan coils, depending on the type of system
built.
If the use of fan coils is not foreseen, the thermostat is only able to manage the heating and air conditioning
system if it is a 4-way configuration as it is designed to manage one actuator for the heating system and
another for the air-conditioning system; however, if there is the need to control the fan coils, the thermostat is
able to manage 2/4 way systems to control the zone valves.
This manual refers solely to the configuration using the ETS software. Please refer to the INSTALLATION
AND USER MANUAL supplied with the product for instructions on how to use the internal menu and the
various local key functions.
2.1 Limits to the associations
The maximum number of logical associations that the device is able to memorize is 110; this means that the
maximum number of logical connections between communication objects and group addresses is 110.
The maximum number of group addresses that the device is able to memorize is 110; this means that it is
possible to associate the communication objects to a maximum of 110 group addresses.
