GW 66 498
HIGHAL
TO

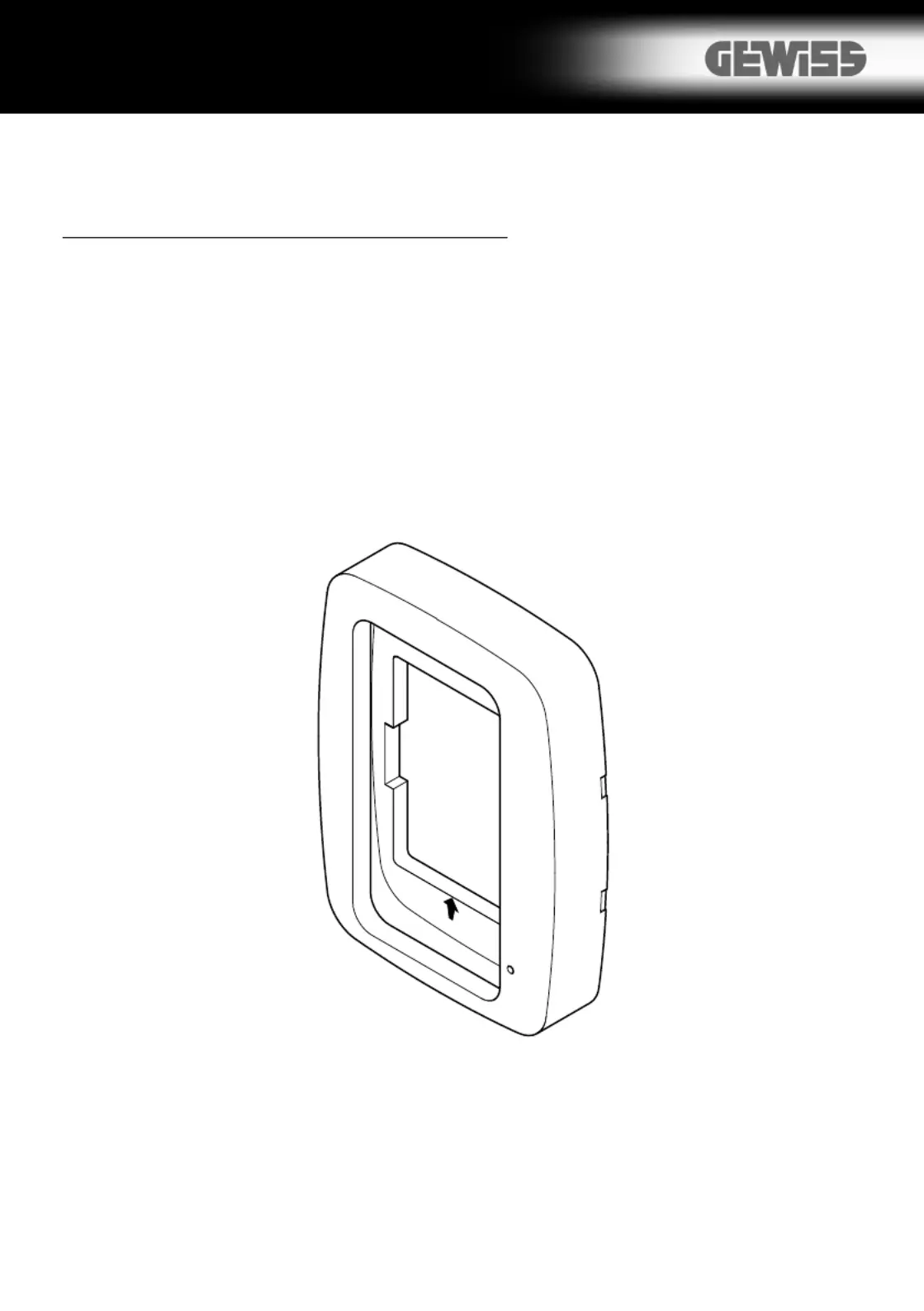

CASSETTA CON CORNICE PER INCASSO
PER PRESE COMBIBLOC
Flush-mounted box with Face-plate For combibloc sockets -
Boîte à encàstrer àvec cornîere pour prîses comBîBloc -
caja con marco para empotrado para enchuFes combibloc -
unterputzgehàuse mît àBdeckràhmen fur comBî system
66 COMBIBLOC

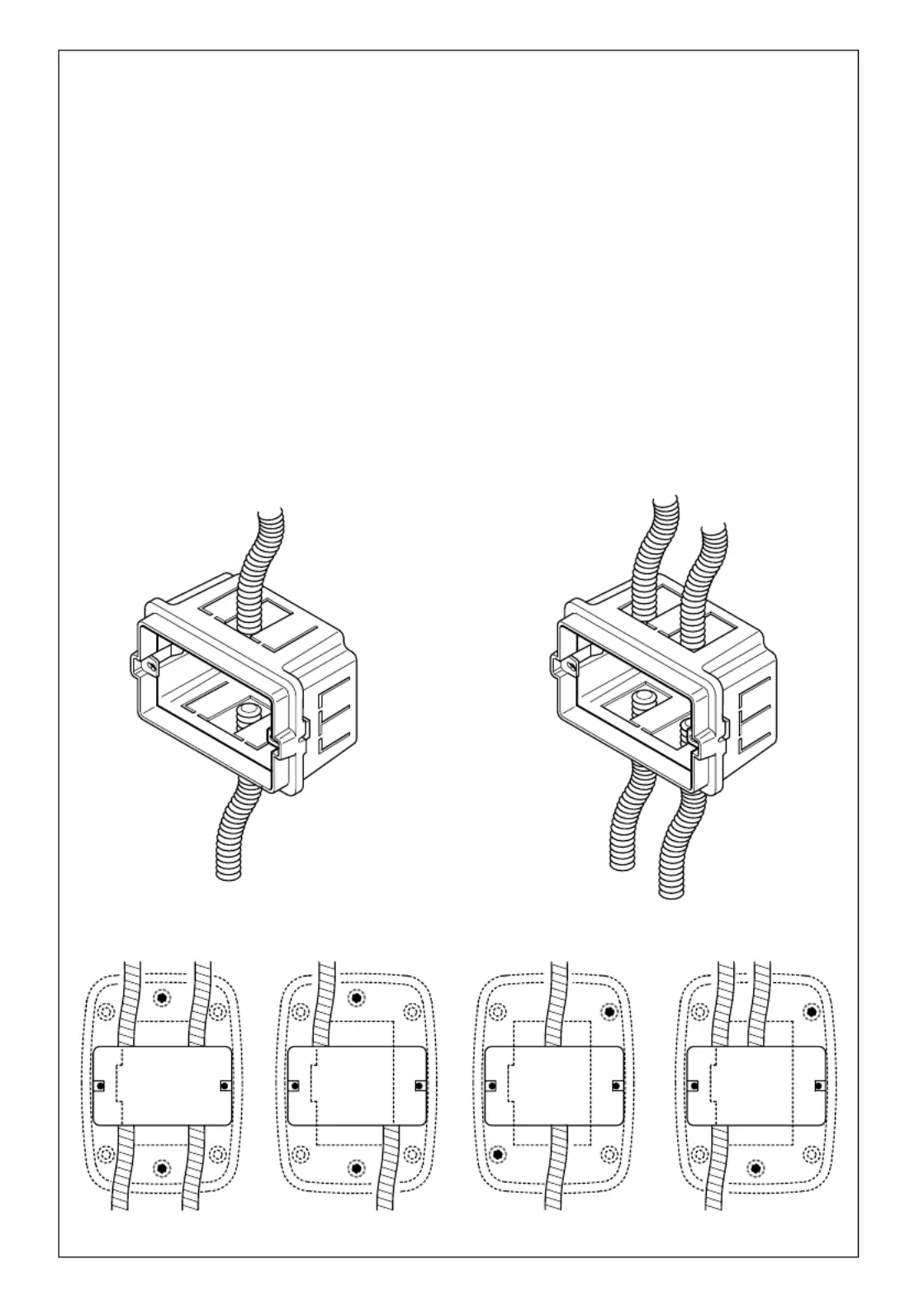

Montaggio su scatola GW 24 403 / GW 48 002
Prima di eseguire il montaggio della flangia, é importante verificare il posizionamento delle tubazioni nella scatola murata,
al fine di posizionare correttamente la foratura sulla flangia.
Assembly on box GW 24 403 / GW 48 002
Before mounting the flange, make sure that you check the position of the ducts in the flush-mounted box, in order to line
the holes up with the flange.
Montage sur boîte GW 24 403 / GW 48 002
Avant d’effectuer le montage du plastron, il est important de vérifier le positionnement des gaines dans la boîte murée afin
de positionner correctement le perçage sur le plastron.
Montaje en caja GW 24 403 / GW 48 002
Antes de efectuar el montaje de la brida, es importante comprobar la colocación de los tubos en la caja empotrada, a fin
de poner en correcta posición la perforación en la brida.
Montage in Unterputzkasten GW 24 403 / GW 48 002
Vor der Flanschmontage muss die Position der Leitungen im Unterputzkasten überprüft werden, damit die
Flanschöffnungen korrekt ausgerichtet sind.
HIGHALTO
HIG
HA
LTO
CRACK!
max. ø 4 mm
Serie 24
