Sida 1/10

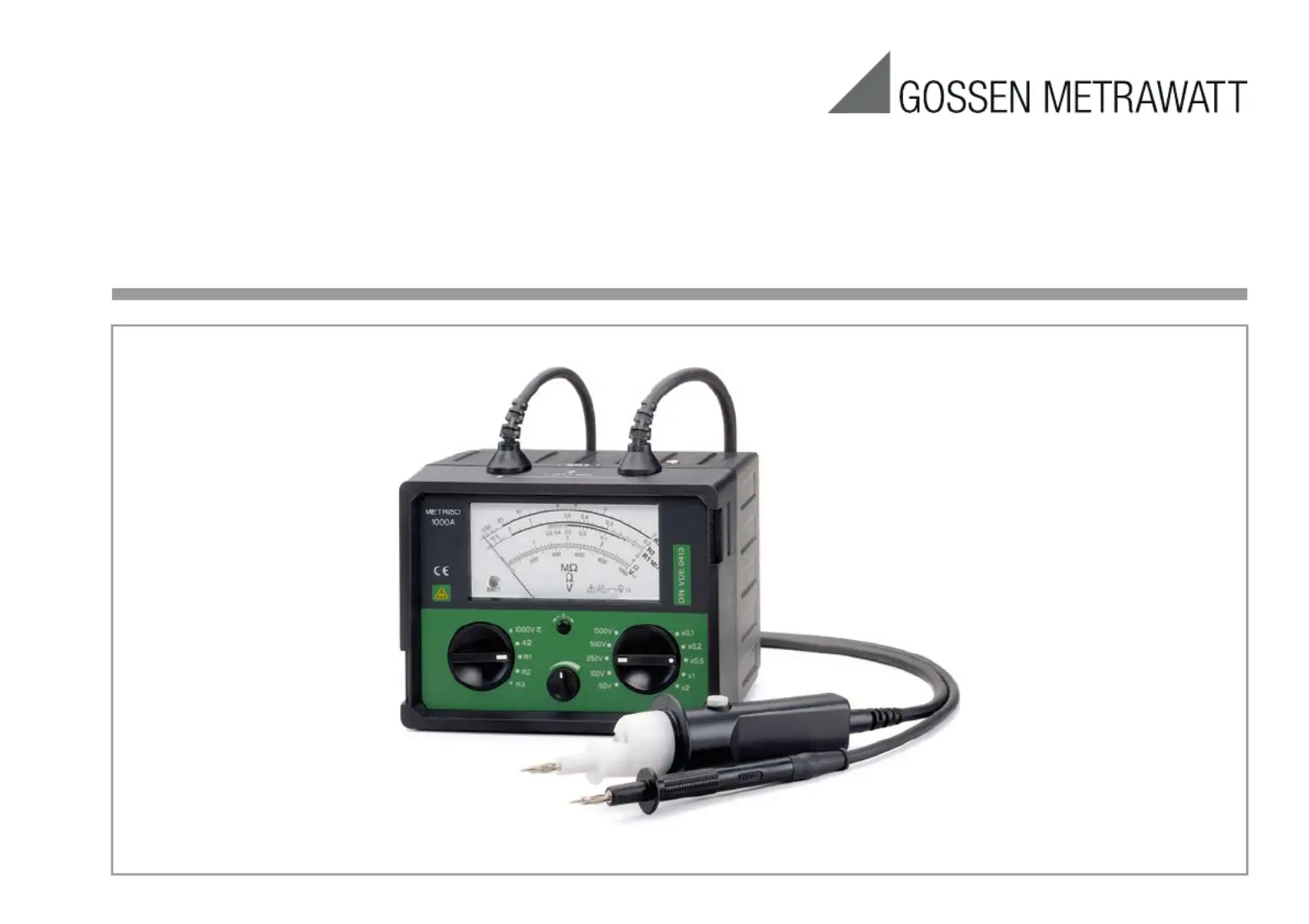

METRISO 1000A
Insulation tester
3-348-773-37
8/5.15
Operating Instructions
2GMC-I Messtechnik GmbH

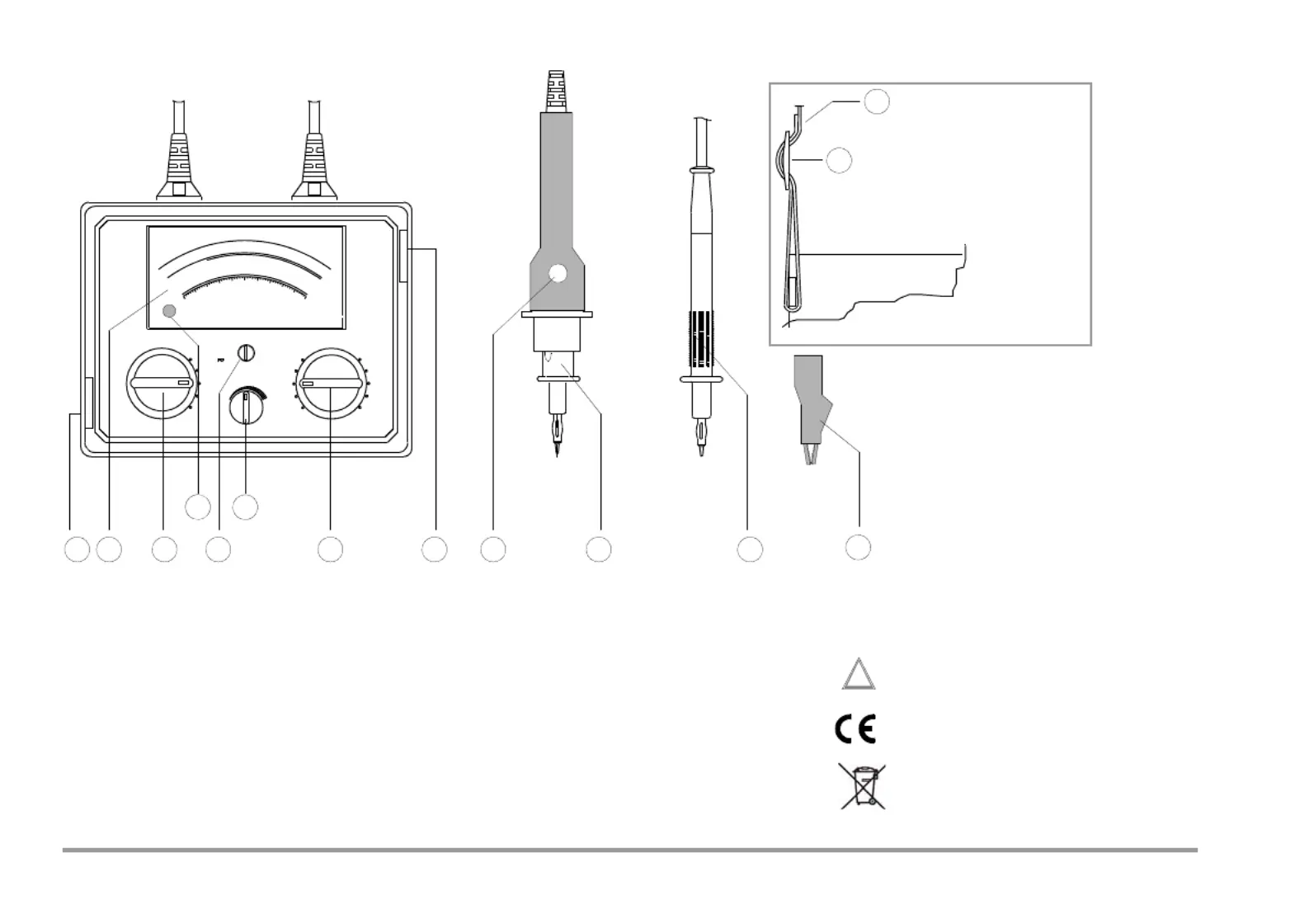

1 Analog display
2 Function selector switch
3 Battery voltage indicator lamp
4 Adjusting screw for mechanical zero adjustment
5 Rotary knob for electrical zero adjustment
6 Rotary switch for nominal voltage selection
7 Studs for fastening the carrying strap
8 Measurement key
9 Test probe with lamp
10 Test probe
11 Alligator clip
12 Latch
13 Carrying strap
Meanings of Symbols on the Instrument
Warning concerning a point of danger
(Attention: observe documentation!)
Indicates EC conformity
This device may not be disposed with the
trash. For further details on the WEEE marking,
please refer to our website www.gossen-
metrawatt.com and enter search key ’WEEE’.
1 2
3
6
5
47
12
13
8 9 10711
Housing
Attaching the
Strap to the
Housing
METRISO
1000A
MΩ
V
8
8
R3
R2
R1
V
Ω
600
400
200 800
01000
1000V
4Ω
R1
R2
R3
x0,5
x1
x2
x0,2
x0,1
1000V
500V
250V
100V
50V
BATT
METRISO 1000A
Ω
!
GMC-I Messtechnik GmbH 3
Contents Page
1 Safety Precautions .......................................................................... 3
2 Applications .................................................................................... 4
3 Initial Start-Up ................................................................................ 4
3.1 Battery Installation ...........................................................................................4
3.2 Testing the Batteries .......................................................................................4
3.3 Switching the Tester On and Off .......................................................................4
3.4 Analog Display ................................................................................................4
3.5 Fusing ............................................................................................................4
3.5.1 Checking the Fuse ..........................................................................................4
4 Measuring Direct and Alternating Voltage ...................................... 5
5 Measuring Insulation Resistance .................................................... 5
5.1 Measurement Procedure .................................................................................5
5.2 Evaluation of Measurement Values ...................................................................6
5.3 Rapid Testing of Insulation Resistance ..............................................................6
6 Measuring Low-Impedance Resistance (0 to 4 Ω) ......................... 6
7 Characteristic Values ..................................................................... 7
8 Maintenance ................................................................................... 8
8.1 Batteries .........................................................................................................9
8.2 Replacing the Fuse ..........................................................................................9
8.3 Testing for Functionality and Accuracy ..............................................................9
8.4 Housing ..........................................................................................................9
8.5 Carrying Bag .................................................................................................10
9 Repair and Replacement Parts Service
Calibration Center
and Rental Instrument Service ..................................................... 10
10 Product Support ............................................................................ 10
1 Safety Precautions
This instrument fulfills the requirements of the applicable European and
national EC guidelines. We confirm this with the CE marking. The relevant
declaration of conformity can be obtained from GMC-I Messtechnik
GmbH.
The METRISO 1000A insulation tester has been manufactured and tested
in accordance with the following standards:
IEC 61010-1/EN 61010-1/VDE 0411-1,
DIN VDE 0413 part 1:2007 and part 4:2007,
IEC 61557-2/EN 61557-2/VDE 0413-2
IEC 61557-4/EN 61557-4/VDE 0413-4
In order to maintain flawless technical safety conditions and to assure safe
use, it is imperative that you read the operating instructions carefully and
thoroughly before placing your instrument into service, and that you follow
all points contained therein.
Repair and Parts Replacement
Voltage conducting parts may be exposed when the instrument is
opened. The instrument must be disconnected from all sources of voltage
before repair or replacement of parts. If the repair of an open, live instru-
ment cannot be avoided, this may only be performed by trained personnel
who are familiar with the dangers involved.
Malfunctions and Extraordinary Strains
If it may be assumed that the instrument can no longer be operated
safely, it must be removed from service and secured against unintentional
use. Safe operation can no longer be relied upon:
• If the instrument demonstrates visible damage
• If the instrument no longer functions
• After lengthy periods of storage under unfavorable conditions
• After excessive strain during transport
Attention!
!
The permanently attached measurement cables are double insu-
lated with insulation materials of two different colors. Exposure of
the light colored inner insulation is an early indicator of excessive
cable wear.
