Gossen Metrawatt METRISO PRO Bruksanvisning

Läs nedan 📖 manual på svenska för Gossen Metrawatt METRISO PRO (32 sidor) i kategorin Mätinstrument. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Sida 1/32

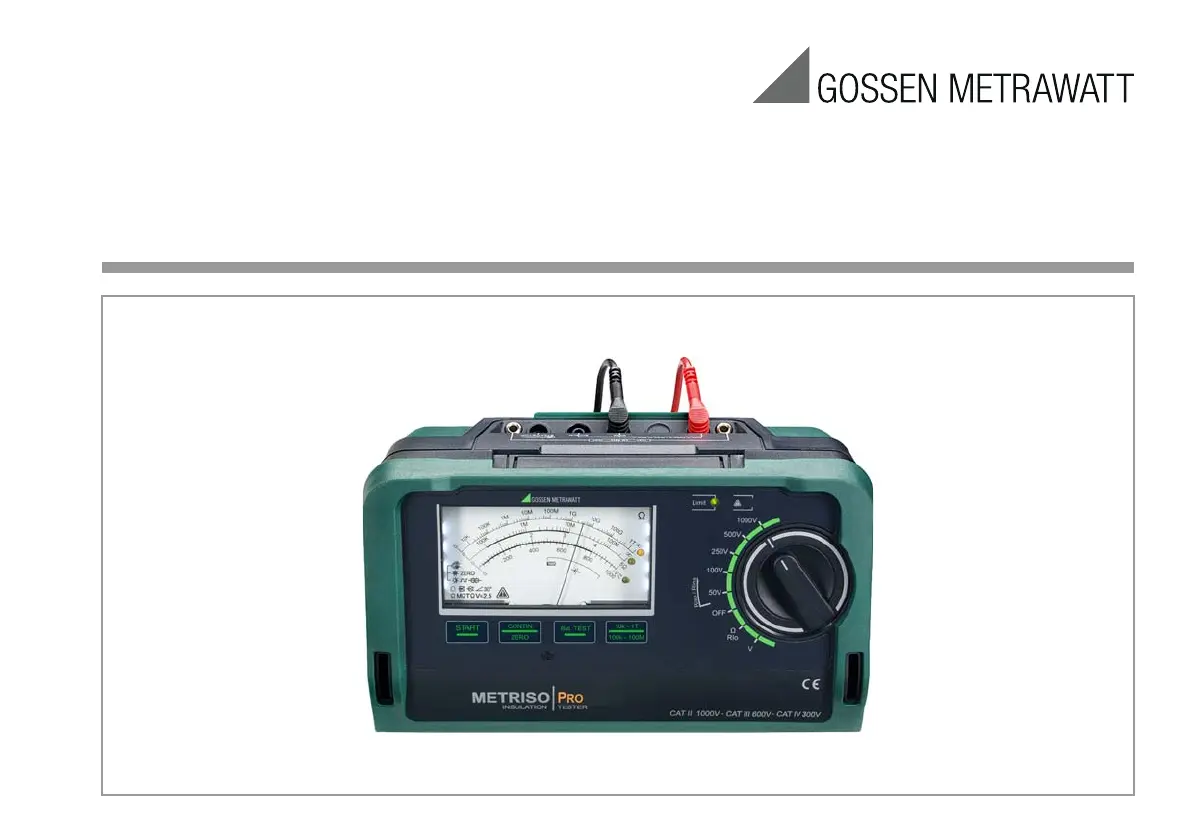

METRISO PRO
Analog Insulation, Low Resistance and Voltage Measurement Instrument 3-349-815-03
1/9.14
Operating Instructions
2 GMC-I Messtechnik GmbH
Overview of Included Features Scope of Delivery
1 Insulation and resistance measuring instrument
1 Factory calibration certificate
1 Set of batteries (8 pieces in battery holder)
1 Carrying strap
1 Alligator clip
1 KS17-4 cable set
1 Condensed operating instructions
1 Supplement Safety Information
Detailed operating instructions for download from our website
at www.gossenmetrawatt.com
Battery Compartment Lid and Location of the Fuses
(housing bottom)
METRISO PRO
Article number M550R
Measurements:
RINS U = 50, 100, 250, 500, 1000 V
3
RLO 0.17 ... 4
3
U 10 ... 1000 V
3
Display Functions:
Scale illumination
3
Limit value LED (green/red) for:
additional acoustic signal,
limit values per VDE 0100
RINS RLO
Caution LED
for dangerous contact voltage
– When switched off
– For active test voltage
3
FUSE LED
For blown fuse
3
Battery level display
3
Special Functions:
Discharge capacitive devices under test
3
Safety shutdown (UBatt < 8 V)
3
Features:
Measuring category
CAT II 1000 V / CAT III 600 V / CAT IV 300 V
3
Test resistor: 10 M
3
Factory calibration certificate
3
a b
Replacement Fuse
Fuse Link
Battery Compartment Lid
GMC-I Messtechnik GmbH 3
Inserting the Battery Holder (side view) Connections (housing top)
1Z550A accessory as option: test probe with measurement key and an additional
key for illuminating the measuring point, including shielded, plug-in connector
cable
Battery Holder
Battery Compartment Lid
Battery Holder
Contacts
Battery
Contact
Spring
User Interface
Compartment
Shielded
Cable
Test
Resistor
Test
Resistor
Test Probe with
Control Keys 1
Connector with
Shielded Cable,
Option KS-C (Z541F)
(G500/G10
G500/G1000)
Measuring Connections
+COM
+
COM
10 M
GUARD
SHIELD
Guard connection
see section 5.4
