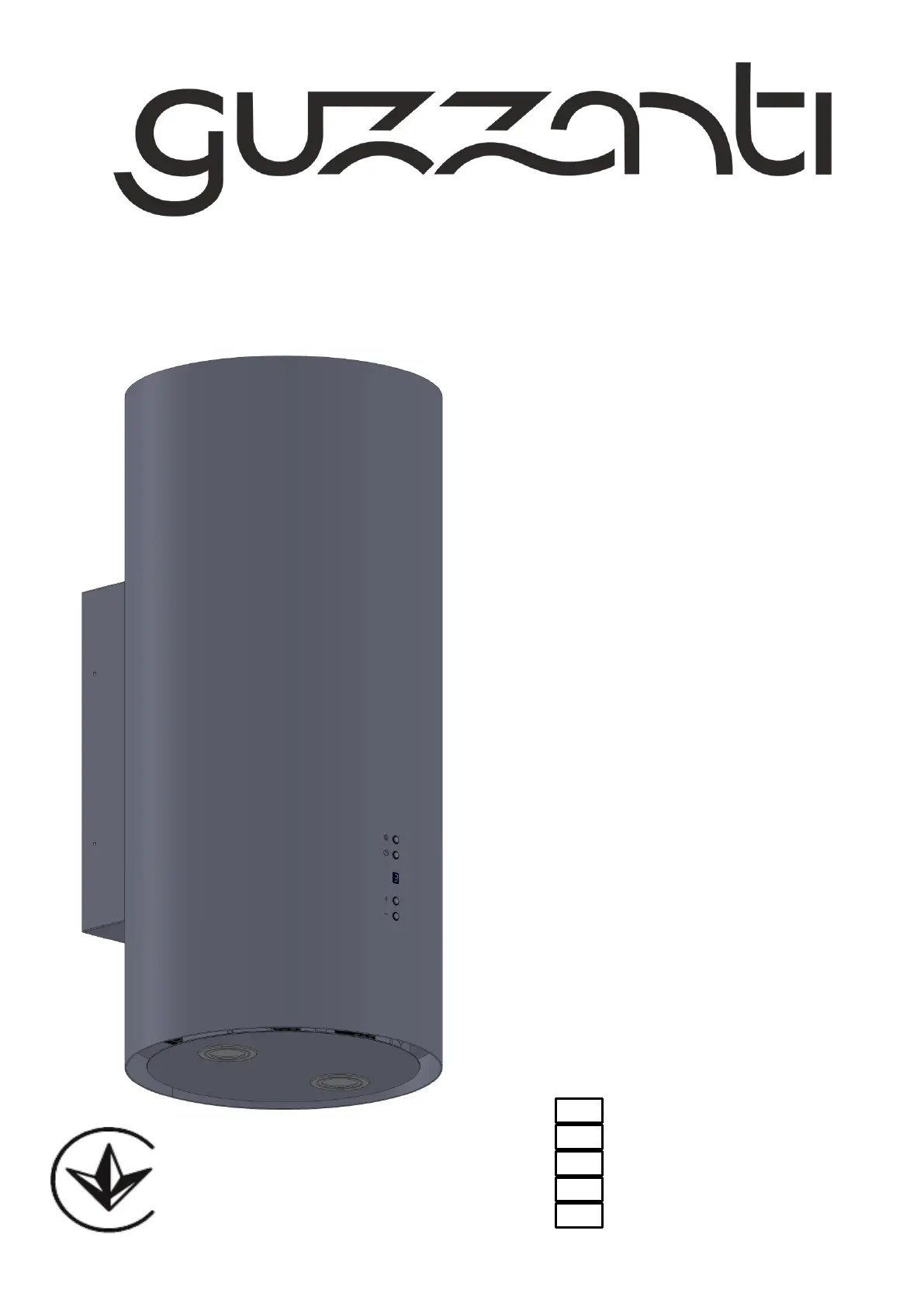

KITCHEN EXTRACTOR HOOD
OKAP WYSPOWY(WENTYLACYJNY)
KUCHYŅSKÁ VENTILAĈNÍ DIGESTOŘ
KUCHYNSKÝ VENTILAĈNÝ DIGESTOR
KONYHAI PÁRAELSZIVÓ
-678GZ
USER’S MANUAL
INSTRUKCJA OBSŁUGI
NÁVOD K OBSLUZE
NÁVOD NA OBSLUHU
ASZNÁLATI UTASITÁS
EN
PL
CZ
SK
HU
Dear customer!
Thank you for choosing the products of the We put our best eorts so you were brand " GUZZANTI ".
satised with your choice.
1. GENERAL INFORMATION
1.1 Prior to installing the extractor hood carefully read our recommendations, following which will
provide safe work of the appliance. Save this User’s manual, as it contains answers to the questions which
may arise later.
BEFORE STARTING THE OPERATION (SWITCHING ON) THE APPLIANCE MUST BE HELD
AT THE ROOM TEMPERATURE FOR AT LEAST TWO HOURS.
1.2. This appliance is intended for extraction of polluted air from the space above the cooking appliance,
and intended for domestic use and the household environment only.
USE OF THE APPLIANCE IN GOALS OTHER THAN DOMESTIC IS FORBIDDEN. THE RISK
OF INJURY AND PROPERTY DAMAGE INCREASES IN CASE OF USE OF THE EXTRACTOR
HOOD WITH PURPOSES OTHER THAN INTENDED, WHAT WILL LEAD TO WARRANTY
CANCELLATION.
1.3. Use of the extractor hood decreases the content of harmful products of incomplete combustion of
natural gas, as well as odors produced during cooking in the air, and prevents pollution of walls, ceiling, and
furniture with grease and soot.
1.4. The appliance is an air purifying device of the exhaust type with a diameter fan (turbine), completed
with a grease picking aluminum lter ( ) and has the option of upgrading with a carbon odor lter. It included
is manufactured from sheets of carbon steel with decorative protective coating of powder paints -a 360 mm
in width.
1.5. Depending on the installation scheme over the cooker, the extractor hood can work in two variants:
- in the mode of air extraction into the stationary ventilation shaft (chimney) of the kitchen using
corrugated aluminum or plastic air-ducts Ø150mm or Ø120mm (see item 5.3);
- in the recirculation mode (closed circular air circulation in the kitchen), when the extractor hood is not
connected to chimney, and the air is passed through aluminum grease lter (included) and smothering
carbon lter and is returned to the kitchen (see paragraph 5.3).
1.6. Attention! Do not start extractor hood installation before connecting it to electricity network and
checking its technical serviceability, and checking all of its functions.
1.7. We recommend that all installation works, connection, and repair of your extractor hood should be
carried only by qualied specialists professionally engaged in the execution of such works.
1.8. The manufacturer does not bear responsibility for any damages and failures, caused by incorrect
installation, operation, and repair of the extractor hood.
1.9. The manufacturer reserves the right to modify the product in order to improve its quality and
technical specications.
1.10. Technical specications for the extractor hood are indicated in this manual and on the label attached
to the inner surface of the body (access to it opens when the lter is removed).
Attention! The extractor hood should be installed on the wall at the distance of 650-750mm above
the electric cooker and at the distance 750-850 mm above the gas cooker.
EN
2. MAIN TECHNICAL SPECIFICATIONS
Model of kitchen extractor hood
GZ-678
Network voltage, V
220-230
AC frequency, Hz
50
Control type
electronic
Number of operation modes
4
Rated power consumption, W
Of the motor
220
Lighting (LED)
2x1,5
General
223
Productivity while connecting to standard ventilation system m3/hour
670
Overall dimensions of the
extractor hood, mm
360
394
790
Connection size of ventilation duct, mm
Ø150 / Ø120
Weight, kg
13,7
Noise level, dB
46-57
Protection class
I
Operation mode
S1 (long-lasting)
Electro cable type
Armoured and grounded
3. PARTS SUPPLIED
Item
Quantity
Kitchen extractor hood
1 pcs.
Plastic pipe adapter (from Ø150 to Ø120mm)
1 pcs.
Expansion wall plug Ø8Х40
4 pcs.
User’s manual
1 pcs.
4. SAFETY REQUIREMENTS
ATTENTION!
IT IS FORBIDDEN TO CONNECT THE EXTRACTOR
HOOD
TO THE NETWORK OF THE ELECTRIC COOKER.
PROTECT ELECTRIC CORD FROM MECHANICAL AND
THERMAL DAMAGE.
