KNX radio wall-transmitter 1gang/2gang at quicklink
Page 1/7
6W-5830 08-2012
KNX radio wall-transmitter 1gang/2gang at quicklink
Order no.: 8565 p1-x2 xx
KNX radio wall-transmitter 1gang/2gang at solar quicklink
Order no.: 8565 p1-x1 xx
Operating instructions
1. Safety instructions
Electrical equipment may only be installed and assembled by a qualied electrician in
accordance with the relevant installation standards, guidelines, regulations, directives,
safety and accident prevention regulations of the country.
Failure to comply with these instructions may result in damage to the device, re or other
hazards.
Button cells do not belong in children's hands! If button cells are swallowed, seek imme-
diate medical assistance.
Danger of explosion! Do not throw batteries in re.
Danger of explosion! Do not recharge batteries.
The radio transmission is not suitable for safety or alarm applications.
These instructions are an integral component of the product and must be retained by the
end user.
2. Design and layout of the device
(1)
(2)
(3)
(5)
(6)
(8)
(1)
(2)
(4)
(5)
(7)
(8)

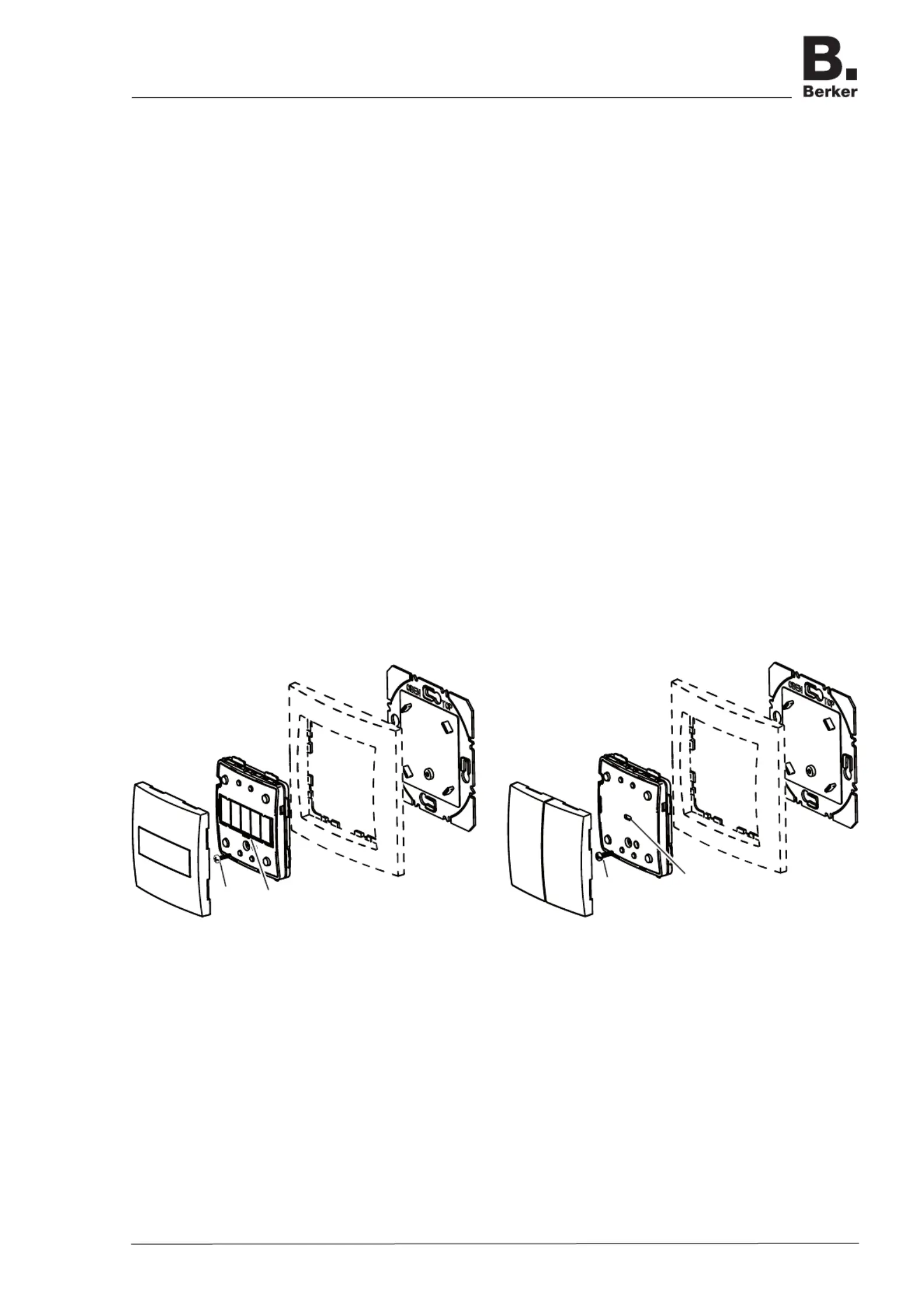

Figure 1: Design and layout of the device
(1) Supporting plate
(2) Frame (not within scope of delivery)
(3) Exemplarily Radio wall-transmitter 1gang at solar quicklink
(4) Exemplarily Radio wall-transmitter 2gang at quicklink
(5) Screw for dismantling protection
(6) Button design cover 1gang
(7) Button design cover 2gang
(8) Transmission status LED
KNX radio wall-transmitter 1gang/2gang at solar quicklink
Page 2/7
6W-5830 08-2012
3. Function
System information
This device is a product of the quicklink system, in which installation devices communicate via
radio signals.
Quicklink stands for a conguration mode in which the function-related connection between
transmitters and receivers is set on the device through buttons and displays without further
tools.
All devices congurable by quicklink can be operated together in one system.
This device complies with the R&TTE directive 1999/5/EG. The declaration of conformity and
further system information can be found on our internet site www.berker.de.
The device may be operated in all EU and EFTA states.
Correct use
–Flat surface installation and extension of combinations.
–Only suitable for use in indoor areas with no drip and no spray water.
–The device has been laid out for smaller applications in which a maximum 20 devices are
allocated.
Product characteristics
–Functions for remote control, scenes, control switches via radio signals.
–Transmission status LED as display of radio reception; as required, when battery is too
weak or a conguration is absent.
4. Operation
Allotting of channels to inputs of wall-transmitter
1
2
1
2
3
4

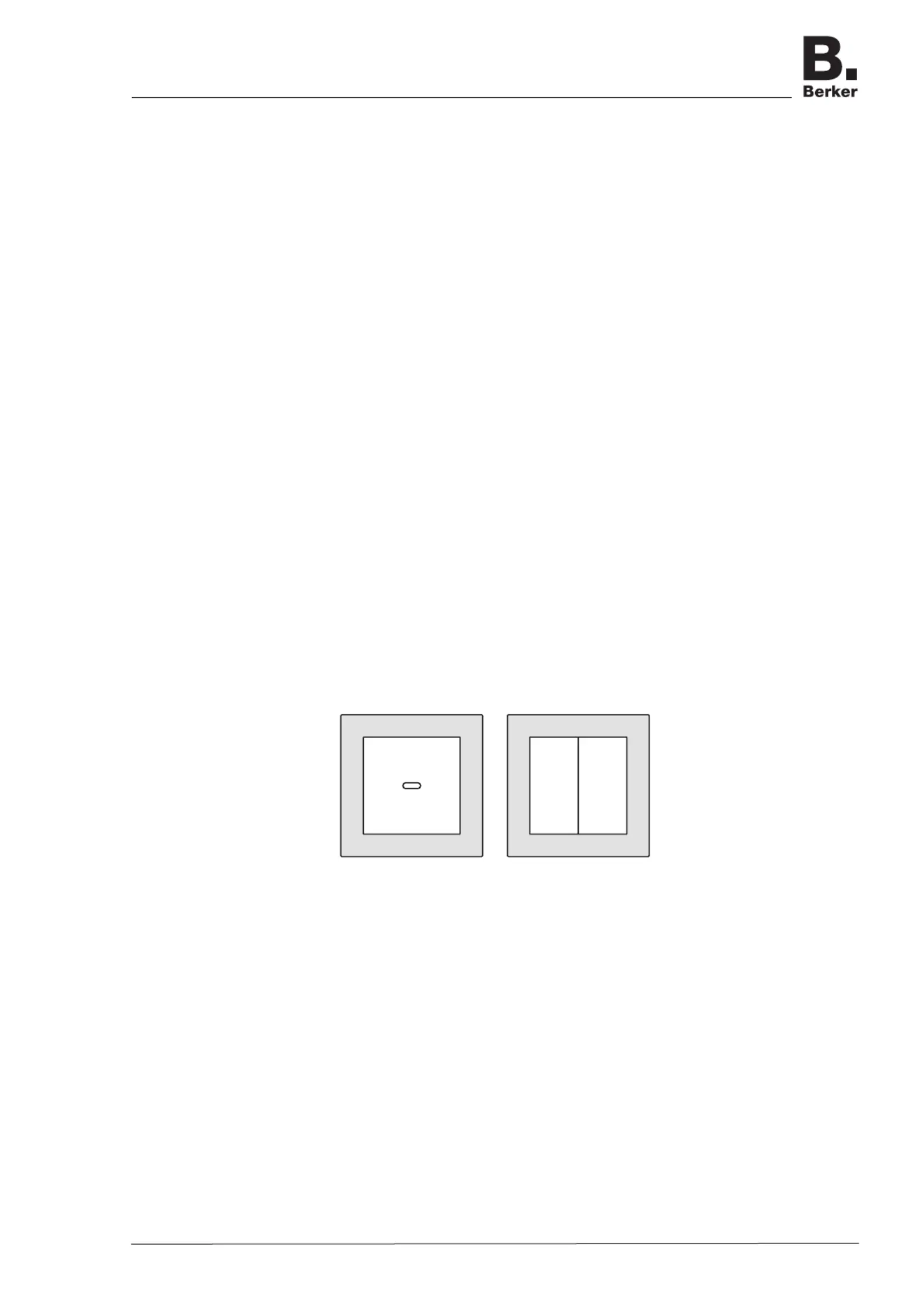

Figure 2: Allotting of channels to inputs
Transmit radio command
The push-button operation areas are freely congurable; operation is dependent on the congu-
ration (Table 3).
Press a push-button operation area, e.g. 1, to send a radio command.
The transmission status LED (8) lights up to conrm.
KNX radio wall-transmitter 1gang/2gang at solar quicklink
Page 3/7
6W-5830 08-2012
Transmission status LED display
After operation, the transmission status LED on the 1gang wall-transmitter lights up through a
lens and on the 1gang wall-transmitter and on the 2gang wall-transmitter, through the gap bet-
ween the two push-buttons.
Transmission status LED Severity
Blinking orange Button not congured
Blinking green / blinking green Radio command sent / radio command received
1 x blinking green Radio command sent to timer
1 x blinking green / 1 x blinking
red
Radio command sent / radio command not received (with at
least 1 device)
Red, ickering for 2 seconds Battery weak; replace
Table 1
5. Information for electricians
Overview of the operating elements beneath the design cover
(10)
(9)

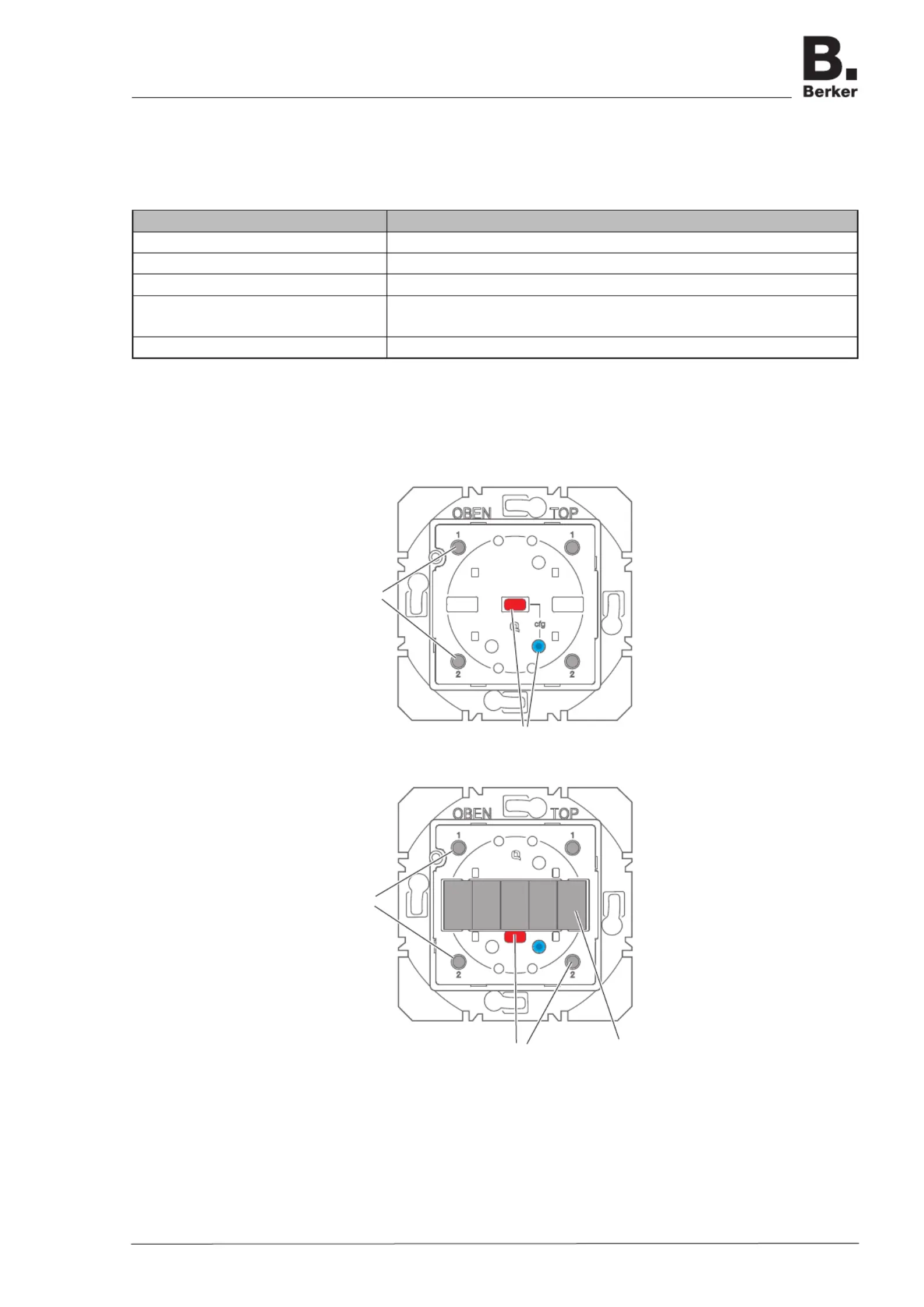

Figure 3: Wall-transmitter with battery
(10)
(9)
(11)
Figure 4: Wall-transmitter solar
(9) Press-activation point of the push-button operation area
(10) cfg cfg input with LED or transmission status LED
(11) Solar cells
