PACKAGED TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
CONTENTS
PARTS AND FUNCTIONS
OPERATION
INSTALLATION
MAINTENANCE
2-3
1
4-5
6-9
The image shown here is indicative only,
The actual product may differ
English
0010564839
HPU-24H03/NAF
HNR

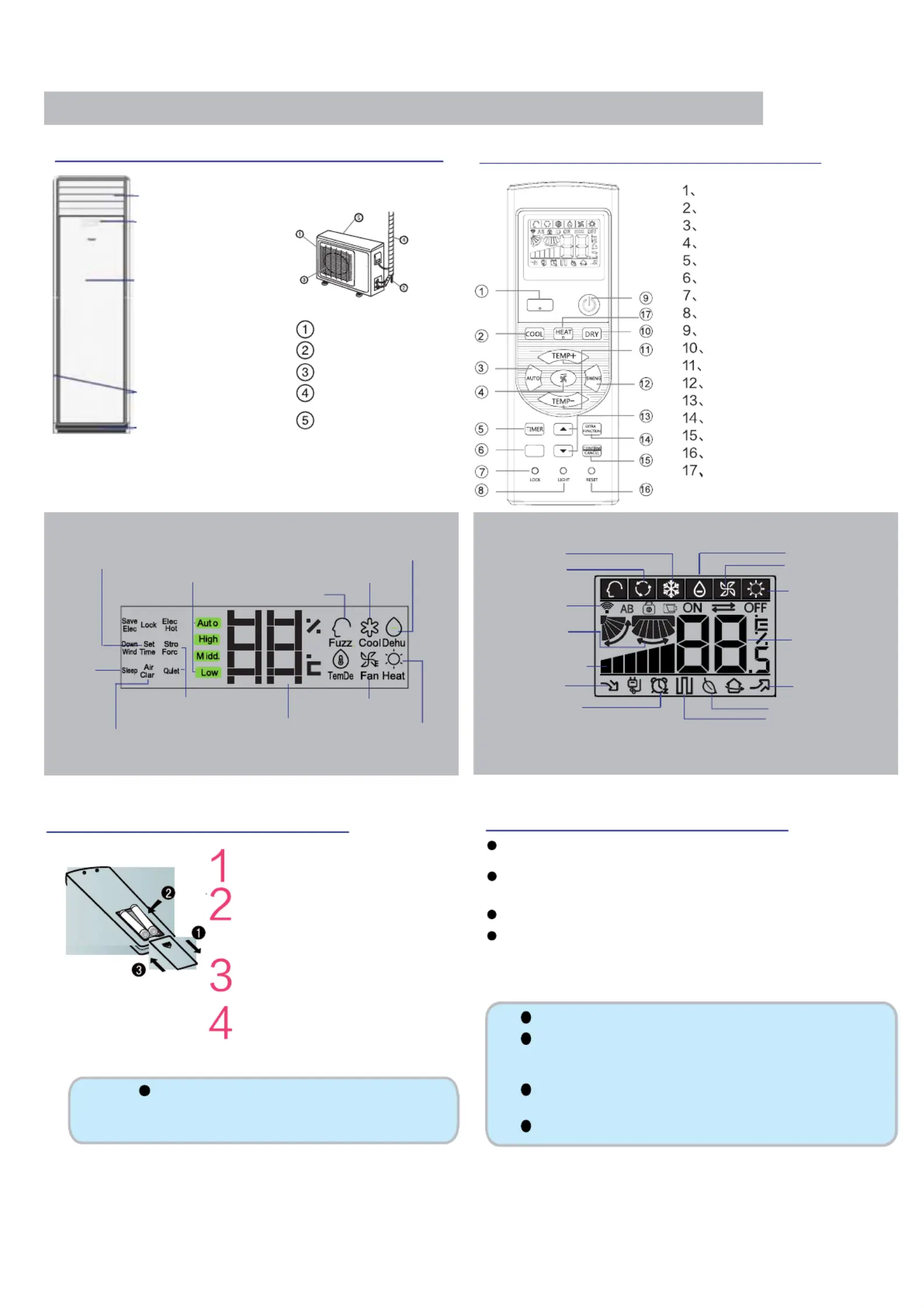

Parts and Functions
Indoor Unit
FRONT OUTLET
CONTROL PANEL
FRONT BOARD
LEFT&RIGHT INLET
(AIR FILTER AND PROTECTING
WIRE NET INSIDE)
LOWER INLET
(AIR FILTER AND PROTECTING
WIRE NET INSIDE)
Outdoor Unit
INLET
DRAIN HOSE
OUTLET
CONNECTING PIPING
AND ELECTRICAL WIRING
INLET
Fuzz display
COOL display
Dehu display
AMBIENT TEMP
&SET TEMP display
FAN display
HEAT display
FAN SPEED display
TURBO/QUIET
display
NEGATIVE ION
display
Sleep
display
TIMER ON/OFF
display
Loading of the battery
Loading the batteries as illustrated. 2 R-03 batteries, resetting key(cylinder)
Remove the battery cover;
Load the battery:
Be sure that the loading is in
line with the “+/-”pole request
as illustrated.
Put on the cover again
Confirm indicator
In disorderation, Reload the
batteries or load the new
batteries after 6 mins.
Note: Remove the batteries in case that unit
won’t be in usage for a long period.
If there are any display after taking-out
just need to press reset key.
Remote controller
TURBO button
COOL button
AUTO button
FAN SPEED button
TIMER button
SLEEP button
LOCK button
LIGHT button
POWER ON/OFF button
DRY button
TEMP button
SWING button
HOUR button
EXTRA FUNCTION button
CONFIRM/CANCEL button
RESET button
HEAT button
Remote controller Display
FAN display
DRY display
COOL display
MODE display
Signal sending
display
SWING display
FAN SPEED display
QUIET display
TIMER ON display&
TIMER OFF display
&SLEEP display Elec Heat display
Negative Ion display
TURBO display
TEMP display
HEAT display
NOTE: The unexplained buttons and displays is not available for the unit.
Remote controller’s operation
When in use, put the signal transmission head directly to the
receiver hole on the indoor unit.
The distance between the signal transmission head and the
receiver hole should be within 7m without any obstacle as well
Don’t throw or knock the remote controller .
When electronic-started type fluorescent lamp or change-over
type fluorescent lamp or wireless telephone is installed in the
room, the receiver is apt to be disturbedin receiving the signals,
so the distance to the indoor unit should be shorter.
NOTE
Use two same typed batteries when loading.
If the remote controller can’t run normally during
operation, please remove the batteries and reload several
minutes later.
False or unclear display during operation indicates
the batteries have been used up. please change batteries.
The waste battery should be disposed properly.
Display Board
TURBO
SLEEP
HEAT
HEAT

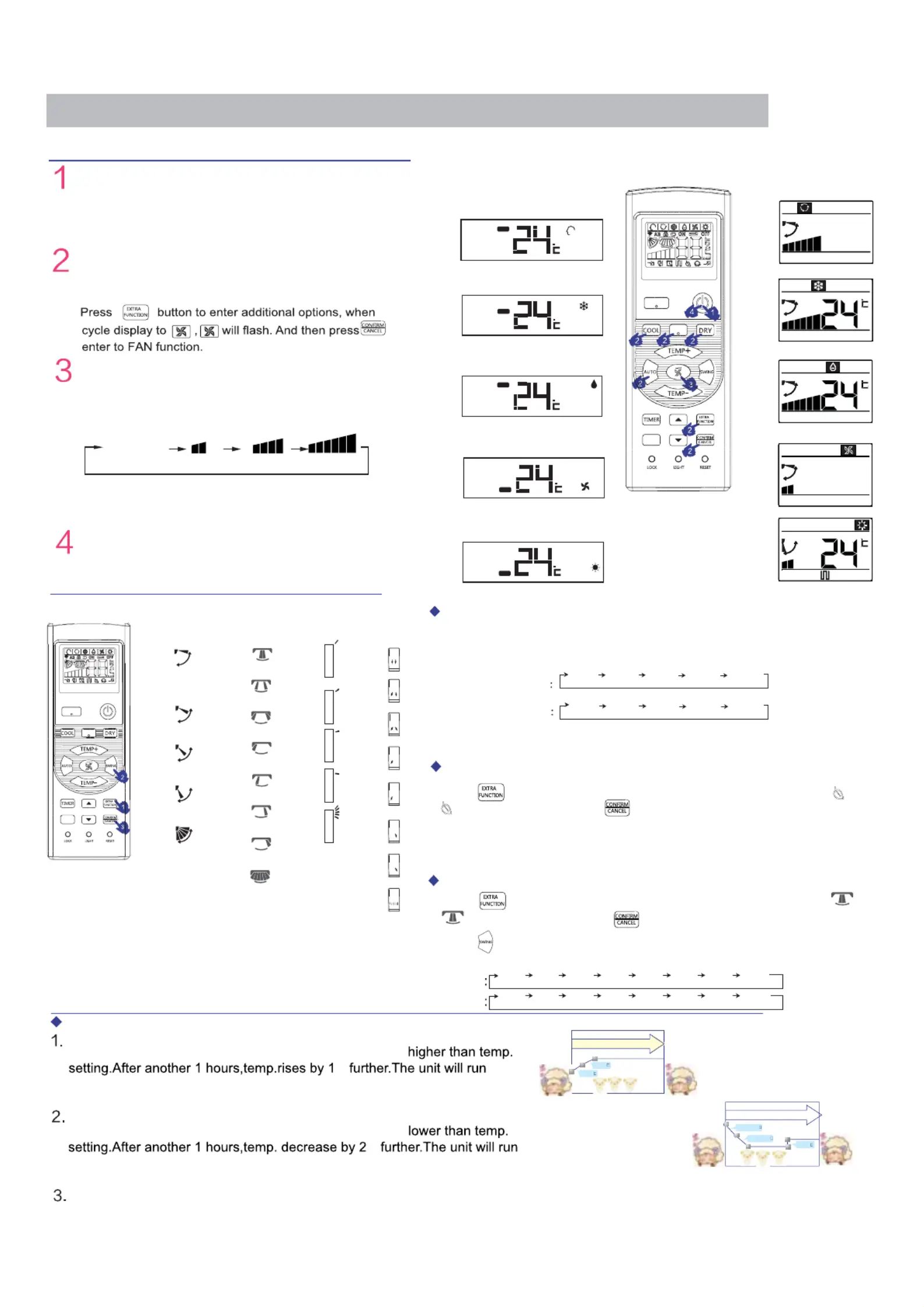

Operation
Base Operation
Unit start
Press ON/OFF on the indoor unit ,or press ON/OFF on the
remote controller,unit starts.
The liquid crystal will display the working state of
last time (Except Timer and Sleep )
Select operation mode
Press HEAT,DRY,COOL ,or AUTO button,For each
Fan speed selection
Press FAN button. For each press,fan speed
changes as follows:
Remote controller:
LOW MED HI
AUTO
Display
circulated
Air conditioner is running under displayed fan speed.
When FAN is set to AUTO,the air conditioner automatically
adjusts the fan speed according to room temperature.
Unit stop
Press ON/OFF button, the unit stops.
Control panel display
Auto Operation
Fuzz
AUTO
COOL Operation
COOL
HIGH
DRY Operation
AUTO
Dehu
FAN Operation
LOW
FAN
HEAT Operation
HEAT
LOW
Remote controller button
Air Flow Direction Adjustment
Up and down air flow
direction display
Pos.1
Pos.2
Pos.3
Pos.4
Pos.5
Pos.1 Pos.1 Pos.1
Pos.2 Pos.2
Pos.2
Pos.3 Pos.3
Pos.3
Pos.4
Pos.4
Pos.4
Pos.5
Pos.5
Pos.5
Pos.6
Pos.6
Pos.7
Pos.7
Pos.8
Pos.8
Left and right air flow
direction display
Fig.1
Fig.2
Fig.3
Fig.4
(Auto swing)
(Auto swing)
(Auto swing)
Horizontal flap Vertivcal flap
Sleep Operation
Operation Mode
In COOL,DRY mode
1 hours after SLEEP mode starts, temp. will become 1
for further 6 hours then stops. Temp. is higher than temp.setting so that
room temperature won’t be too low for your sleep.
In HEAT mode
1 hours after SLEEP mode starts, temp. will become 2
for further 3 hours then stops. Temp. is lower than temp.setting so that
room temperature won’t be too high for your sleep.
In FAN mode
It has no SLEEP function.
Temp.setting
SLEEP operation starts
Rises 1
Rises 1
Unit stop
SLEEP operation stops
In HEAT mode
In COOL DRY mode
SLEEP operation stops
SLEEP operation starts
Temp.setting
Unit stop
Rises 1
Decreases 2
Decreases 2
Remote controller display
Up and down air flow direction adjustment
For each press of SWING button,the position of horizontal
flap and the air flow direction on remote controller display
changes as follows according to different operation models:
COOL/DRY/FAN
HEAT/AUTO mode
Remote
controller
Horizontal
flap
Pos.1 Pos.2 Pos.3 Pos.4 Pos.5
Pos.1 Pos.2 Pos.3 Pos.4 Pos.5
(Fig.1)
(Fig.3)
Note:When the unit is turned off by the remote controller or the control panel,the horizontal flap will close.
When the power supply is cut off directly, the horizontal flap will not close. Please use the remote controller
or the control panel to stop the unit.Do not start or stop the operation by disconnecting the power supply
and so on
HEALTH Operation
Note:
When the HEALTH mode is set, the flap will keep the position you set.It is advisable not to keep horizontal
flap at downward positionfor a long time in COOL or DRY mode,otherwise,condensate water might occur.
Remote
controller
Vertical
flap
Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6 Pos.7 Pos.8
Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6 Pos.7 Pos.8
(Fig.2)
(Fig.4)
ć
ć
ć
ć
TURBO
SLEEP
SLEEP
TURBO
Press button to enter additional options, when cycle display to
,
will flash, and then press ,enter to health function. When cancel the
function, please enter additional options again and to cancel health function.
press,operation mode changes.
Press button to enter additional options, when cycle display to
,
will flash. And then press , enter to Left and right air flow function.
Press . For each press, move the vertical blade by a knob on air conditioner
to adjust left and right direction referring to Fig. displays as follows:
Left and right air flow adjustment
