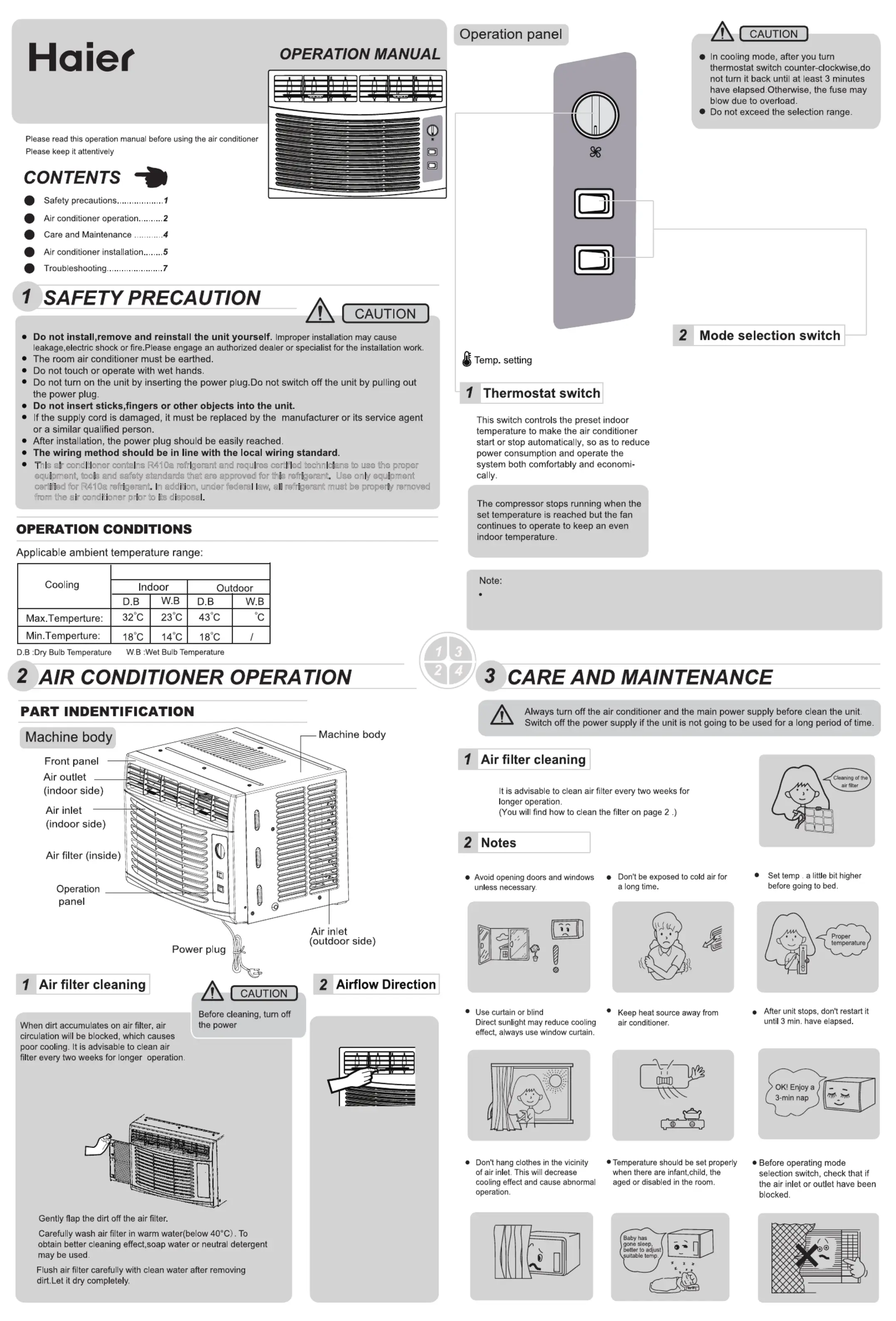

ROOM AIR CONDITIONER
HW-05LMA13
0010563803
This air conditioner contains R410a refrigerant and requires certified technicians to use the proper
equipment, tools and safety standards that are approved for this refrigerant. Use only equipment
certified for R410a refrigerant. In addition, under federal law, all refrigerant must be properly removed
from the air conditioner prior to its disposal.
FAN ONLY
MIN
COOL
MAX
COOL
101
2
3
4
5 6
7
8
9
LOWHI
ON OFF
Wait 3 Minutes
Before Restarting
SPEED
POWER
1. Turn off the air conditioner.
5.
4.
3.
2. Grasp the filter handle and pull the filter out.The filter will
slide out easily.
The air directional louvers
let you control the direction
of the airflow. The airflow
can be directed left to right.
FAN ONLY
MIN
COOL
MAX
COOL
101
2
3
45 6 7
8
9
LOWHI
ON OFF
Wait 3 Minutes
Before Restarting
SPEED
POWER
POWER
The Pow witch er s turns the air conditioner on or off.
NORMAL FAN
Press the SPEED switch to either HI or LOW
Set the thermostat control to the FAN ONLY setting
NORMAL COOL
Press the SPEED switch to either HI or LOW
Set the thermostat control to the desired temperature
set room is not satisfactory after a ting. If the
reasonable amount of time, adjust the thermostat
control to the appropriate setting to meet your needs.
MAX COOL
Press the SPEED switch o HI.t
Set the thermostat control to MAX COOL mark.
QUIETER OPERATION
Press the SPEED switch to LOW
Set the thermostat control as needed.
T4
28
Do not try to operate your air conditioner in the Cool mode when outside temperature is
below 18°C. The inside evaporator coil will freeze up, and the air conditioner will not
operate properly.
5
6
7
8

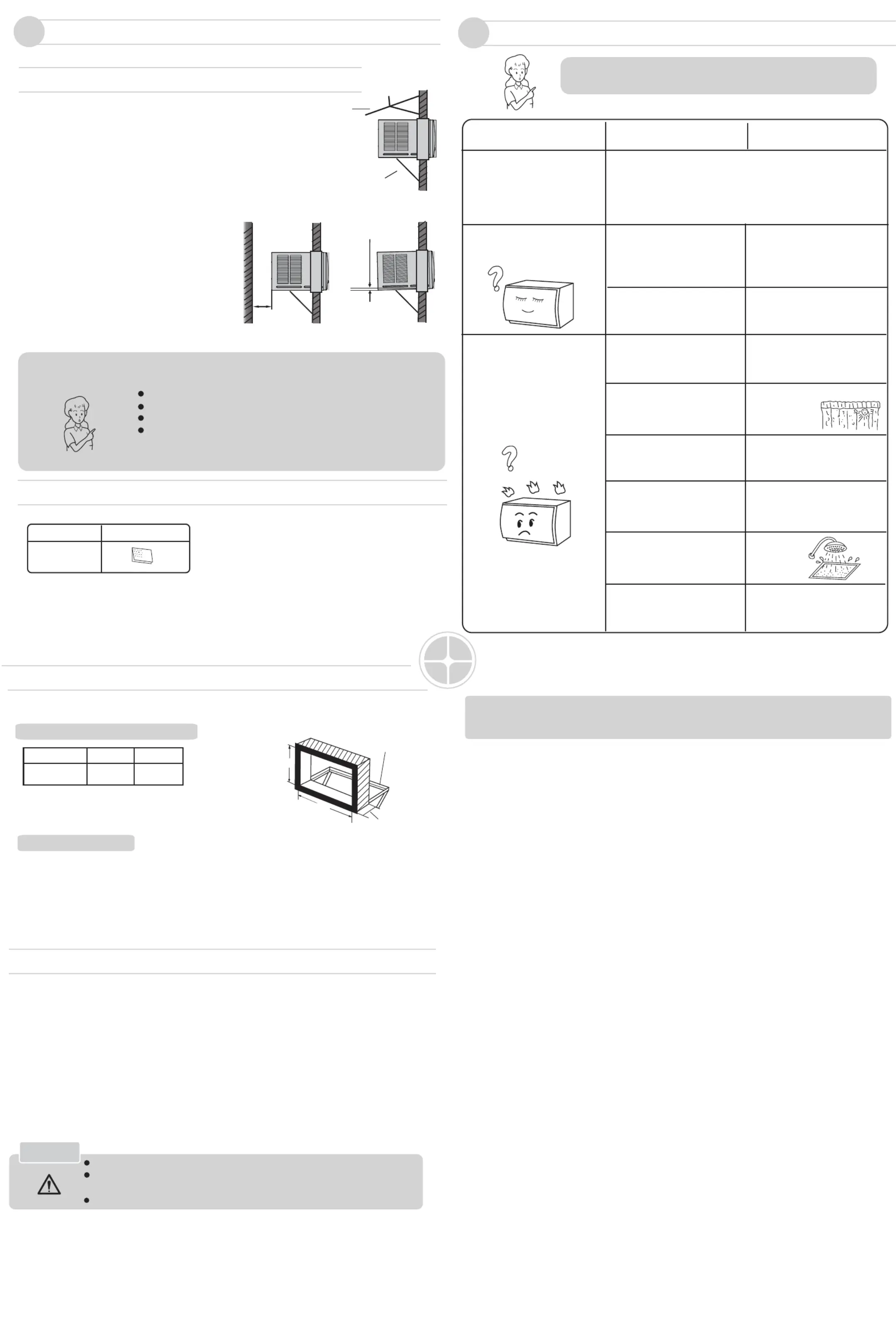

SELECTION OF THE INSTALLATION POSITION
THE ENCLOSED ACCESSORIES OF THE CONDITIONER
PREPARATIONS BEFORE INSTALLATION
AIR CONDITIONER INSTALLATION
4
Make the wall hole or window hole (see Fig.1)
Fig. 1
A
B
Width of the wall
Iron frame
MODEL A B
334mm 440mm
HW-05LMA13
1,The air-conditioner is better installed in shadow or in a place
with short period of sunshine. In case the air-conditioner is
installed at the point exposed directly to the sunshine, it should
be protected from the direct sunlight as possible in order to
avoid the long time of direct sunlight otherwise its performance
will be lowered. (As illustrated in Fig. 1).
2. For the convenience of operation, it is
recommended that air-conditioner be installed at
least at the height of 760-1300 mm above the
floor and no obstacles before it for a free airflow.
3.The shutters at both sides and the top of
air-conditioner should be protruded outdoors free
from being blocked by wall, window,ect.
4.The back of air-conditioner should be kept over
500mm from the obstacles (for example, wall,
etc.) (As illustrated in Fig. 2).
5.To have an efficient drainage, the back part of
the air-conditioner should be inclined downward
by 5-10mm (As illustrated in Fig. 3).
Install air-con at a place strong enough to support the unit.
Leave enough space around air inlet and outlet for better circulation.
Avoid places where flammable gas leaks.
Problems may occur if unit is installed in the following places:
Place where oil exists in the air including engine oil or seaside with
salt breeze blows and hot spring area with sulphurous gas in the air.
For longer and trouble-free operation of the unit, pay special attention to the following:
NOTES:
Manual
Name
Figure
(ONLY FOR REFERENCE)
cover
support
fig.1
>500mm
fig.2
5-10mm
fig.3
Take out the conditioner and accessories from the package .
Prepare unit for installation:
TROUBLESHOOTING
5
If problems can not be solved please pull out power plug and contact
your dealer.
Before calling for service.
Check the following points before calling for repairs or service.
Is plug firmly inserted?
Is there power failure?
Readjust power supply
Is thermostat switch
wrongly adjusted?
Readjust the thermostat.
Is there any direct
sunlight in the room?
Use curtain or blind.
Are doors or windows
left open? Shut doors and windows.
Are there any obstacles
blocking air inlet and
outlet?
Remove the obstacles.
Is there too much heat
source in the room?
Is air filter clogged?
Clean it.
Remove the heat source
Does fuse get burned?
Phenomenon SolutionCause or check points
Replace fuse.
Switch on the machine but it
does not work immediately.
If the machine is started after stop,it will need about 3 minutes
to re-start so as to prevent the fuse from break.
Switch on the machine but it
does not work.
The cooling effect is not good.
INSTALLATION PROCEDURES
1. Fix the prefabricated iron frame to stable position by expansible screws.
2. Put the whole machine with all the accessories installed on the iron frame.
3. Fill any distance between the wall hole and the machine body with flexible sponge rubber strip to
prevent the entering of outer noise and the leaking of the coolness.
4. After installation of the conditioner, insert the power plug into the outlet and perform test-run.
Cautions
Power cord: Be sure to use the exclusive power cord.
Always use at the rated voltage and with specfic air conditioning circuit
Change installation place: If air-con need to be changed to another
place please contact the dealer, who sold you the unit.
