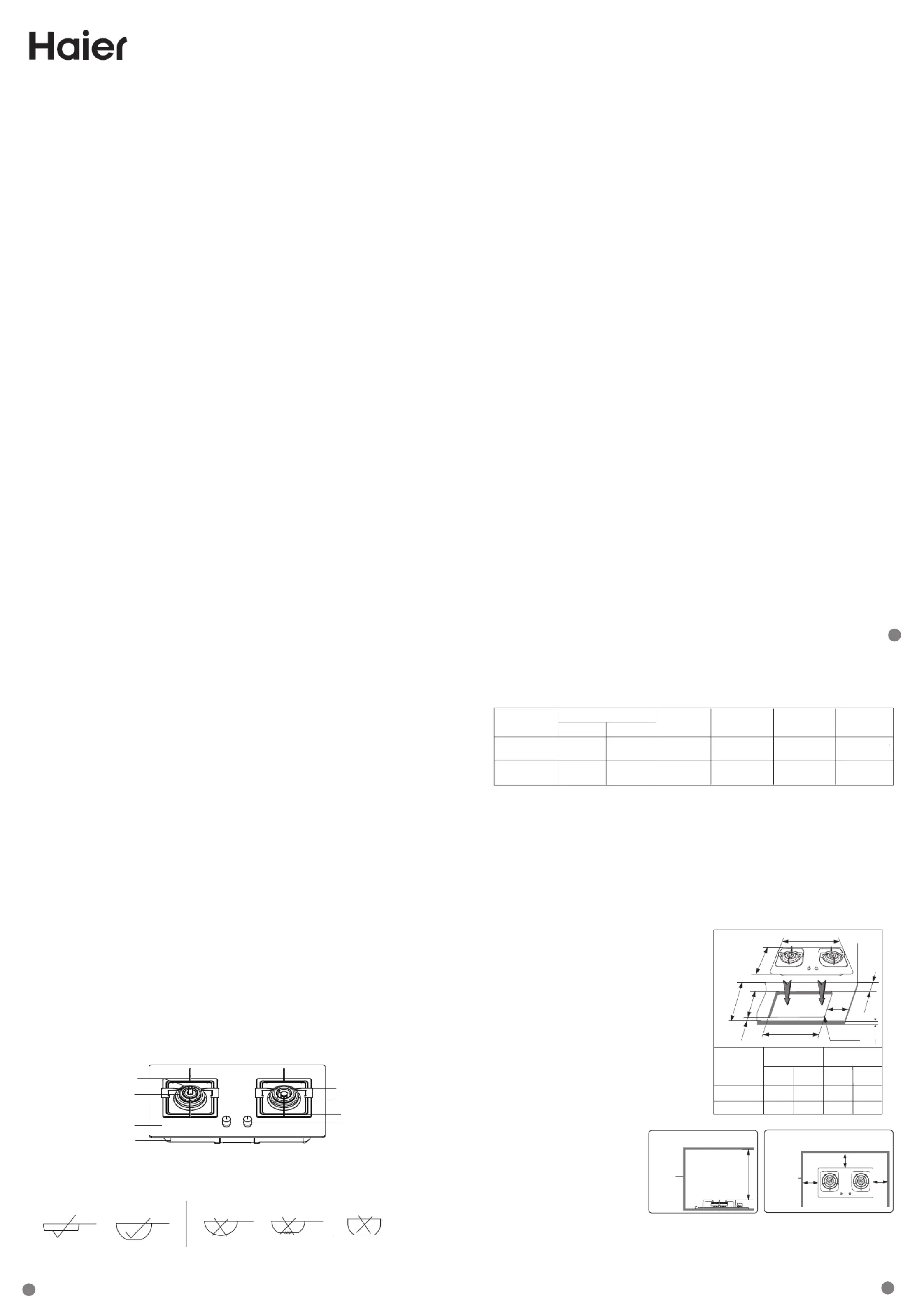

HOUSEHOLD GAS HOB

INSTALLATION AND USER INSTRUCTIONS

Note: Do not use the hob until you have read the instruction manual.

1. INTRODUCTION 2. TECHNICAL DATA

3. INSTALLATION INSTRUCTIONS

Product features◆

◆ Part name

◆ Installation method

SAFETY INSTRUCTIONS

Make sure that this instruction booklet is read thoroughly and understood before attempting to install or

operate this hob.

The instructions are provided in the interest of your safety.

GAS SAFETY REGULATIONS AND USE OF YOUR HOB

1. Please carefully read the nameplate of the gas hob you purchased and make sure the type of gas

specified on the nameplate matches the type of gas you are currently using.

2. It is recommended to check the connections of gas hob for air tightness at least once a year and

replace the gas-dedicated connecting pipe.

3. In the use process of gas hob, note ventilation, open the window or turn on the ventilation fan on a

regular basis to ensure fresh air convection and ventilation.

4. In case of a leakage, avoid all the acts and sources of fire that cause gas explosion, immediately close

the gas valve and open the windows and doors for ventilation.

5. It is a legal requirement that all gas appliances are installed by qualified personnel only in accordance

with current legislation. It is your responsibility to ensure compliance with the law.

6. Repairs or servicing of this product must only be carried out by an authorised service agent using

approved parts.

7. No attempt must be made to modify this appliance under any circumstances.

8. Cooking appliances can become very hot in use – please keep children and pets away from them.

9. Do not allow children to operate or play with any part of the appliance.

10.Do not use unstable pans and ensure that the handle is positioned away from the edge of the

worktop.

11. In the interest of hygiene and safety, please ensure the hob is kept clean.

12. This appliance is designed for domestic cooking only. Commercial use will invalidate the warranty.

13. Do not cover the hob or place combustible materials on or near the surface even when the hob is not

in use.

14. Do not fill deep fat frying containers more than one third full of oil and NEVER leave unattended.

15. Before cleaning the hob, switch off at the mains.

16. When cooking is finished, switch off all controls and allow to cool.

17. These appliances are not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

18.Do not immerse the appliance into water or any other liquid.

19.The overheating protection function is only applicable to the high-heat state. When the flame is small,

due to the reduction of the radiant heat of the pot, the protection action time and agility will be affected.

20.The left stove with overheating protection function should use stainless steel or cast iron pans with a

bottom diameter of not less than 100mm (does not apply to v-bottom pan, casseroles, etc.).

21.The factors such as the unevenness of the bottom of the pan and the decrease of the gas pressure

will adversely affect the heat transfer and accumulation, which will affect the action time and agility of

overheating protection and automatic flameout, even the normal start.

22.If you cook on the left stove, such as frying or cooking pancakes, it will cause the overheating

protection function to start and cut off the air supply. Please apply the above type of cooking on the right

stove.

23.After the low battery alerts, although the gas stove can be normally ignited, the battery power will not

be enough to normally start the overheating protection function, so please replace two new

high-performance alkaline batteries in time.

24.The boil dry protection function is not completely intelligent. When you are cooking, do not leave the

gas stove to avoid accidents.

25.After the boil dry protection function and the overheating protection function are activated, the left

stove may be used after the sensor sensing temperature decreases.

JZY/T-QHA736

JZY/T-QHA638

Even if you have used a gas hob before, it is important that you read these instructions thoroughly

before using the appliance, paying particular attention to the installation and safety instructions. If you

have any problems installing, operating or cooking with your hob, please check through these

instructions to ensure all of them have been adhered to.

WARNING! For your own safety, make sure that these instructions on installation, use and

maintenance are followed.

Please keep these instructions in a safe place for future reference.

Should the appliance be sold or transferred, please pass on these instructions to the new owner.

Note: the picture is the appearance sketch of the product and the specific appearance and color are

subject to the purchased product.

Type Applicable

gas type

2800

LPG

Rated pressure

(Pa)

Rated heat load (kW)

Left burner Right burner

Net Weight /

Gross Weight(kg)

Size(mm)

Length × Width

× Height

4.04.0

2800

LPG4.04.0

750x430x150 11.3/13.2

●Accidental flameout protection design

In case of an accidental flameout due to air, overflow, accidental flameout protection function will start to

automatically cut off internal gas access of gas hob and avoid mass gas leakage to ensure user safety.

●Glass panel hob applies tempered glass with explosion-proof mesh, which is safe, durable and easy to

clean.

●Instantaneous ignition

The QHA736 model and QHA638 model apply the instantaneous ignition technology which only needs

to press the knob and rotate it by 90°. The gas stove can instantly open the valve. The ignition is easy

to operate, safe and reliable.

●Boil dry protection (only for the left stove)

When using the gas stove, if you forget to turn off the stove when it’s at high heat and causes the

bottom of the pan to be overheated and exceed the protection warning temperature (about

290°C~320°C), the anti-overheating protection system will start and make a continuous buzz alarm

(approx. 20 seconds) and cut off the gas to avoid safety accidents such as fire caused by dry boiling the

pan; (Please make sure that the pan bottom and the sensor are in effective contact, otherwise the boil

dry protection function cannot be started reliably; this function is generally started when the pan has

been dried thoroughly for several minutes. When the food in the pot has just been dried and burned, this

function cannot fulfill the requirement to turn off the fire immediately.

After the boil dry protection, if it’s re-ignited immediately, it will not work and it can resume normal work

after restoration from boil dry protection.

●Low battery alert (only for the left stove)

When the battery voltage drops to the insufficient level to start the boil dry protection smart fire-off

function, each time you press the left knob for ignition or press the knob for ignition while the left stove is

burning, the gas stove will send out buzzer alarm (about 10 seconds) to remind you to replace the

battery in time. After the ignition stops, alarm sound disappears. After the gas stove is used or the gas is

cut off by protection function, in order to sustain the long service life of the battery, please turn the knob

to the off position. Otherwise, the sensor probe will be in the power on standby detection state and

waste battery power; except for the low battery alert function, for boil dry function, it’s not allowed to

press the knob to perform the ignition operation before the alarm ends.

● When the gas hob is embedded in the cooktop, please follow the steps 1-5 to install.

When the gas hob is put on the cooktop, please follow the steps 4-5 to install.

1. Please choose the cabinet with table thickness greater than 16mm, width not less than 550mm;

Note: The cabinet countertops should be made of fire, high temperature-resistant, thermocycling-

resistant material. The coating layer and plywood on the cabinet must be fire-resistant and glued

together to avoid deformation or surface detachment.

2. According to the hole-digging size and requirements in the instruction, dig holes in the

corresponding position of the table with fillet radius around the holes less than 50mm;

Type

a(mm) b(mm) c(mm) d(mm)

Overall dimensions Cooktop hole size

＞16

150

<R50

≥50 d

100

≥550

单位:mm

3. gas hob fitted with a battery is installed in the hole

of the table;

4. Refer to the connection method and connect the

gas hob and gas source with the gas special

connecting pipe. If the rubber pipe is used, please

use the pipe clamp to fix it firmly and avoid turning

the gas pipe joint;

5. After installation, carry out gas leakage detection,

apply soap water on the connection parts, open the

indoor gas valve and carefully observe whether there

is a bubble. If bubbles are generated, immediately

close the indoor gas main valve, and adjust the

intake connection according to the connection

method. If there is no bubble, please refer to the

instruction manual for ignition commissioning; after

commissioning, make sure that the indoor gas main

valve is closed.

≥1000

≥

200

≥

200

≥

200

Unit: mm

combustibles combustibles

Unit: mm

● Gas hobs should strictly follow the

dimensions specified the diagram and

keep the distance from combustible

materials. If it’s surrounded by

fire-resistant materials, it’s not subject

to the requirements; if a range hood is

installed above, it should be

650-700mm away from the hob

(specific installation requirements of

range hood refer to its instruction

manual).

Temperature Sensor

Left burner

pot rack

cooktop

hob shell

Right burner

Drip pan

knob

◆ Cookware selection

Note: When using the boil dry function for left stove, please use a stainless steel or iron pan with a

bottom diameter of not less than 100mm.

Proper cookware

V-bottom pan pit in the bottom Ceramics / CasserolePan Small pan

Improper cookware

JZY/T-QHA736

JZY/T-QHA638 11.5/13.4

730x420x150

JZY/T-QHA736

JZY/T-QHA638

750 630430 330

730 630

420 330

Connection method◆

ATTENTION！

This appliance must be installed in

compliance with the current

regulations and only installed in rooms

equipped with adequate ventilation.

Consult the instruction manual before

proceeding with installation or use of

the appliance.

Correct Disposal of This Product:

This marking indicates that this product should not be disposed of together with other

household waste. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, recycle it responsibly to promote sustainable re-use of

material resources. To return your unwanted product, please use local return and collect

systems or contact the retailer where the product was purchased. They should be able to

take the appliance for environmentally-safe recycling.

Rubber hose

Pipe clamp

Red line

Intake joint

After the installation, make sure the gas connecting pipe is not twisted, squeezed, bent

and is not in touch with any movable part of the cabinet, such as drawers, rails, etc .;

avoid high temperature area.

Do not install the gas hob above poorly ventilated ovens, refrigerators, freezers,

dishwashers, sterilizer, or other types of kitchen appliances.

At least 100mm vacant space shall be reserved below the bottom of hob after the gas hob

is embedded into cabinet and all items are prohibited to be stored in the vacant space. To

ensure good ventilation and cooling of the gas hob, open 2 openings of about 50mm in

diameter on the back or side of the cabinet to the atmosphere to avoid the explosion

caused by the accumulation of unburned gas mixture. If the cabinet is not perforated, take

ventilation measures.

Note

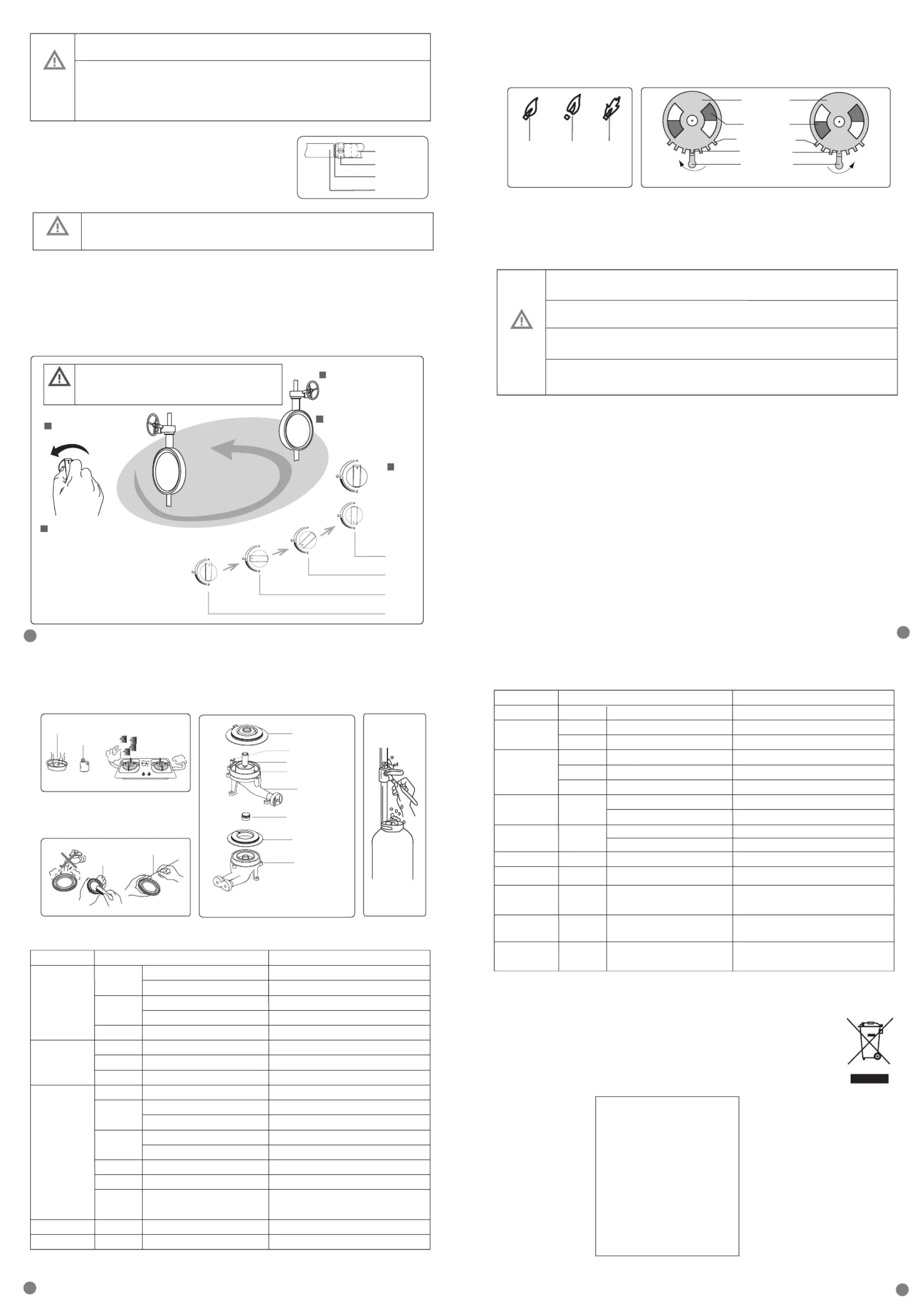

4. USER MANUAL 5. ROUTINE INSPECTION AND MAINTENANCE

The picture shows the burner parts diagram and

please refer to purchased products for details.

6. TROUBLESHOOTING AND HANDLING

● Gas-dedicated rubber hose

If you select the gas-dedicated rubber hose (length should not

exceed 1.5m) with diameter of 9.5mm, please connect the

rubber hose to the intake joint of red marking of gas hob and fix

it firmly with pipe clamps. The rubber hose used should meet

the relevant safety standards within service period.

◆ Ignite and adjust the fire

Before using for the first time, make sure the gas type specified on the nameplate of the gas hob is the

same as the type of gas you are currently using, and confirm that the burner parts, pot rack, knobs,

gas-dedicated connecting pipe and gas pipe are correctly installed. There will be residual air in the gas

line for the first-time use and ignition will be difficult, which is a normal phenomenon. Please repeat

igniting until it’s normal.

First of all, install a D dry battery in the battery box at the bottom of the gas hob and follow the order in

the diagram to ignite and adjust the fire.

Warm water

Cotton brush

Neutral detergent

Fine steel needle

Cooktop cleaning diagram Burner parts diagram Soapy water leakage

detection diagram

Fire cover cleaning diagram

Note

Note: when adjusting the fire, please do not adjust

the position near "OFF" to avoid flameout. It is

normal to hear the sound of "bang" when it’s off.

Open the indoor gas

main valve

Adjust the fire

Main gas valve diagram

Low

Medium

High

Off

Turn the knob clockwise

to the vertical "off"

position, turn off the

gas hob

Make sure to close the

indoor gas main valve

after using the hob.

Press the knob downwards and turn

counterclockwise to the horizontal

position (the state of high flame).

After the fire holes are all ignited,

continue to press for 3-5 seconds

and release for use after the

flameout protection is launched; if

the flame is extinguished when

releasing, turn the knob clockwise to

off position and repeat the above

ignition operation.

Fault Cause Troubleshooting method

No ignition

Flame is

extinguished when

releasing

Failure or diﬃculty

in ignition in pulsed

ignition

Dead battery

Dirty or wet top

Parts failure Contact service center for maintenance

Re-ignite and keep 3-5 seconds after ignition

Clean the top with a soft cloth

Hold the knob, press the valve body to the end

and ignite

Ignition porcelain far away from the

ﬁre hole

Replace with new battery

please adjust the discharge distance to 3-5mm

Clean the top with a soft cloth and wipe dry

Re-install and conﬁrm the correct polarity

No battery, poor contact or reverse

installation

Battery

Pulser

Safety valve Not working due to short press time

Thermocouple Dirty top

Valve body is not fully pressed

Valve is not open or not fully open

Fire cover is not installed in place Conﬁrm that the ﬁre cover is properly installed in place

Fire hole is blocked

Dirty or wet top Clean the top with a soft cloth

Clean with dry and soft cloth

Replace with new gas dedicated connecting pipe

Damp or spilled water

Flattened or bent

Low battery, slow discharge frequency

Too high or too low gas outlet pressure Use gas hob dedicated reducing valve in line with

national standards or check the gas supply for gas

Replace with new battery

Clear and clean the ﬁre hole dirt

Verify that the valve is fully open

Valve body

Gas valve

Fire cover

Battery

Gas

Fire cover

Air regulator

Fire cover is not installed in place

Excessive air output

Conﬁrm that the ﬁre cover is corrected installed

in place

Re-adjust the air regulator until the ﬂame is burning

properlye

Loud burning noise

Lifted ﬂame and

blow-oﬀ

Connecting

pipe

Ignition

porcelain

needle

Ignition

porcelain

needle

Fault Cause Troubleshooting method

Thermocouple

Gas source Unstable gas pressure

Fire cover is not installed in place

Please contact the gas company to handle it

Replace with new gas dedicated connecting pipe

Conﬁrm that the ﬁre cover is properly installed in place

Clear and clean ﬁre hole dirt

Calcium contained in moisture causes red ﬂame, but

it doesn’t aﬀect burning

Replace two new batteries

Conﬁrm that the ﬁre cover is properly installed in place

Fire cover

Air regulator

Fire cover

Air source

Gas leakage

Fire cover

Gas

Battery

Sensor

No ﬂame out after

long high-heat

burning of left stove

Overheating

protection unit Damaged

Long buzz alarm

after left stove

ignition

Solenoid valve Damaged

Turn oﬀ knob, alarm sound disappears and contact

after-sales service center for repair

Contact after-sales service center for repair

Damaged

Turn oﬀ knob, alarm sound disappears and contact

after-sales service center for repair

Fire cover is not installed in place

Blocked ﬁre hole

High gas humidity

Low battery voltage prompt at low

battery state

Too little air output

Fire cover is not installed in place

Impurities contained in gas

Connecting pipe ages, cracks, breaks

or falls oﬀ

Fire cover is not installed in place and gas

is leaked while igniting

Readjust air regulator until the ﬂame is burning

correctly

Conﬁrm that the ﬁre cover is properly installed in place

Dirty top Clean the top with a soft cloth

Flameout in use

Unstable ﬂame

Long and yellow

ﬂame

Foul smell

Uncertain length

of ﬂame

Red ﬂame

Alarm at ignition

Long buzz after 2

minutes of ignition,

alarm and switch oﬀ

◆ Air regulator adjustment and air volume control

◆ Change the applicable gas type

When the flame is in poor condition, adjust the air regulator at the bottom of the hob. When the flame

is long and yellow, turn the adjustable handle to the right to increase the air volume; when the flame is

away from the fire hole, turn the adjustable handle to the left to reduce the air volume. When the flame

state is normal, fasten the slot of adjustable handle with fixed throttle gear.

In case of changes in gas type due to relocation or local uniform gas reform, etc., professional trained

maintenance personnel will implement gas type changes to the gas hob. Please change the gas type

according to the gas type applicable to the models in the technical data list and the dedicated sales

area of the product. It is forbidden to disassemble the gas hob by yourself to avoid any safety accident.

Correct

combustion

state

Fixed air regulator

Adjustable air regulator

Adjustable air regulator slot

Adjustable air handle

Turn left to reduce air volume Turn right to increase air volume

Fixed air regulator gear teeth

Note: Normal ﬂame color is light blue

Lifted ﬂame

state

Yellow ﬂame

state

Note

Before cleaning and maintaining the gas hob, please close the indoor gas main valve and

make sure the gas hob is in a cooling state. Do not dismantle the gas hob cooktop and

internal parts during the cleaning process.

As ignition porcelain needle surface is made of ceramic material, avoid crush due to hard

objects in cleaning and maintenance. Otherwise it will affect the ignition performance.

The thermocouple is a sensitive component that controls the on-off of the gas line.

Regular cleaning is required to prevent dirt from attaching. Otherwise, the accidental

flameout protection function will be affected.

The sensor is a sensitive part for sensing the temperature and the top must be cleaned

frequently to avoid dirt adhesion, otherwise it will affect the boil dry protection function.

◆ Inspection

◆ Maintenance

● Gas connecting pipe should be connected reliably without cracks. If leakage is found, please

immediately stop using and carry out timely replacement. It is advisable to check the air tightness of

the connections (as shown in the soapy water leak detection diagram, apply soap and water on the

connections to check the air tightness) and replace the connecting pipe at least once a year.

● Do not stack inflammable objects around the gas hob.

● The burner parts must be properly installed in place (as shown in the burner assembly) and the fire

holes should not be blocked by spills.

● Ignition porcelain needle and thermocouple surface can not have residual food, dirt and water.

● Cooktop, pot rack are cleaned with soft cloth dipped in neutral, non-corrosive detergent.

● In case that the gas contains impurities, after long-term use, it will form carbon deposition,

sintering, etc. within fire holes of the fire cover and block the fire holes. In the use of gas hobs, if

uneven or individual fire holes are found to be flameless, please turn off the gas hob, remove the fire

cover in time until the burner is cooled, use a fine steel needle to remove the dirt and carbon

deposition inside the fire hole and use the hob again after the treatment.

Do not apply water directly to the fire cover (as the blisters temporarily block the fire hole) and do not

rub the coated surface with a harder object, which can cause irreparable damage to the black-coated

surface. Please use a soft brush to clean the dirt on the surface of the fire cover.

● After cleaning, please refer to the illustration of the burner assembly to properly install the inner ring

fire cover, outer ring fire cover and pot rack, and confirm that the installation is in place. Otherwise,

uneven flame and lifted flame caused may affect the normal use of hob. Scratches beyond repair

caused by bump, impact and other improper installation will not be warranted.

Left ﬁre cover

Left burner

Right inner ﬁre cover

Right burner

Right outer ﬁre cover

Sensor

Thermocouple

Ignition porcelain

needle

Produktspecifikationer

Varumärke:	Haier
Kategori:	Ugn
Modell:	JZY/T-QHA638

Behöver du hjälp?

Om du behöver hjälp med Haier JZY/T-QHA638 ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Ugn Haier Manualer

Haier H6 ID25G3YTB2 Bruksanvisning

6 Februari 2025

Haier H6 ID25G3HTB2 Bruksanvisning

6 Februari 2025

Haier HAVG75TBBP Bruksanvisning

15 Januari 2025

Haier QSS740BNTS Bruksanvisning

6 Januari 2025

Haier HCW3460AES Bruksanvisning

6 Januari 2025

Haier HMV1652AHS Bruksanvisning

6 Januari 2025

Haier HGM95TC1XS Bruksanvisning

5 Januari 2025

Haier H6 ID66C3YTB Bruksanvisning

4 Januari 2025

Haier H6 ID23B3CTW Bruksanvisning

4 Januari 2025

Haier H6 ID25B3LYTB Bruksanvisning

4 Januari 2025

Ugn Manualer

Nyaste Ugn Manualer

CDA VK905 Bruksanvisning

25 Mars 2025

Whirlpool WOI4S8HM1SXA Bruksanvisning

25 Mars 2025

AEG NBU5A20SB Bruksanvisning

24 Mars 2025

AEG NBU5P40BCK Bruksanvisning

24 Mars 2025

AEG TA5PB53WAB Bruksanvisning

24 Mars 2025

AEG OU5AE20AK Bruksanvisning

24 Mars 2025

AEG TU5AB20SCK Bruksanvisning

24 Mars 2025

AEG TB8SB631AB Bruksanvisning

24 Mars 2025

AEG TU5PB40NCK Bruksanvisning

24 Mars 2025

AEG TU5PB40NSK Bruksanvisning

24 Mars 2025
