Sida 1/4

60,45 cm / 23.8“

Part. No..: HO 245 PTB

CONNECTIVITY, IP LEVELSIZE, RESOLUTION VIEWING ANGLE, VESA OTHER FEATURES

Technical Specifications >>>

HDMI

VGA

IP 65

Water & Dust

Protection

178 Ultra-Wide

Viewing Angle

VESA

Mount

• 1920 x 1080 Resolution Full HD 1080p

• 10-Point Touch P-Cap Technology

• 178° °/ 178 Ultra Wide Viewing Angle

• Triple Input: DP + HDMI + VGA

• Built-in Speakers

• IP65 (front) Rating Level

• Display Protection: Thickness 3mm

• ≥7H Toughened Hard Panel Surface

• Built for 24/7

• VESA Mount and Multiple Mounting Options

• Edge to Edge glass without raised frame

• Orientation: Landscape, Portrait, Face-Up

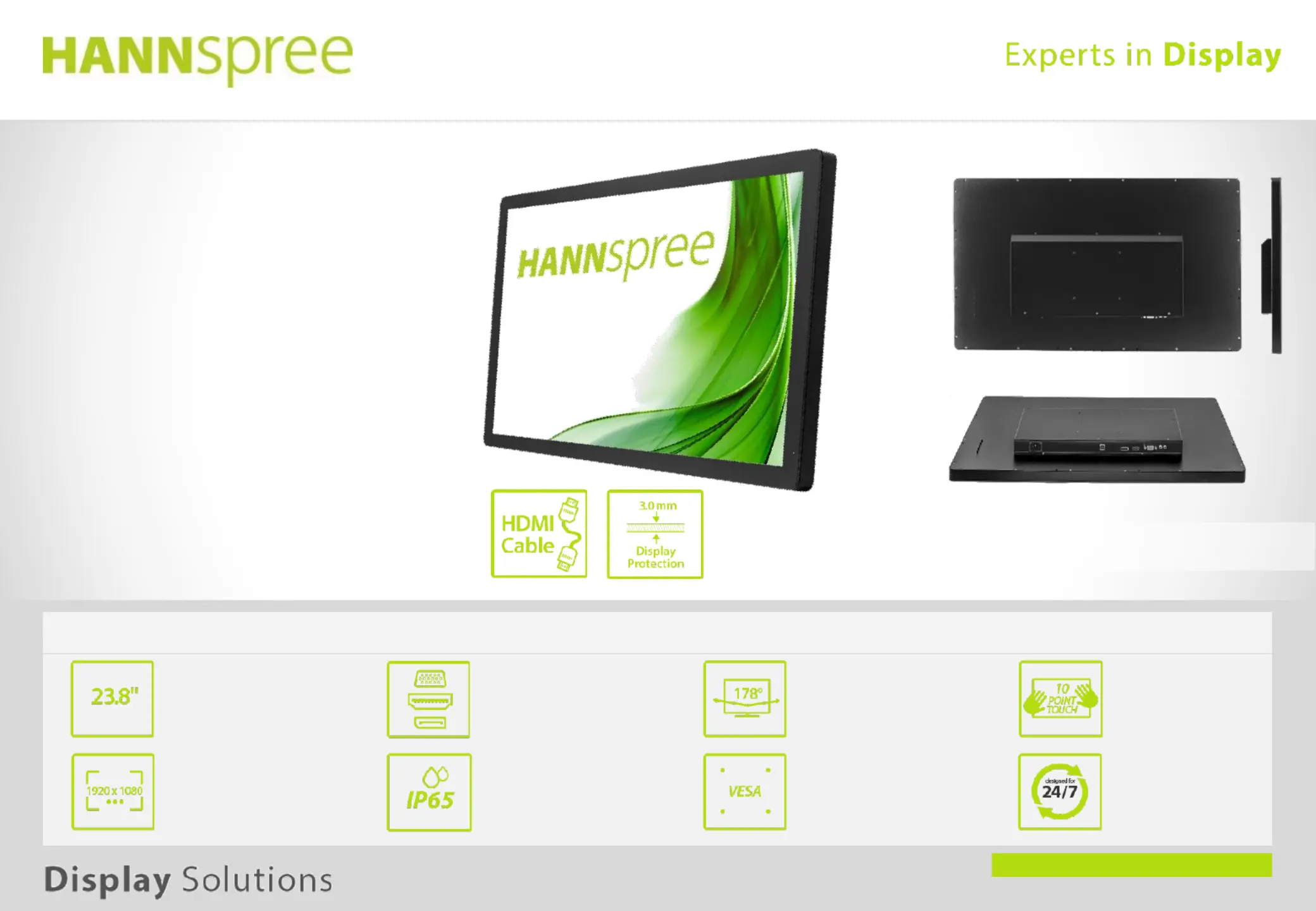

Open Frame Touch Monitor

HO 245 PTB

60,45 cm / 23.8“ Diagonal

LED Backlight Format 16:9–

23.8”

16:9 Aspect Ratio

Full HD

1920 x 1080

HO 245 PTB

23.8” Open Frame Touch Monitor

10 Points

Touch

Built for 24/7

Operation

PART. NO.:

HO 245 PTB

Display Size 60,45 cm / 23.8“ Diagonal

Panel Type TFT LED Backlight, ADS Panel (*)–

Aspect Ratio 16:9

Resolution (H x V) 1920 x 1080 Full HD

Brightness 350 cd/m² (Panel) 285 cd/m² (Monitor)–

Contrast 1.000:1 (Typical) 5.000.000 (Active Contrast)–

Viewing Angle L/R; U/D 178°H / 178°V (CR > 10)

Response Time 5 msec

Pixel Pitch 0,2745 (H) x 0,2745 (V) mm

Touch Type Projected Capacitive 10 Point Touch–

Type: Cover Glass + LOCA + ITO Glass

Display Colors 16.7M Colors

Horizontal Frequency 30 ~ 83 kHz

Vertical Frequency 56 ~ 75 Hz

Max Display Frequency 1920 x 1080 @ 60Hz

Input 1 VGA

Input 2 HDMI

Input 3 Display Port

Input 4 USB 2.0 Type B (Touch)

Speakers Yes, 2W x 2, Earphone jack

Power Consumption On: 14,5W; Stand-by: 0,34W; Off: 0,22W

Power Range Built-In Power Supply

AC 100 ~ 240 Volt; 50 ~ 60 Hz

Product Dimensions 572 x 47 x 341.4 mm (W x D x H)

Packing Dimensions 630 x 123 x 439 mm (W x D x H) TBC

Net / Gross Weight - Kg / - Kg TBC

VESA Mounting 100 x 100 mm

Display Protection Thickness 3.0±0.3 mm

Hardness / Transmittance H Toughened hard panel surface / ≥7 ≥85%

IP Rating Level IP 65 on surface (Front), Water and Dust Protection **

Controls Power, Auto, (+), (-), Menu

Color 5500K, 6500K, 9300K, User Modes

Preset Mode PC, Movie, Game, ECO Modes

On Screen Display 11 Languages

Accessory Power Adaptor; Power cable (1.5 mt); HDMI Cable

(1.5m); USB 2.0 (B-A) Cable for Touch (1.8m)

Orientation Landscape, Portrait, Face-Up

24 / 7 Yes

shots are simulated. Actual products may differ slightly from those illustrated on this promotion material. Please refer to actual samples

for final selection. The products displayed on this promotion material may not be available for purchase in your particular c try or oun

locality. Please check with your local HANNspree authorized representatives for the availability of specific products in your ea. All ar

brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and Companies.

** IP65: The IP Code classifies how resistant a device is to foreign objects and moisture.

IP65 means that the monitor is protected from total dust ingress and it is protected against low pressure water jets from any direction. Limited ingress permitted.

HO 245 PTB

23.8” Open Frame Touch Monitor

* “ADS" word mark / trademark and related patents

on technologies belong to their respective owners.

Supplier‘s Name HANNspree

Model Name HO245PTB

Energy efficiency class for standard

Dynamic Range (SDR) D

Annual Energy Power Consumption

(kWh/1000h) 15 kWh/1000h

On mode power demand for Standard

Dynamic Range (SDR) 14,5 W
