SCD-2021R
IR Camera
Weatherproof
Weatherproof IR Camera User Manual
3
Weatherproof IR Camera User Manual
4
Weatherproof IR Camera User Manual
5
Weatherproof IR Camera User Manual
6
Weatherproof IR Camera User Manual
7
Weatherproof IR Camera User Manual
Apparatus shall not be exposed to dripping or splashing and no objects
such as vases, shall be placed on the apparatus
Samsung Techwin cares for the environment at all product manufacturing
environment, and is taking a number of steps to provide
products.The Eco mark represents
and indicates that the product satisfies the EU RoHS Directive.
fi lled with liquids,
stages to preserve the
customers with more environment-friendly
Samsung Techwin’s will to create environment-friendly products,

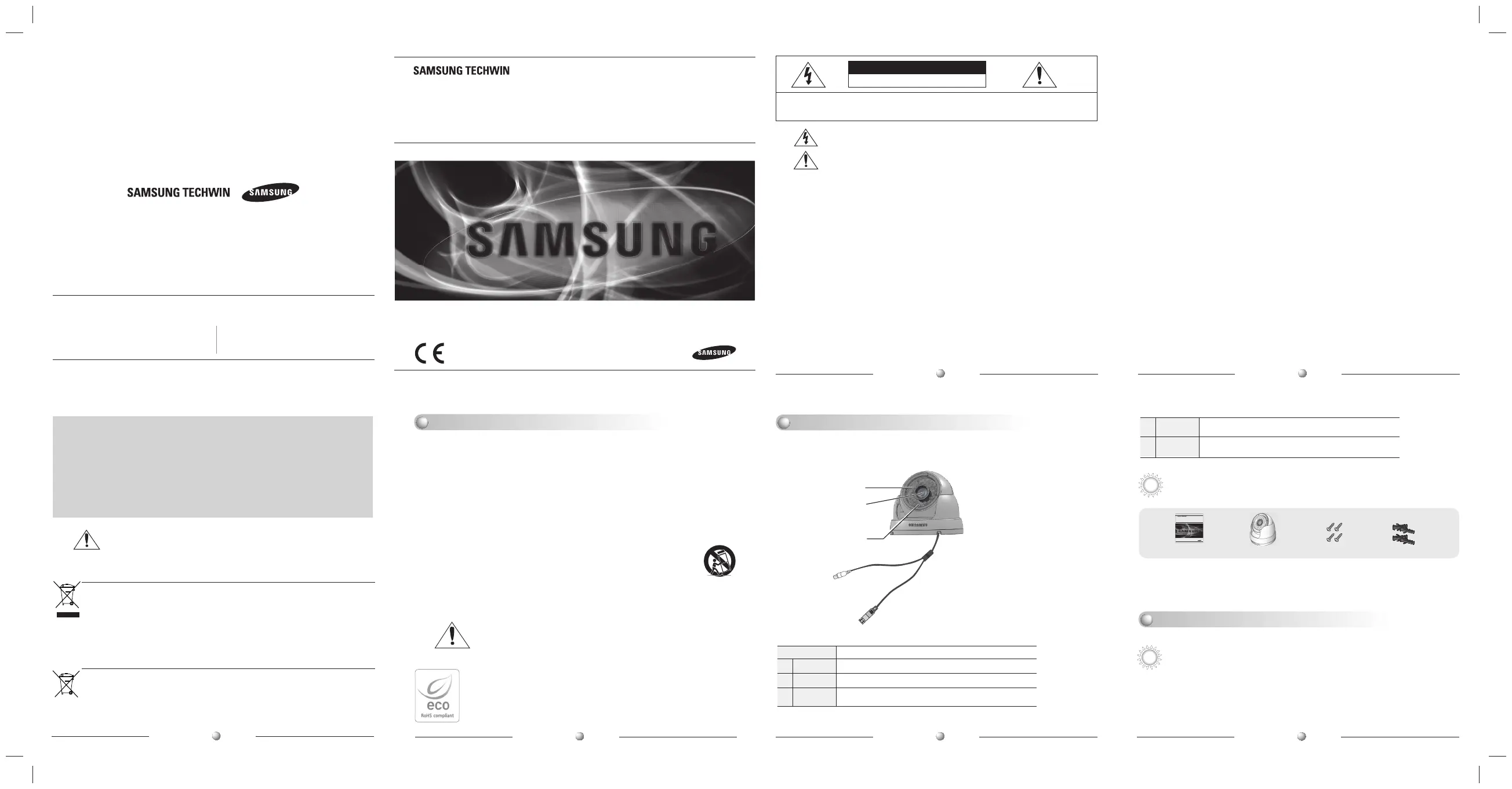

Component Names and Functions
The camera is suitable for both internal and external use.
Equipped with the IR LED and the illumination sensor, enables you to monitor at night as well as in daytime.
Name Description
a
b
IR LED These infrared LED's are controlled by the illumination sensor.
c
Lens
Focal length of 3.6mm enables you to cover relatively longer range of monitoring.
Illumination
Sensor Detects incoming light to control the IR LED.
d
Video output
e
Power Input
Video signals are output through this port. Connect this port to the Video IN port of a monitor.
Connect the power as specified for each model here.
Jack
Terminal
CAMERA Plastic Anchor
Quick Manual
Quick Manual
SCD-2021R
IR Came ra
Weatherproo f
precautions before installation
Ensure you read the following instructions before installing the camera:
ySelect an installation site (ceiling or wall) that can endure at least 5 times of the camera weight.
yStuck-in or peeled-off cables can cause damage to the product or a fire.
d
e
c
a
b
S
A
M
S
U
N
G
Specification
1.
2.
3.
Item SCD-2021RN SCD-2021RP
12
Weatherproof IR Camera User Manual
13
Weatherproof IR Camera User Manual
14
Weatherproof IR Camera User Manual
8
Weatherproof IR Camera User Manual
9
Weatherproof IR Camera User Manual
10
Weatherproof IR Camera User Manual
11
Weatherproof IR Camera User Manual
Installing Camera
Separate the LOCKING BEZEL by turnning anti-clockwise and separate the WALL BRACKET.
Connecting to Power
• Connect the adapter to the power input connector as shown in the figure below.
(The Adapter is not provided with the Camera.)
Use a DC 12V.
Adapter (not provided)
Power Input Connector
Resistance of copper wire [at 20Cº(68ºF)]
• As the voltage drop according to the length of the cable in the above table, a camera may malfunction if
there is an excessively long cable run.
* Voltage for camera operation: DC 12V±10%
* Voltage drops in the above table are variable according to types of cable manufacturer.
For DC Power Type
Copper wire size (AWG)
#24(0.22mm
2
) #22(0.33mm
2
) #20(0.52mm
2
) #18(0.83mm
2
)
Resistance ( / m)Ω0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
Connection to Monitor
• As a connecting method varies according to instruments, refer to the manual supplied with the instrument.
• Connect the cable after power is turned off.
Connect the VIDEO-OUT jack to the VIDEO-IN jack of monitor.
BNC
If you have trouble operating your camera, refer to the following.
If the guidelines do not enable you to solve the problem, contact an authorized technician.
◾ The image on the screen is dim.
• Check if the lens are stained. If dirty, clean the lens with soft, clean cloth.
• The image is dimmer at night than daytime. If the focus is not right, adjust it at daytime.
◾ The contrast on the screen is too weak.
• Adjust the contrast feature of the monitor.
• If the camera is exposed under too strong light, change the camera position.
◾ The camera is not work properly, and the surface of the camera case is hot.
• Check that you have connected the camera to a proper power (DC 12V±10%).
Troubleshooting
Specification
1/3” CMOS
650 TV lines
3.6mm
2
H: 15,734Hz V: 59.94Hz
SCD-2021RN
976 x 496
50dB
0 LUX ( IR-LED )
( ICR )
20m
Item
Imaging Device
Active Pixels
Video
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S/N Ratio
Interlace
Internal
SCD-2021RP
H: 15,625Hz V: 50.00Hz
Lens Type
Focal Length
Max. Aperture Ratio
Digital Noise Reduction
Operational
Day & Night
Gain Control
Shutter Mode
IR Distance
White Balance
Auto
Auto
Auto
Auto (Rolling Shutter)
Auto (3,200K° ~ 6,500K°)
12V DC
0.25A
278g
Environmental
Operating Temperature
/ Humidity -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 85% RH
Electrical
Input Voltage
Current
Mechanical
Dimension
Weight
※
The specification for this product may change without prior notice for product improvement.
Dimension
Select a position where you want to install the camera, and use the screw bolts to mount the
wall bracket onto the wall or ceiling.
ȞȞȞȞ
Adjust the camera lens and the CAMERA HOLDER to face the area to be monitored, and
then turn the LOCKING BEZEL clockwise.
LOCKING BEZEL
WALL BRACKET
CAMERA HOLDER
Unlocking direction
(Anti-clockwise)
Locking direction
(Clockwise)
Monitor
Ø 93 x 78 mm

Produktspecifikationer

Varumärke: Hanwha
Kategori: övervakningskamera
Modell: SCD-2021R

Behöver du hjälp?

Om du behöver hjälp med Hanwha SCD-2021R ställ en fråga nedan och andra användare kommer att svara dig


övervakningskamera Hanwha Manualer

Hanwha

Hanwha SHR-8160 Bruksanvisning

26 Oktober 2024
Hanwha

Hanwha PNM-C34404RQPZ Bruksanvisning

21 September 2024
Hanwha

Hanwha XNO-9083R Bruksanvisning

20 September 2024
Hanwha

Hanwha LNO-6012R Bruksanvisning

19 September 2024
Hanwha

Hanwha XNV-6081R Bruksanvisning

19 September 2024
Hanwha

Hanwha QNO-7022R Bruksanvisning

19 September 2024
Hanwha

Hanwha XNO-9082R Bruksanvisning

19 September 2024
Hanwha

Hanwha XNV-8081RE Bruksanvisning

19 September 2024
Hanwha

Hanwha HCD-6070R Bruksanvisning

19 September 2024
Hanwha

Hanwha QND-8020R Bruksanvisning

19 September 2024

övervakningskamera Manualer

Nyaste övervakningskamera Manualer

Speco Technologies

Speco Technologies WDRB11H Bruksanvisning

27 Oktober 2024
Vivotek

Vivotek AI-108 Bruksanvisning

27 Oktober 2024
Acti

Acti E88 Bruksanvisning

27 Oktober 2024
Yale

Yale WIPC-303W Bruksanvisning

27 Oktober 2024
Grandstream

Grandstream GXV3611IR_HD Bruksanvisning

27 Oktober 2024
Airlive

Airlive DM-720 Bruksanvisning

27 Oktober 2024
Speco Technologies

Speco Technologies O8B7M Bruksanvisning

27 Oktober 2024
Grandstream

Grandstream GXV3615W Bruksanvisning

27 Oktober 2024
Vivotek

Vivotek IP8133 Bruksanvisning

27 Oktober 2024
Olympia

Olympia OC 1280P Bruksanvisning

27 Oktober 2024
