USER MANUAL
USER MANUAL
USER MANUAL
USER MANUAL
USER MANUAL
ENGINEERED IN GERMANY
2
Congratulations!
General instructions
Dear Customer,
Congratulations on your purchase of this high-quality product.
HELIX COMPOSE highlights best quality, excellent manufacturing and state-of-the-art sound quality.
Thanks to more than 30 years of experience in research and development of audio products HELIX COMPOSE sets
new standards in the car audio speaker market.
We wish you many hours of enjoyment with your new HELIX COMPOSE components.
Yours
AUDIOTEC FISCHER Team
General instructions for installing HELIX
loudspeakers
To prevent damage to the speakers and possible injury,
read this manual carefully and follow all installation
instructions. This product has been checked for proper
function prior to shipping and is guaranteed against
manufacturing defects.
For a proper performance and to ensure full warranty
coverage, we strongly recommend to get this product
installed by an authorized HELIX dealer.
If you choose to perform your own installation read the
following information and precautions carefully.
Failure to follow the stated precautions may result in
personal injury and / or damage to the audio system or
vehicle.
1. Always make sure that the speaker will t into
the intended mounting location and that there is
adequate depth for the magnet system.
2. Check for adequate space between speaker and
window, window crank, power window mechanism,
seat, rear deck torsion bars, and other items which
may interfere with the speaker`s mounting. This
is very important if any hole cutting is required.
Detailed size information is indicated in the dimension
section of this manual. Take care that the mounting
surface is at and free from all obstructions.
3. Ensure that the loudspeakers are correctly
connected in polarity. Exchanging plus and minus
may result in signicant loss of sound quality. The
positive leads of the loudspeakers are marked red.
4. Make sure that all speaker wiring is fully protected
from cutting or wear at sharp edges, which can lead
to short circuits that may damage your head unit,
amplier and / or speaker system.
5. Verify that all connection wires are long enough in
order to avoid any mechanical stress on the wires or
the connectors.
6. Make sure that all components are mounted properly.
7. Do not mount the components where water may
splash on them.
8. The quality of the installation has a signicant e󰀨ect
on the overall performance of the speaker system.
Treat each installation step with a high degree of
attention.
9. Avoid low frequency cancellation caused by air
leakage between the speaker basket and the
mounting surface (e.g. mounted on a bended or
uneven surface or mounted in an oversized hole).
10. Mounting panel reinforcement may be necessary
in some cases in order to ensure a stable, torsion-
free and even surface. This can be achieved by
mounting the speaker on a metal, plastic or wooden
sub-ba󰀪e behind the body or door panel. Consult an
installation specialist for further advices.
11. In most cases you can use the original speaker
mounting locations in the doors, A-pillars, body
panels or the rear deck. If these are not available you
have to prepare your own secure installation place.
Due to their structural integrity and accessibility the
precut mounting holes should be used whenever
possible. Information on a proper mounting can be
found in the section “Installation” of this manual.
IMPORTANT: Never cut any metal that is an integral part
of an automobile`s safety or structural car body.
We strongly recommend that you operate the complete
audio system at low volume before nal installation. So
you can check whether each speaker is working before
securing the loudspeakers into their mounting locations.
3
Find your composition
Go to www.audiotec-fischer.com/compose to explore the whole
HELIX COMPOSE platform including an up-to-date overview of
available car-specific adaptors

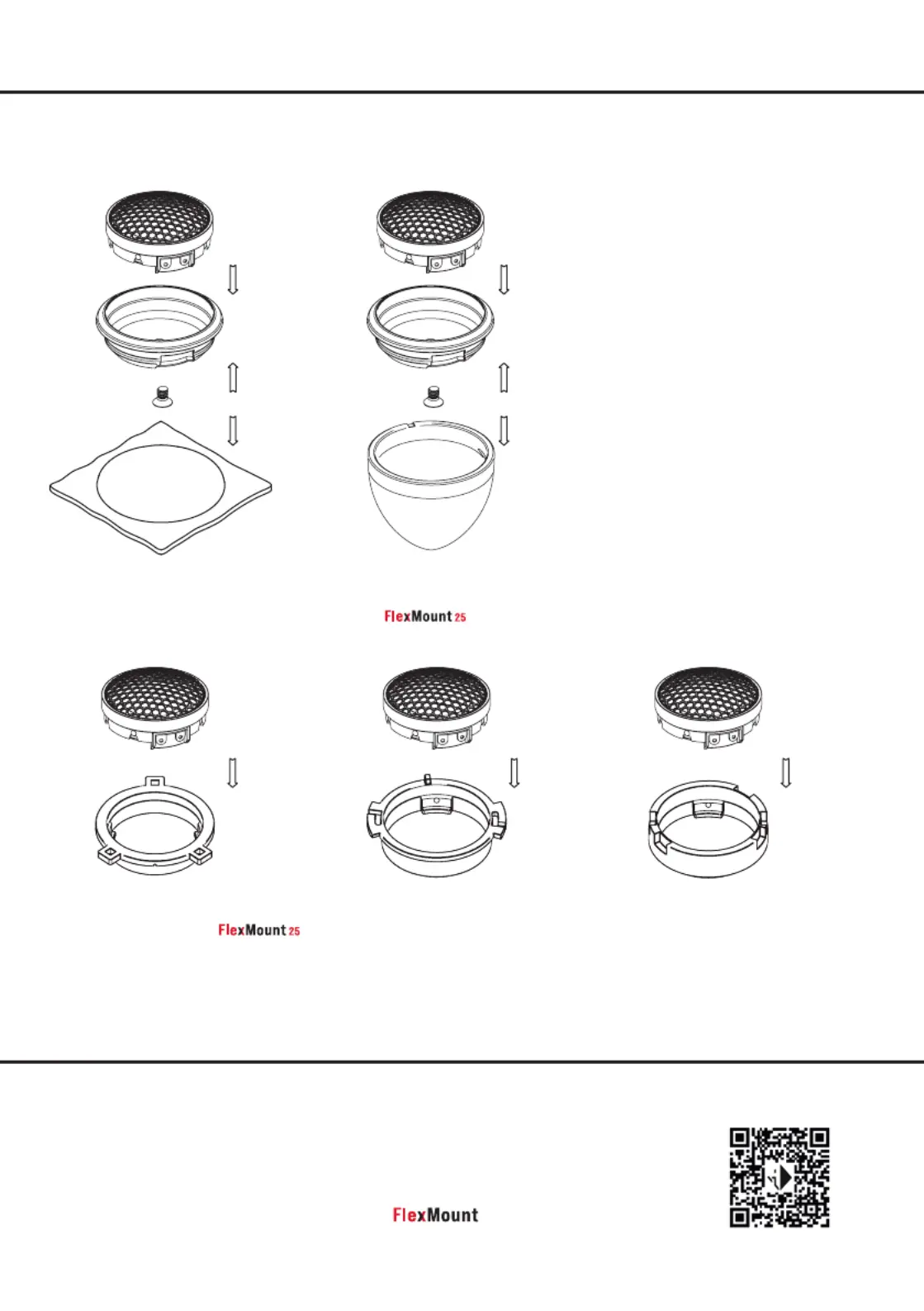

Option a:
Flush mount
Option b:
Angle mount
Option c:
Professional integration with optionally available car- specic adaptor
Step 1
Step 3
Step 2
Step 1
Step 3
Step 2
The optionally available car-specic tweeter adaptor rings allow a tailored and acoustically
optimized adaption of the HELIX COMPOSE tweeters to the vehicles original mounting location. .
Mounting
