Sida 1/18

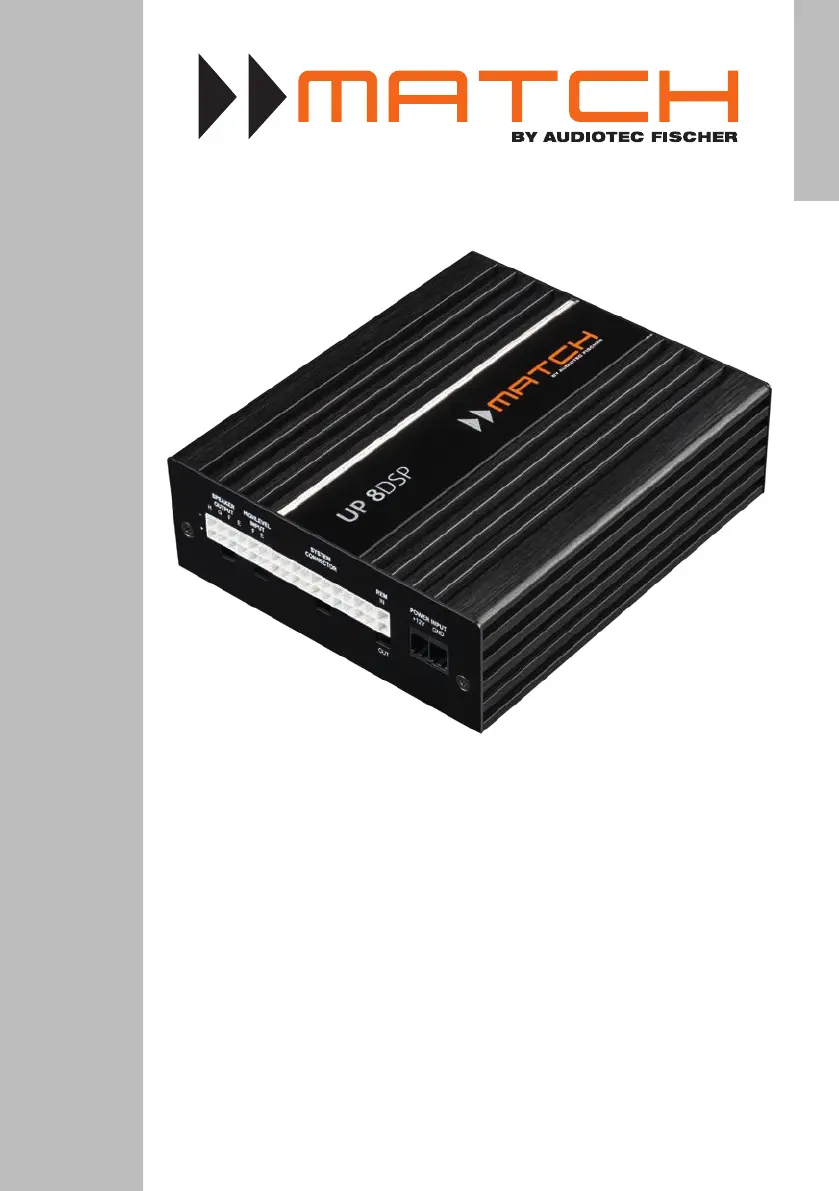

UP 8DSP
U P G R A D E
8-Kanal Upgrade-Verstärker mit integriertem
9-Kanal 64 Bit DSP für universelle Anwendungen
8-channel upgrade amplier with integrated
9-channel 64 Bit DSP for universal applications
deutsch / english
19
Dear Customer,
Congratulations on your purchase of this innovative
and high-qual ity MATCH product.
Thanks to more than 30 years of experience in
research and development of audio products this
amplier sets new standards in the range of digital
ampliers.
We wish you many hours of enjoyment with your
new MATCH UP 8DSP.
Yours,
AUDIOTEC FISCHER
General installation instructions for MATCH
components
To prevent damage to the unit and possible injury,
read this manual carefully and follow all installation
instructions. This product has been checked for
proper function prior to shipping and is guaranteed
against manufacturing defects.
Before starting your installation, disconnect the
battery’s negative terminal to prevent damage
to the unit, re and / or risk of injury. For a proper
performance and to ensure full warranty coverage,
we strongly recommend to get this product installed
by an authorized MATCH dealer.
Install your UP 8DSP in a dry location with su󰀩cient
air circulation for proper cooling of the equipment.
For safety reasons, the UP 8DSP must be profes-
sionally installed. Therefore, use the two mounting
plates which are included in delivery. These are at-
tached to the bottom of the amplier with two short
screws which are included in delivery, too.
When screwing the amplier to the vehicle chassis,
carefully examine the area around and behind the
proposed installation location to ensure that there
are no electrical cables or components, hydraulic
brake lines or any part of the fuel tank located be-
hind the mounting surface. Failure to do so may re-
sult in unpredictable damage to these components
and possible costly repairs to the vehicle.
General instruction for connecting the UP 8DSP
amplier
The UP 8DSP amplier may only be installed in mo-
tor vehicles which have a 12 Volts negative terminal
connected to the chassis ground. Any other system
could cause damage to the amplier and the electri-
cal system of the vehicle.
The positive cable from the battery for the entire
sound system should be provided with a main fuse
at a distance of max. 30 cm from the battery. The
value of the fuse is calculated from the maximum
total current draw of the car audio system.
Use only the included MATCH cable or an op-
tionally available MATCH cable harness for
connection of the UP 8DSP. The use of other
cables can result in damage of the ampli-
er, the head unit / car radio or the connected
loudspeakers! The fuses of the amplier may
only be replaced by identically rated fuses
(2 x 25 A) to avoid damage of the amplier.
Prior to installation, plan the wire routing to avoid
any possible damage to the wire harness. All
cabling should be protected against possible
crushing or pinching hazards. Also avoid routing
cables close to potential noise sources such as
electric motors, high power accessories and other
vehicle harnesses.
Congratulations!
General instructions
en
20

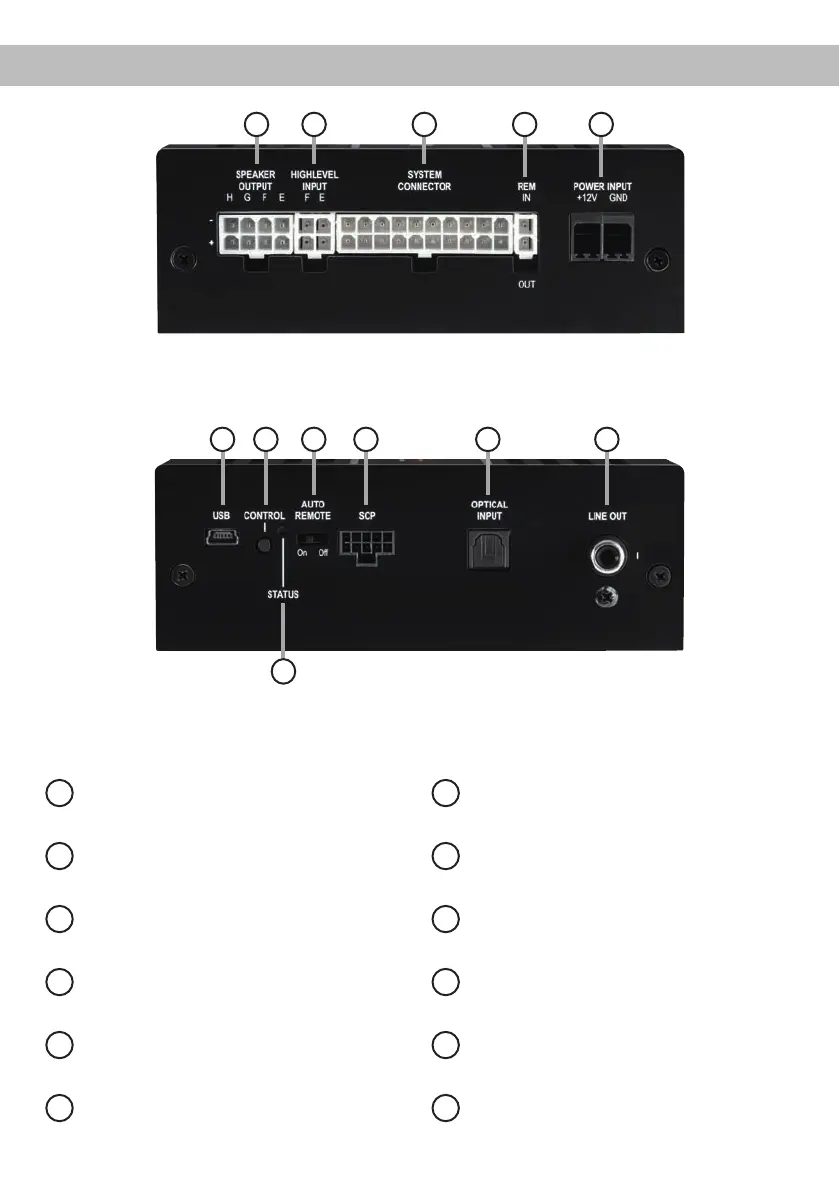

Connectors and control units
1 2 3 4 5
6 7 8 9 10 11
12
1 Speaker Output E - H
Page 23, point 3
2 Highlevel Input E & F
Page 23, point 2
3 System Connector input
Page 23, point 1
4 Remote connectors
Page 24, point 6
5 Power connector
Page 24, point 7
6 USB input
Page 25, point 8
7 Control pushbutton
Page 27, point 2
8 Auto Remote switch
Page 24, point 5
9 SCP (Smart Control Port)
Page 27, point 3
10 Optical Input
Page 23, point 4
11 Line Output
Page 26, point 12
12 Status LED
Page 27, point 1
