Sida 1/8

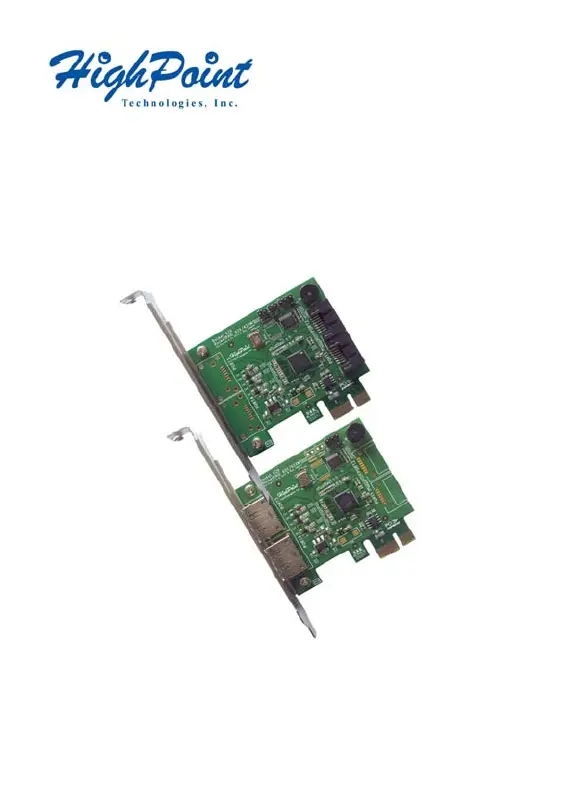

RocketRAID 600 Series 6Gb/s SATA
RAID Host Adapters
(RocketRAID 620 and RocketRAID 622)
Quick Installation Guide
RocketRAID 600 Series 6Gb/s SATA Host Adapters Quick Installation Guide
2
HighPoint RocketRAID 600 Series – PCI-Express 2.0
SATA Revision 3.0, provides dramatically improves performance by doubling
the bandwidth available for storage devices to 600MB/s.
The RocketRAID 600 Series are the premier SATA 3.0 RAID host adapters for
connecting internal or external SATA devices. The RocketRAID 600 series are
designed to optimize storage performance and redundancy with RAID levels 0,
1, 5, 10, and JBOD. Storage connected directly to the RocketRAID 600 series
data ports deliver the highest performance while external disk enclosures with
port multiplier device will enable higher storage capacities.
The RocketRAID 600 series is accompanied by the HighPoint RAID Web
Management interface - a smart and friendly application designed to manage
and maintain storage in Windows, Linux, FreeBSD or Mac OS X operating
systems.
For detailed RocketRAID 600 Series product specifications, please visit
http://highpoint-tech.com/USA/series_600.htm
RocketRAID 600 Series 6Gb/s SATA Host Adapters Quick Installation Guide
3
Hardware Installation
Kit Contents
z RocketRAID 62x controller
z 2 SATA cables (RR620)
z HighPoint Software CD
z Low-profile bracket
z Quick Installation Guide
Installing the RR62x Host Adapter
Note: Make sure the system is powered-off before installing the RocketRAID 62x
host adapter.
1) Open the system chassis and locate an unused PCI-E (2.0 or 1.0) x1, x4, x8
or x16 slot.
2) Remove the PCI slot cover.
3) Gently insert the RocketRAID 62x into the PCI-E slot, and secure the
bracket to the system chassis.
4) After installing the adapter, attach the hard disks or disk enclosure to the
RocketRAID card using the SATA or eSATA cables.
5) Close and secure the system chassis.
Driver Installation (Windows 7, Vista, 2008)
1) After installing the RR62x host adapter, boot to the Windows operating
system.
2) Windows should automatically detect the card, and displays the “Found New
Hardware Wizard”. Select “Locate and install driver software”. When
Windows asks: “Windows needs your permission to continue”, select
“Continue”.
