Sida 1/27

3 Y E A R G U A R A N T E E

C E L L - 6 0 0 - E U

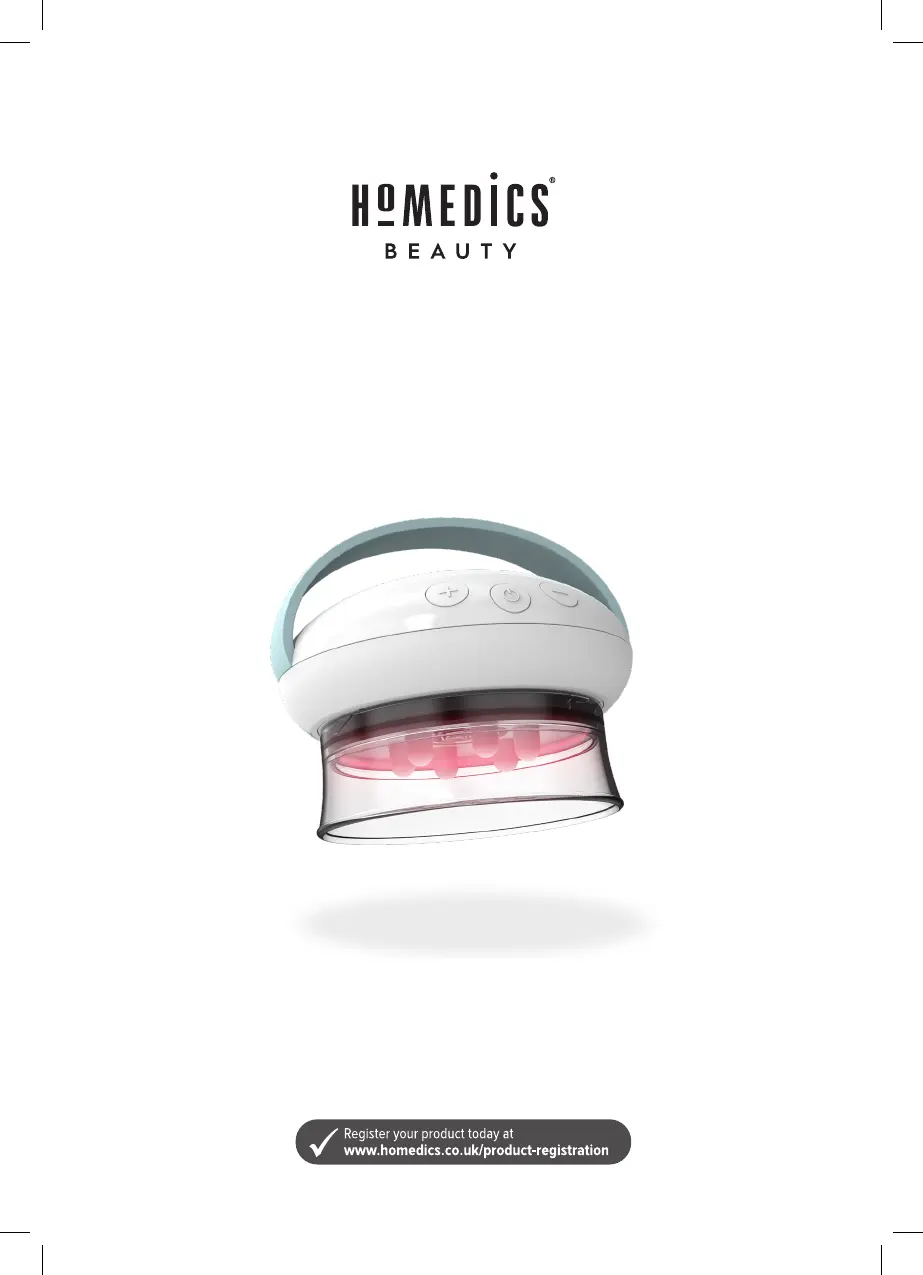

SmootheeIR

CHARGING YOUR DEVICE

GETTING TO KNOW YOUR DEVICE

Introducing Smoothee IR

Smoothee IR works on the same principle as the Traditional Chinese practise of cupping where a vacuum is created to draw skin up into a

smooth cup producing a deep tissue massaging eect. Smoothee IR simplies this technique by using an electronically controlled pump

to create the vacuum and this is enhanced by the addition of gentle infrared (IR) heat. Applying the vacuum and infrared heat to areas

of cellulite helps to loosen and disperse the fat deposits within the connective tissue layer and creates a smoother surface appearance. By

using the cooling head for a few minutes after each treatment, your skin will also be left feeling beautifully soothed.

1. Charge your device by connecting to a USB power

supply using the ‘USB to Type C’ lead supplied.

The LEDs on the front of the product will light

sequentially during charging. When all 3 LEDs are lit

continuously the product is fully charged and should

be disconnected from the power supply.

2. A 4-hour charge* will provide up to 3 hours of cordless

use.

3. When switching the device on, all 3 LEDs will blink 5

times if battery is low and needs charging.

• Switch the device o and unplug the charging lead before cleaning.

• Remove the cup by twisting counter-clockwise. The cups can be washed in

warm soapy water. Dry carefully before storing away.

• Wipe any residual oil from the device and from the cooling head with a

slightly damp cloth and dry immediately.

• DO NOT wash or immerse the device or the cooling head.

• After 3-4 weeks of use, gently remove the felt lter with tweezers and

replace with a new lter (supplied).

• Store all parts in their original box for safekeeping.

CLEANING & CARE

1. 3 LEDs

2. Power Button

3. + / - Buttons

4. Strap

5. USB charging socket

6. Cooling Head

7. Large Cup

8. Medium Cup

9. Small Cup

10. Massage ngers

11. Replaceable felt lter

12. USB cable

*Based on using a 1A USB power adapter (not supplied)

GB I 2

CUPPING TREATMENT

• The cups are designed to be used on lightly oiled skin. We recommend a light application

of a simple baby oil, olive oil or liquid coconut oil to the skin before treatment. Please

avoid perfumed oils as these can damage/discolour plastic surfaces. Do not use on

un-oiled skin.

• If you know that you are prone to bruising easily, you may wish to carry out a patch

test on a small area prior to full treatment to assess the eect on your skin. As with any

vacuum cupping treatment, temporary bruising may occur on the treated area, but

should resolve within a few days.

• Attach your chosen cup to the device by locating the lugs and twisting into position. The

larger cups are generally suitable for areas such as thighs and buttocks and the smaller

cups for areas such as arms and calves.

• Slip your hand under the silicon strap and press the power button. This will activate the

vacuum suction and IR heat simultaneously. There are 3 levels of continuous suction

and one of intermittent suction as indicated by the 3 LEDs. Press the + and – buttons to

change levels. Intermittent suction is the gentlest setting and is indicated by a single LED

pulsing on and o. Note: there is no IR heat on this gentlest setting.

• We recommend starting with either intermittent or low continuous suction while you get

used to the device. Place the device onto the skin and immediately start to move it slowly

in a circular or back and forth motion across the area to be treated taking care to maintain

contact between the cup and the skin. There is no need to apply pressure, but do keep the

device moving at all times. If the suction feels too strong or if it’s hard to keep the device

moving, press the power button to release the vacuum. Start again at a lower intensity

level and/or with a larger cup. In normal use, you will see and feel the skin being drawn

up into the cup and across the massage ngers.

• To stop the treatment at any time, simply press the power button to release the vacuum.

• Treatment of each area usually takes around 3-5 minutes. Treat up to 3 times a week

for the rst week building up to once a day if desired. Skin will typically start to appear

smoother after just a few weeks.

• Never treat areas of irritated or broken skin, or over varicose veins or moles.

• If bruising occurs it is always recommended to wait for this to fade before re-treating the

same area.

• Remove the cup after use by twisting counter-clockwise.

COOLING TREATMENT

• After removing the cup from the device, attach the cooling head by locating the lugs and

twisting into position.

• Press the power button to activate the cooling. The stainless-steel surface will start to

cool down immediately. Use the + and – buttons to adjust the cooling temperature as

required to what feels comfortable for you. Level 3 (3 LEDs lit) is the coldest.

• Gently apply the cold surface onto the skin, moving slowly over the whole of the treated

area. Continue with this treatment for a few minutes to help soothe and rm the skin.

Press the power button to switch o.

PLEASE NOTE: Auto-switch o will occur after 10mins of cooling. If further cooling time is

required the unit can be turned back on for another 10 minute session.

GB I 3

BEFORE AFTER
