Sida 1/11

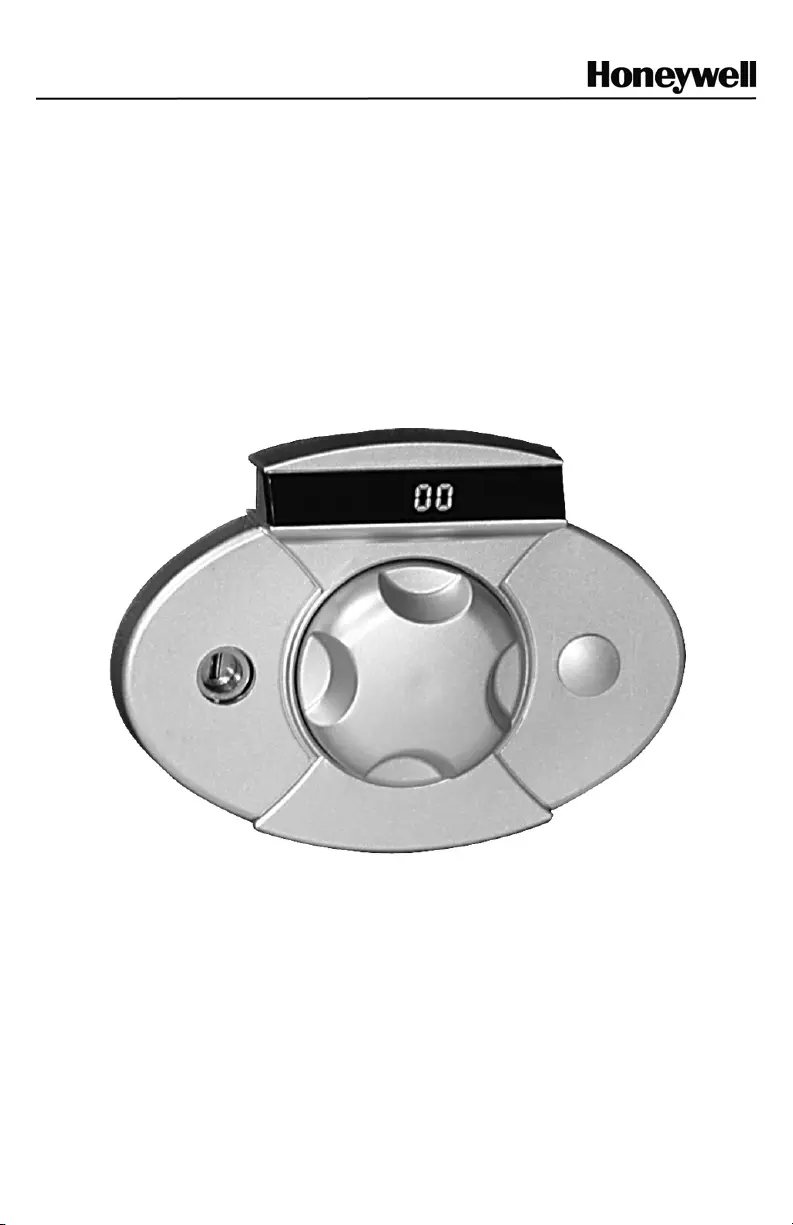

Models 5203 / 5205 / 5207 / 5215
STEEL SECURITY SAFE WITH
DIGITAL DIAL LOCK
Read this manual carefully and never store it inside the safe!
1
Models 5203 / 5205 / 5207 / 5215
Steel Security Safe with Digital Dial Lock
PACKAGE CONTENTS
1 – Steel Security Safe
1 – Operation Manual
2 – Entry Keys
2 – Override Access Keys
4 – “AA” Batteries
1 – Mounting Kit w/ Bolts
ATTENTION
DO NOT RETURN SAFE TO STORE!
For missing parts or difficulty operating your safe, please contact our Consumer
Assistance Department by telephone.
Store will not accept returned products without prior authorization. You must first
contact our consumer assistance department.
US/Canada 1- - - 877 354 5457 (Toll Free)
Mexico 01- - - 800 288 2872 After English voice recording stops you must then enter
800 860 1677 to complete your call. (Toll Free)- -
Australia 0011 800 5325 7000 - - - (Toll Free)
Germany/New Zealand 00 800 5325 7000 - - - (Toll Free)
Other Countries XX*- - - 310 323 5722
- XX* Dial U.S. Country Code first (Toll Charges Apply)
PRODUCT OVERVIEW
A - Safe Door
B - Access Key Lock
C - LED Display panel
D - Override Key Lock / Removable Cover
E - Safe Cabinet
F - Electronic Digital Dial
G - Safe Serial Number
H - -Bottom Panel Pre drilled Mounting Holes
I - -Rear Panel Pre drilled Mounting Holes
2
SETUP & OPERATION
STEP 1. OPEN SAFE USING OVERRIDE KEY
1. Insert the Access Key into the lock and then remove the
override key lock cover and insert the override key.
2. Turn the Override key counter clockwise to the and left
turn the access key clockwise to the right and pull the
door open.
3. While the door is open, return the Access key to the
locked position and then turn and remove only the
Override Key. Reinstall the override lock cover and safely
store the key in a location away from the safe.
STEP 2. INSTALL BATTERIES
1. Remove the battery compartment cover located on the
inside door panel.
2. Insert (4) “AA” batteries making sure they are installed
properly with regards to (+ - ) polarity. See Diagram.
3. Replace the battery cover.
4. Do not close door before testing digital dial lock.
IMPORTANT NOTE: The batteries provided with the safe are for use during
initial programming and set-up only. They are not for long term use and should
be replaced with (4) long lasting Alkaline or Lithium batteries.
STEP 3 : . TEST DIGITAL DIAL LOCK
FACTORY DEFAULT CODE (00, 00, 00, 00, 00)
1. Turn the Digital Dial lock knob stopping when “00”
appears on the LED display.
2. Press in on the Digital Dial knob, “00” will flash 3 times
and a single dot will appear on the LED display.
3. Repeat this process 4 more times and each time
“00” will flash 3 times and an additional dot will appear
on the readout for a total of 5.
4. When the fifth entry is made, a small unlocked
symbol will also appear on the readout. At this time
the safe can be safely opened by turning the Access
Key to the left.
5. Note: You have only 20 seconds between each
digital entry and will have to start at the beginning
if you time out during programming.
1ST Successful
Entry
2
nd Successful
Entry
3rd Successful
Entry
4
th Successful
Entry
5th
Successful
Entry
ENTERING THE WRONG CODE
If while opening your safe an incorrect code is entered,
the following error messages will appear on the LED
display: E1 for the first incorrect entry / E2 for the second
incorrect entry / E3 for the third incorrect entry.
1ST Wrong
Entry
2nd Wrong
Entry
3rd Wrong
Entry
SECURE LOCKOUT PERIOD
For security reasons, when the 3rd incorrect entry is made
and the E3 error message appears, then the digital dial
will not operate for two minutes. During this lockout
period access to the safe can only be made using the
override key. Once the lockout period has expired, then
the safe can be unlocked using the correct pass code.
