ASSEMBLY INSTRUCTION

Item#:5750 75411- - LTWD Metal Back Side Chair

** Please make sure you have all prior to assembly.parts indicated below

Assembly Steps:

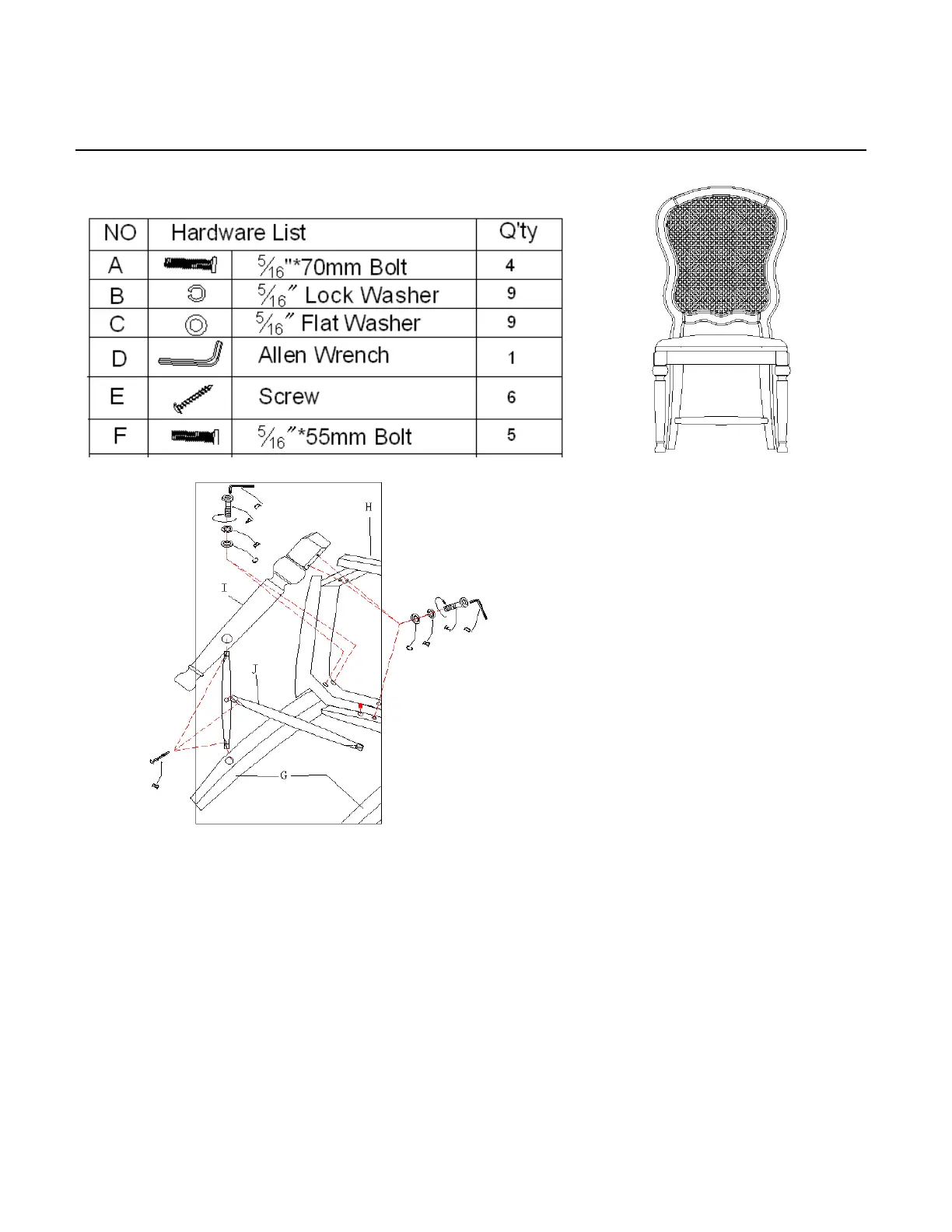

Diagram 1

There are two K/D chairs in one box.Please follow numbers on one chair and letters on the other

chair during assembly.

1. ( Place chair back G) on a clean surface.

2. (H G s (F s (BTighten seat frame ) to chair back ( ) by using bolt ), lock washer ) and flat washers (C)

at the center location with allen wrench (see diagram ) to chair (D) 1) .Then tighten seat frame (H

back ( ) by using boltG s (A), lock washer ) and flat washers (B s (C) at the corner blocks allen with

wrench(D). (see diagram 1)

3. Please follow numbers on legs(I) and corner blocks. Assemble front legs (I) onto front corner

blocks of seat frame (H),using bolts(F), lock washer(B) and flat washers (C).Tighten all bolts by

hand.(See diagram1)

4. Tighten center stretcher to side stretcher .then connect front legs(I G) with chair back ( ) by stretcher

(J) 1) using screws (E) am (See diagr .

5. After all bolts are attached and hand tightened, turn the chair upright.

6. Level the chair following the “chair leveling instruction” as below.

7. Make sure the chair is level and then tighten all bolts completely by using allen wrench . (D)

2/2

PLEASE READ THESE INSTRUCTIONS PRIOR TO ASSEMBLING THE

CHAIRS

CHAIR LEVELING INSTRUCTION SUPPLEMENT

Chair leveling procedures:

To make the assembly process easy and efficient, please read the entire instruction sheet prior to

assembling the chair. Make sure all hardware listed is included. To properly assemble the chair, none of

the bolts should be fully tightened until all components are attached to the chair. This will allow an

opportunity to level the chair and prevent any unnecessary “rocking”.

1. Place the loosely assembled chair on a hard flat surface.

2. Apply gentle downward pressure on the seat. This step eliminates rocking and ensures the chair to

be level.

3. Once the chair is level, tighten all bolts and nuts.

Note:

Most floors have slight irregularities that can affect chair leveling. If your chair is uneven when placed

in its desired location, perform the following steps:

1. Loosen front legs to finger tight.

2. Extend both front legs ward to their fullest length.up

3. Gently push downward on the front edge of the seat until all four legs rest on the floor.

4. -Re tighten all bolts and nuts.

Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and water solution.

Polish the finish with soft cloth and an industry recognized furniture polish.
